MS line pipe cast basalt pipe

Product Overview

Description



Cast basalt products - physical and chemical performance

Category	Attribute
Specific Gravity	3g/cm3
Compressive Strength	686 MPa or higher
Bending Strength	60 MPa or higher
Impact Strength	1.76KJ/M2
Abrasion Strength	0.07g/cm3
Vickers Scale	720kg/ or higher
Thermal Expansion Coefficients	60 max 8.92*10 -6
Elasticity Modulus	1.67*105MPa
Chemical Attack Resistance
95%-98%H2SO4	98% or higher
20% H2SO4	94% or higher
20%NaOH	98% or higher

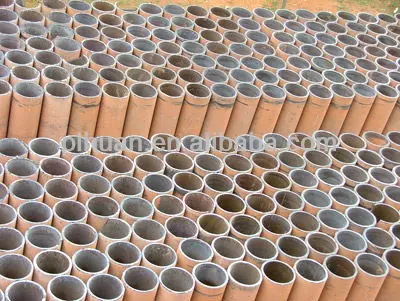

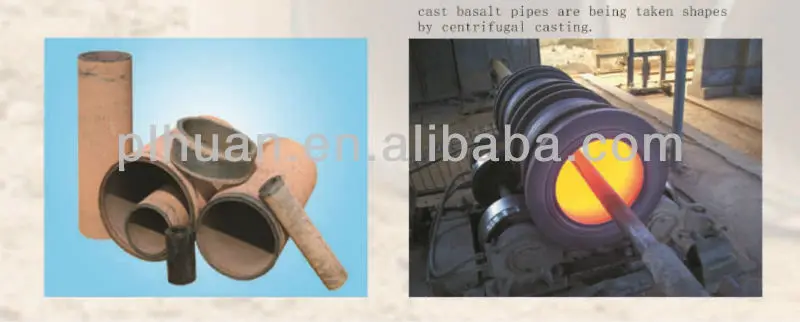

1:It is made of basalt cast basalt pipes:

The cast basalt pipes owing to an excellent performance of abrasive and corrosion resistance .It may be used as the liner of pipeline for hydraulic,pneumatic of conveyance of abrasive,corrosion materials or slurry.We can offer the basalt pipes with nominal diameter of 40mm-800mm.



2:The basalt is used as liner.

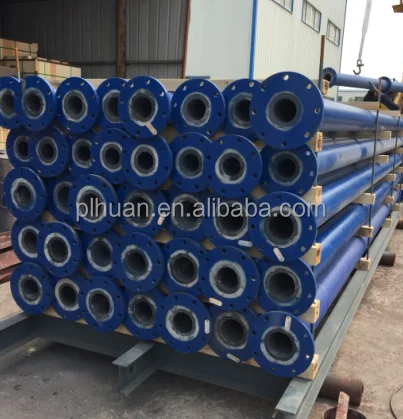

Cast basalt lining steel pipes :

The basalt liner are inserted and embeded with a dense cement mortar inside the steel pipe,it can be used in higher working pressure and also easy to install and transportation.

We can offer the straight pipes,bends and tees with nominal diameter of 40mm and above.





It may be used as the liners of pipelines for hydraulic / pneumatic conveyance of abrasive / corrosion materials or slurry.We can offer the basalt pipes with nominal diameter of 40mm~800mm.   Main specifications. NO. Dn t L ZG100 100 17.5 20 25 500-1000 ZG125 125 ZG150 150 ZG175 175 ZG200 200 ZG225 225 ZG250 250 ZG275 275 ZG300 300 ZG350 350   NO. Dn t L ZG400 400 20,25 500-1000 ZG450 450 ZG500 500 25 ZG550 550 ZG600 600 30 500-800 ZG650 650 ZG700 700 ZG750 750 ZG800 800
