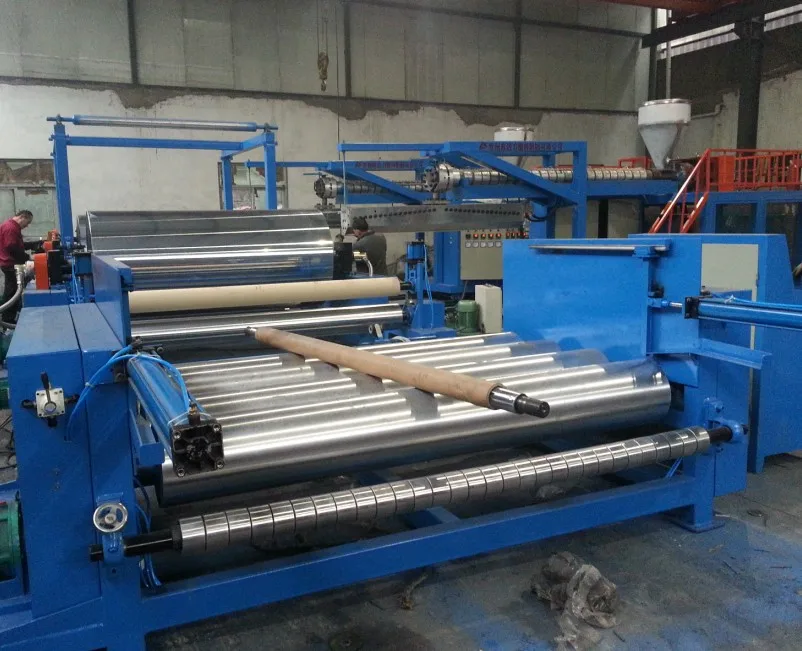

Extrusion Laminating Coating Machine DL

Product Overview

Description

Extrusion Laminating Coating Machine







    Extrusion Laminating Coating machine is a complete product line adopting casting extrusion process. PE or PP material mixed with addtives is fed through feeding system to extruder and flat head extrusion die. Hot melt is coated on top of base fabric or paper from the unwinder passing calender rollers for forming and chill down, Then guided by pulling rollers and trimmed by two knives on both sides, the coated material is take up into rolls at winder station.



Process of Extrusion Laminating Coating Machine

• Feeding systems with vacuum feeder
• Extruder with screen changer
• T die of internal cavity

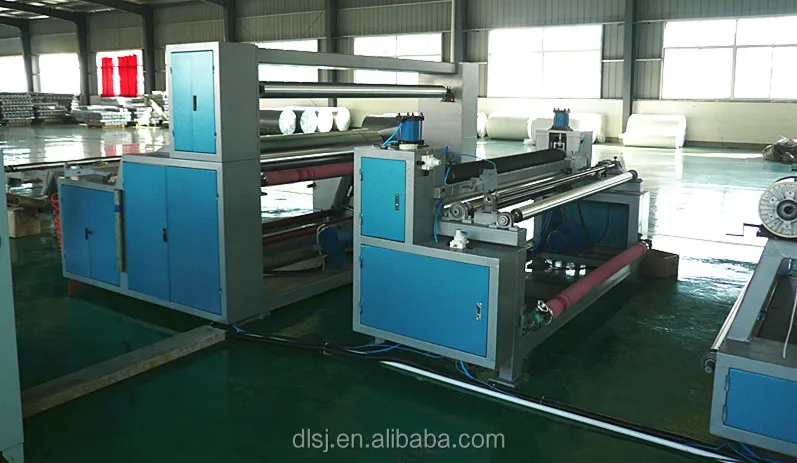

• Double station unwinder with automatic turnover mechanism
• Calender with horizontal and vertical arrangement of the rolls

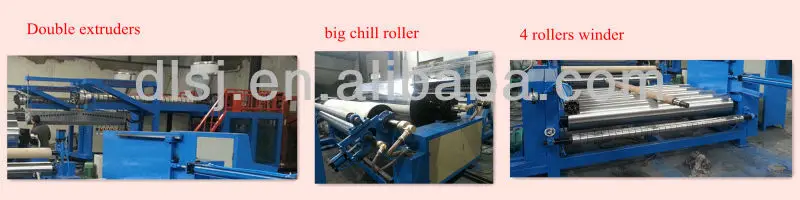

• Chill rolls where extruded melt is transformed into a film and quickly cooled down
• Embossing roll forming embossing pattern on base fabric
• In-line triming equipment
• Film guiding system

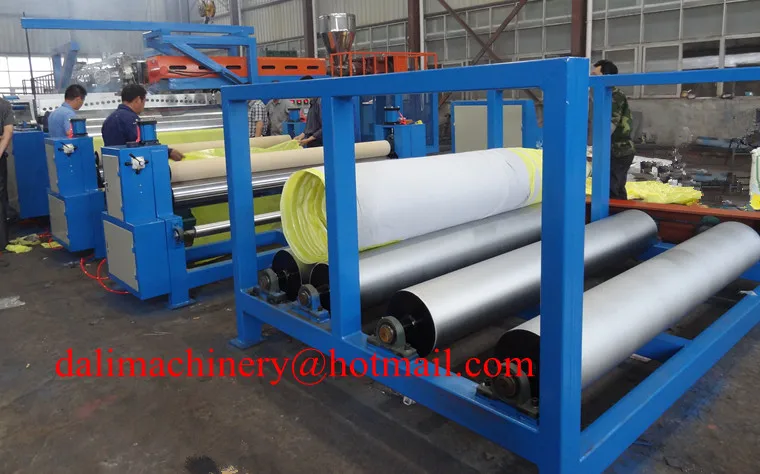

• Surface, centre/surface and winding unit
