Product Overview

Description

Sinta composite BS EN124 D400 Frp Plastic Manhole Cover is strictly produced according to the BS EN124 standard.

Sinta D400 manhole cover own EN124, SGS, ISO9001: 2000 certificates.
The manhole cover can be lockable, watertight / waterproof, hinged.
Testing load can match A15, B125, C250, D400, E600.
Sinta manhole cover are mainly exported to Europe market.

Sinta SMC/FRP Composite EN124 Manhole Cover Advantages:
1. Against theft
Sinta SMC manhole cover is non-metallic, non-conductive and non-sparking. It has no value of recycling, thus completely solving the problems caused by theft.

2. High load capacity
SMC manhole cover main components are fibreglass and unsaturated resin. It is strong enough to support any load. There's no problem for its load capacity as strong as ductile iron. Sinta's existing moulds load capacity are A15, B125, C250, D400, E600.

3. Free design
It can be designed according to the user's demands, including color, logo, surface pattern, and any other specification.

4. Long life
Range of UV stable colours available that will not flake or crack. Minimum lifespan of 30 maintenance free years.

5. Well sealed
It can be used hermetically, and effectively prevent those poisonous gases leaking out from cesspool. Well sealled, no noise pollution or rebound.

6. Good wear and corrosion resistance
It will never rust because it has good wear and corrosion resistance.

7. High and low temperature resistance
Excellent insulator against heat ( from -40 degree to 300 degree)

8. Lighter weight and more competitive price
Compared with cast iron manhole covers, the weight of composite manhole cover especially SMC manhole cover is lighter.

The result is composite manhole cover is more convenient to transport, install and repair.
In all, the price of composite manhole cover is much lower than the same specification cast iron covers.



Product Description:

Composite Manhole Covers
Standard: EN 124-1994
Loading capability: A15+, B125, C250, D400, E600
Material: Sheet Moulding Compound ( SMC )

SMC material

SMC material is short for the Sheet Mold Compound,The main raw material consists of the GF (fiberglass), UP (unsaturated resin), low-shrinkage additive, MD (fill) and various accessories.

SMC Manhole Cover in EN 124 with A15+, B125, C250, D400, E600, F900

Application of plastic manhole cover:
Gas
Water
Main Road
Telecommunications
Petrochemical Installations
Underground Electrical Installations
Access to Pipework Chambers and Petroleum Storage Tanks.



Hebei Sinta FRP Trading Co., Ltd.

Name	FRP Composite Manhole Cover
Technics	SMC: Sheet Molding Compound
Reinforcing	Materials: Glass fiber and glass mat
Basic        Material	Special unsaturated polyester resin
Auxiliary Material	Gel coat resin, firming agent accelerating agent and abrasive material.
Standard	EN124   ISO:9001              Inspection manhole cover made of polymer matrix composite
Features	Guard against theft: Due to the material can't be recycled, so it's an anti-theft product. Lifetime  Outproduce with great effective load. High-strength , good toughness, impact resistance ,non-     conductive, corrosion resistance and it be able to bear+80 to -40 Easy to color   It will be designed according to clients requests.
Application	Greenbelt underground electrical installations telecommunications installations                        water installations petrochemical installations                         and so on

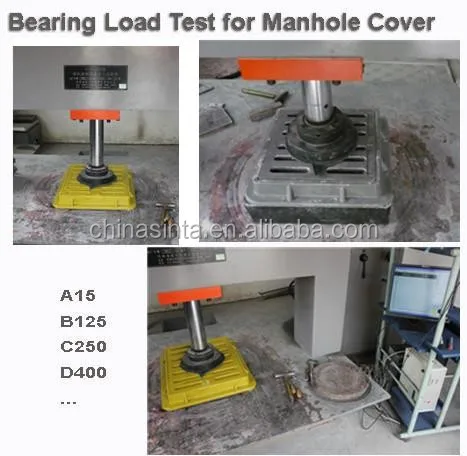

D400 manhole cover pictures:

Packaging Detail of plastic composite manhole cover:

Product packaging by the standards of each country.

Delivery Detail:leadtime within 30days



Industrial Application

• Floorings


• Staircase


• Walkways


• Foot Bridges


• Platforms


• Trench Covers


• Earth Pit Covers


• Water treatment plants



Domestic Application

• Channel drain covers


• Elevated Car Park


• Swimming pool overflow


• Gardens


• Fencing



Specification of BS EN124 D400 Frp Plastic Manhole Cover

All the sizes of manhole covers are available in the following load bearings:
1. 5 tons (A 15) / 2.5 tons / 5 tons / 10 tons / 12.5 tons (B 125) / 20 tons / 25 tons (C 250) / 40 tons (D 400)



Main dimensions of classical smc/bmc manhole cover:



Circular	Rectangular	Square
300 mm	300 mm x 270 mm	300 mm x 300 mm
400 mm	600 mm x 450 mm	400 mm x 400 mm
500 mm	700 mm x 500 mm	450 mm x 450 mm
600 mm	800 mm x 450 mm	500 mm x 500 mm
690 mm	900 mm x 450 mm	600 mm x 600 mm
900 mm	900 mm x 600 mm	675 mm x 675 mm
1000 mm	990 mm x 1220 mm	750 mm x 750 mm
1100 mm	950mm x 750mm & 600mm x 750mm	800 mm x 800 mm
	(2 covers with single frame)
	675 mm x 2210 mm	900 mm x 900 mm
	(3 covers with single frame)
	675 mm x 1440 mm	900 mm x 900 mm
	(2 covers with single frame)	(2 covers with single frame)
	800 mm x 1600 mm	1000mm x 1000mm
	(2 covers with single frame)
		1200mm x 1200mm
		1500mm x 1500mm



Our advantages for BS EN124 Manhole Cover

(1) 4years' experience in fiberglass product trading, have good knowledge on process, quality control, request on different products, ready to offer international service for you.
(2) Complete production line from fiberglass sheet to mould and finished products,which keeps a better quality control and will also save cost for you.
(3) Hydraulic Press Machines with capacity from 60 to 2000 tons, which enable us to make products with maximum projected area of 4 square meters, so that we can meet your different size requirements.
(4) 150km away from Shanghai Port, which will shorten the delivery time and save freight cost for you.





 Our staff will supply you good quality with excellent service.



Black, blue, brick red, green, grey etc. If you need special color, please provide sample.
2.How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 15days
Samples will be prepared within 5days.
3.What's the MOQ and payment you support?
Generally speaking the MOQ is 1tonne,but we also can provide you samples for quality inspection.
T/T,L/C,Cash are accpeted
4.Does you charge for the samples?
According to our company policy, we just sent free samples to customers while the customers bear the freight fees.
5. Can you produce according to customers'design?
Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould open fees,after certain quantity, the open mould fees will be returned as product.



Contact us:

If you are interested in our frp composite manhole cover, please send email, we will quickly get in touch with you and give you discounted prices.Hope to be your reliable supplier!
