AUP2 din rail mounting Modular Pushbutton Switch

Product Overview

Description

Function and Feature:

Controlling electrical either directly or via starters,contactors,relay etc

Pushbutton with lamp could be used as indicator



Technical Data:

Rated operational voltage(Ue):230VAC

Rated operational current:≤20mA

Rated frequency:50/60Hz

Utilization category:AC-14

Rated operational current(Ie):6A

Assembly of contact:1NC+1NO,2NC+1NO,3NO,2NC+2NO

Electrical endurance:100000cycles(AC1,AC7a,AC3,AC7b)

Mechnical endurance:250000cycles

Rated insulation voltage(Ui):500VAC

Rated impulse withstand voltage(Uimp):2KV

Terminal:pillar type

Cable termination:10mm²

Torque of screw:1.2Nm

IP degree:IP 20

Standards:IEC/EN 60947-5-1

Catalog No.                                                                                                               CTN Size:46.5x24x17.5cm

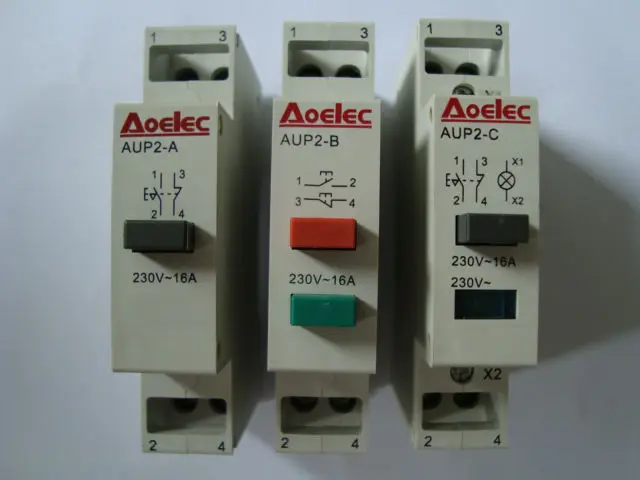

Model	Description	QTY/Box	QTY/CTN
AUP2-A	one button,230VAC 16A	12	120
AUP2-B	two button,230VAC 16A	12	120
AUP2-C	one button with LED light,230VAC 16A	12	120



About us:



Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
