multi spindle horizontal furniture drilling machine

Product Overview

Description

Techinical specifications:

Spindle speed	2840rpm
Suitable voltage	220/380/415V,50/60Hz
Weight	550kg
Heigth of working paltform off ground	900mm
Dimension	2400x1200x1200mm
Max drilling diameter	35mm
Drilling depth	60mm
Max processing pitch	1620x640mm
Minimum processing pitch	120x32mm
Total power of motor	1.5kwx2
Installation pitch of drilling head	10mm
Compressed air pressure	0.6-0.8kg/cm2
Total number of drilling shafts	21x2=42 pcs



Product introduction:

1. Two-ranged multi drilling machine MZB42A;

2. multi spindle drilling machine;

2. Hinge Drilling Machine is woodworking machine for hinge of door, window;

3. This 2 heads hinge boring machine as hinge driller mainly used for drilling hole for hinges;

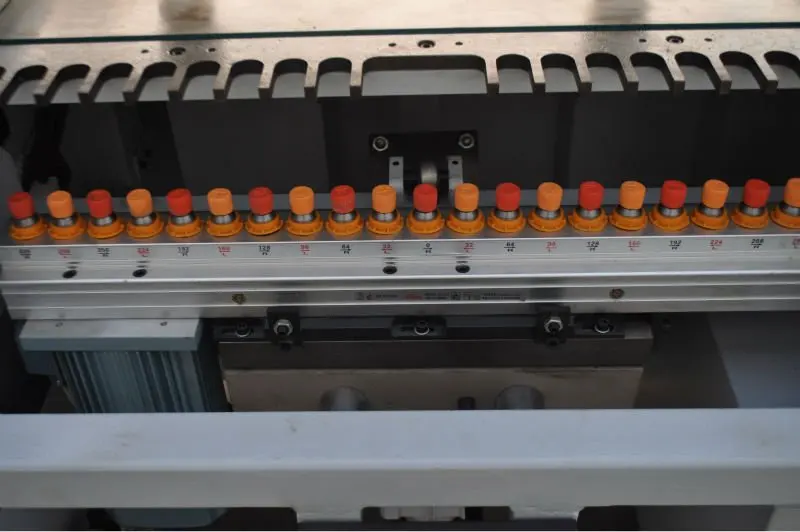

4. The imported original drill row, famous and superior original electric appliance;

5. The machine tool elements choose the superior steel materials. They have been heat-treated with high intensity and eternal non-deformation;

6. The kinetic components choose the high-grade anti-wear materials with fine durability;

7. Size positioning, prompt; accurate and convenient operation.

8. We product other multi drilling machine,because the space is limited,if you need more pictures or information of multi head drilling machine,please contact me anytime.
