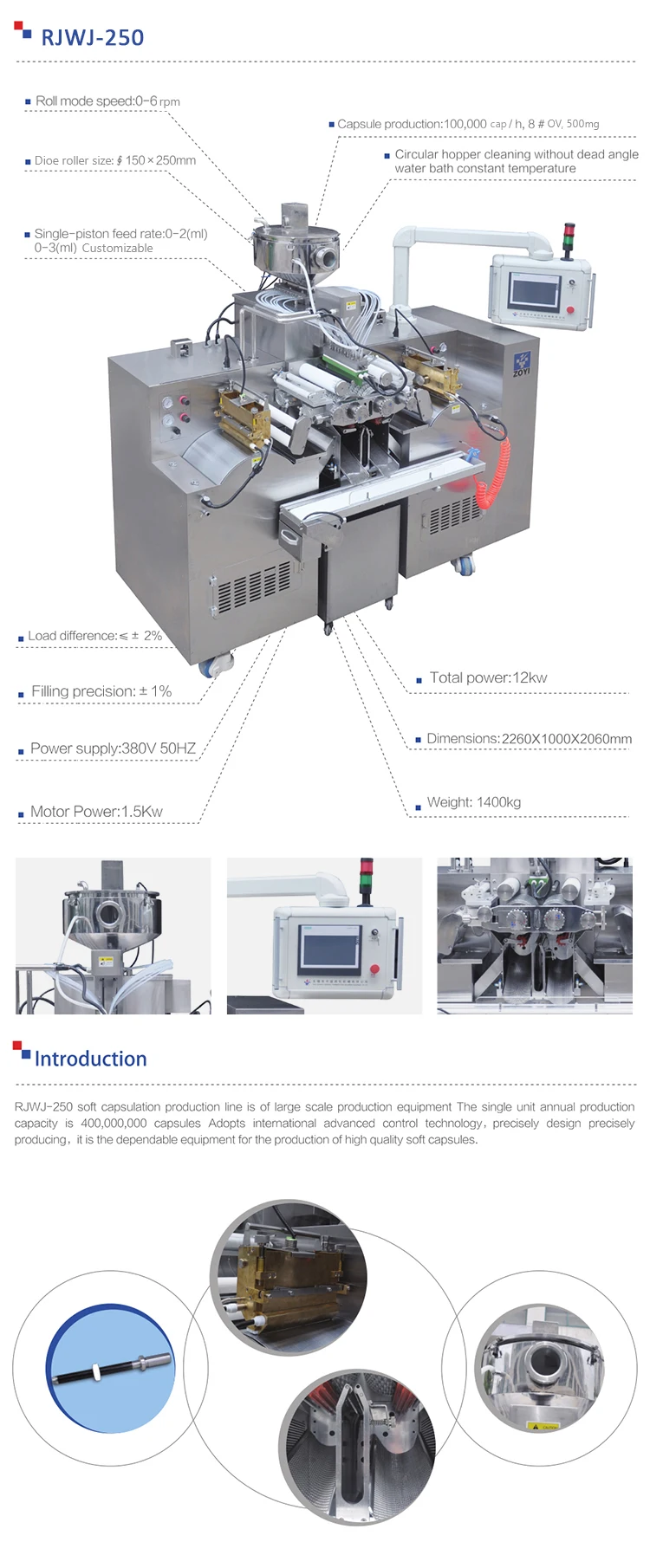

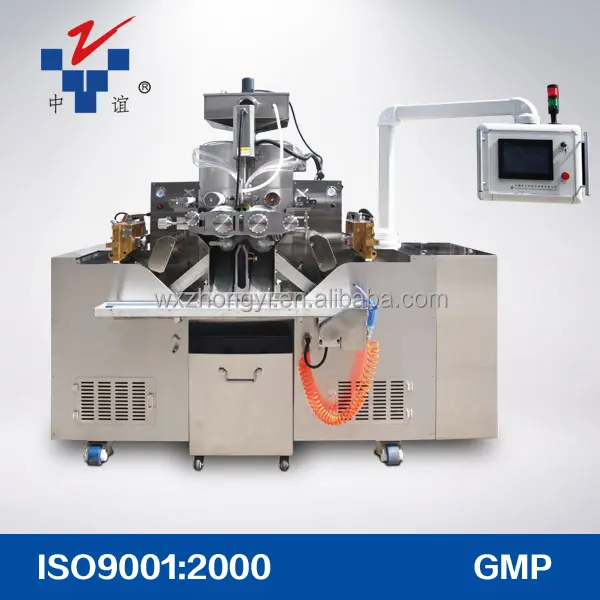

High quality RJWJ 250 Large production pharmaceutical Softgel Encapsulation Machine

Technical Parameters:

Die Roller Speed: 0-5 RPM(Frequency Control)

Size of Die Roller: 150*250 mm

Quantity of Plunger: 20

Total Power: 19 KW

Overall Size: 2100*1000*2000 mm

Weight: 1400kg

The cooling drums are cooled by cold air.

Productivity of Machine:

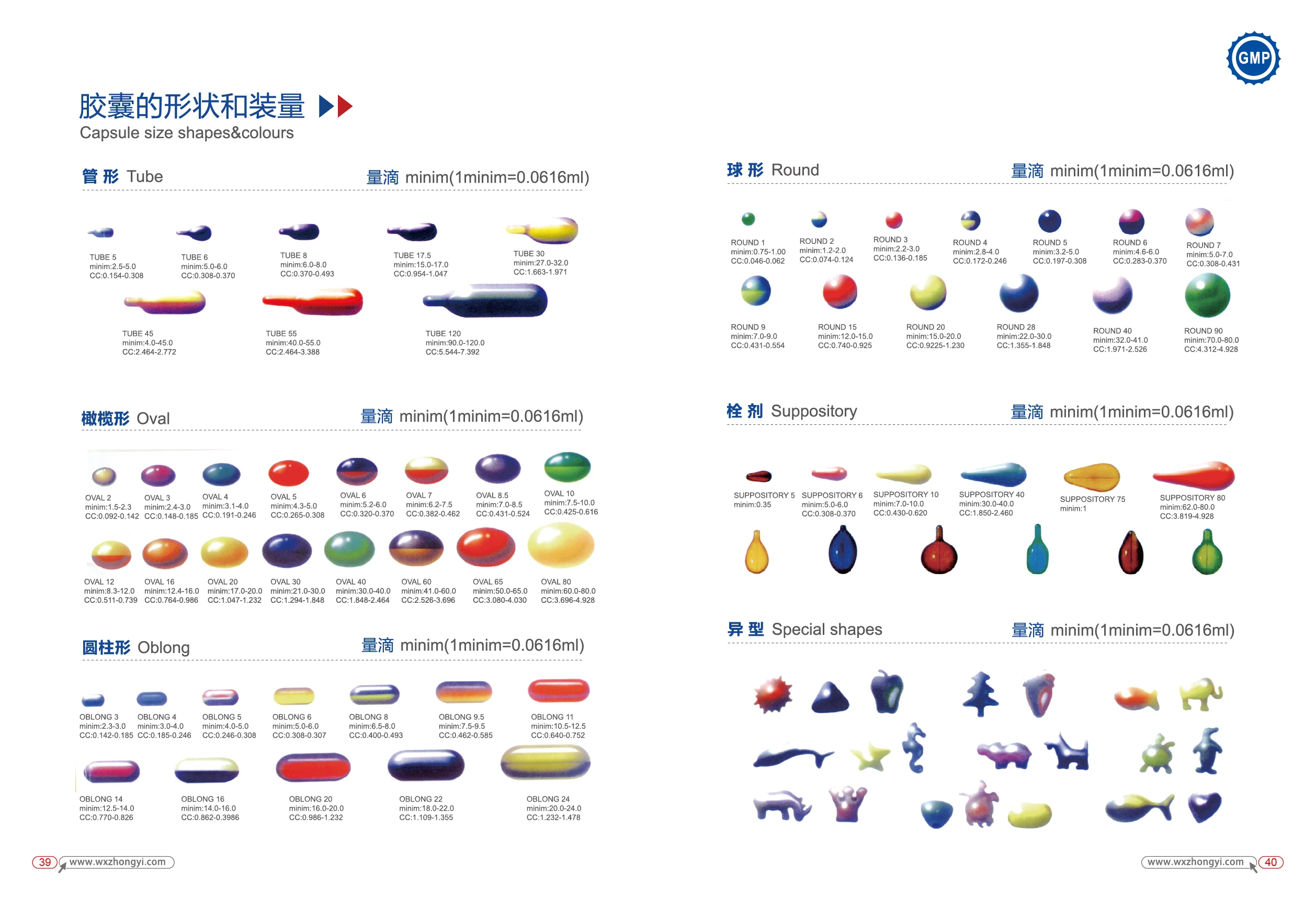

112,320 capsules/hour (8# OV, 4 RPM),

55,440 capsules/hour (20# OB, 4 RPM)

1.The gelatin ribbon is lubricated by micro lubricating technology to lower the consumption of lubrication oil, the capsules

are washing free and the drying time can be reduced remarkably.

2.The main moving parts adopt Swiss precise bearings. The gelatin ribbon drum assembly and mangle roller are driven by

independent motors, which are synchronized electronically. The noise is lowered and it works more stable. By utilizing

separate lubrication for medicine pump assembly and die roll housing assembly, the waring is effectively reduced, which

extends the failure-free operation time further.

3.Both medicine pump assembly and die roll are automatic synchronized. It is convenient to adjust the occasion of injection.

4.Medicine pump adopts the new type of cam to avoid manual timing operation

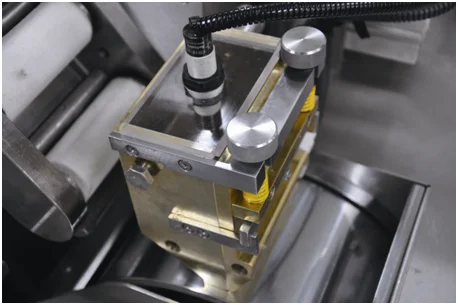

5.The injection wedge can stop at any positon, making the operation more convenient and quick.

6.The wiring position of heating cables is more reasonable.

7.The temperature adjustable material hopper assembly is equipped with the standard configuration. And it can stir material

refill material automatically, alarm for shortage of medicine.

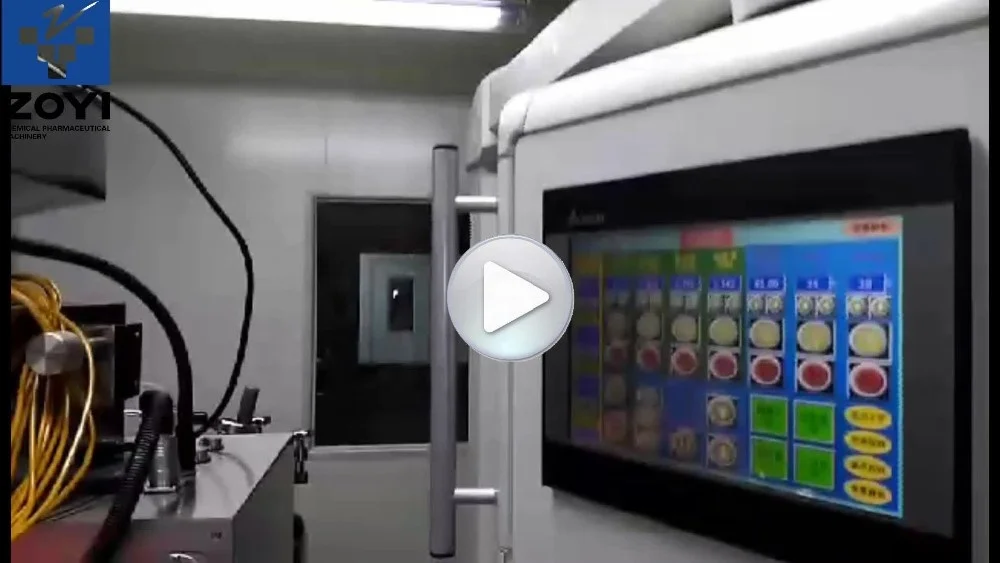

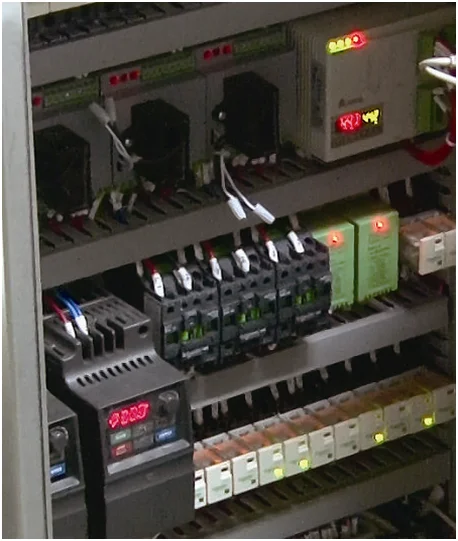

8.PLC-based control, touch monitor interface or switch button interface can be selected. The control system can complete trouble

diagnosis and reserve interface for remote diagnosis to upgrade.

9.Temperature control material hopper, precise temperature control, auto liquid level control, it is suitable to various kinds

materials requirement

Details of the machine parts:

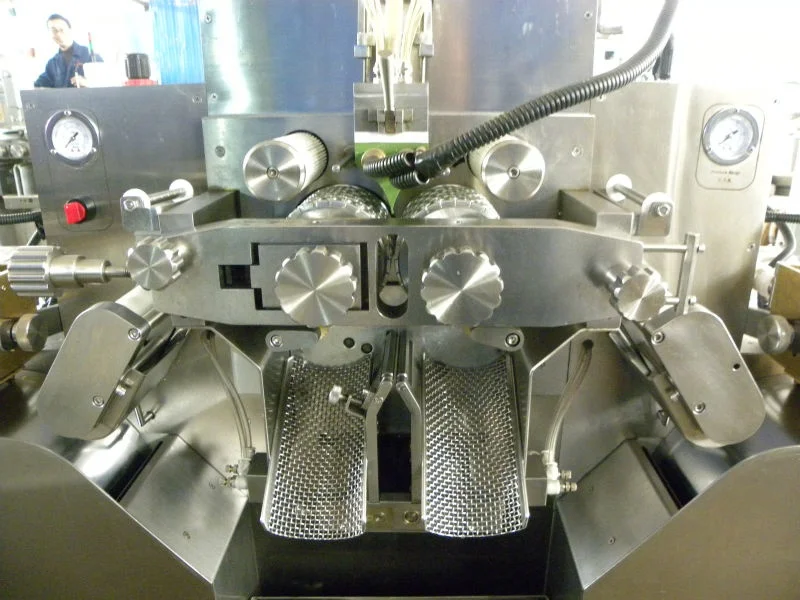

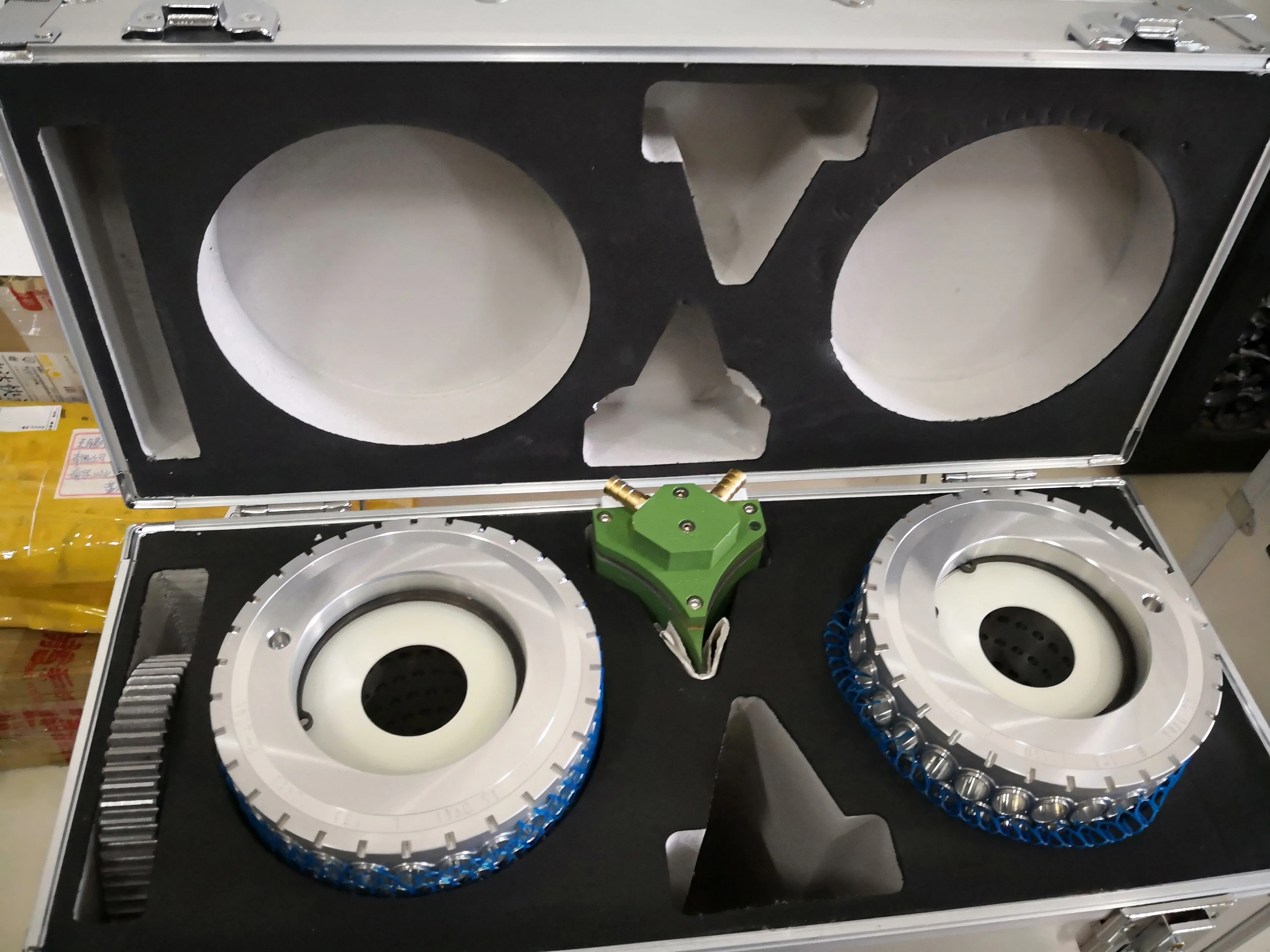

Die Roller:
