FAJS NO RF19 APPLY TO 40/45dcoe carburetor Repair kit Some parts are suitable for all DCOE carburetors
- Category: >>>
- Supplier: Jilin FAJS Automobile Accessory Co. Ltd.
Share on (702955240):
Product Overview
Description
Product Overview
WEBER FAJS 40/45DCOE CARBURETOR REPAIR KIT
The repair kit includes the vulnerable parts on the 40/45DCOE carburetor. Most of the parts are also suitable for other DCOE
carburetors.
All parts are interchangeable with DCOE carburetors made in Italy and Spain,
Parts of reliable quality, accurate size,
carburetors.
All parts are interchangeable with DCOE carburetors made in Italy and Spain,
Parts of reliable quality, accurate size,
FEATURES AT A GLANCE
FAJS products, quality assurance
The exact size of each part,
Gm WEBER carburetor manufactured in Italy and Spain
The material of the parts is in accordance with the technical requirements of Italy.
The bowl is made of cowhide,
The screws are made of iron, not FAJS assembly screws.
Needle valve 175#
The exact size of each part,
Gm WEBER carburetor manufactured in Italy and Spain
The material of the parts is in accordance with the technical requirements of Italy.
The bowl is made of cowhide,
The screws are made of iron, not FAJS assembly screws.
Needle valve 175#

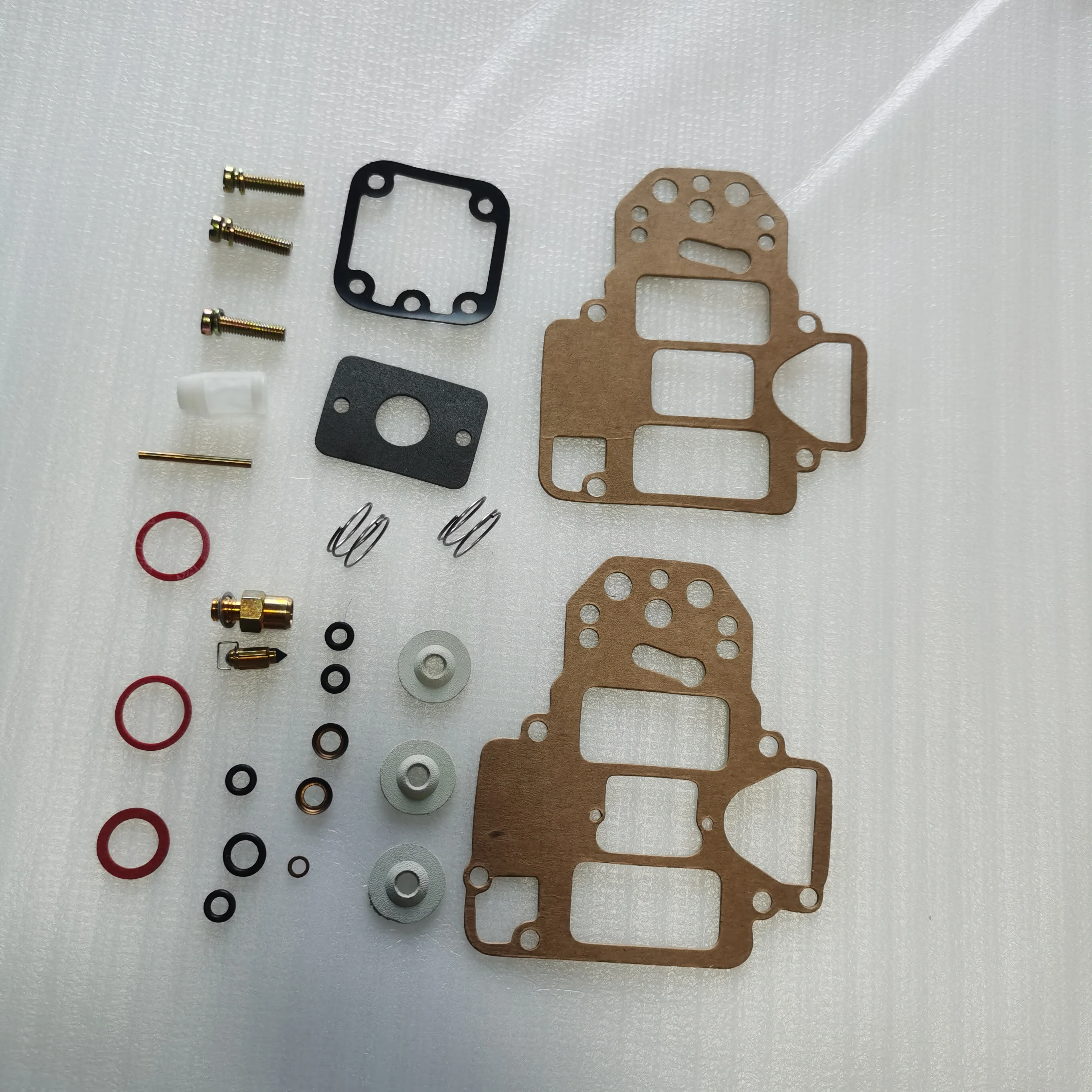

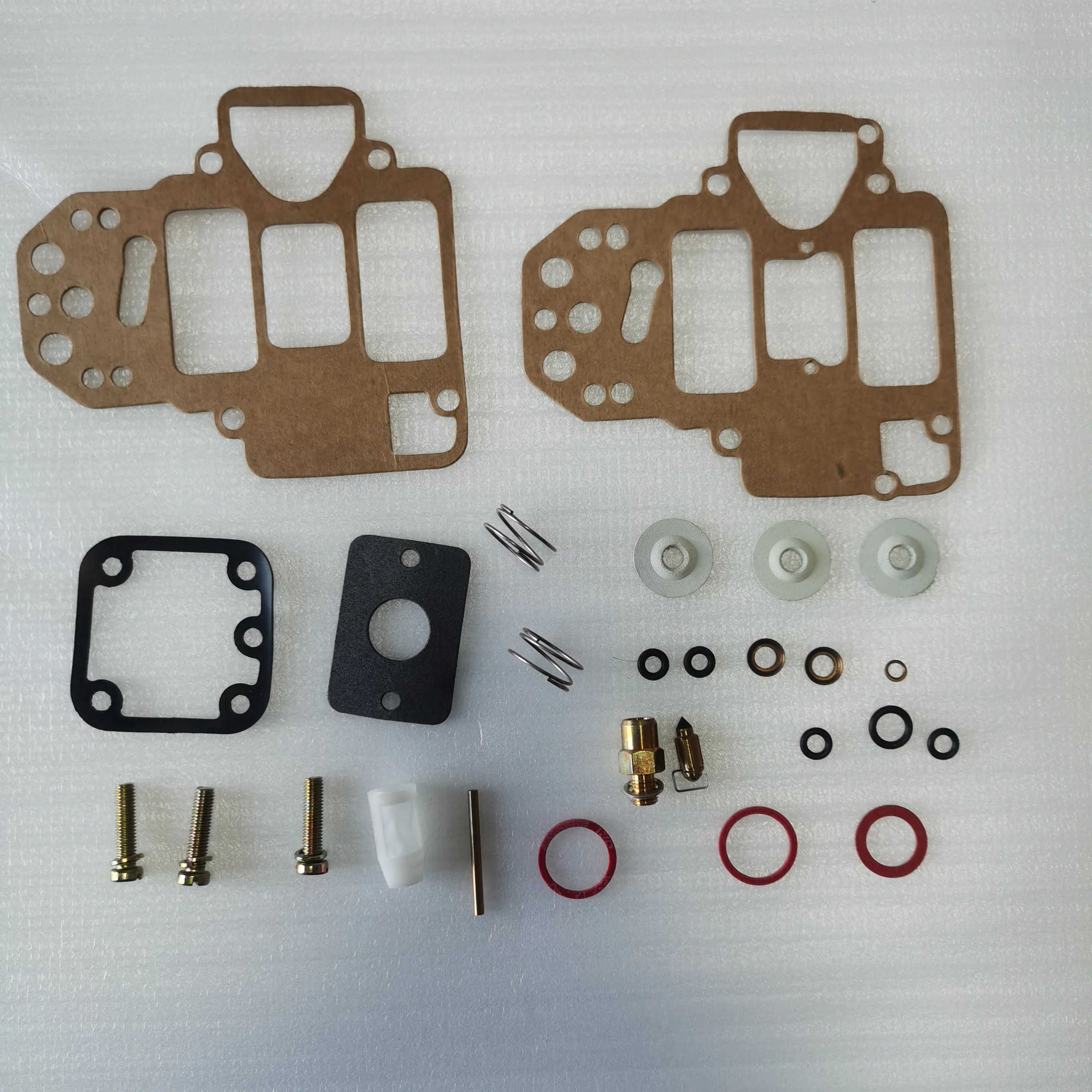

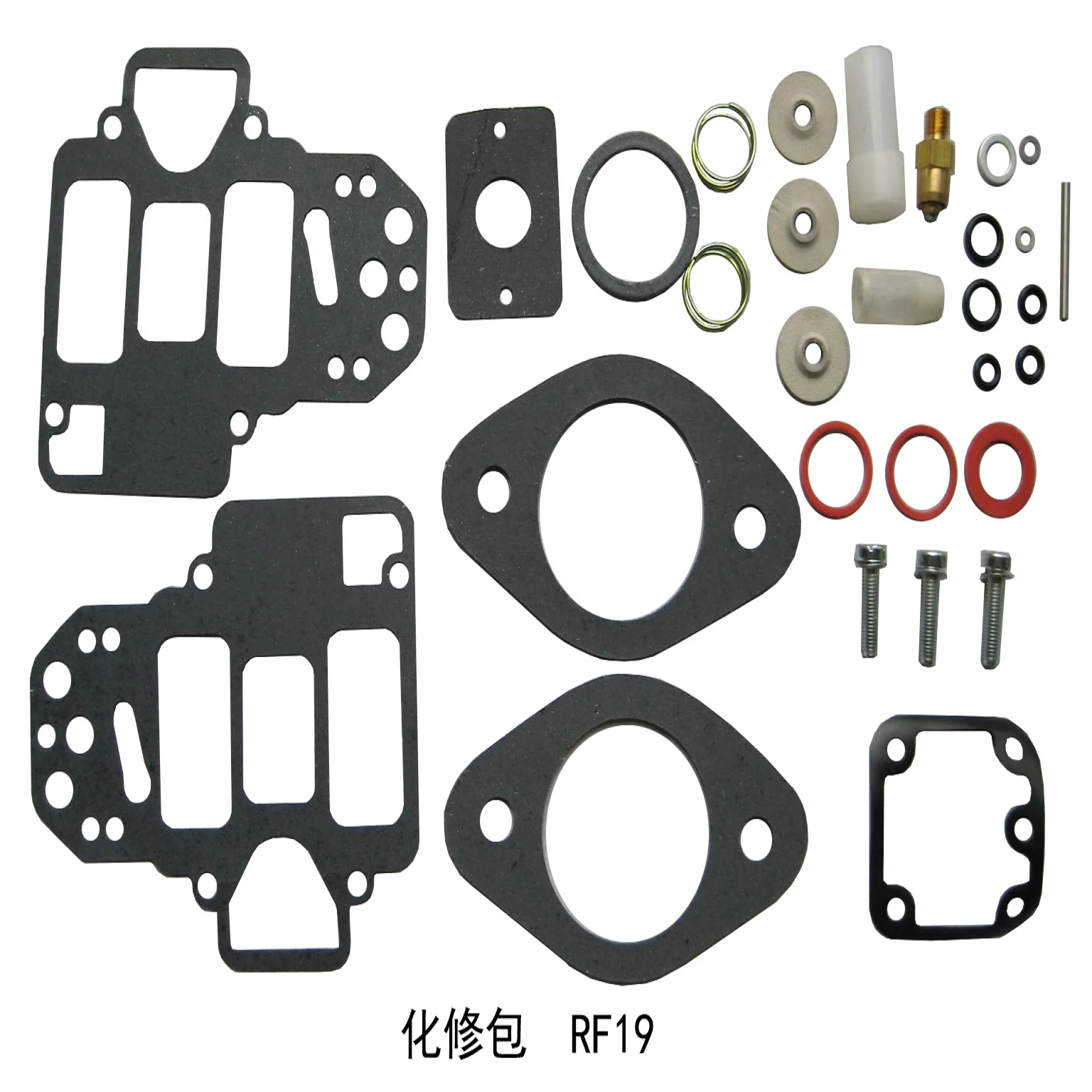

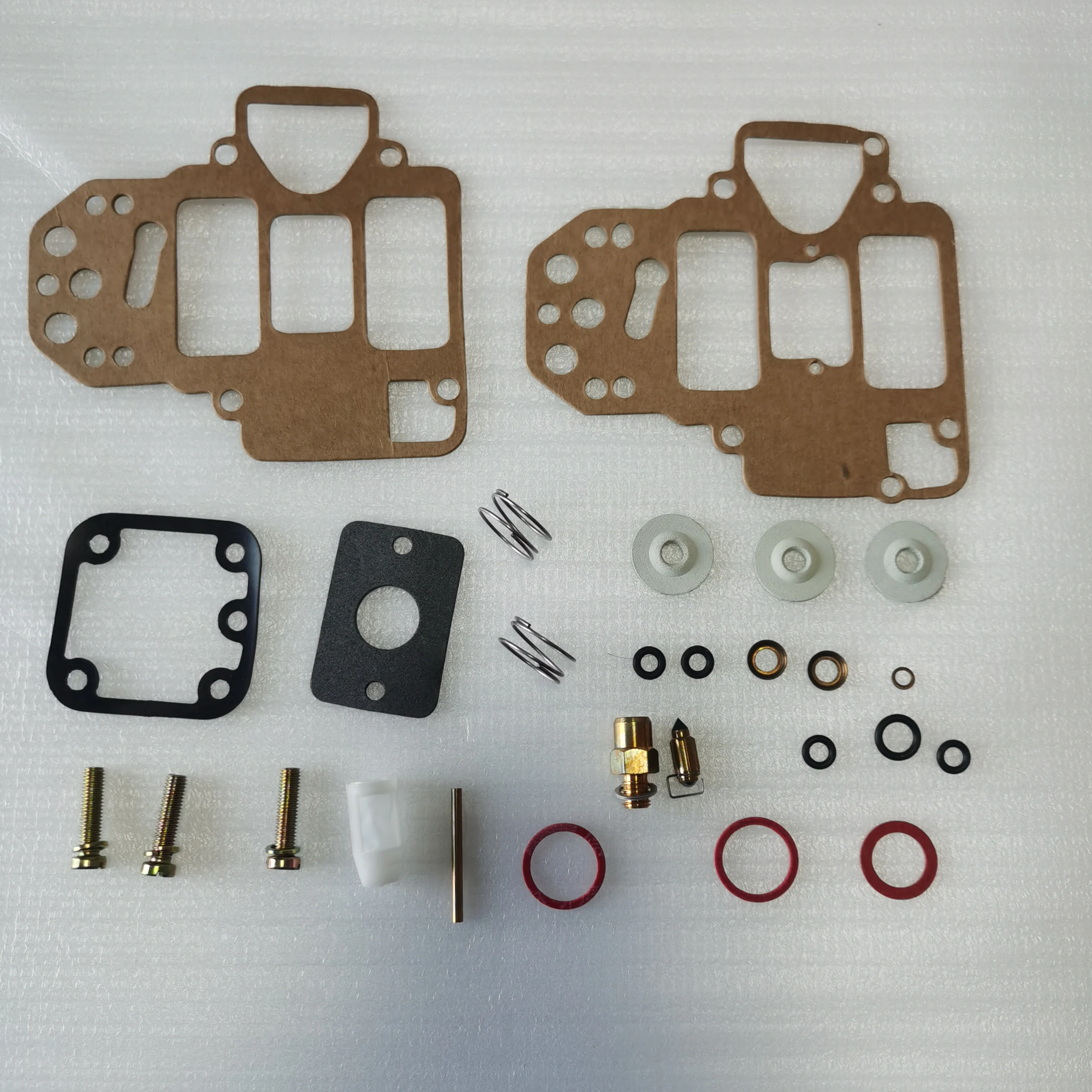

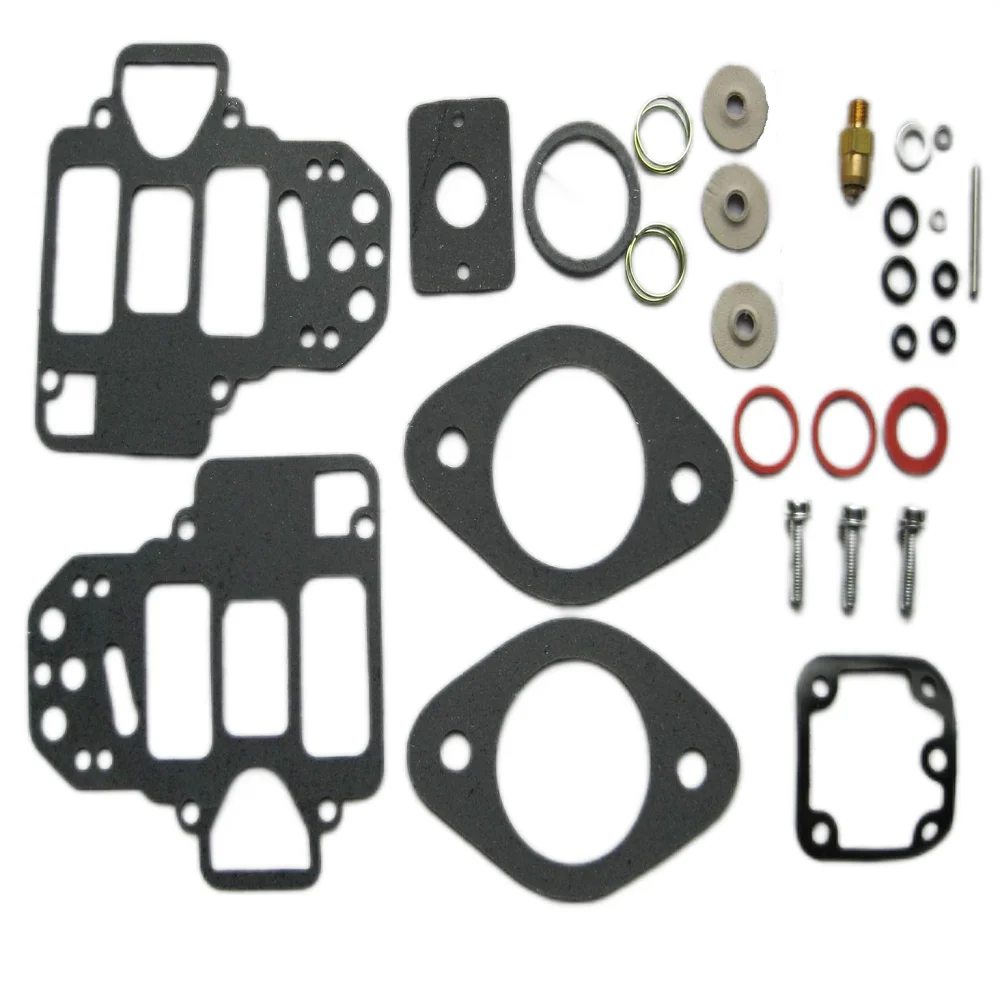

The parts of the repair kit include all the parts above in the picture.
Carburetor gaskets vary in color and are sent randomly
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Line | Name | OEM | APPLY | QTY |
1 | Filter cover gasket | 41530.024 | all DCOE | 1 |
2 | jet instpction cover gasket | 41550.002 | all DCOE | 1 |
3 | screw | 64700.001 | all DCOE | 3 |
4 | filter element | 37022.002 | all DCOE | 1 |
5 | Top cover gasket | 41715.011 | 40/45DCOE | 1 |
6 | Needle valve gasket | 83102.120 | all DCOE | 1 |
7 | pump demand valve cover | 58070.008 | all DCOE | 1 |
8 | float pin | 52000.001 | all DCOE | 1 |
9 | gasket | 41640.021 | all DCOE | 1 |
10 | bottom cover gasket | 41640.001 | all DCOE | 1 |
11 | Idle mixture screw cup washer | 58000.006 | all DCOE | 2 |
12 | idle mixture screw "O" ring | 41565.002 | all DCOE | 2 |
13 | carburetor caver gasket | 41715.011 | 48/50/55DCO | 1 |
14 | pump jet gasket | 41715.011 | all dcoe | 1 |
15 | Cowhide bowl | old type | 3 | |
16 | spring | old type | 2 |
PRODUCT CONFIGURATION
