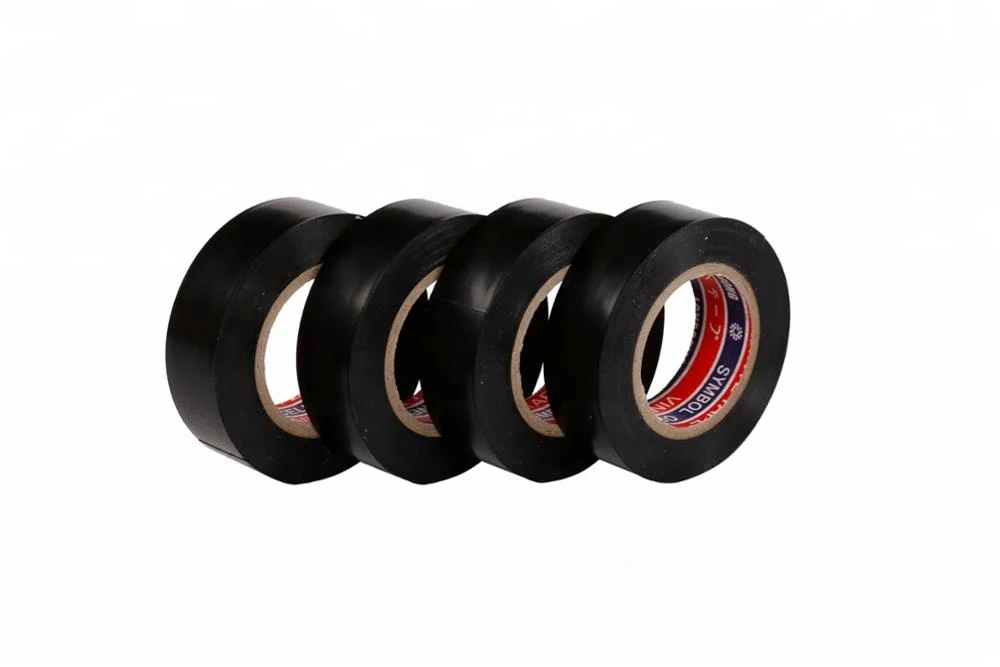

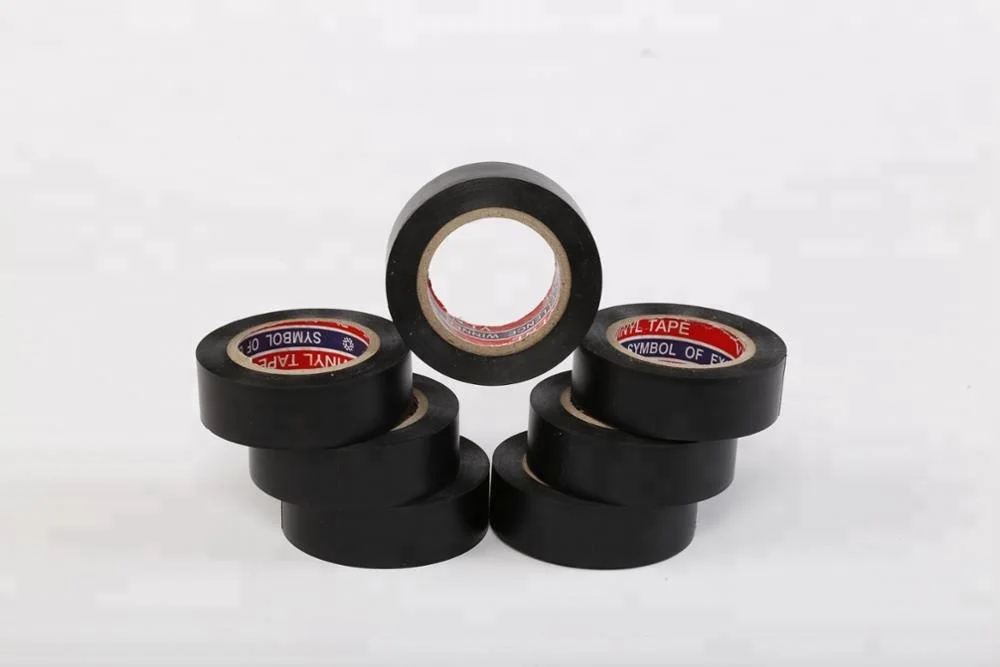

ПВХ электрическая изоляционная лента OEM бренд
- Category: >>>
- Supplier: Shijiazhuang Longgong Plastic Products Co. Ltd.
Share on (703075826):
Product Overview
Description
Product Description

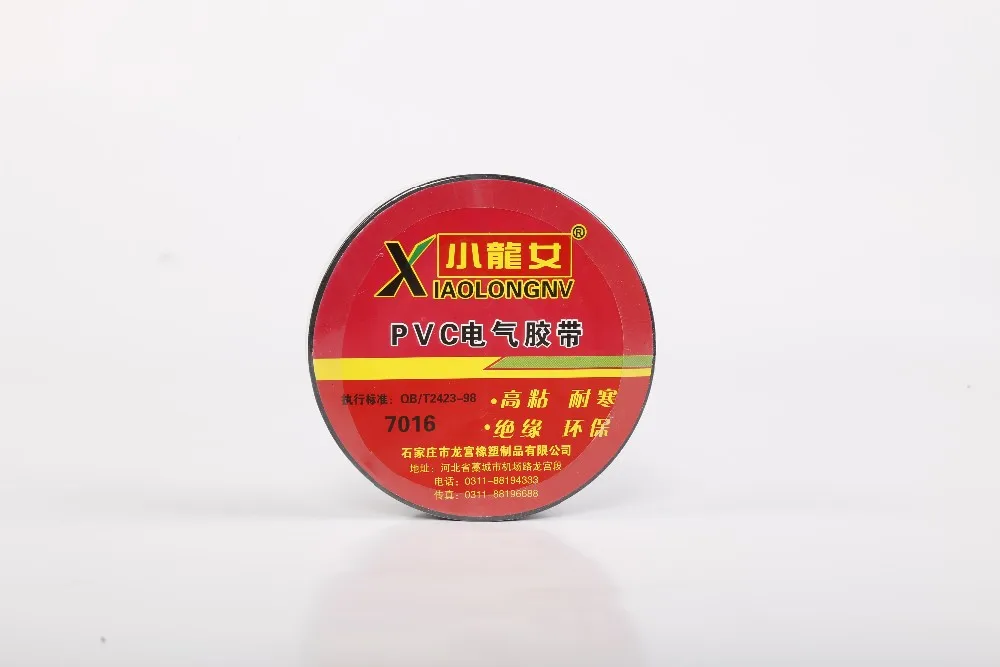

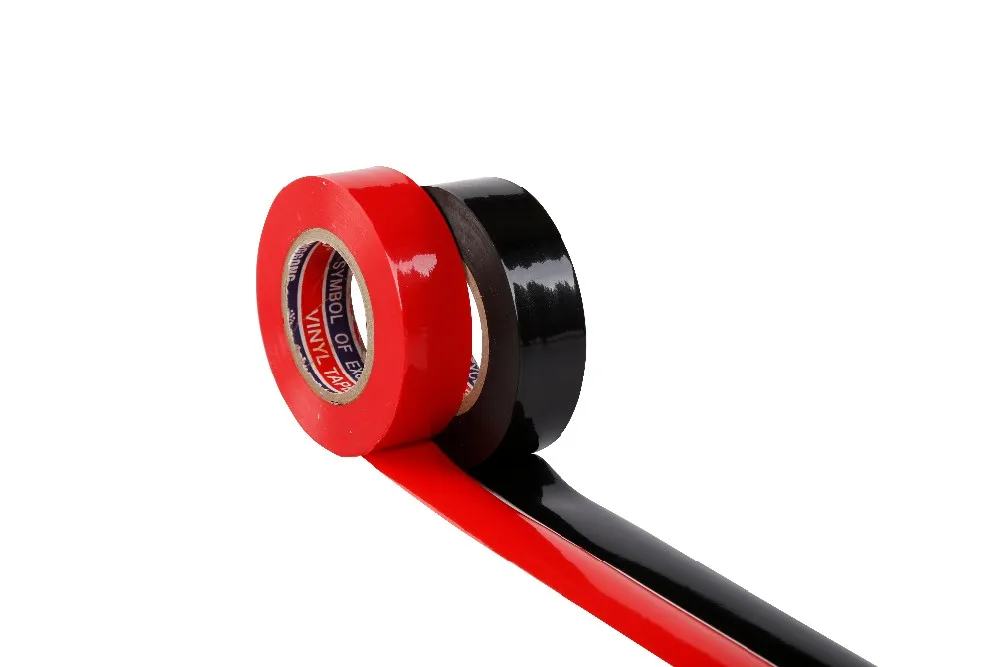

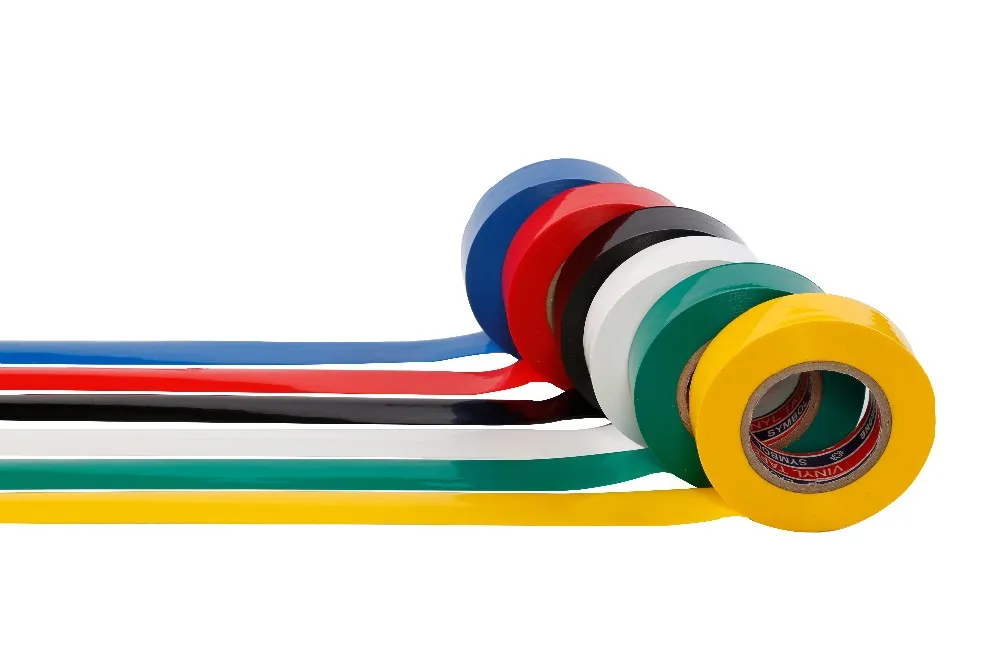

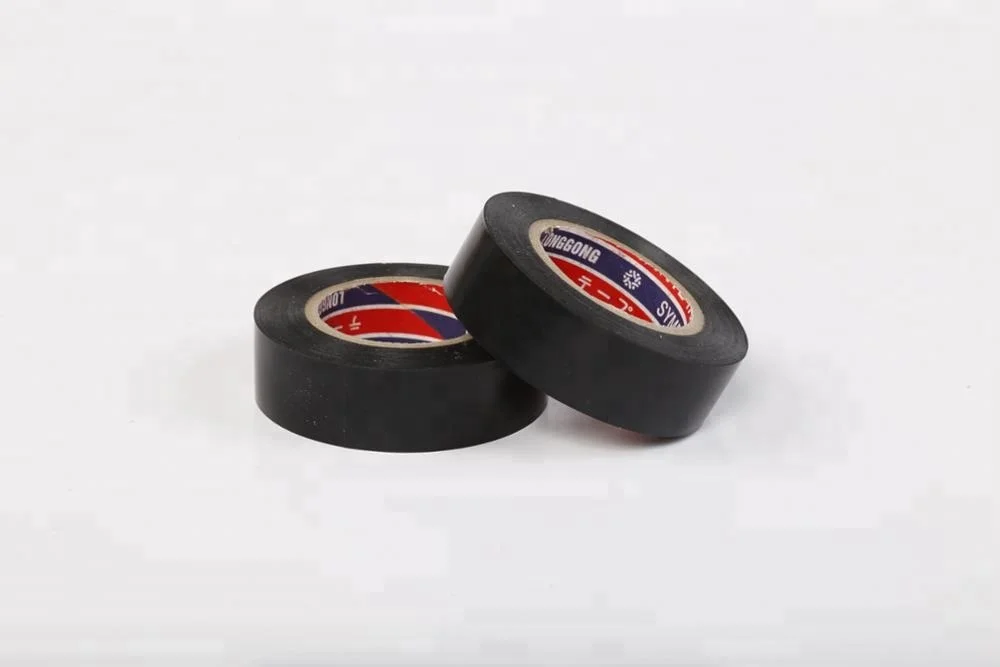

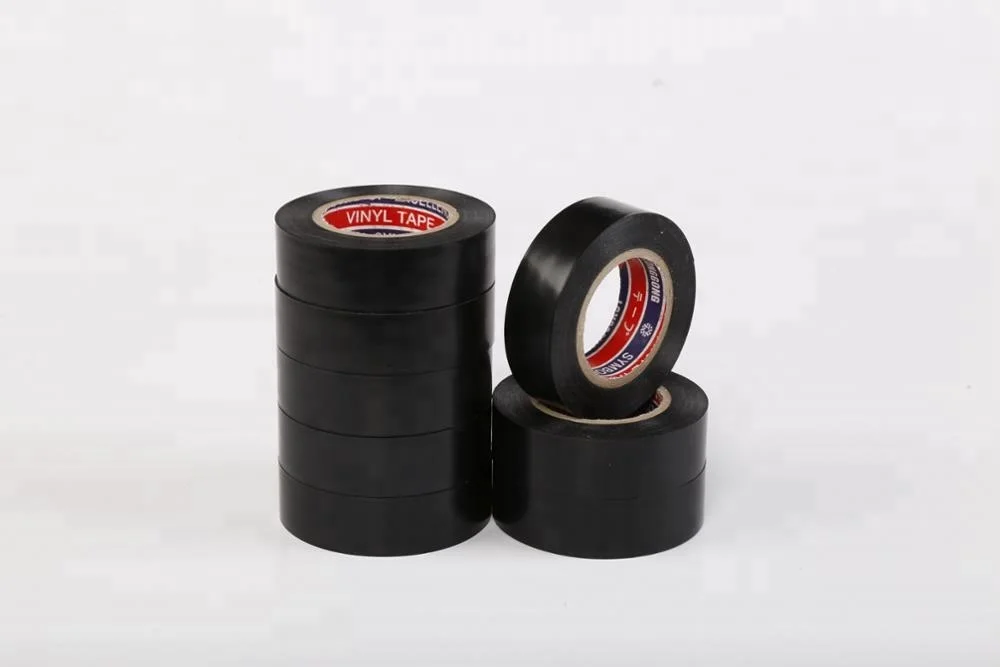

PVC Electrical Insulation Tape
Properties:
Has excellent insulation, withstand voltage. Weather resistance and other properties and flexibility, conforms to ROHS directive requirements, high temperature 80 ℃, fire resistance less than 2s.
Small Roll
Available size:
Thickness : 0.11mm,0.12mm,0.125mm,0.13mm,0.15mm,0.17mm,0.18mm,0.25mm
Width : 15mm,17.5mm,18mm,19mm,25mm,38mm,1250mm.
Length : 6m,7m,10yards,10m,20yards,20m,25m,50m

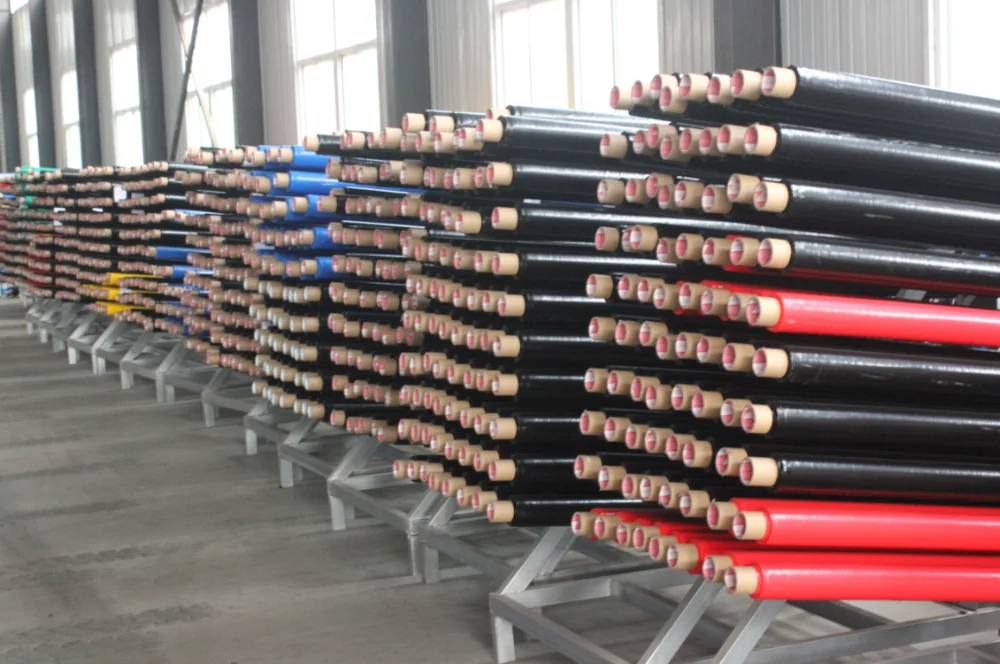

Log Rolls
The width of the paper core is: 1370mm, the width of the film is 1300mm, the effective width of 1250mm, however, in fact, we 80% of the effective width of the product can be guaranteed 1260mm, which is a big advantage for us.
Available size:
Thickness : 0.11mm,0.12mm,0.13mm,0.15mm,0.18-0.60mm
Width : 1250mm
Length : 6m,7m,10yards,10m,20yards,20m,25m,50m
Applications:
1. It is used for insulation protective handling to avoid connecting with over ground curve or others electrified body,personal accident and short circuit fault caused by the small animal. For use as electrical insulation on joints and splices in wires and cables, bundling and reinforcing,etc.
2. It is used for protecting the electrified bare conductor that passes the tree and protect it from short circuit when through the channel.
3. For use as electrical insulation on joints and splices in wires and cables, bundling and reinforcing,and etc.
Product | PVC Insulation Tape | ||||
Temperature Humidity | 23℃×50%RH | ||||
Color | White,Black,Red,Sliver,Yellow,Blue,Green,Grey,Yellow&Green | ||||
Total Thickness (mm) | 0.13±0.01 | 0.15±0.01 | 0.18±0.01 | ||
Tensile Strength (N/cm) | ≥15 | ≥18 | ≥25 | ||
Elongation At Break (%) | ≥150 | ≥180 | ≥200 | ||
180 º Adhesion To Steel (N/cm) | ≥1.0 | ≥1.5 | ≥1.7 | ||
Dielectric Breakdown (V/Min) | ≥3000 | ≥4000 | ≥4000 | ||
Packing&Shipment

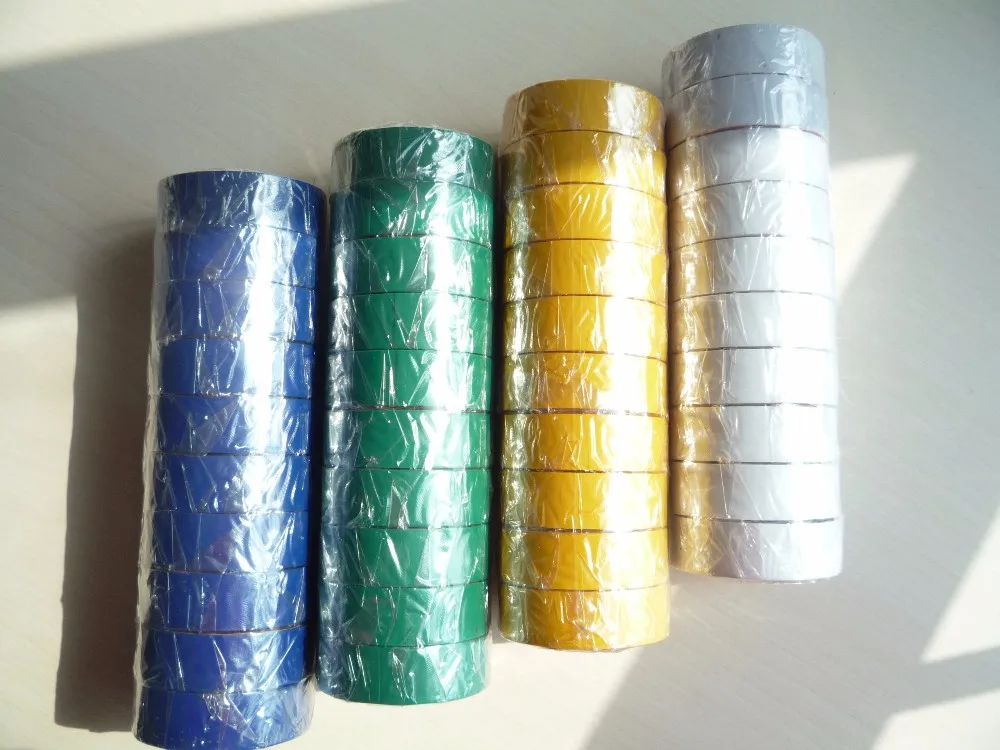

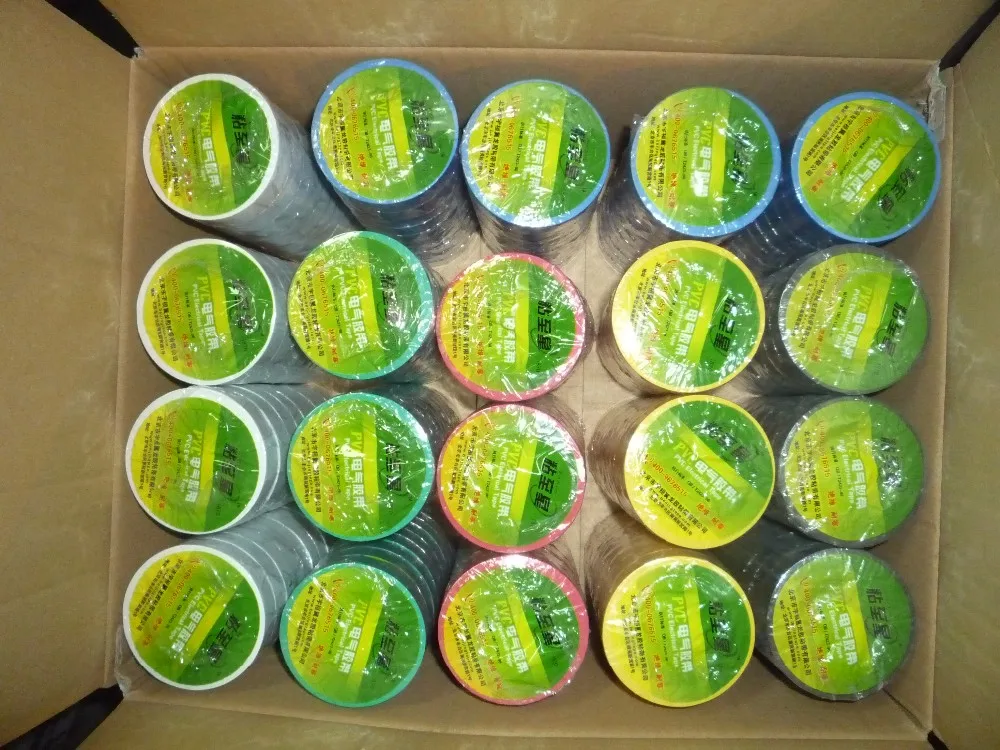

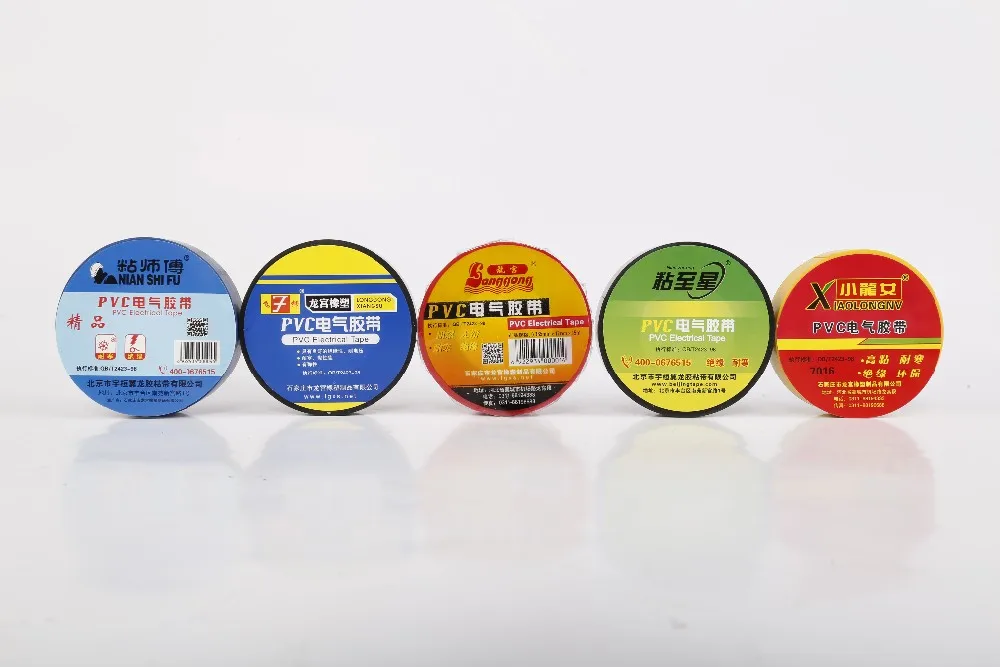

PVC Electrical Tape Small Rolls
Each Roll wrapped with paper label+plastic material or wrapped by printed plastic packages material,10 rolls shrinked,250 rolls/500 rolls packed into a master colored or kraft cartons,about 350000 rolls in a 20feet container.
Our factory view
Our factory own the unique advantages as below compared to our competitors :
1) Our factory build in 1994. we produce film by ourselves,we produce film by ourselves.
2) 5 coating lines in service, 36m/min. The most advanced.
3) PVC Insulation Tape,Pipe Wrap Tape,Warning tape,Self Fusing Tape,Black Fabric Cotton Tape,etc.
4) Do independent lab test. Our own adhesive formula on using.
Shijiazhuang Longgong Plastic Products CO. LTD
Shijiazhuang Longgong Plastic Products CO. LTD was founded in 1994. Our company has abundant advantage and our products take the leader role in this line in both exporting and domestic market.
Coating adhesive production machine
Spliting production machine
Quality test Lab

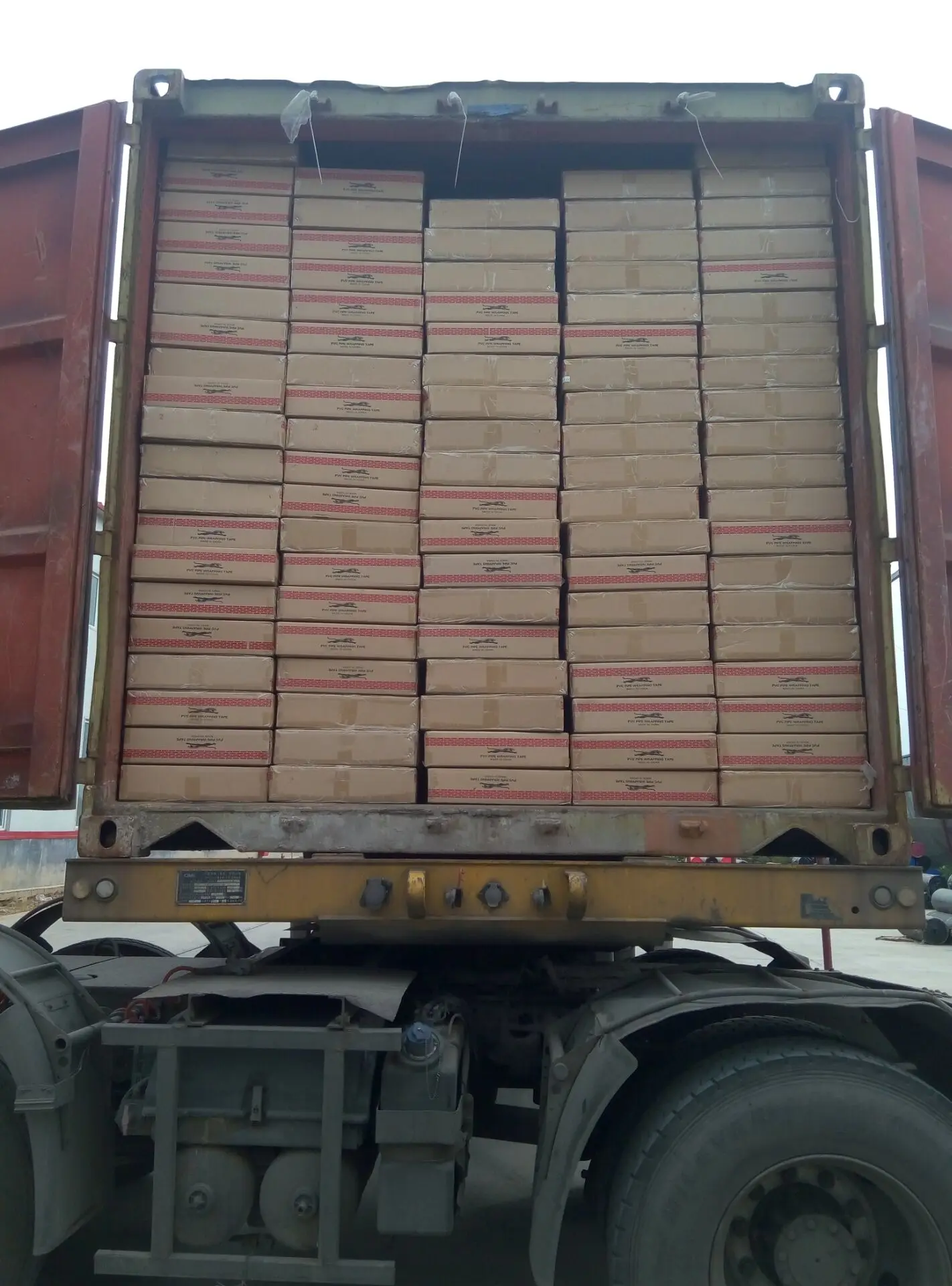

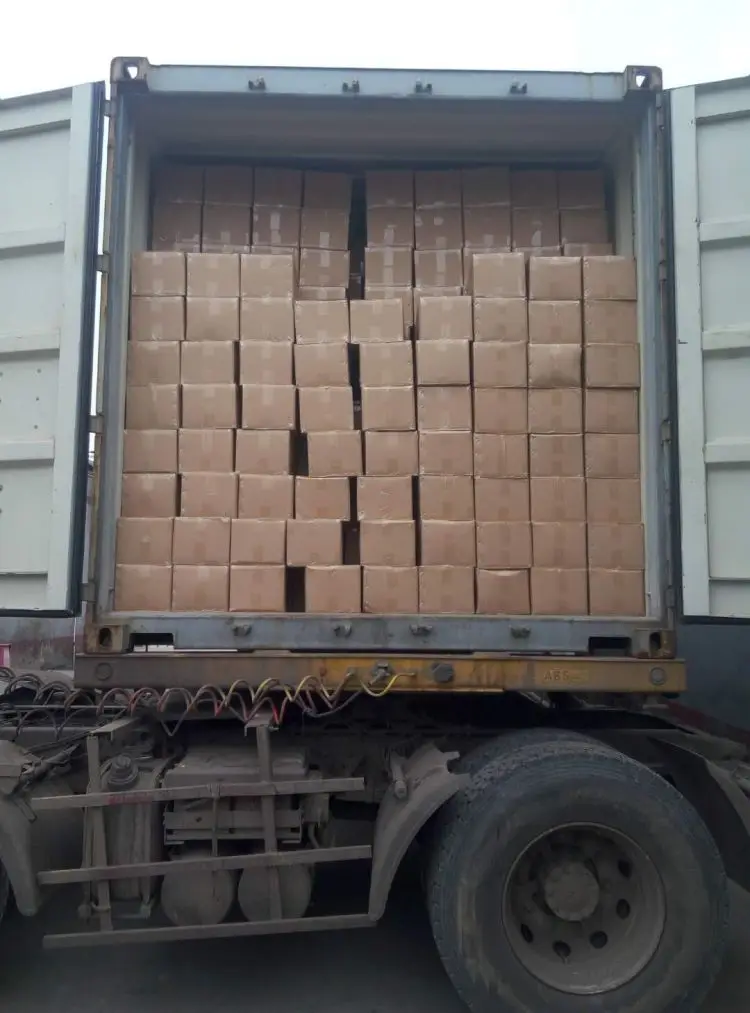

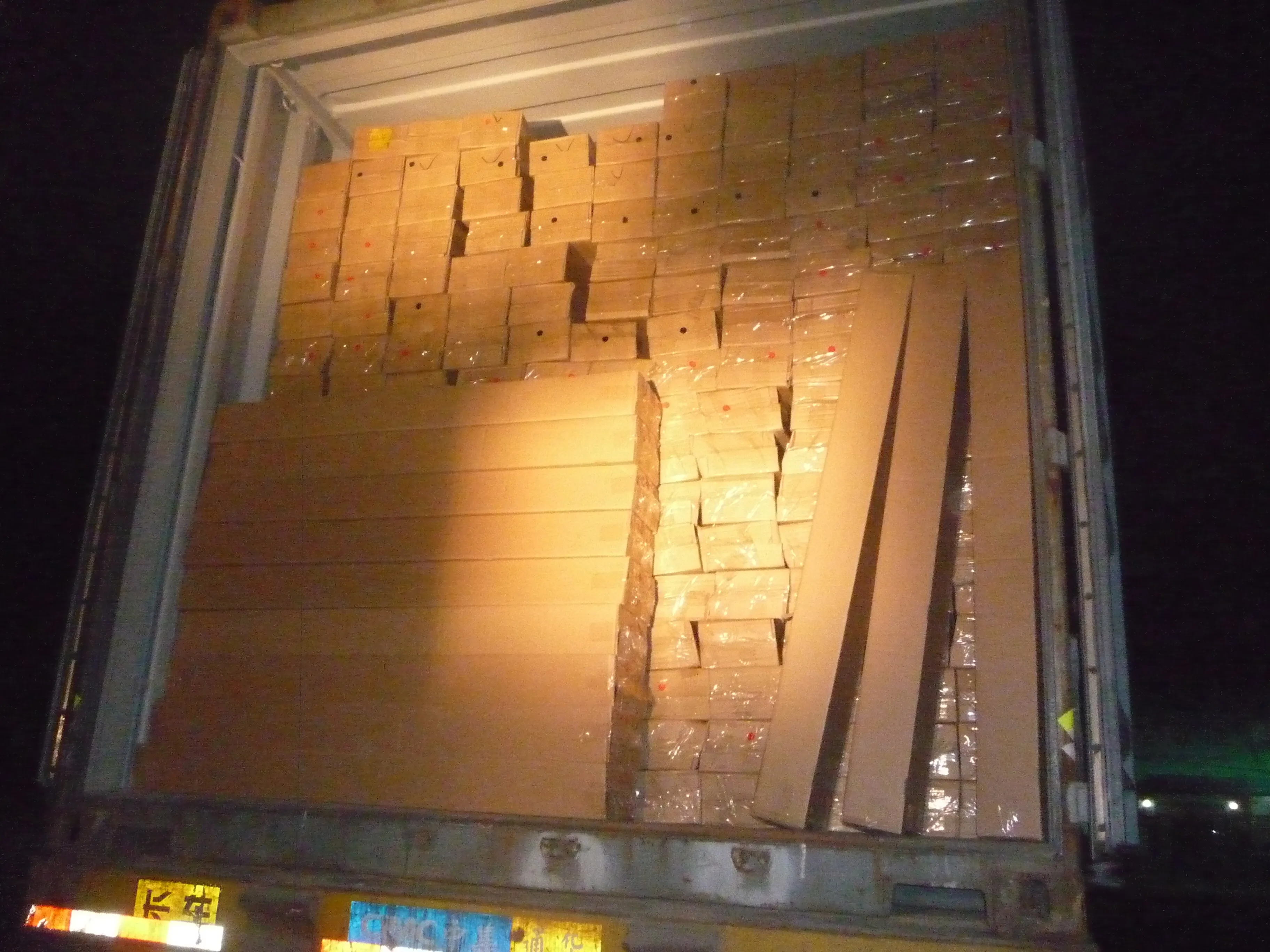

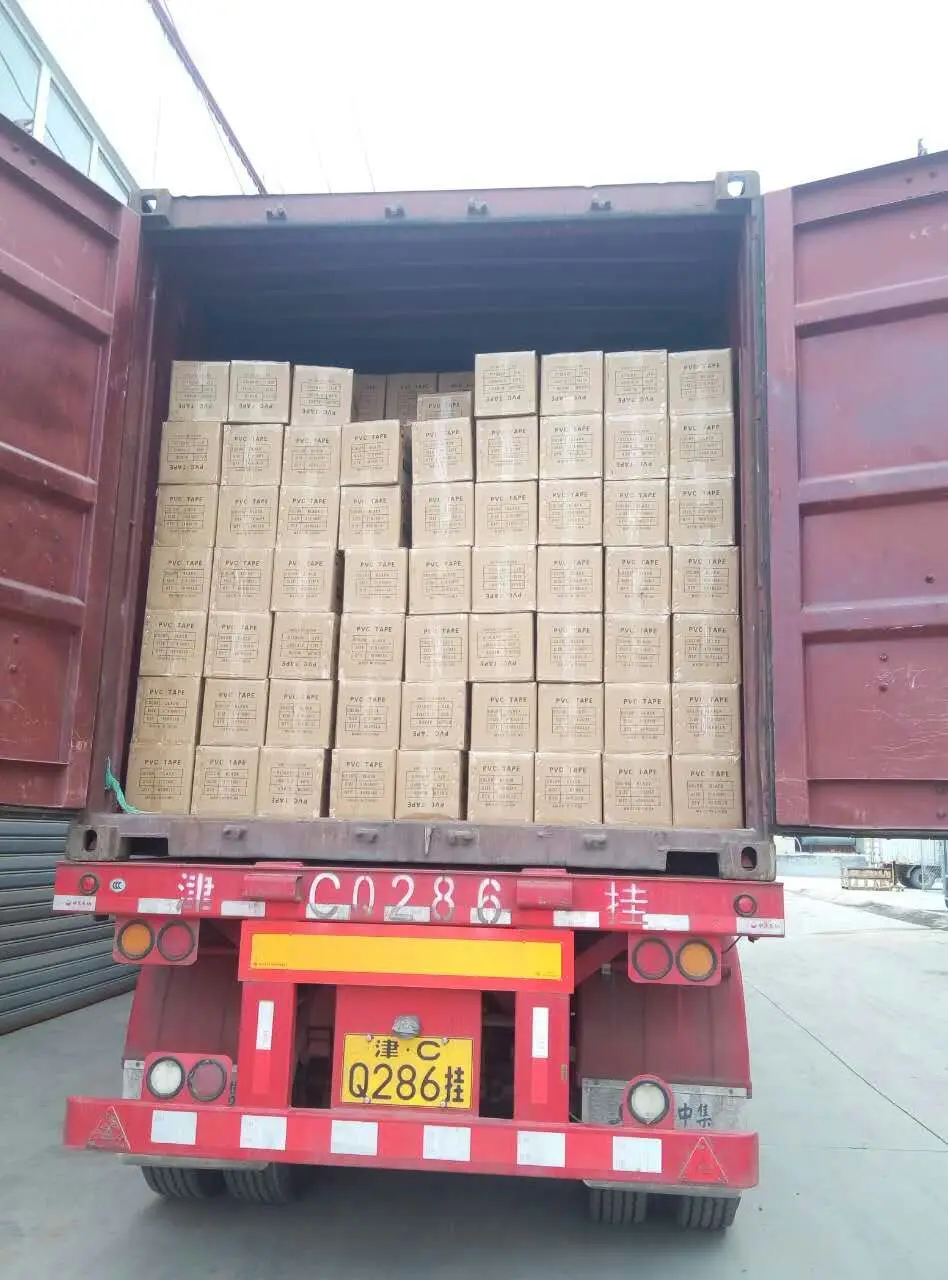

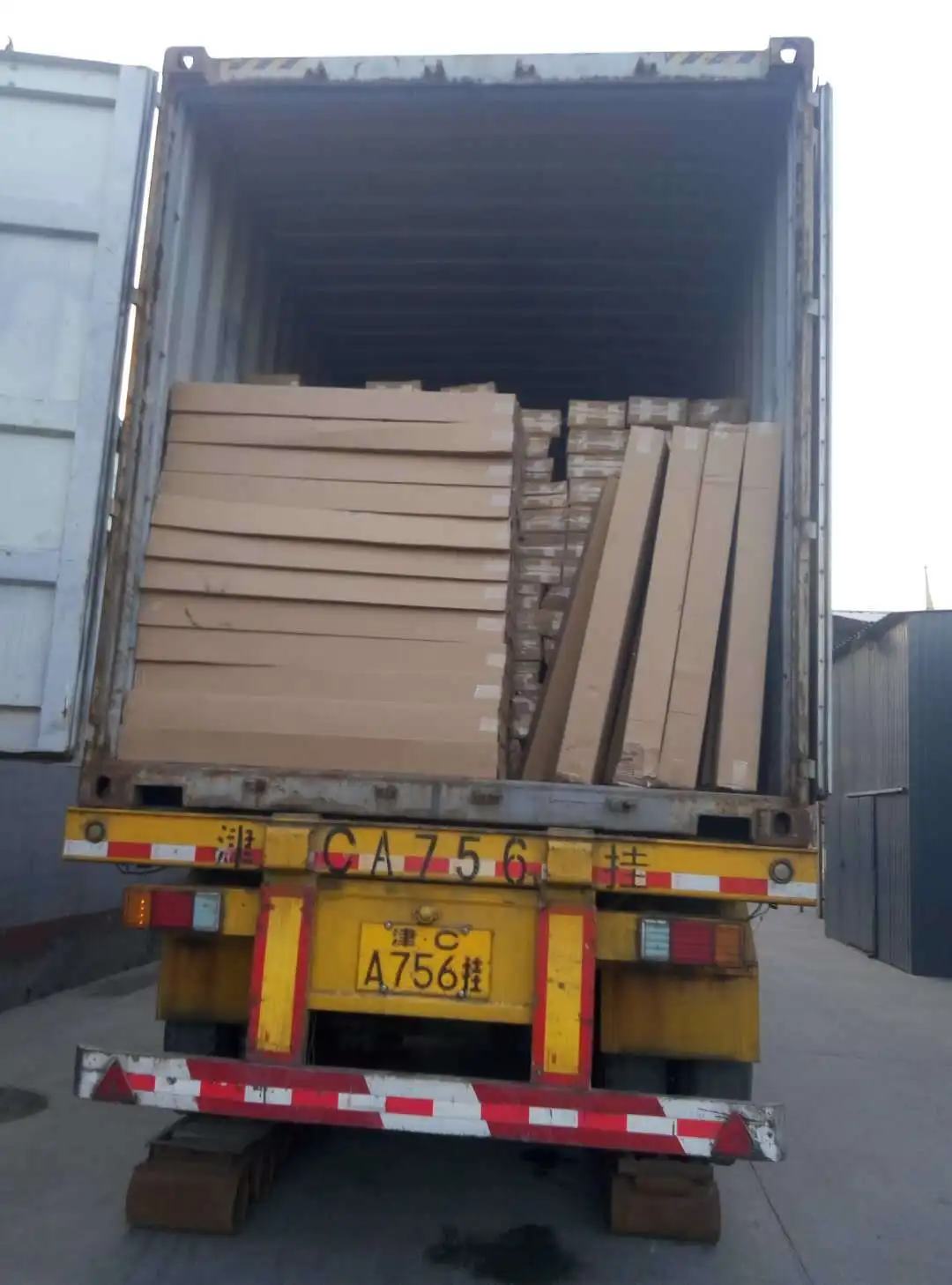

20 feet container / 40 feet container / 40 HQ

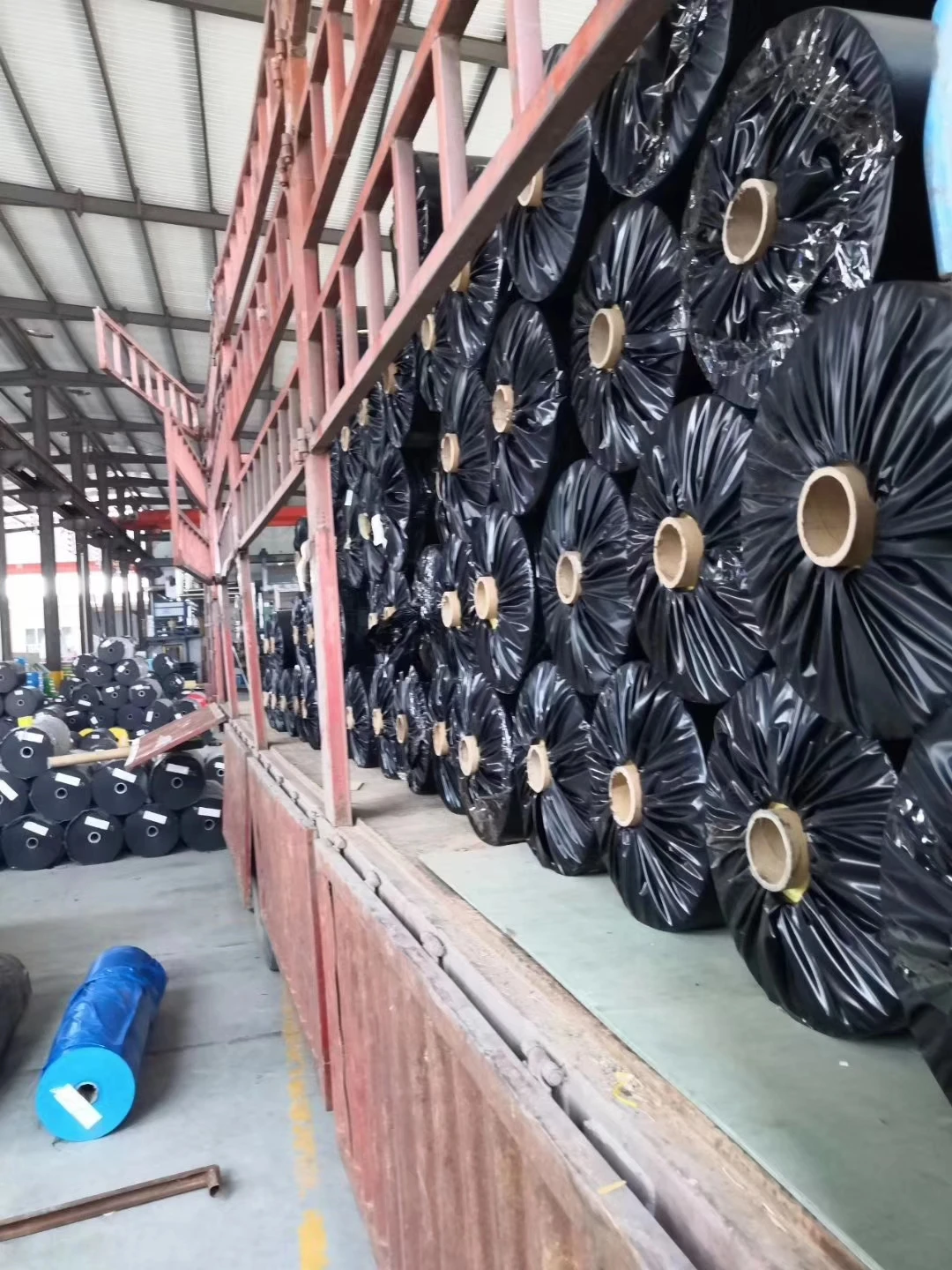

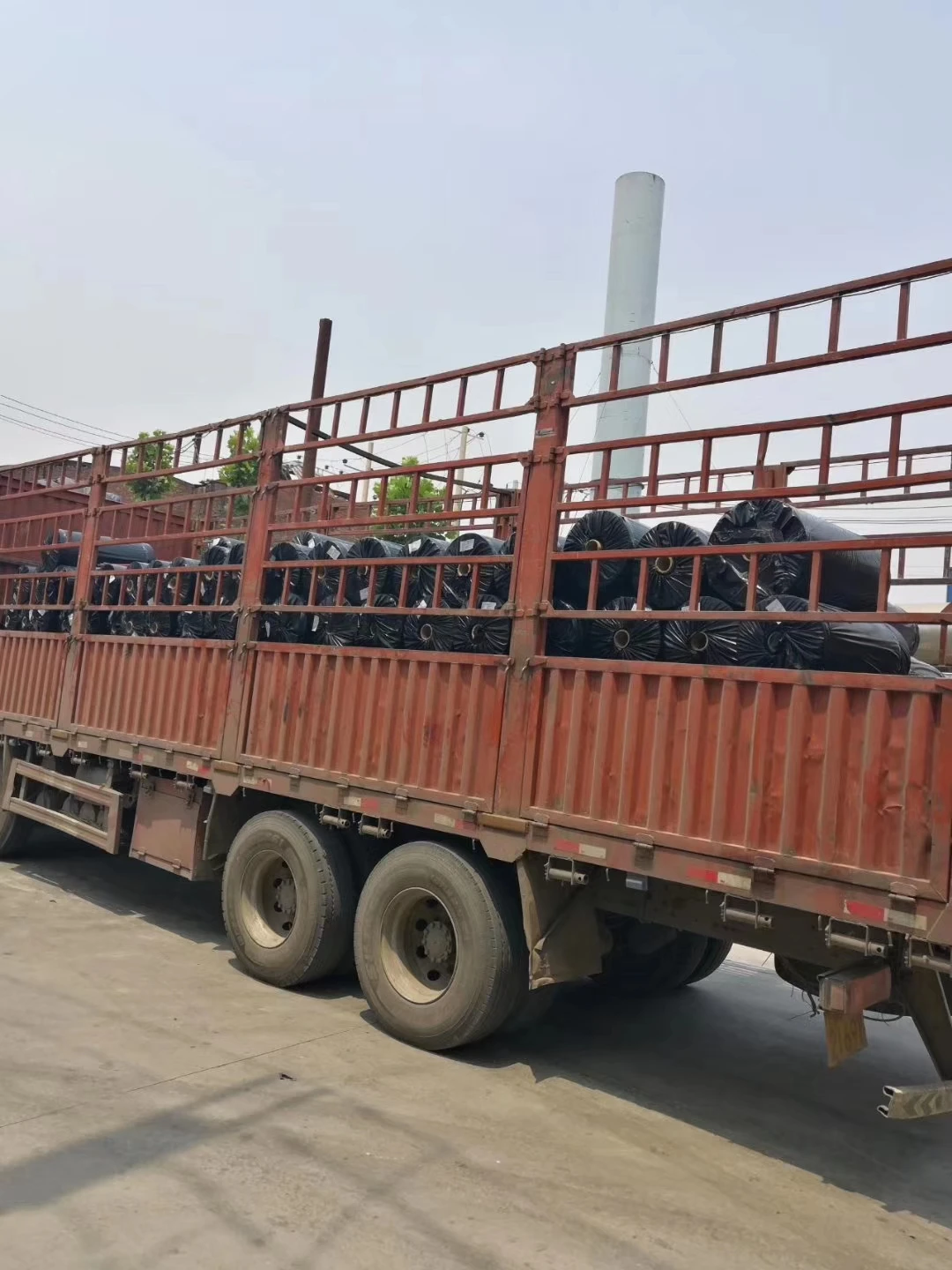

Domestic Selling Film,We also exporting PVC FILM
\t\t\t\t\t\t\t\t\tOur Longgong Service \t\t\t\t\t\t\t
1.Our factory build in 1994,over 23 years produce&exporting experice,especially: USA,European,South America,Pakistan,Bangladesh,UAE, Syria,Thiland,Philippines,Turkey,Brizal ect,market.
2. We have the best foreign trade team, fluent language communication environment, 24 hours the fastest response.
3. New customers always enjoy the most favorable discount price, the old customers always enjoy more discount price
4.We have winter and summer two season's glue formula, more reasonable and make sure glue and film matching with each other, depending on the geographical latitude location to debugging glue,100% ensure the viscosity.
5.If you have sample in your hand,pls send to us,we could produce totally same as your old supplies' sample.
6.Welcome to our real factory,and i am sure you will have big surprise.We have gift for you,your business travel is valued.Trust me.
We take part in the spring and Autumn Canton Fair every year.
We take part in Overseas Exhibitions every year, such as Germany, Mexico and so on.
We take part in Overseas Exhibitions every year, such as Germany, Mexico and so on.
Customers around the world to visit our factory, inspect our factory. Such as Amercia,UAE,Pakistan,European ect.
