ZHAOZHAN Cheap plasma cutting machine for sale
- Category: >>>
- Supplier: Shanghai Zhaozhan Automation Equipment Co. Ltd.
Share on (703228305):
Product Overview
Description
- 1

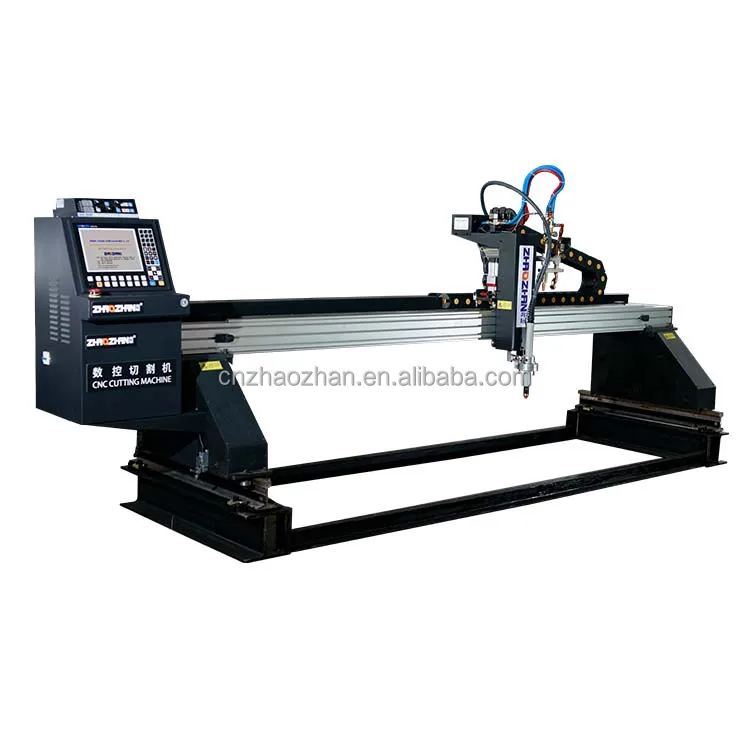

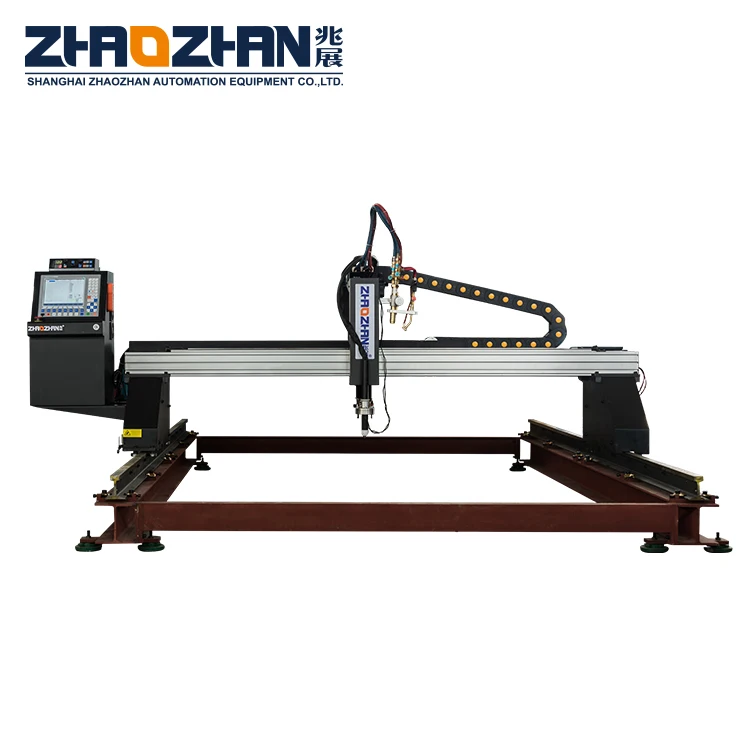

ZHAOZHAN New CNC Plasma Cutting Machine
Product Details
Name | GANTRY STYLE CNC FLAME PLASMA CUTTING MACHINE | |||||
Model | ZZ-2580C-ST | ZZ-3080C-ST | ZZ-4080C-ST | ZZ-2580C-SE | ZZ-3080C-SE | ZZ-4080C-SE |
Motor Style | Dual Drive of 86 Series Step Motors + Reduce Gear Boxes | Dual Drive of Panasonic Servo Motors + Reduce Gear Boxes | ||||
Effective Cutting Range for each Tool X*Y | 2000*6000mm | 2500*6000mm | 3000*6000mm | 2000*6000mm | 2500*6000mm | 3000*6000mm |
Customizing | Track length (effective cutting length Y axis) can be customized for extending cutting length | |||||
Moving Speed | 0-6000mm/min | 0-10000mm/min | ||||
Input Power | Single Phase AC 220V Approximately 1200W | Single Phase AC 220V Approximately 1500W | ||||
Torch Lifting Distance (Z) | ≤150mm | |||||
Working Precision | ± 0.2 mm / meter | |||||
Flame (Gas) Cutting Thickness | Piercing Capacity: 5 - 60 mm Edge Start: 5 - 120mm | |||||
Plasma Cutting Thickness | Depends on the cutting capacity of the Plasma Generator | |||||
Cutting Table And Base | We will supply drawings of cutting table. | |||||
1.Each leg of machine using two pieces of 14mm Q345B steel processed. That keep the machine good supporting and stability when machine fast move forward and backward in high precision.
2.The beam made from 2 parts. Front part is used aluminum alloy structure, that for keeping high precision (That is much better precision than some other supplier’s beam, which is installed the rack and rail way on square pipe only). And it is easy for machine function update or modification in the future.
3.Rear part of the beam is used 45# steel folded to strengthen the machine’s structure. That make machine with two beam structure, and reasonable used both aluminum alloy and steel’s each advantage to provide machine extreme stability, and flexibility performance.
4.Machine standard with CNCUT-10A 10 inch color controller, and ZZ-PTHC new plasma THC. With 24kg/m fine grinding guide, and dual used plasma and flame function. Servo motors or step motors are optional. There are several sizes of this machine can be chooced.

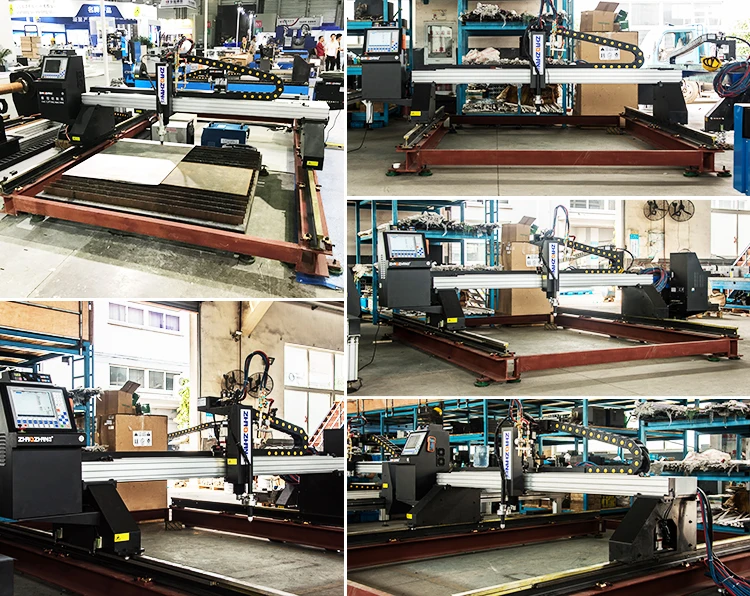

Our exhibition
