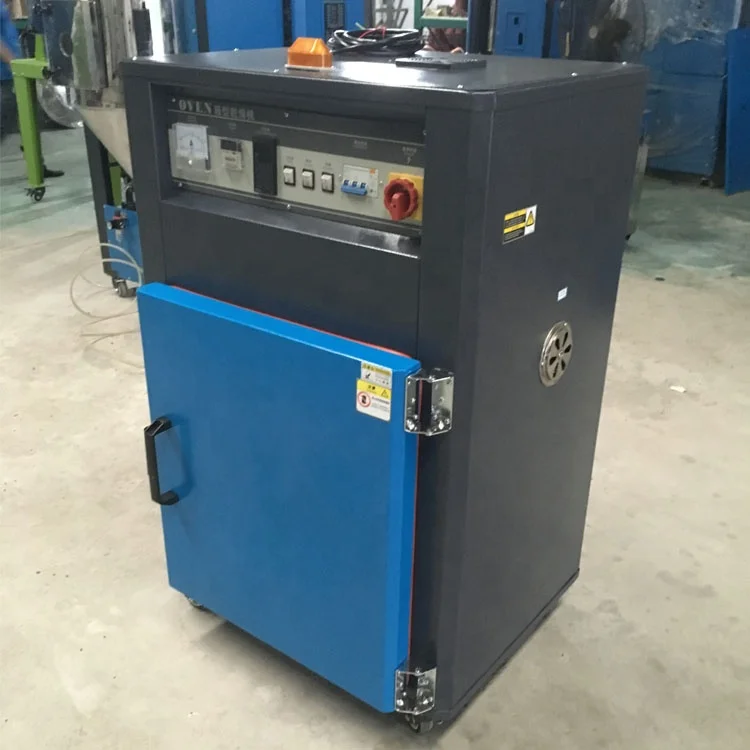

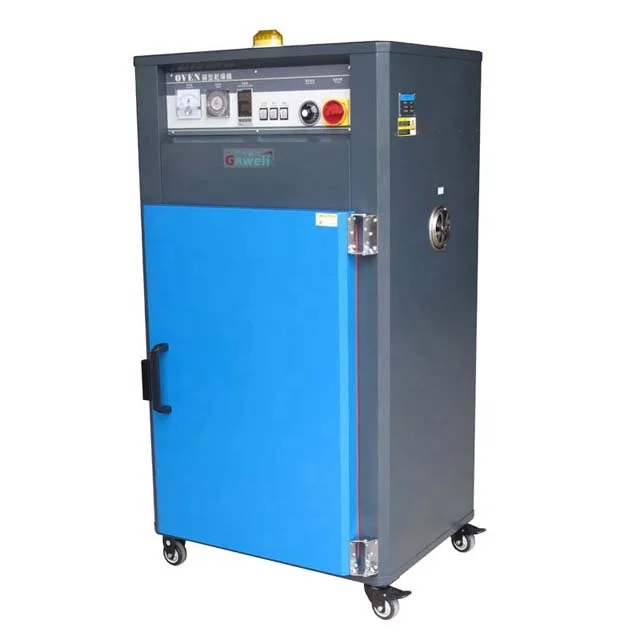

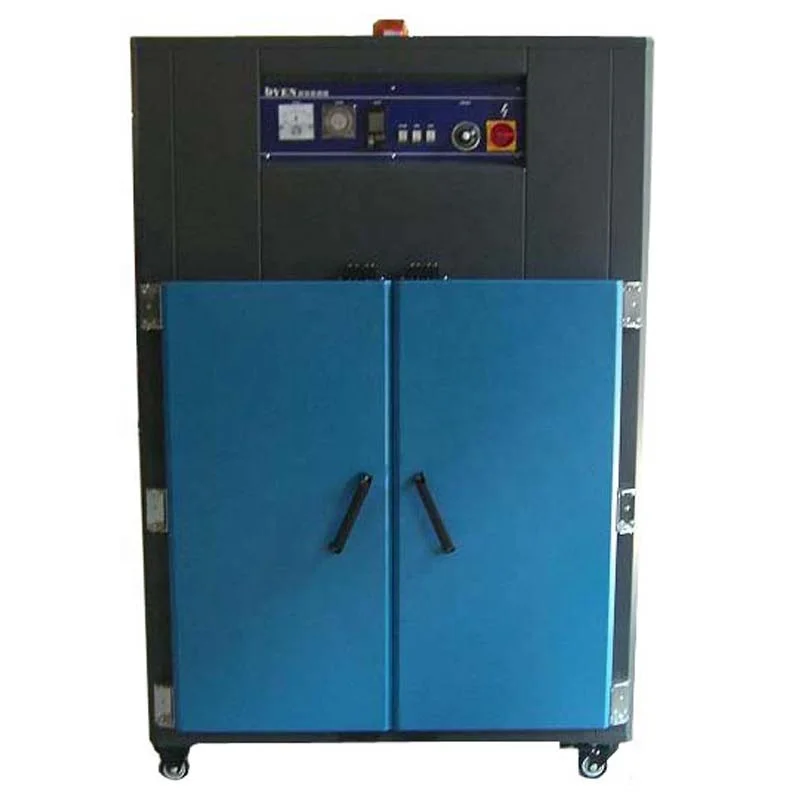

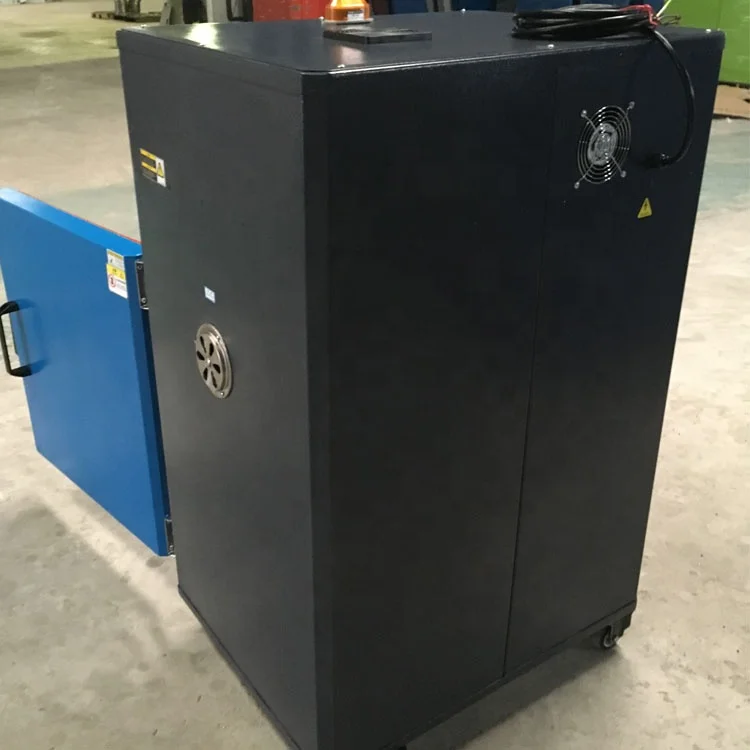

Cabinet type plastic drying machine

Product Overview

Description

1. Application scope

CD series of cabinet dryers are mostly used for simultaneous drying of different kinds of polymers in small quantities or for drying materials for trial moulding. They can also be applied in electronic engineering, electroplating, pharmacy, paint baking, printing industries, etc. for preheating or drying related products.



2. Features

 Standard configuration

 1) Accurate P.I.D. temperature control to achieve an even drying effect.

2) Air-proofed insulative door can maintain temperature constantly inside to reduce energy consumption.

3) Stainless steel tray and liner bring no contamination tomaterials.

4) Unique design of adjustable air inlet and exhaust.

5) 24 hours timer, easy to operate.

6) Overheat protector can prevent excessive drying.

7) Motor overload relay.

8) Visible alarm to indicate troubles immediately.

9) Power would be automatically cut off when drying temperature exceeds set deviation value to protect thermal fuse.



 Accessory option

 1) Air exhausting device should be opted for when handling with the volatile material.

 2) Flanges of air inlet and outlet are optional.

 3) The whole unit and tray can be customized based on demands.



3. Working Principle

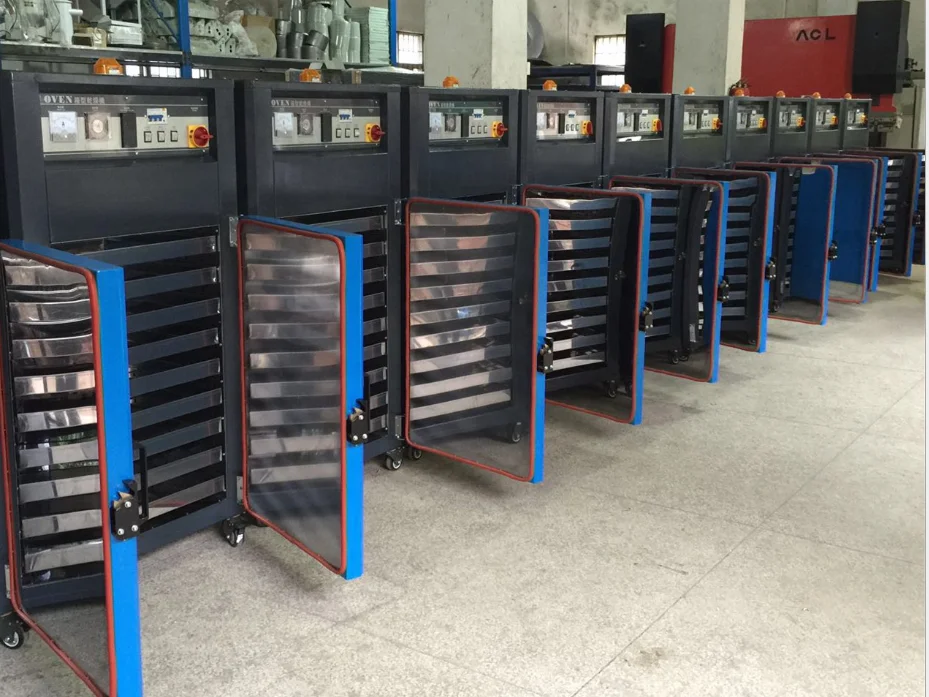

 For cabinet dryers, materials to be dried are placed on the stainless steel made moveable material trays. During operation, process air will flow to heating wire and be heated up to required temperature, then flow through a manifold with evenly scattered holes. Moisture air is sent out through air exhaust port. It is designed to achieve an even drying effect.









4. Specifications



Model	Pipe Heater (kW)	Blower Power (kW)	Temperature Range (°C)	Number of Trays	Total Tray Capacity (kg)	Outer Dimensions H*W*D (mm)	Inner Dimensions H1*W1*D1 (mm)	Tray Dimensions H2*W2*D2 (mm)	Weight (kg)
CD-5	4	0.37	200	5	50	1200*800*620	660*600*550	50*580*530	150
CD-9	4.5	0.37	200	9	90	1440*800*620	900*600*550	50*580*530	180
CD-12	6	0.37	200	9	120	1600*800*620	1100*600*550	50*580*530	210
CD-20	9	1.5	200	20	200	1700*1210*860	1000*990*800	50*430*780	415
CD-20L	18	1.5	200	20	350	1865*1800*1070	1200*1600*1000	50*760*980	550
