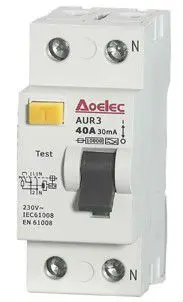

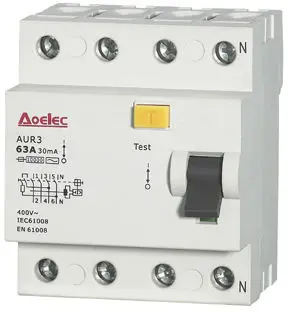

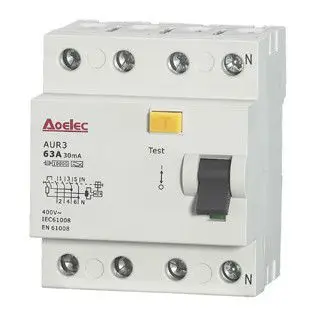

AUR3 Modular Electrical earth leakage circuit breaker/ELCB

Product Overview

Description

eFunction and Feature:

Protection against earth/leakage current and residual current,fuction of isolation

Protection against fire hazard caused by insullation faults

Residual fault current indication

10kA high breaking capacity

Pin/fork type busbar terminal connection

Fire resistant plastic parts withstand abnormal heating and strong impact

Automatically disconnect the circuit when earth/leakage current occurs

or exceeds the rated sensitivity

Independent of power supply and line voltage,and free from external interference

Voltage fulctuation

35mm DIN rail mounting



Technical Data:

Rated current(In):16,20,25,32,40,63,80A

Rated voltage(Un):230/240VAC,400/415VAC

Rated residual current:10mA,30mA,100mA,300mA

Number of poles:1P+N(2P),3P+N(4P)

Electrical endurance:10000cycles

Mechnical endurance:20000cycles

Terminals:pillar type

Cable termination:35mm²

Torque of screw:2.5Nm

IP degree:IP20

Standards:IEC/EN 61008-1

Catalog No.                                                                                                            CTN Size:47.5x25.6x17.5cm

In(A)	30mA	100mA	300mA	QTY/Box	QTY/CTN
	Model No.	Model No.	Model No.	PCS	PCS
16A	AUR3 1P+N 16A	AUR3 1P+N 16A	AUR3 1P+N 16A	1	60
25A	AUR3 1P+N 20A	AUR3 1P+N 20A	AUR3 1P+N 20A	1	60
32A	AUR3 1P+N 32A	AUR3 1P+N 32A	AUR3 1P+N 32A	1	60
40A	AUR3 1P+N 40A	AUR3 1P+N 40A	AUR3 1P+N 40A	1	60
63A	AUR3 1P+N 63A	AUR3 1P+N 63A	AUR3 1P+N 63A	1	60
80A	AUR3 1P+N 80A	AUR3 1P+N 80A	AUR3 1P+N 80A	1	60



About us:



Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
