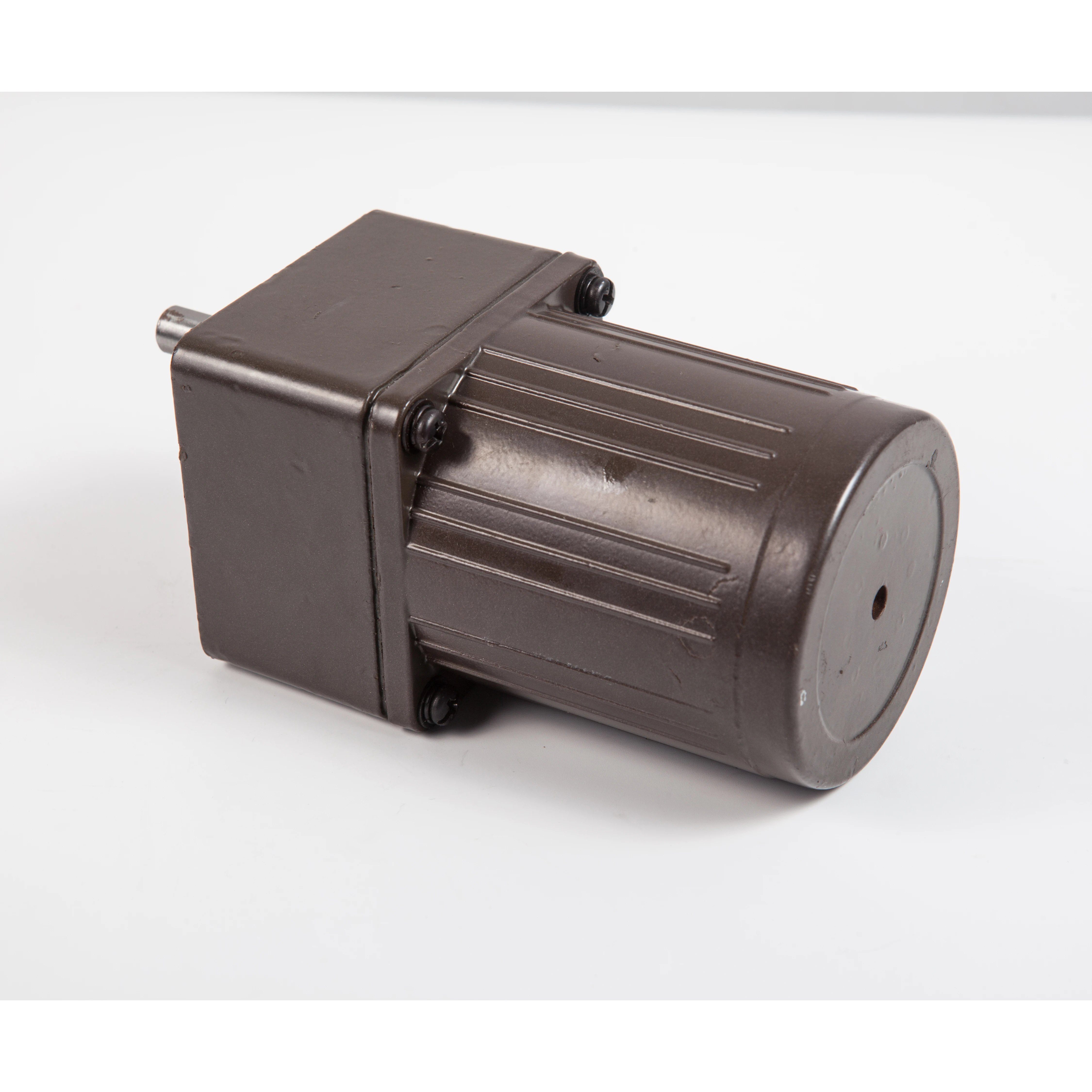

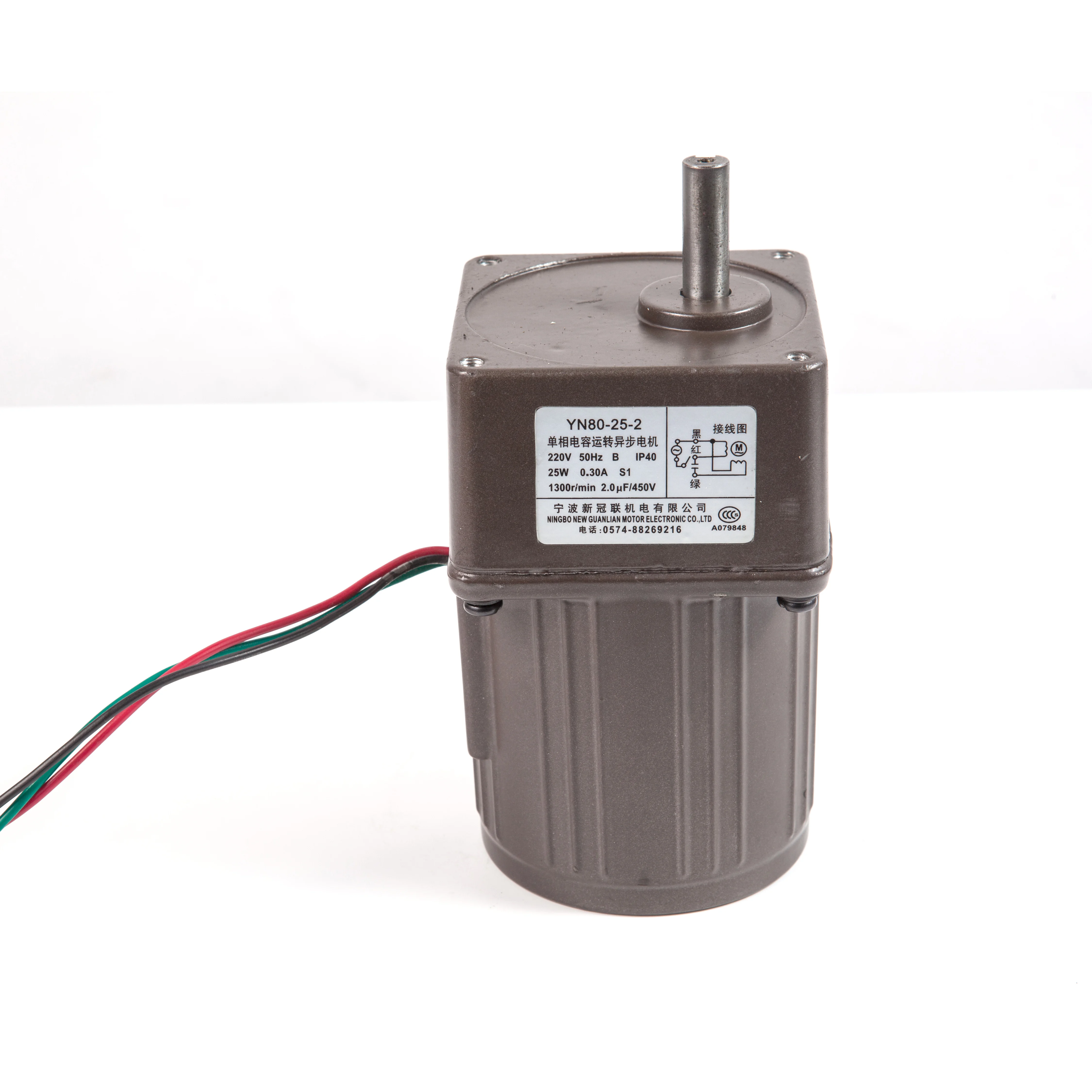

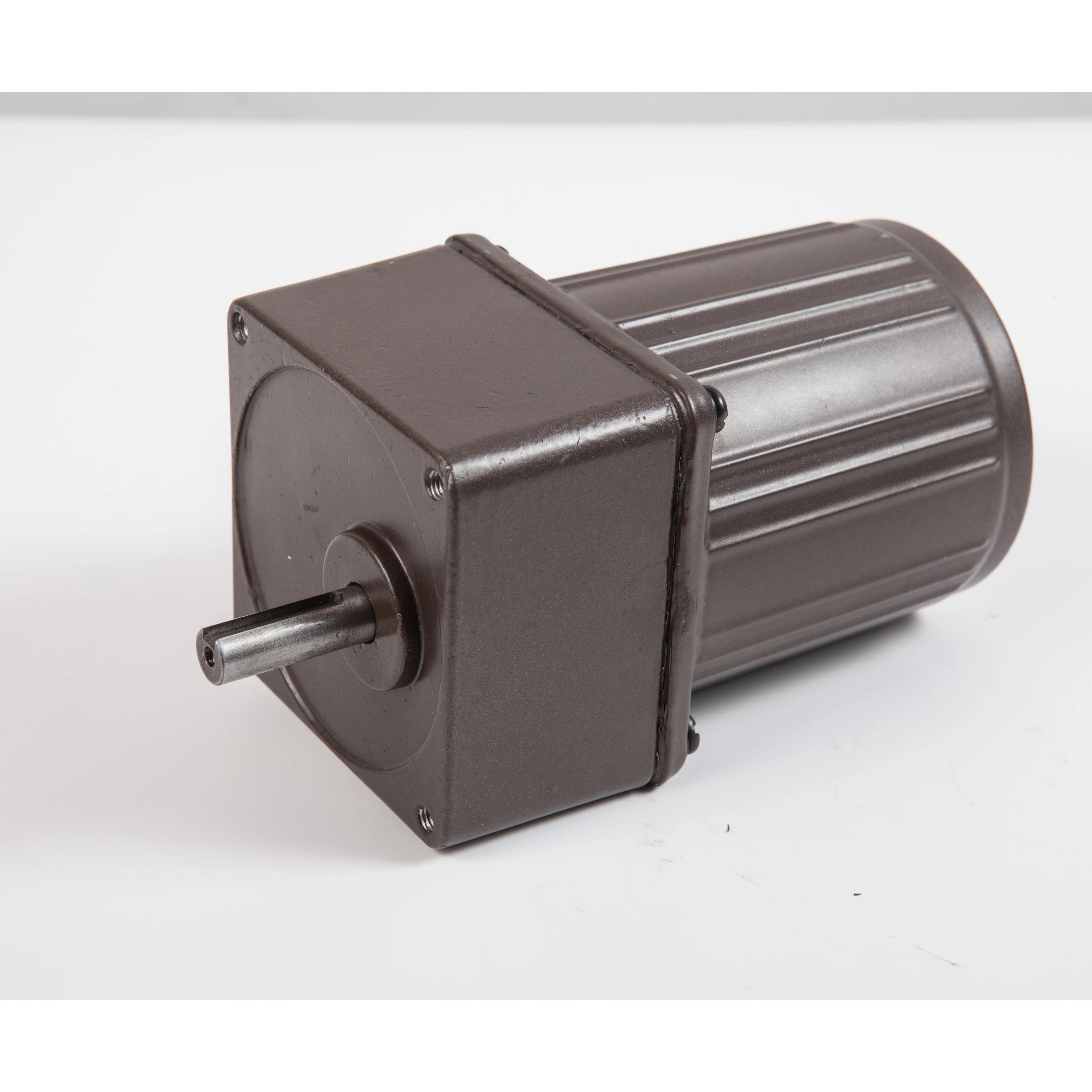

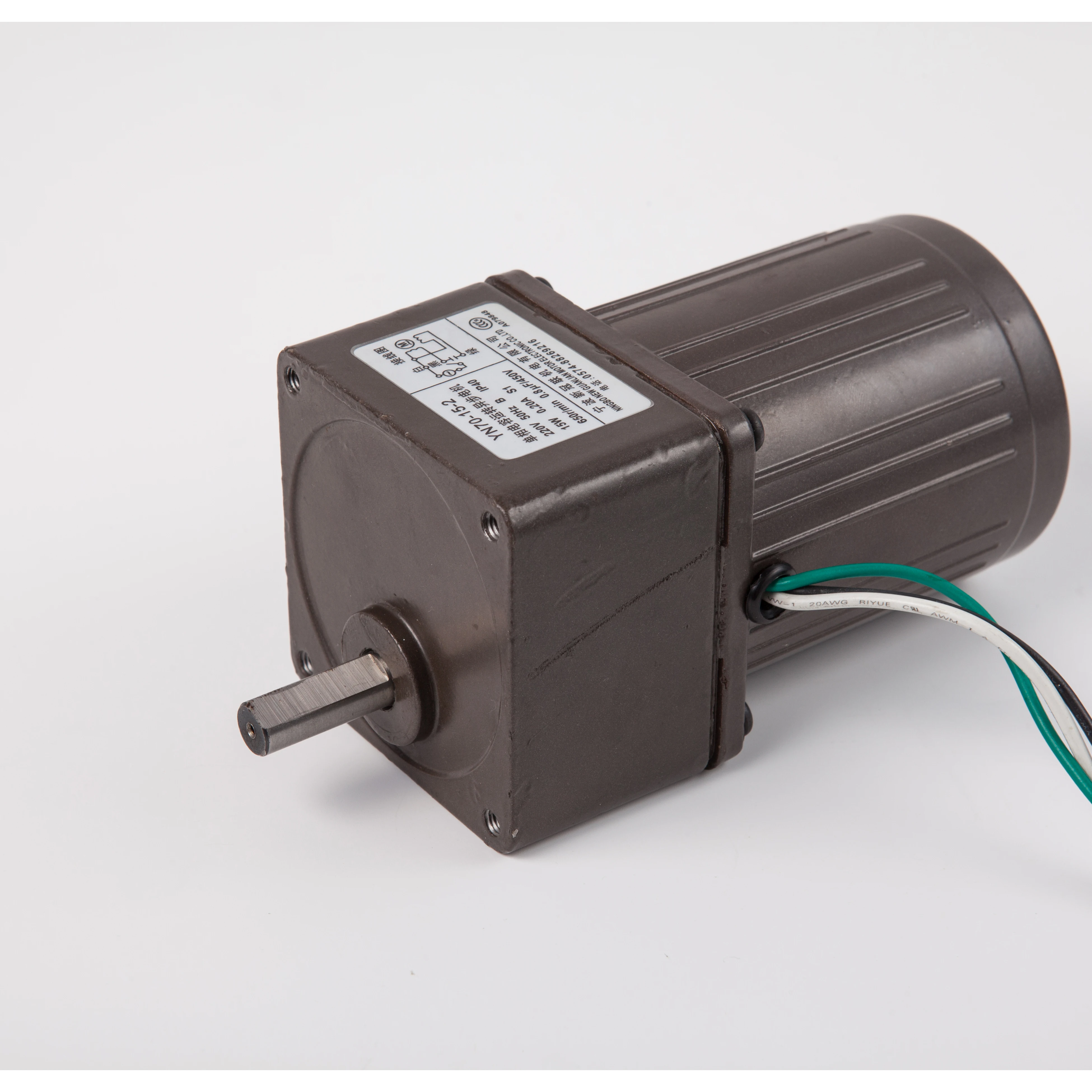

New Ganlian 20w 220v single phase ac asynchronous reducing motor

Product Overview

Description

Our service

1 Any email or trademanager inquires will be replied within 24 hours



2 Normal samples can be offer very quickly(within 3-10 days)



3 Customized service for kind of motor according to your requirement



4 Professional Technical support and After-sale service



Our advantages



1) High Quality Guarantee: 20 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, ROHS marks.



2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.



3) Good Service: We are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don't need way about can't not find the person when have agent things.



4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.



5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhile our MOQ is very low, (Even 1PC for some motors).



Delivery terms

1.T/T in advance will be our popular payment terms



2. We'd like to send you some samples for your further inspection .



3. We have detailed specifications. If you are interested in it, please write to me



Note

1.Color&length of conducting wire can be made according to the requirement of users.



2.The output shaft can be made according to The consumers need.



3.Working voltages and frequencies can be made as per user' s requirements.

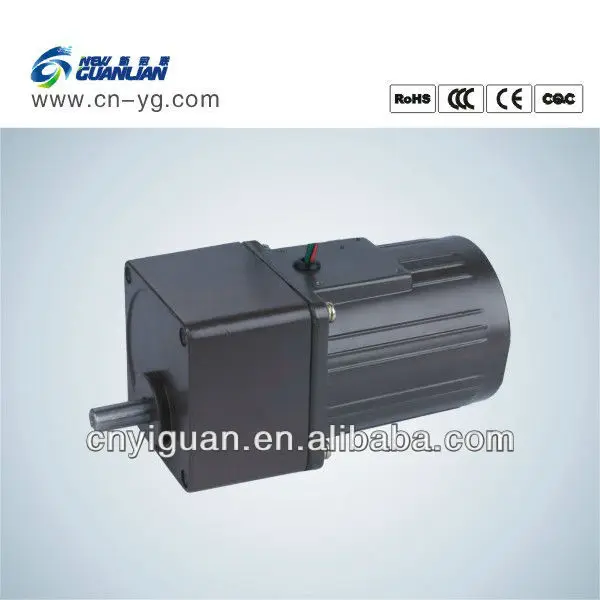

YN70-20w Allowable Torque on Gearbox



Frequency	50Hz			60Hz
reduction Ratio	r/min/Output Shaft Speed	Allowable Torque		r/min/Output Shaft Speed	Allowable Torque
		N.m	Kgf.cm		N.m	Kgf.cm
3	483	0.4	4.1	580	0.3	3.4
5	290	0.7	6.9	348	0.6	5.7
9	161	1.2	12.4	193	1.0	10.3
12.5	116	1.7	17.2	139	1.4	14.3
15	96.7	2.0	20.7	116	1.7	17.1
20	72.5	2.7	27.5	87.0	2.2	22.9
25	58.0	3.4	34.4	69.6	2.8	28.6
30	48.3	4.0	41.3	58.0	3.4	34.3
40	36.3	5.4	55.1	43.5	4.5	45.7
50	29.0	6.7	68.9	34.8	5.6	57.1
60	24.2	8.1	82.6	29.0	6.7	68.6
70	20.7	9.4	96.4	24.9	7.8	80.0
90	16.1	12.1	124	19.3	10.1	103
100	14.5	13.5	138	17.4	11.2	114
140	10.4	18.9	193	12.4	15.7	160
180	8.1	24.5	250	9.7	20.3	208
364	4.0	24.5	250	4.8	20.3	208
