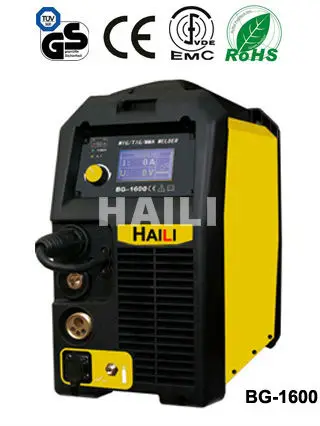

Inverter Dc IGBT MCU MIG/TIG/MMA 3 In 1 MIG Welding Machine(BG 1600)
- Category: >>>
- Supplier: Shaodong Lida Tools Co. Ltd.
Share on (704484439):
Product Overview
Description
Inverter IGBT MCU MIG/TIG/MMA 3 In 1 Welder
Features:
1.Adopt IGBT & advanced PWM inverter technology,
2.High performance 32bit MCU and LCD display
3.DC MIG,LIFT TIG,MMA functions
4.ARC force,hot start can be adjusted in the manual welding
5.Current dropping and gas aspirated time can be adjusted in the argon arc welding
6.Selective modules:EMC,VRD (Add different function module,the parameter will change)
7.Synergic HOME function antomatically manages ideal voltage while only adjusting
wire feed speed.
8.Compact,light weight,portable.Compatible Power Generator
9.Intelligent portection:Over-voltage,low-voltage,over-current.over-heat.
APPLICATION:
1.Application to automobile manufacturing,engineering machiniery,shipbuilding industry,
Aviation and agricultural machinery ,etc
2.Apply to general carbon steel,excellent carbon steel,low alloy steel,conducting butt welding,
Lap welding and fillet welding of all space position.
3.Apply to :Φ0.8-1.2mm welding wire,fixed location welding,various kinds of thin thickness of the common parts, frame and auto industry.
Technical specification:
Model:BG-1600
Welding Function | MIG TIG, MMA | Rated input current(A) | 22 16.4 26.4 | No load voltage(V) | 56 |
Input Voltage(V) | 220/230/240 | Rated input power(KW) | 3.9 2.9 4.7 | Current range(A) | 5-160 |
Duty cycle(25°C 10min) | 160A 60% 150A 80% 100A 100% | Duty cycle(40°C 10min) | 160A 40% 125A 60% 100A 100% | Insulation class | F |
Dimensions (L*W*H mm) | 440*215*405 | Net weight(kg) | 13 | Protection class | IP23S |
Company Information
FAQ
Q1: Why choose us?
1.We are China Leading manufacturer and export to more than 50 counrties all over the world.
2. We have high-experience R&D team, we can adjust the parameter and panels design as per your request
3. A full professional team to handle OEM/ODM project. 3.100% QC inspection before shipping.
4.14 months warranty, life-long technical support and design service.
5. Europe is our main market, accounts for more than 45%. We can send a full series of CE certuficates.
Q2: How is your quality control?
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Each machine loading test at least 20 minute.
Q3: what voltage could you provide?
110/220v, 220/380V, 230V etc. We can adjust it as per your country voltage.
Q4: How long is the production lead time?
After receiving your 30% deposit , generally it is 5-10days if the goods are in stock, or 25-30 days if not .
Q5: What's your payment way?
T/T, Trade Assurance.
Q6: Can I get customized sample?
Yes, we can adjust the circuit board and structure as per your request and send you samples.
