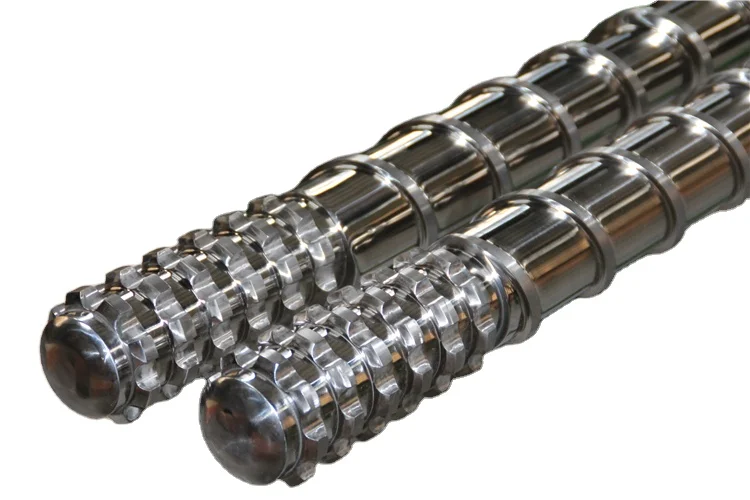

Gas Cylinder Recycling Screw Barrel

Product Overview

Description

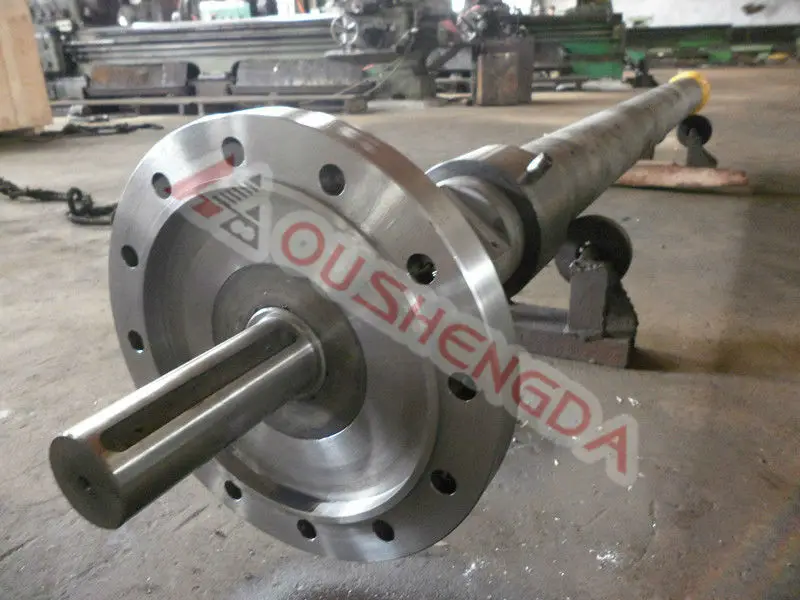

  Bimetallic  Venting/Degasing gas cylinder recycling screw barrel

For good plasticizing effect,we have different designs of   Bimetallic Venting/Degasing Single Barrel And Screw For Extruder to meet customer's demand.



Types of screw

Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc.



China zhoushan oushengda (osd screw) Bimetallic gas cylinder recycling screw barrel
Diameter	Φ15mm-350mm	Designing	Screw structure and compression ratio can be designed according  to different products  & different output requirement.
Materials	38CrMoAlA  (JIS SACM645) SKD61	Application	Suit for hdpe ,ldpe, lldpe recycling.
Nitride Case Depth	0.5mm-0.8mm	Technology	1)Longer time Gas Nitriding treatment  2)special anti-wear & abrasion alloy (bimetallic) 3)tungsten carbide 4)cobalt base alloy 5)stainless steel  6)Gh113 nickel based alloy
Compared to other supplier, OSD advantages	1.Advanced Nitriding Technology 2.Anti-corrosion and Wear-resisting Duplex Metal Spraying Technoloy 3. we uses special alloy powders being sprayed and welded on the screw's ridge,and uses different alloy and welding methods for the screw of different functions. 4.Fast and on time delivery . 5.Longer lifetime for the screw barrel.
Nitride Hardness	950-1020HV	Packing	Wrapped up by film in wooden
Nitride Brittleness	≤Grade One	Payment Term	T/T , L/C
Surface Roughness	Ra0.4um	Delivery Term	25 working days
Screw Straightness	0.015mm	Port Departure	Shanghai/Ningbo
Alloy Hardness	HRC58-62	Min. Order	1 set
Alloy Depth	0.5mm-0.8mm	Common Nitrided:2.5-4years Bimetallic: much longer lifetime.
Guarantee

Model	L/D Ratio	(kg/hr) output/capacity	(RPM) Screw Rotation Speed	(KW) Driving Motor	(mm) Center Height
OSD20	20:1	3-5	10-60	1.1/1.5/2.2	1000-1400
OSD25	25:1	5-8	10-60	2.2/3.0/4.0	1000-1400
OSD30	25:1	5-10	10-60	2.2/3.0/4.0	1000-1400
OSD45	25-36:1	10-120	10-150	5.5-22	1000-1400
OSD65	25-36:1	60-300	20-150	22-75	1000
OSD75	25-36:1	200-450	20-150	30-132	1000
OSD90	25-36:1	180-600	20-110	30-185	1000-1100
OSD120	25-36:1	320-1000	20-90	75-280	1000-1250
OSD150	25-36:1	400-1300	20-75	90-400	1000-1300



Technological Process:

Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining→Finished Product→Detecting→Nitring/Alloy Processed →Finish Machining

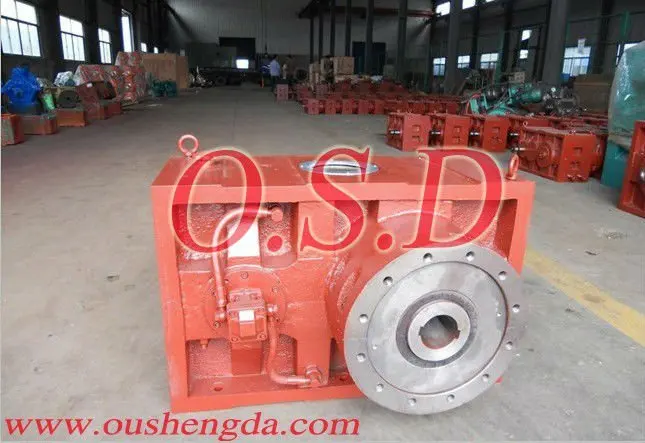

Matching reducer box /gearbox for single extruder screw barrel:

End Products Application :

About O.S.D :

1. Our Strength: We have an experience of more than 20 year of manufacturing and designing Plastic machines, varied Screws and Barrels and spares.  We concentrate on improving quality, updating design and enhancing service.


2. Our products: Screws Barrels for Injection, Extrusion, and Blow Molding applications; relevant accessories(such as die head, gearbox, filter screen changer and so on); plastic processing  machinery.


3. Location advantage: located in China's Screw Town - Jintang Town in Zhoushan City, near to Ningbo Port and Shanghai Port.


4. Market areas: global sales network reaching South America, Eastern Europe, Southeast Asia, Africa, Oceania and the Middle East.


5. We promise: We assure the customer benefits, We provide competitive price, We Emphasis On Cooperation.
