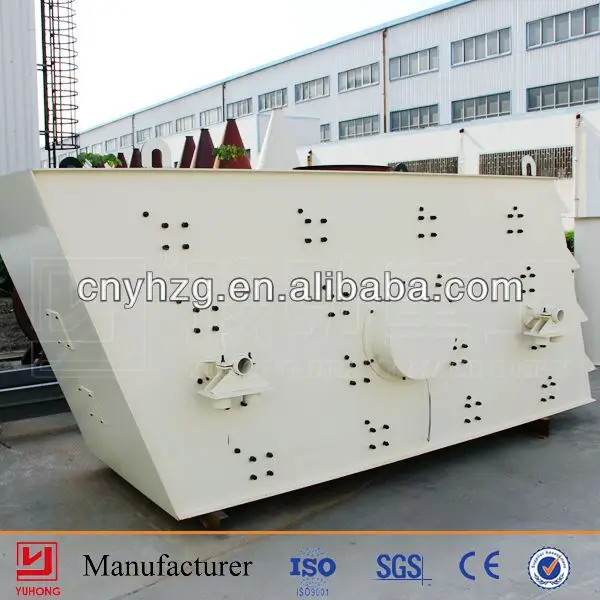

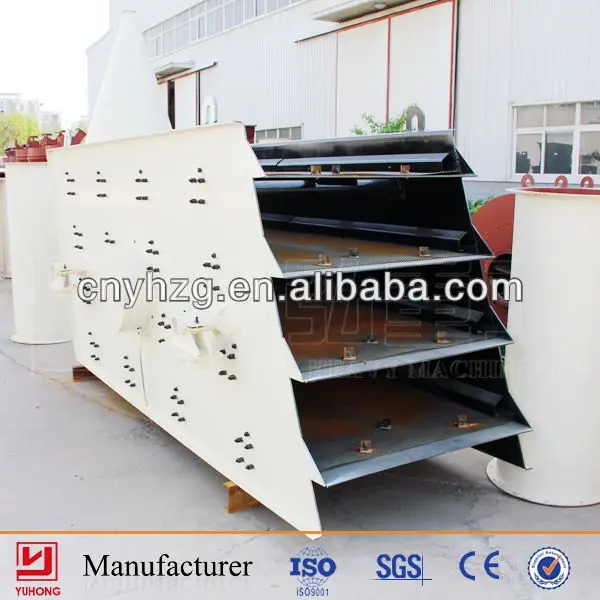

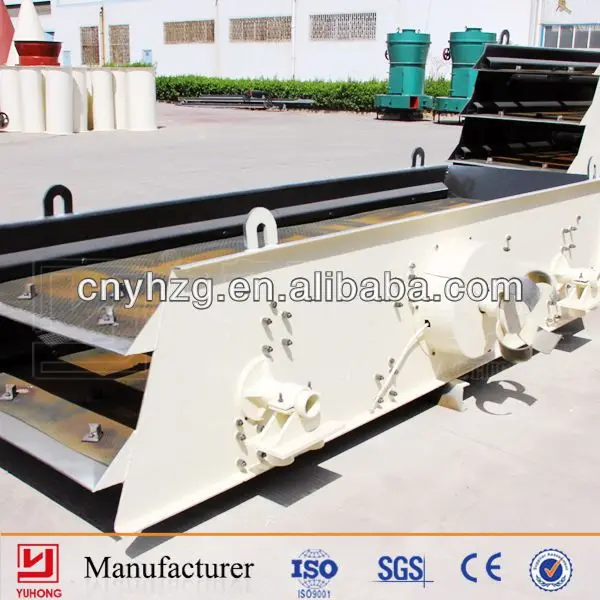

Good Quality Mine Gold Trommel/ Mini Vibrating Screen
- Category: >>>
- Supplier: Henan Yuhong Heavy Machinery Co. Ltd.
Share on (705436622):
Product Overview
Description

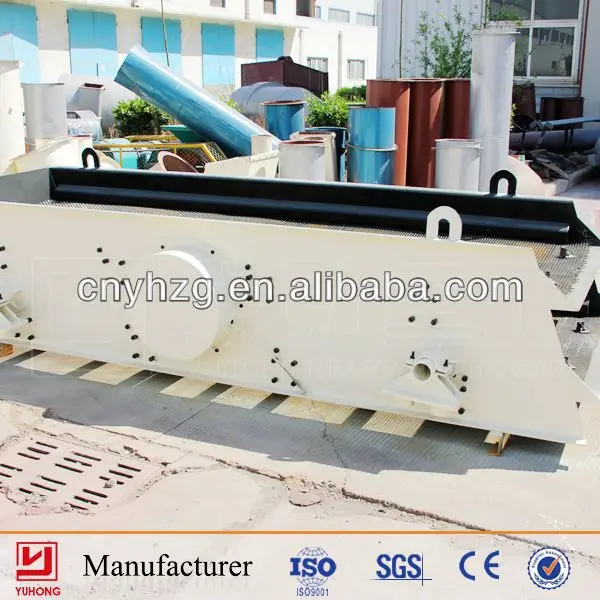

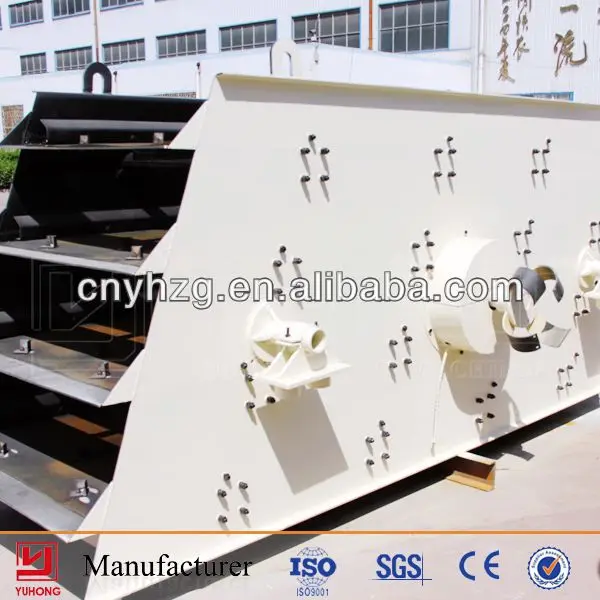

Good Quality Mine Gold Trommel/ Mini Vibrating Screen
4 ADVANTAGES OF PRODUCT STRUCTURE

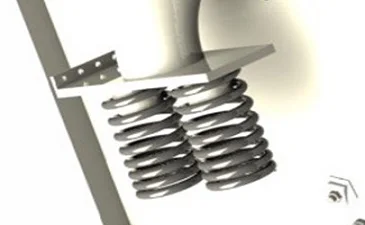

1.Rubber Isolation Spring: Longer service life, little noise, stable resonance region.

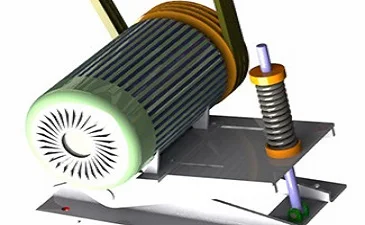

2. Motor: High quality motor makes sure stable working of machine.

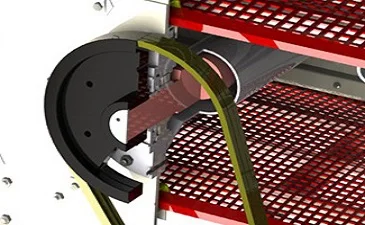

3.Eccentric Shaft Vibration Exciter: Main machine is under protection, easy to be replaced, and maintenance costs is reduced.

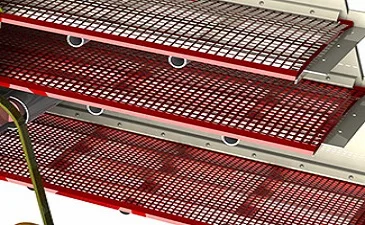

4.High Quality Screen: Longer service life, hard to plug hole.
APPLICABLE MATERIALS
The Y Series Screen is a multi-layer, high-efficiency and new-type vibrating screen, specially designed for screening stones in quarry. And it can also be used for product grading of coal dressing, ore dressing, building materials, electric power, and chemical engineering sectors, etc. for the materials of limestone, granite, marble, basalt, iron ore, pebble, river stone, shale, bluestone, coal, cobble, construction material
PRODUCT PARAMETERS
Model | Sieve | Sieve (m2) | Mesh (mm) | Max feed (mm) | Processing (m³/h) | Vibrating (r/min) | Double (mm) | Motor (kw) | Sieve (°) | Sieve (mm) | Total (kg) | Dimensions (L×W×H) (mm) |
2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800×4800 | 9080 | 5420×2550×1420 |
3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800×4800 | 9600 | 5660×2550×1780 |

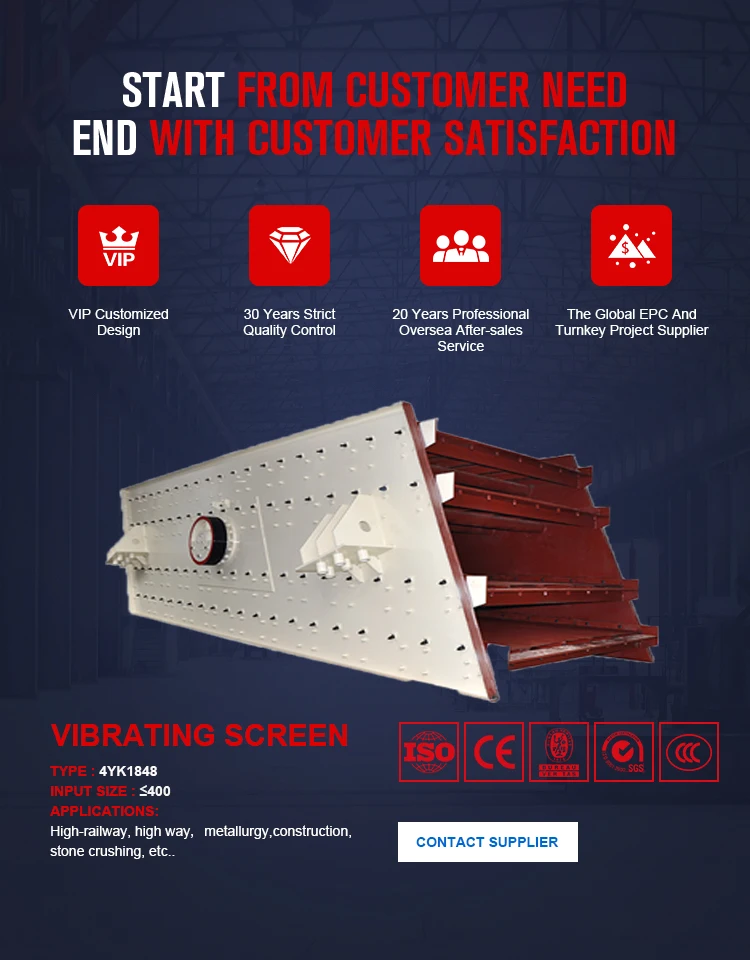

4YK1848 | 4 | 34.56 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800×4800 | 11100 | 6290×2550×2160 |
2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 18.5 | 20 | 1800×5400 | 10150 | 5960×2550×1420 |
3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800×5400 | 10840 | 6260×2550×1780 |
4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800×5400 | 12840 | 6830×2550×2160 |
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for vibrating screen material?
A2: Our Yuhong has a high standard on choosing material of vibrating screen.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4. What is the capacity per hour?
CONTACT SUPPLIER
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
