2021 year wheel loader 5.0 ton

Product Overview

Description

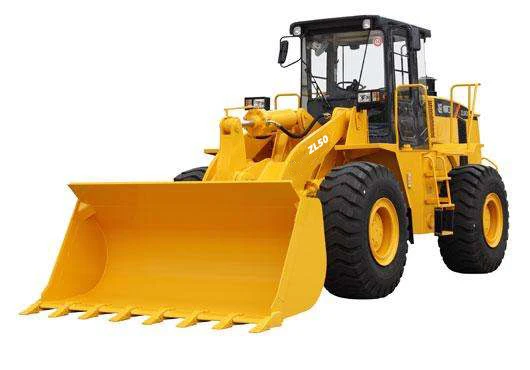

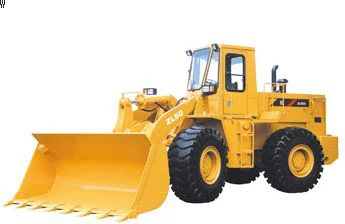

  2021 year wheel loader 5.0T wheel loader for construction ZL50



1. STEYR diesel engine, Turbo-charged, high power, low fuel consumption low noise and reliable performance .with improved fan and radiator, it can work in more flexible working condition .



2. Single-phase, 4 elements double turbine hydraulic torque converter can make a good use of an engine and enlarge torque to make a large tractive force.with a planetary power shift transmission of 50; it is compact, higher transmission efficiency and speed with long service life.



3. Strengthen 50series driving axle is high in load-bearing capacity and reliability, reasonable load distribution between front and rear axles and good in vehicles stability.



4. The radiator structure is optimized to offer more effective heat dissipation area. The air intake and outlet channel design of overall cooling system is optimized to effectively lower water temperature in the engine, oil temperature in the Hydraulic system and thus increase the cooling efficiency.



5. The bucket board of large wheel loader adopts high intensity steel board then prolong its use life.



6. The front and back frames of international wheel loader both adopt articulated type connected by oscillating bearings and the back frame eliminates the non-standard channel steel.

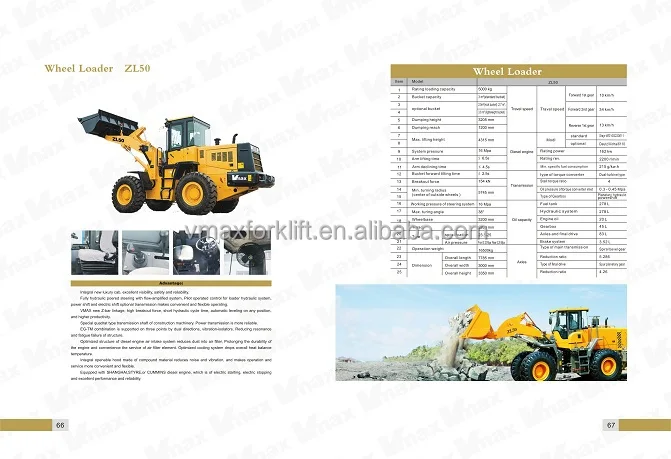

Specifications of front end wheel loader:

WHEEL LOADER		Model
Item	Specification	ZL50
1	Rated weight	5000KG
2	Rated capacity	3.0m3
3	Operating weight	16000KG
4	Model of engine	STEYR WD12G220E11
5	Rated power	162KW
6	Rated speed	2200r/min
7	Max .dump height	3098mm
8	Max .dump reach	1198mm
9	Min .ground clearance	450mm
10	Wheel base	3200mm
11	Tread	2250mm
12	Lifting time	Total time:11.3s
13	Lowering time
14	Unloading time
15	Max. breakout force	172.6KN
16	Min. turning radius	7268mm
17	Overall dimensions (length*width*height)	7836x3010x3300mm
18	Engine option: CUMMINS 6CTA8.3-C215 / STEYR C6121ZG50



FAQ
Any questions, welcome to contact us, we will be always help you and support you.
Q: May I know how soon I can get the machine after I transfer the deposit?
A: Usually, if the quantity is less than 20 units, we can finish the production in 15-20days.
We will try our best to offer the machines to you as soon as possible.
Q: How long the product warranty period?
A: The product warranty period is 18 months or 2000 hours.
Q:How can i become a distributor of Vmax?
A: We have been engaged in this industry for more than 20years, Our hot products sold
at home and abroad by our own foreign trade department and some trading company.
