CNC high speed and full function wooden door lock hole and hinge boring machine
- Category: Boring Machines >>>
- Supplier: Taizhou Evok Machinery Co. Ltd. [Zhejiang China]Taizhou
Share on (706916523):
Product Overview
Description
Technical Process

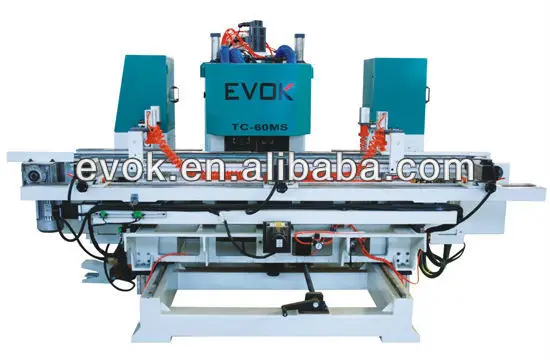

TC-60MS full function wooden-door lock-hole and hinge boring machine
(1)Brief introduction:

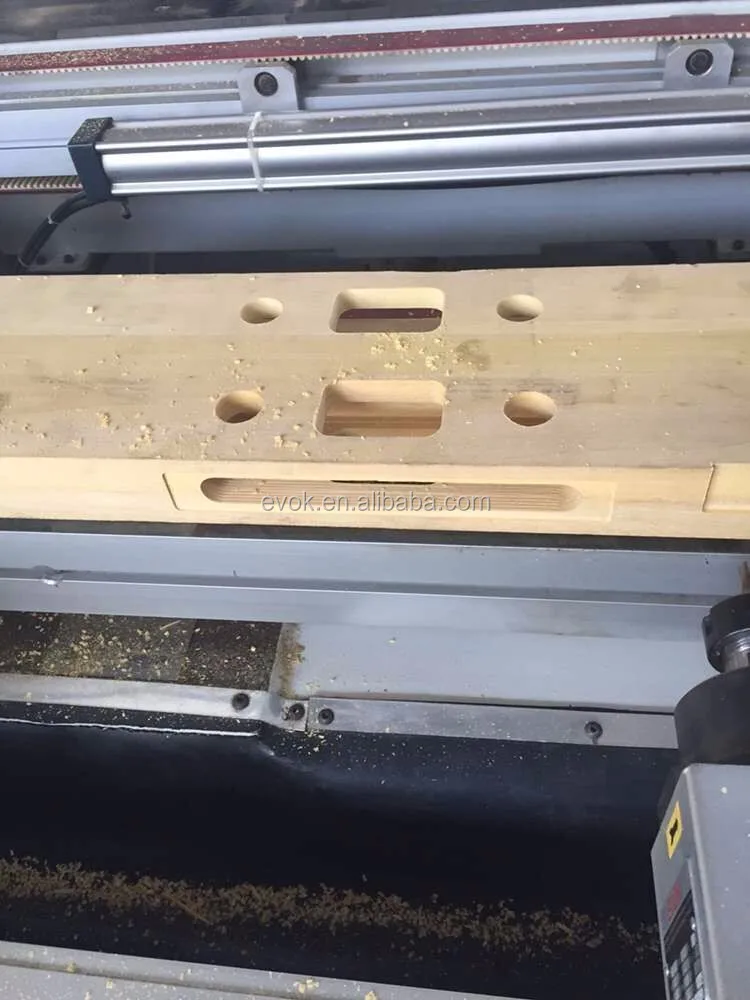

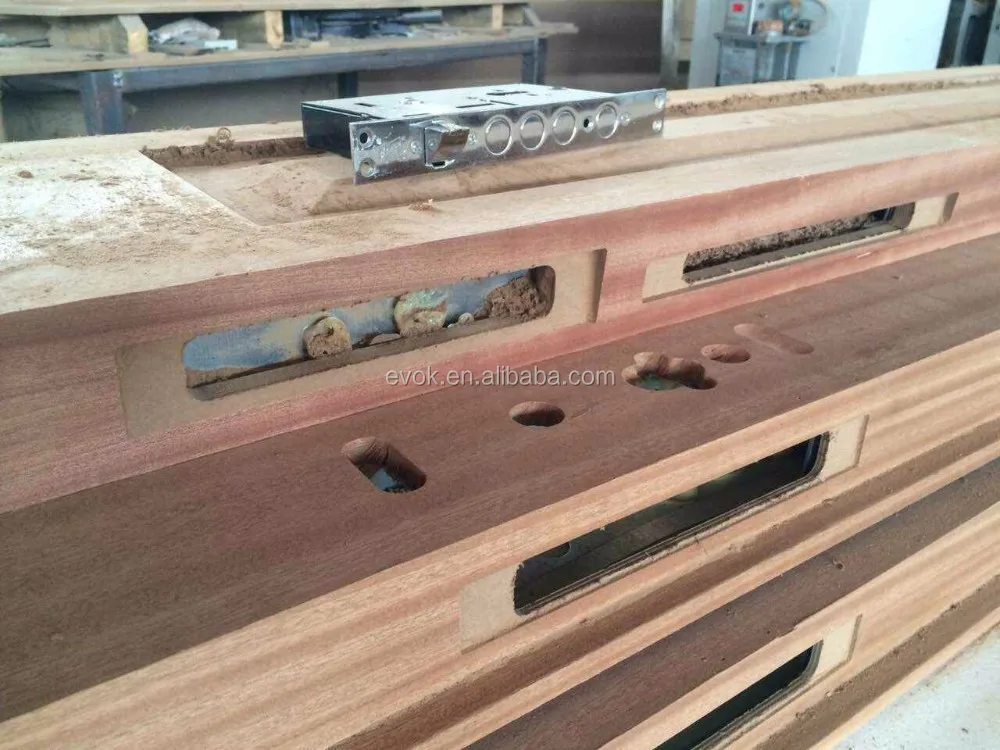

It can be used for drilling hole or boring hinge on the wooden-door with one time,the edge of door can be flat
or bevel.the speed of drilling and boring rather fast.It takes only 2-3min to finish one door.
(2)technical parameter:
Max diameter of the cutter 20mm
Min diameter of the cutter 4mm
Panel width 600-1100mm
Panel length(max) 2600mm
Panel thickness 60mm
Max working depth 110mm
Max working hole 60mm
Lock groove cutter 3
Lock hole spindles 3
Hinge spindles 3
Cutter speed 12000T/min
Spindle speed 6000T/min
Machine size 2800*2100*1580mm
TC-60MS-CNC-B
TC-60MS-CNC-A
