Single Handle Generator with DC Output 3.2v to 28v optional

Product Overview

Description

SINGLE HANDLE GENERATOR WITH DC OUTPUT

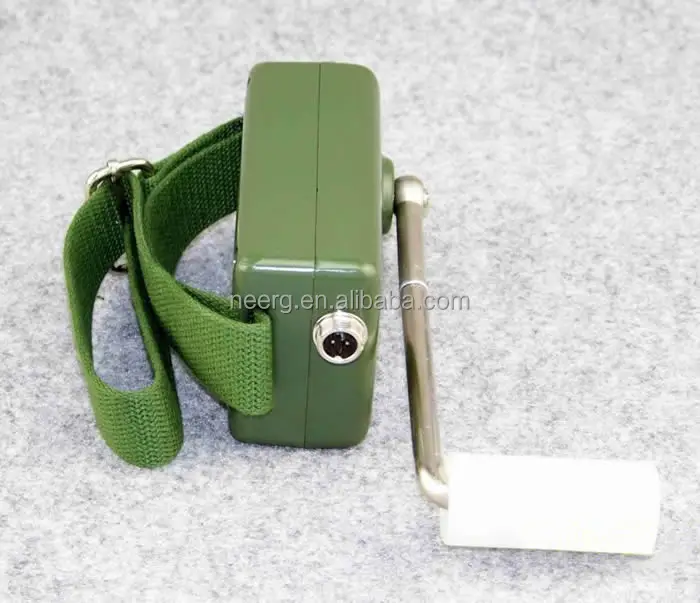

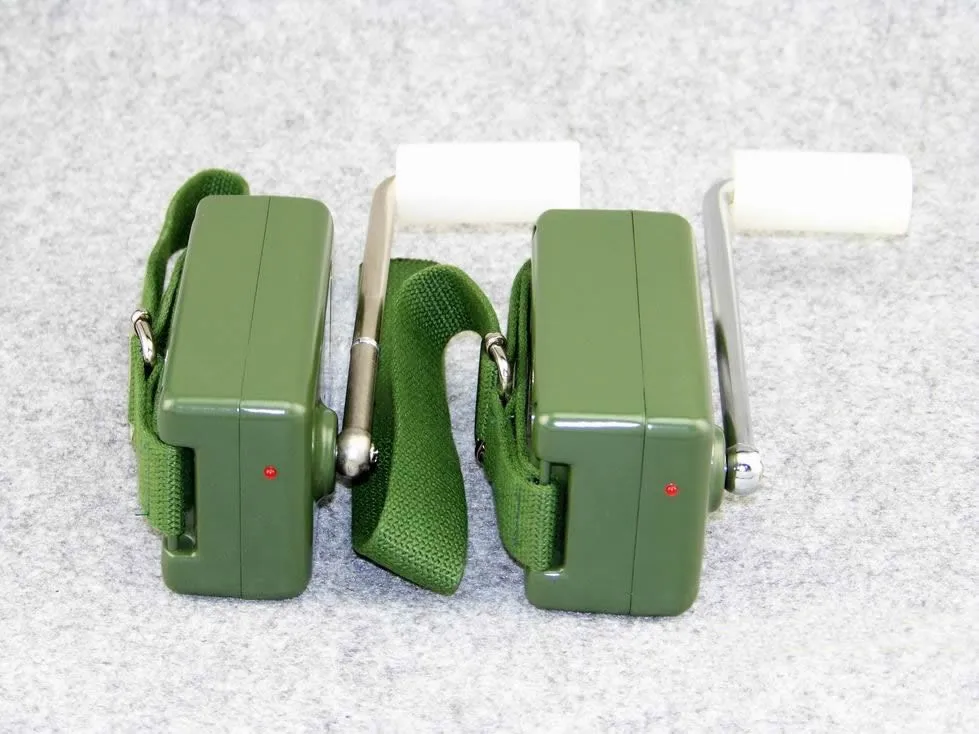

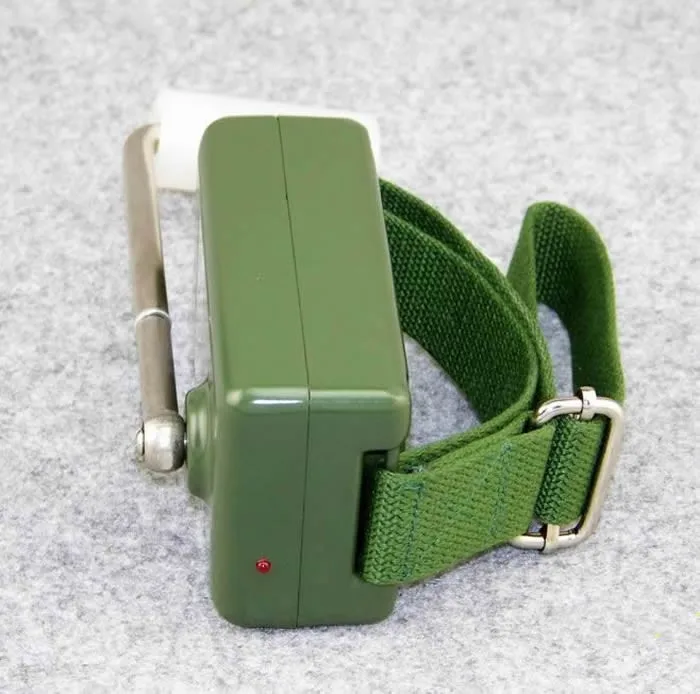

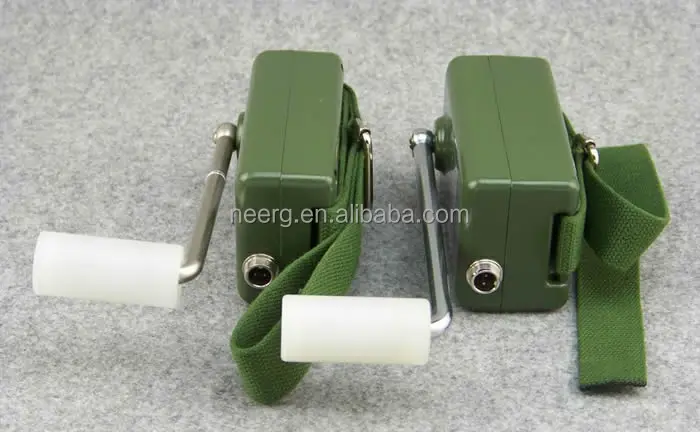

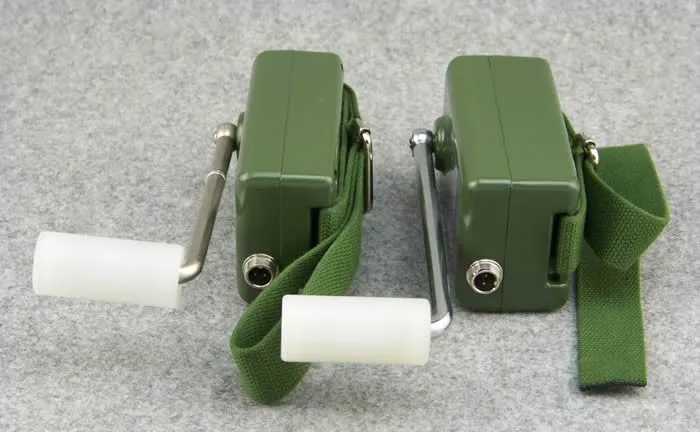

Hand dynamo power generator with single handle

Used as emergency power and typically charging battery

Apply Nd-Fe-B brushless motor

Coil: pure copper wire

Gear: precision metal

Bearings: sealed ball bearings, oil bearings

Lubrication: military aviation lubricant oil -50-140℃

Shell: die casting aluminum alloy

Max. output power up to 50w

With DC output voltage ranging from 3v to 28v for choice

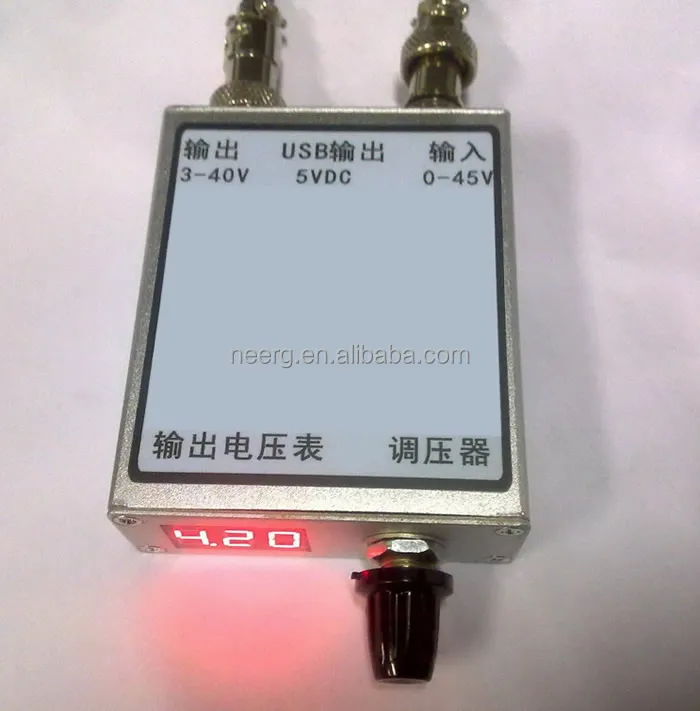

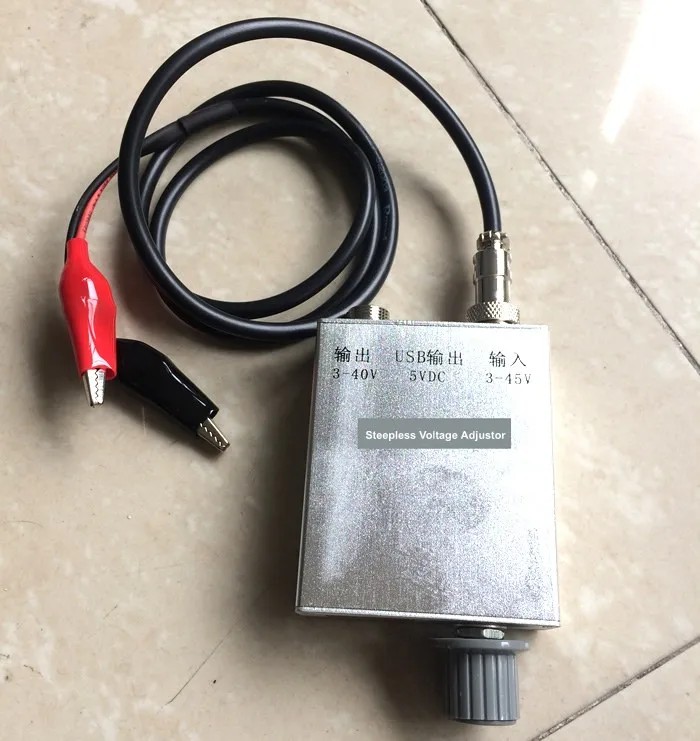

Steepless voltage adjustor is optional

Current & thermal overload protection

Lightweight and compact size, easy to carry

Binding belt is included

Red LED indicator

Rated power: 12-20w

Output voltage: DC4.5-28V

Rated current: 0.7-3A

Rated speed: 90rpm

Output ripple ratio: 0.5-1.2%

Output ripple voltage: 100-300mV

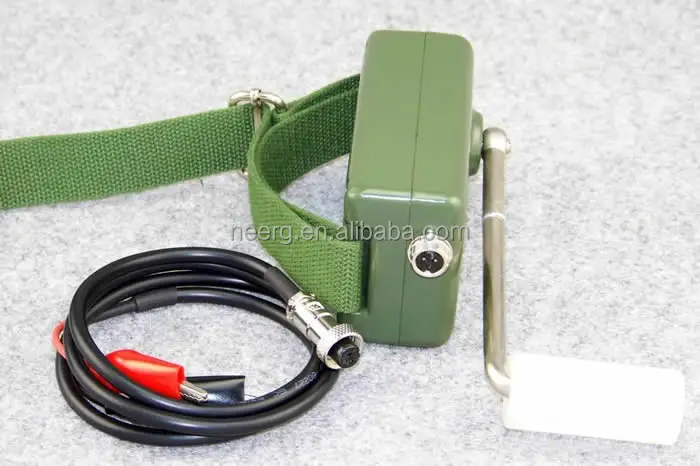

Output cable: 2x0.5mm2, 1.2m in length

Work temp.: -40 to 125ºC

Dimension: 113*65*39mm

Handle length: 152.50mm

Inner box: 205*135*80mm
