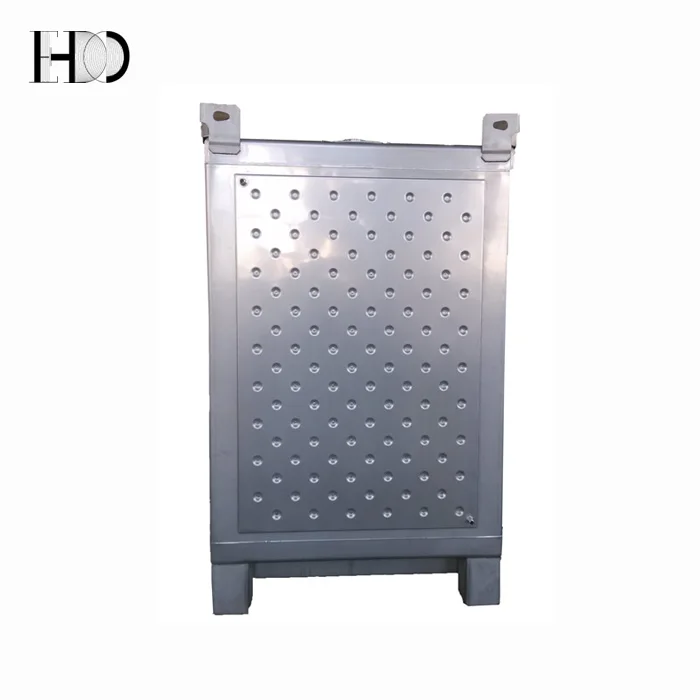

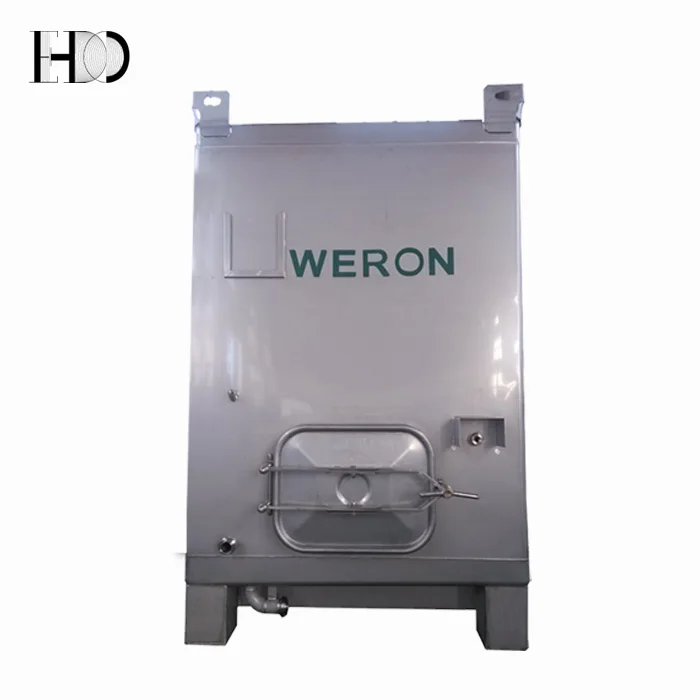

Stainless Steel Wine Fermentation Tanks with Cooling
Product Description
ODM and OEM are welcome!
We can produce different kinds of tanks as your need !
Welcom to your inquiry
An intermediate bulk container is a large vessel that is used to store fluid and bulk materials or transport them. IBC’s can be manufactured from many different materials such as stainless steel, aluminum, mild steel, and exotic alloys.
Intermediate bulk containers (IBCs) are an ideal alternative between a drum and a tanker to transport or storefluid and bulk materials.
Specifications
Liter
Gallon
Capacity
2082
550
Material
Tank
Stainless Steel 304
Seal Gasket
Silicone Rubber
MM
INCH
External Dimention
Length
1229
48.4
Width
1160
45.7
Height
2010
79.1
Tank Dimention
Length
1219
48.0
Width
1000
39.4
Height
1500
59.1
Top Manway Dimention
φ572
22.5
Square Side Door Dimention
Length
600
23.6
Width
400
15.7
Inlet on Top Lid
50.8
2.0
Discharge Hole Diameter
5.08
2.0
Cooling jacket inlet and outlet diameter
12.7
0.5
Sampling Valve Hole Diameter
12.7
0.5
temperature probe pocket
12.7
0.5
Outlet Hole Diameter
38.1
1.5
MM
Gauge
Tank Wall thickness
3
11
Cooling jacket Wall thickness
2
14
KG
LBS
Max. Gross Weight
2369
5223
Tare Mass
289
637
Max. Payload
2080
4586

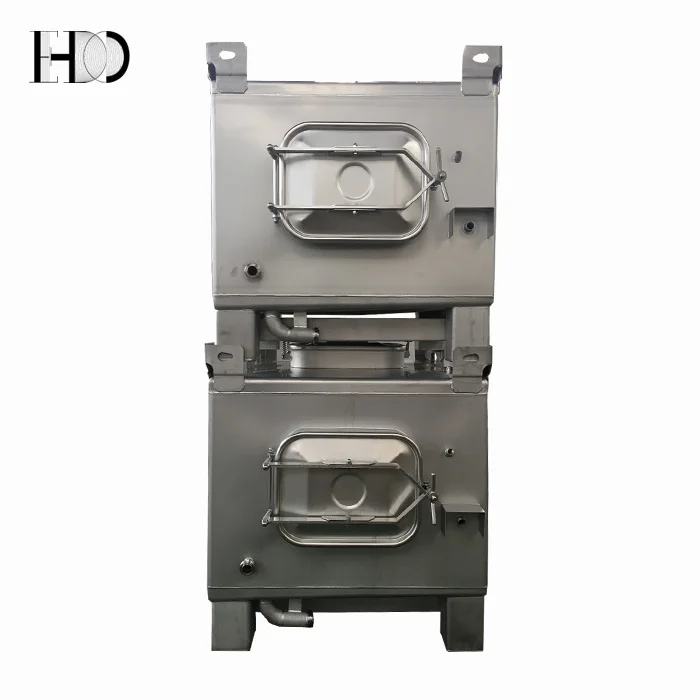

Stacking
2 high full, no stacking during transportation
Features
This IBC tank is wonderful choice for fermenting red and white wine. It's also great for transporting and storage
beverage and wine
•Tank size is available from 500L to 3000L
•22.5" Top manway with 2" clamping inlet, silicone gasket, lock by clamping ring
• Hinged side door allows man going in tank to clean, easy operation
•Handle by crane or forklift
•Three way forklift entry
•Internal welds are polished, external surface is 2B finish(pickling and passivation)
Testing for IBC
The intermediate bulk container or IBC tote tank will be tested according to IMDGchapter 6.5 on metallic IBC. UN certification(UN31A, UN11A, etc) is available unpon request.
All of our tanks will be tested before delivery to insure customer received a perfect performance IBC tank.
Our normal test including pressure test, stacking test, top&bottom lifting test, etc.
Certifications
Our facility is qualified with ISO9001, all of our products are produced there.
For IBC ( Intermediate Bulk Container) products, UN certificates are available upon request.
Material certificates are available for all products.
Customer Reference
Over last two decades developing, our customer is all over the world, most of them are leaders in the industry. Work with us, you are working with partner of top rated companis in the world, enjoy the successful selection of suppliers.

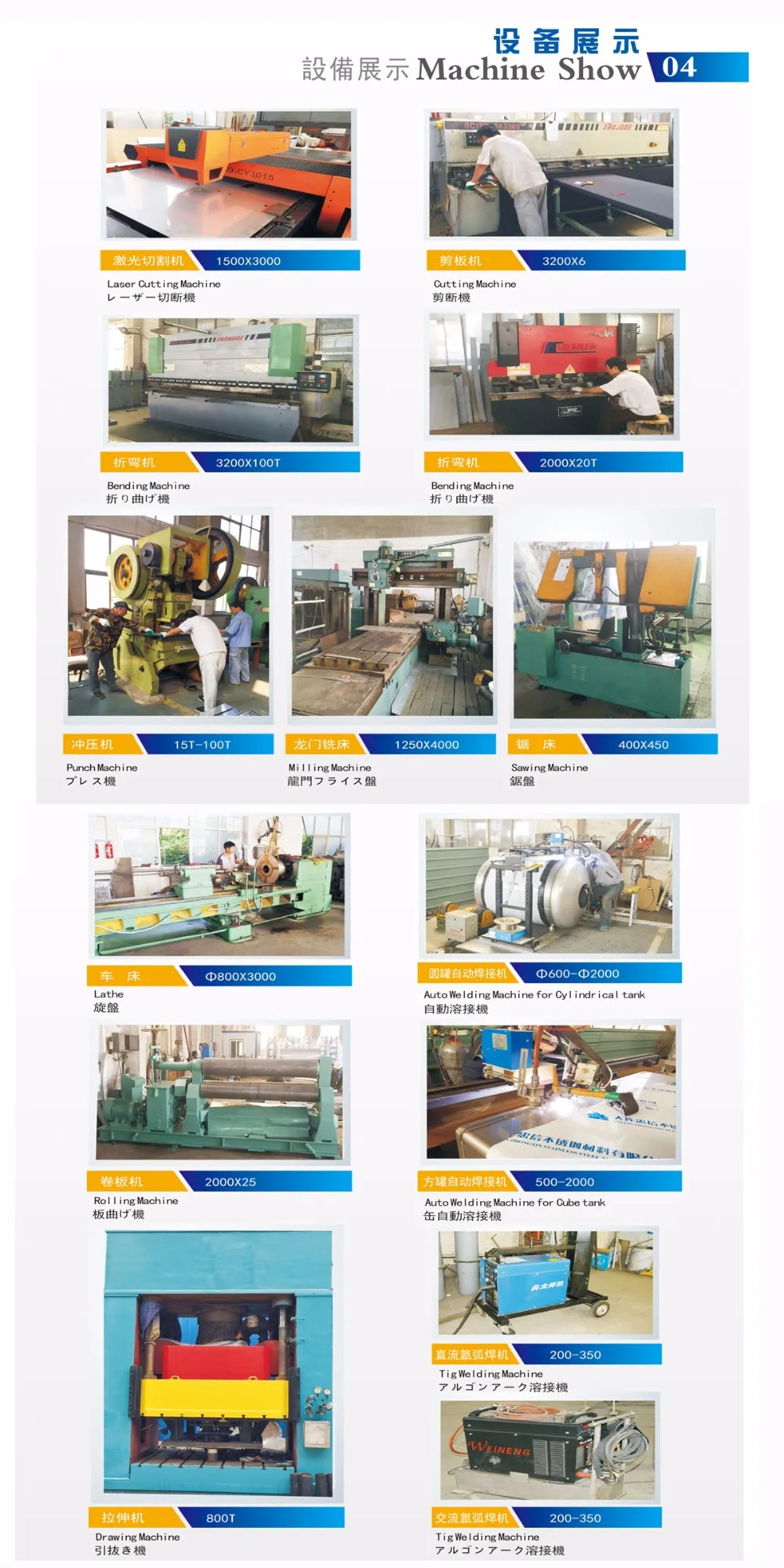

Factory Information
Our factory was established in 1992, and is the very first manufacturer of stainless steel IBCs (Intermediate Bulk Container) in China. Also, we have full experiences in metal fabrication, sheet metal, etc. Strong Engineer and production team will ensure to offer you top design and quality products. Our facility is ISO9001 certified, and has the most exprienced welders in the industry.
FAQ
Why are you so much cheaper than your competitors? Seriously, we are asked this question all the time. The answer: we are manufacturing and trading combo.We sell direct to the customer. No distributors. No middlemen. Also, we keep overheads down -- no marble foyers, no fancypants administrative assistants, no sales reps in flash cars with nothing to do. We price the products accordingly
Do you accept OEM/ODM? Yes, we welcome ODM and OEM require.We have strong engineer and production team who will ensure you to have the top rated products!
