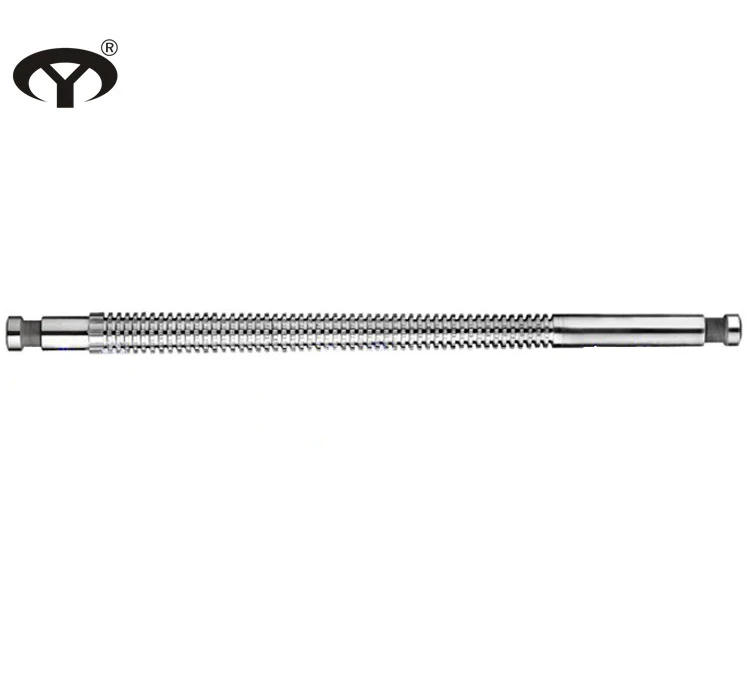

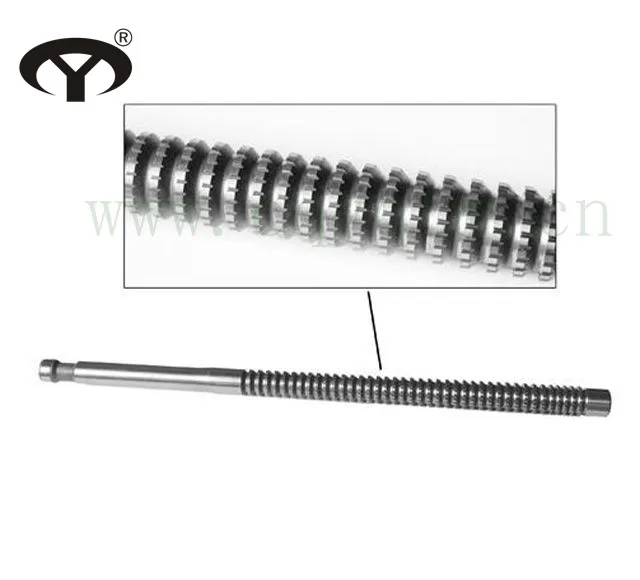

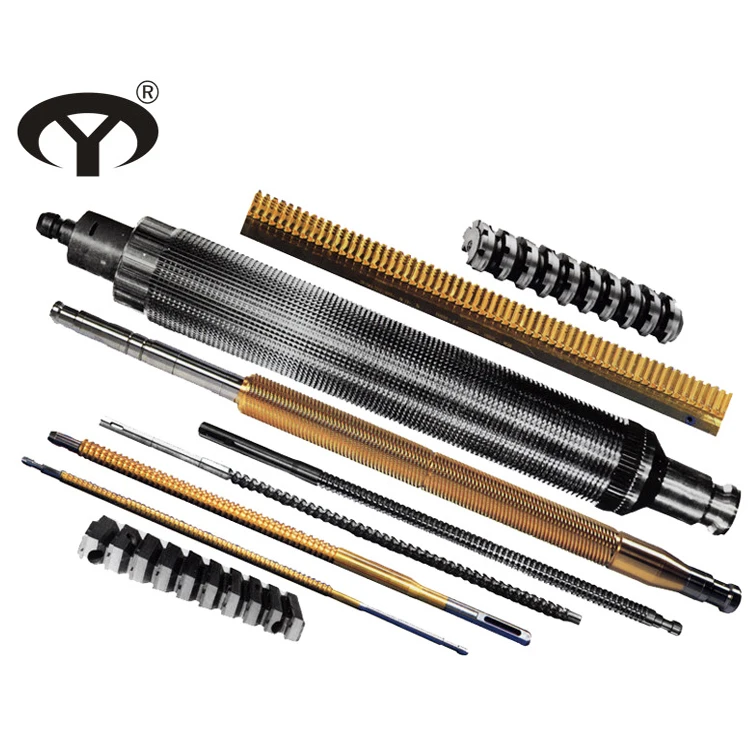

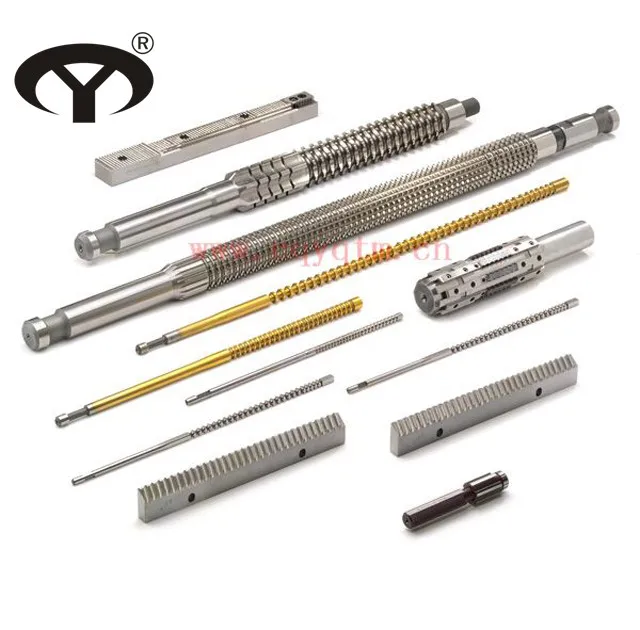

HSS M2/M35 PA30 Module Involute Internal Spline Broach

Product Overview

Description

HSS M2/M35 PA30 Module Involute Internal Spline Broach , Broaching Cutter, Broaching Tools, Internal Gear Broach



 Specifications table of module involurte spline broach :







module	Width of base tooth space	No. of teeth	Overall length	Broaching length
1	1.571	12~40	430~1000	10~120
1.25	1.963		550~1120	18~120
1.5	2.356		570~1140
2	3.142		650~1390
2.5	3.927		740~1600
3	4.712	12~30	820~1580
3.5	5.498	12~26	850~1670
4	6.283	12~22	920~1520
5	7.854	12~18	1120~1620





 NOTE :



      1. Involute spline broaches with standard pressure angle 30°



      2. Fine pitch involute spline broaches of m0.5~m0.8 base circle dia.≥ 6mm can be ordered



      3.Involute serration broaches with standard P.A.45°, m0.5~m2.5 can also be ordered.







































Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
