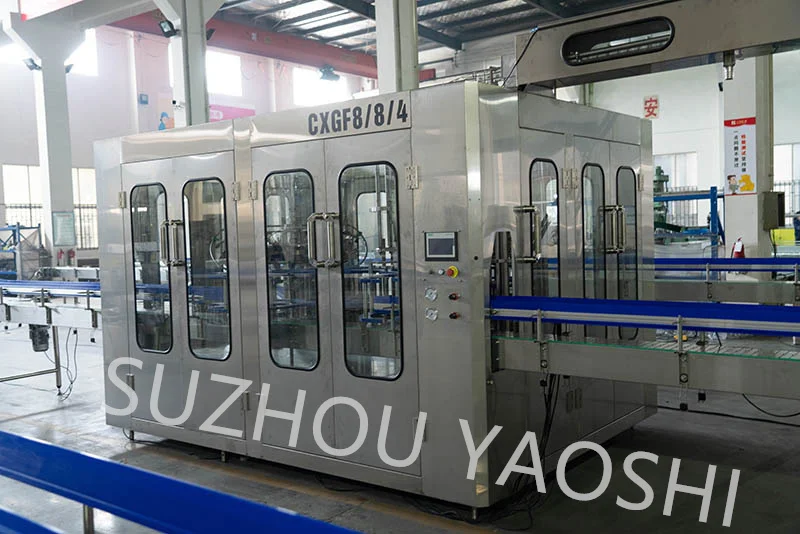

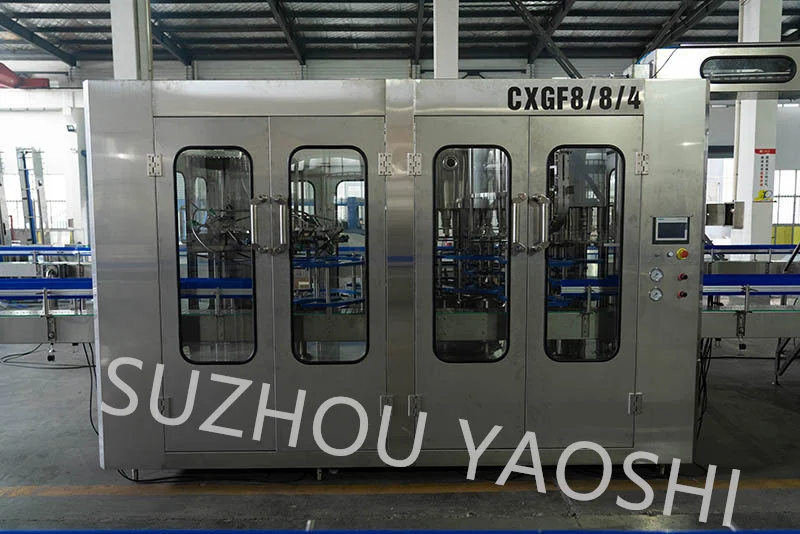

5 liter big bottle water filling machine
- Category: >>>
- Supplier: Suzhou Yaoshi Machinery Co. Ltd.
Share on (712802987):
Product Overview
Description
Product Description
1. This 3L-20L water bottle filling machine is mainly used for washing, filling and capping PET bottle which can fill non-carbonated drinks like mineral water, pure water, wine and so on.
2 / Bottle washing, filling and capping are achieved in one machine.
3 / The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
4 / CXGF series bottling machine adopts handing type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
5 / The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.
Equipment type | Automatic rotary 3 in 1 machine |
Bottle type | PET round or square bottle Volume: 3L-20L |
Output (bph) | Up to 2000BPH |
Suitable product | Water/Oil/daily chemicals and so on |
Machine detailes:

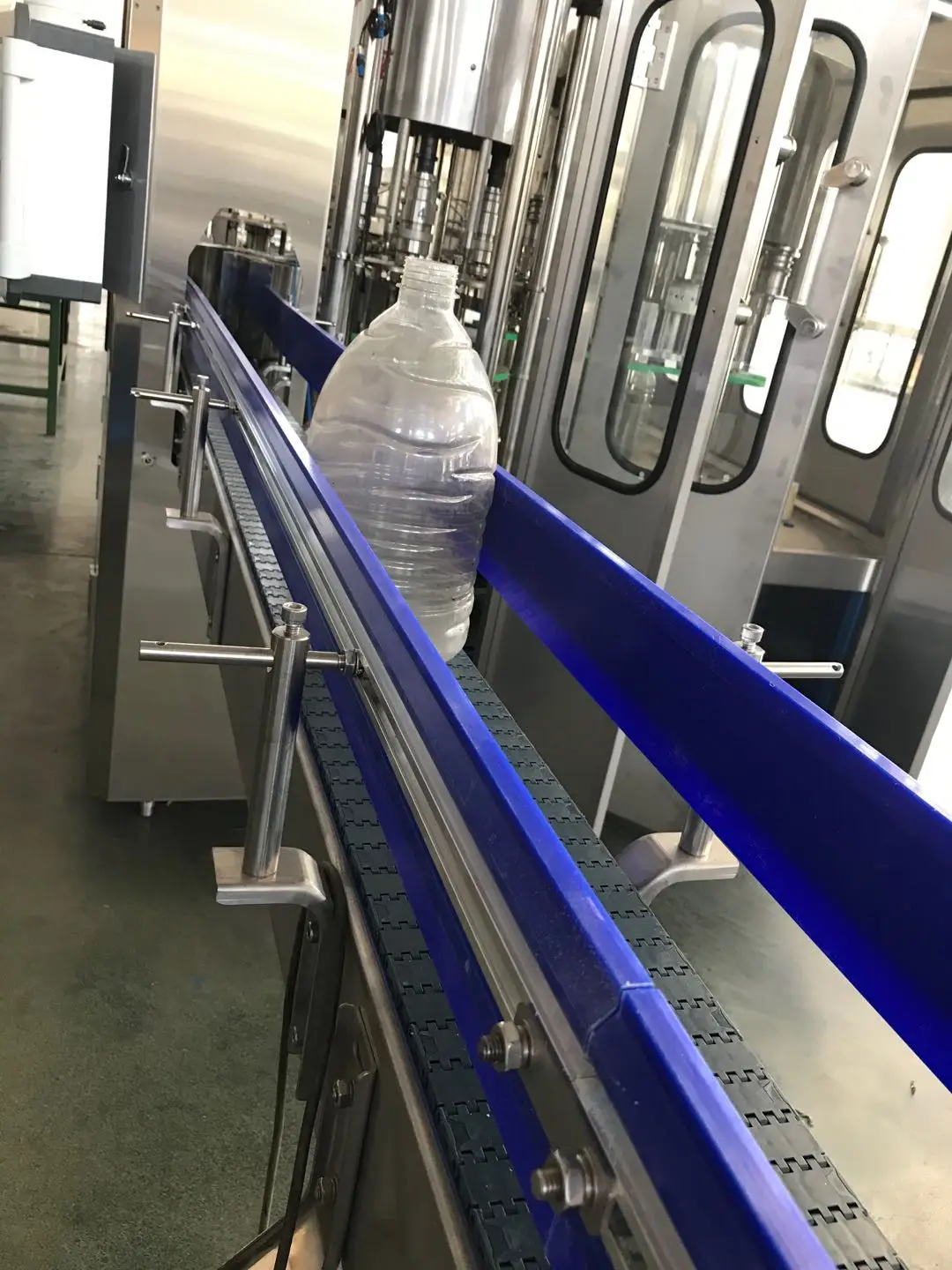

Feeding conveyor:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device

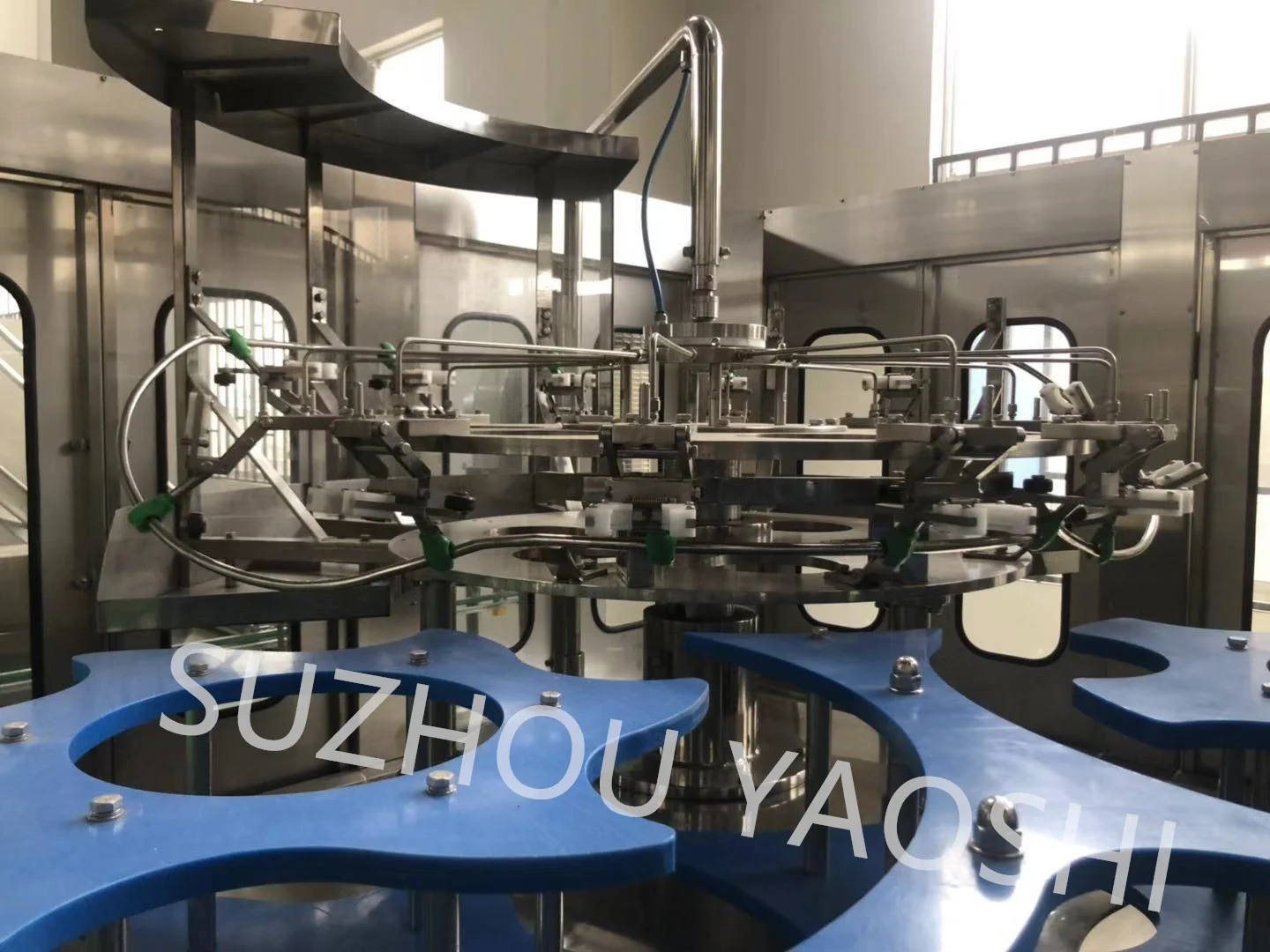

Washing part
1 Inverter clamp to pick up the bottles by catch the bottle neck
2. SUS304 stainless steel
3. spraying nozzle could reach all the parts of the bottle ,save the washing water
The bottle will be feed into the machine through the conveyor to the first part is rinsing part, there are many support seats and the bottle grippers ,The grippers take the bottles from the inlet star wheel while they are still driven by the star wheel, thus guaranteeing a safe grip.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

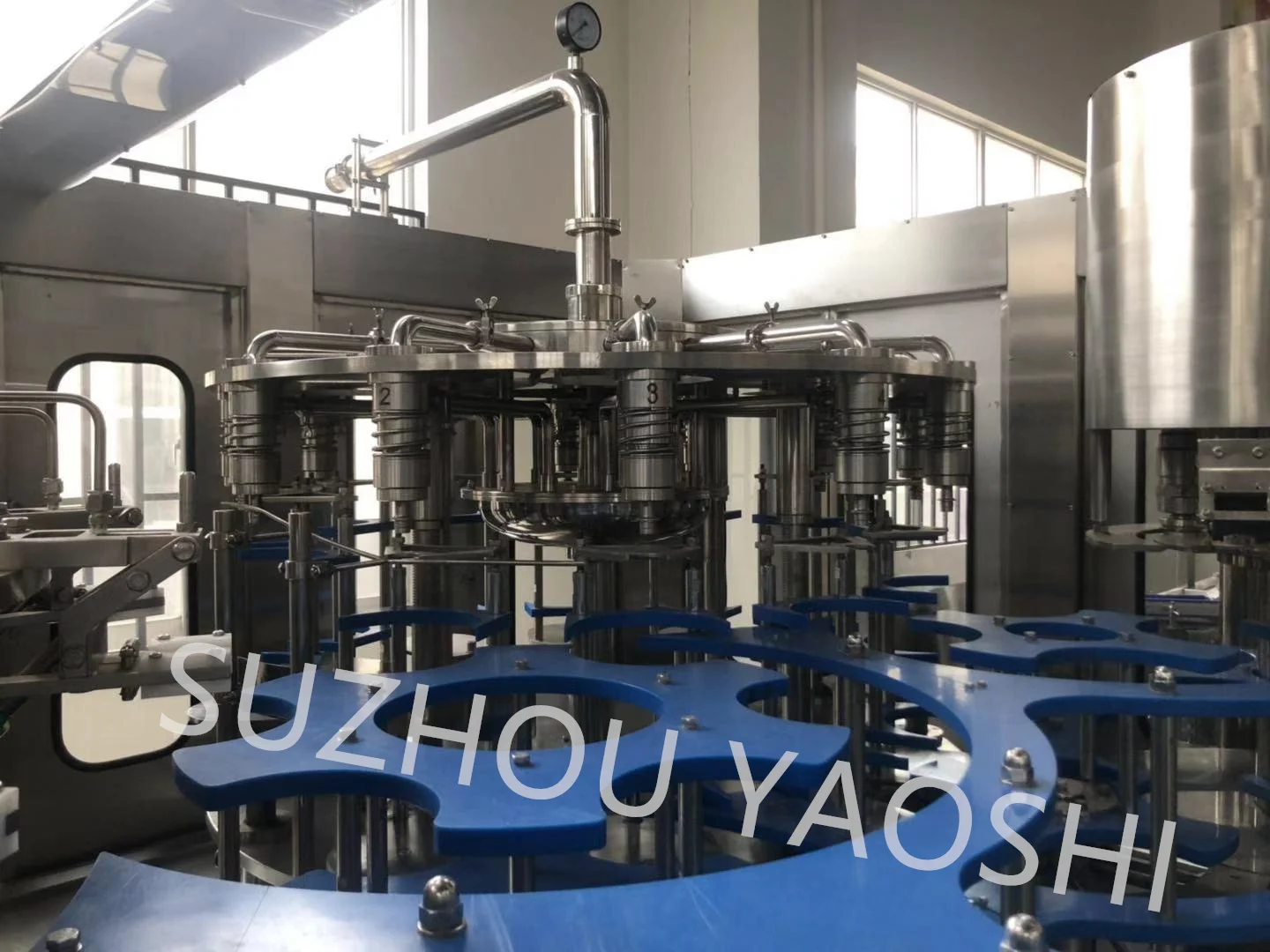

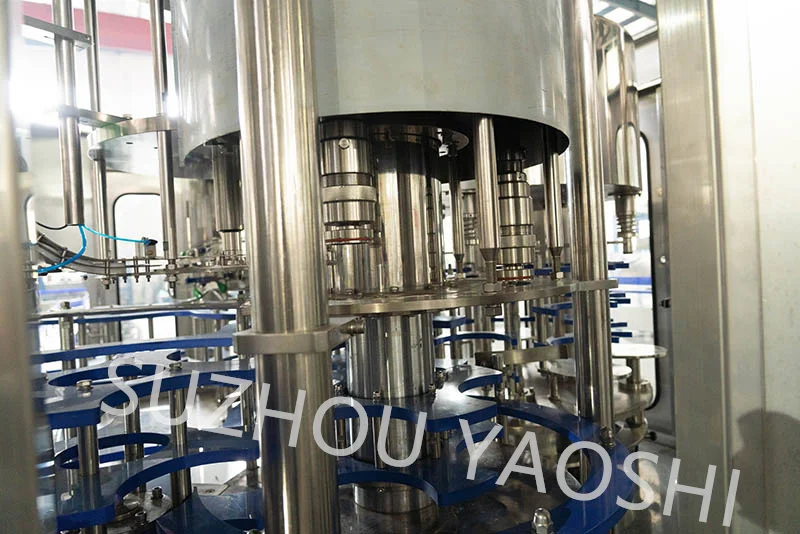

Filler
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3.Filling precision ≤±2mm
4. Garvity filling method
5. Normal temperature
6. No linking
Capping part
1 PCO ,plastic cap, metal cap, aluminum cap
2. no bottle no capping
3. two sensor to check, PLC control
4. no full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feedin
Lamp checker
After the filled bottle across the sensor, the sensor will send the signal to PLC, and the cap unscramble will start to work automatically
Electrical apparatus
PLC/ transducer/ touch screen: Mitsubishi
Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack

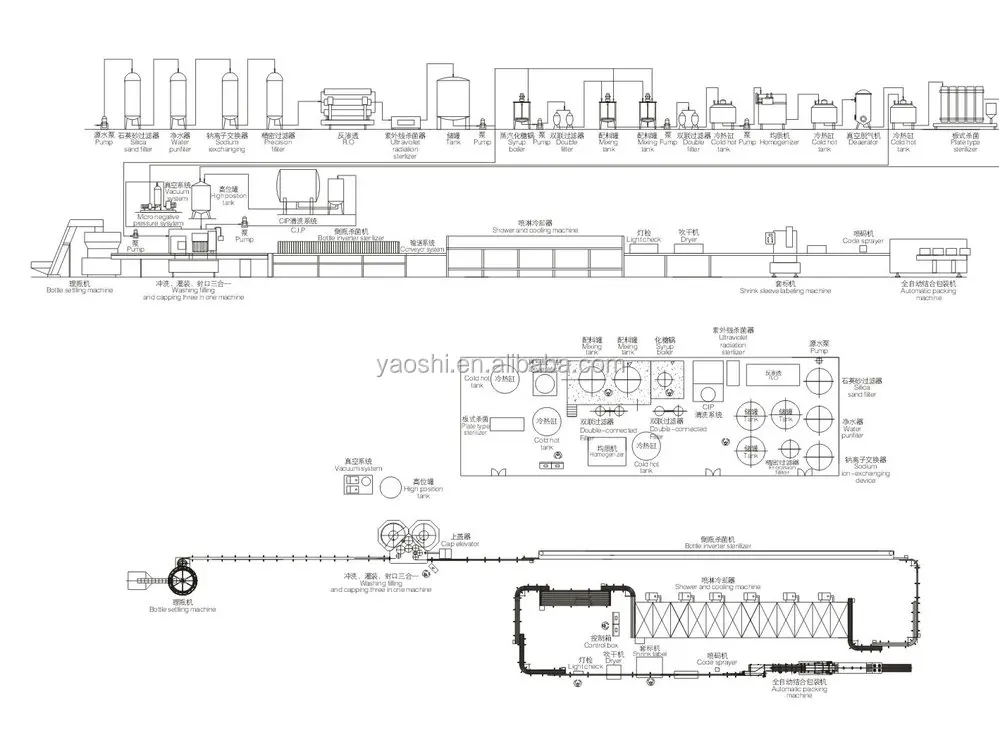

COMPLETE WATER PLAN:
Water teratment system ---drinking mixing system (juice,soft drink )---bottling machine--labeling machine---packing machinery
