Model | JIAJUN SM-1517R | Spare Parts | Brand | |
Maximum wrapping speed | 20-35 loads/hour (1x1.2x1.8 m 2 layer NOT include loading and Unload time) | Inverter | SMART WASP | |
Maximum pallet size | 1.2*1.2 m | Position sensor | CHNT | |
Maximum Wrapping Height | 2000mm/2400mm/2800mm | PLC | SMART WASP | |
Turntable Speed | 0-12RPM(Adjustable) | Travel Switch | OMRON(Japan) | |
Turntable Size | 1500mm(1650mm/1800mm/2000mm optional) | Motor | ASMAH | |
Machine Power | 1.5KW | Relay | OMRON(Japan) | |
Cut Film | Manual | Touch screen | SMART WASP | |
Max Load Weight | 2000KG | Switch | Schneider | |
Standard Film Width | 500mm | Photoelectric sensor | CONTRINEX(Switzerland) | |
Constant Film Delivery Force | Standard | Terminal block | Weidmuller(Germany) | |
Standard Pre-Stretch | 200-250% | |||
Film Capacity | 250mm Diameter | |||
Up&down Drive system | Up&down Drive system | |||
Fix Film on Pallet | Manual | OPTIONAL FUNCTION | ||
Roping system | Optional | Ramp | Optional | |
Basic Information | weighing scale | Optional | ||
Machine Size | 2.65*1.65*2.4m | Top pressure function | Optional | |
Machine weight | 680KG | |||
Voltage | 110-240V/50HZ/60 HZ 3P | |||

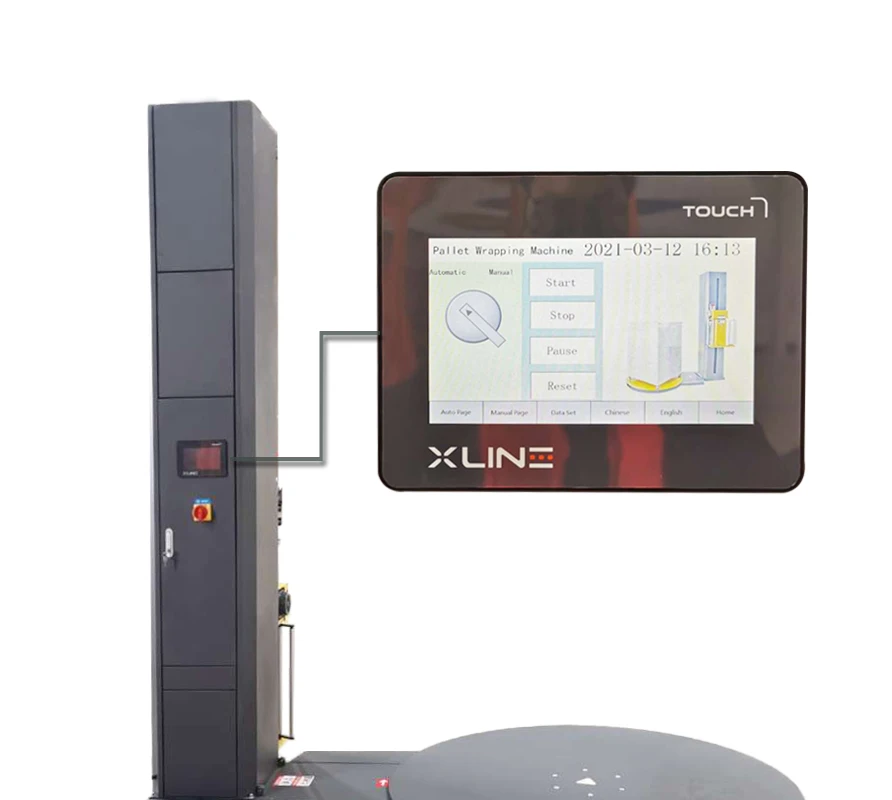

X-LINE PLC

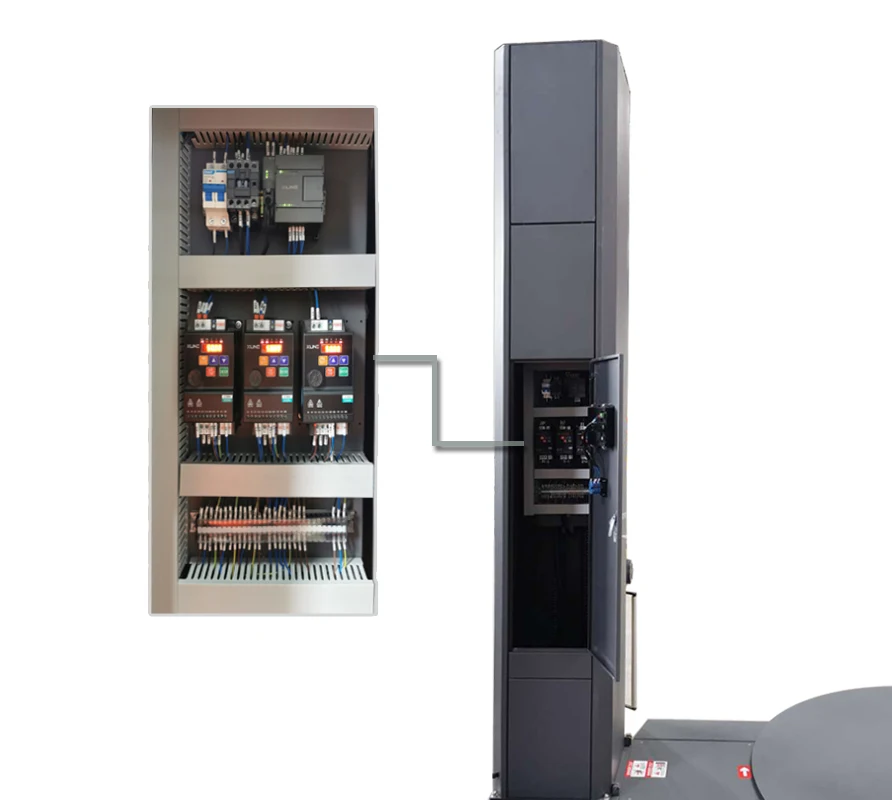

WEIDMULLER terminal block
OMRON 24DC supply

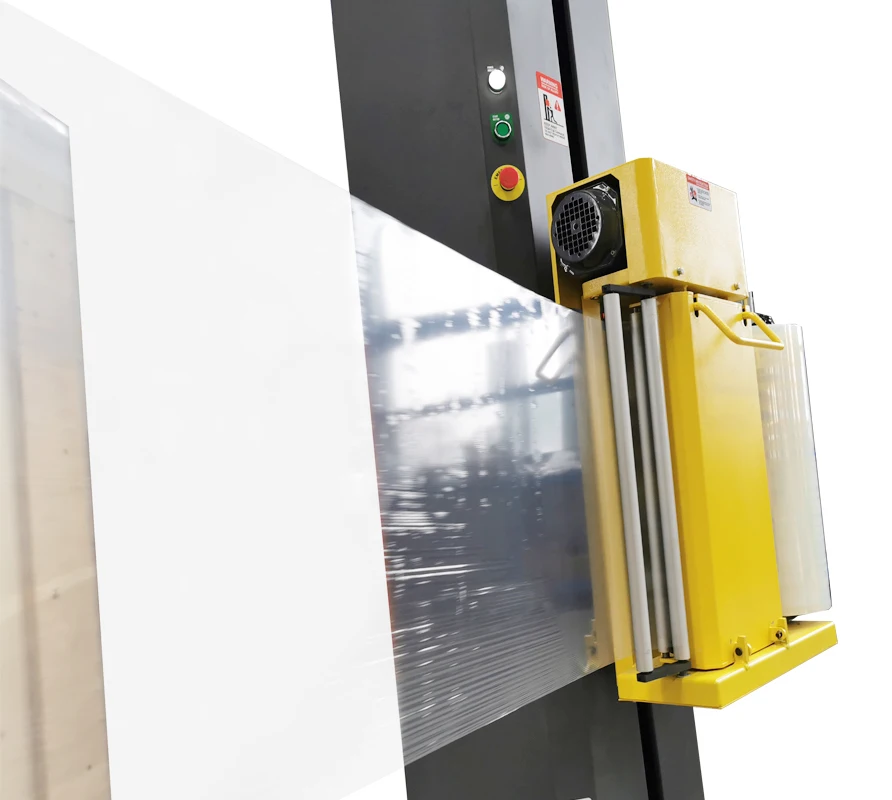

With pre-stretch roller, maximum up to 250% pre-stretch rate.
Maximize the value of each meter of stretch film
Standard constant releasing film
Fixed-point wrapping and quantitative use film

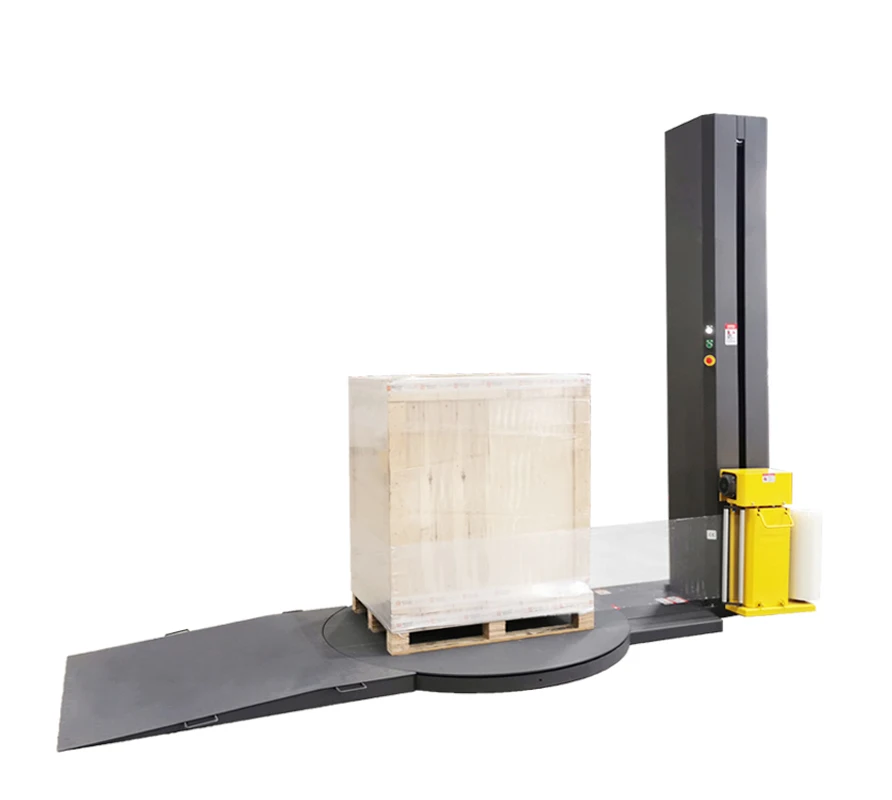

Can be added ramp or weighing scale Easy for forklift to load pallet
Shipping Type | 1set machine/crate (size/weight) | 2sets machines /crate (size/weight) | Mix packing (just for FLC shipping type) |
LCL Shipping | 2.88x1.63x0.86m 750KG | 2.9x1.8x0.92m 1500KG | Turntable /crate Carriage/crate Tower/crate |
Quantity crates in 20 FT | 4sets | 8sets | 12sets |
Quantity crates in 40 HQ | 8sets | 16sets | 24sets |
