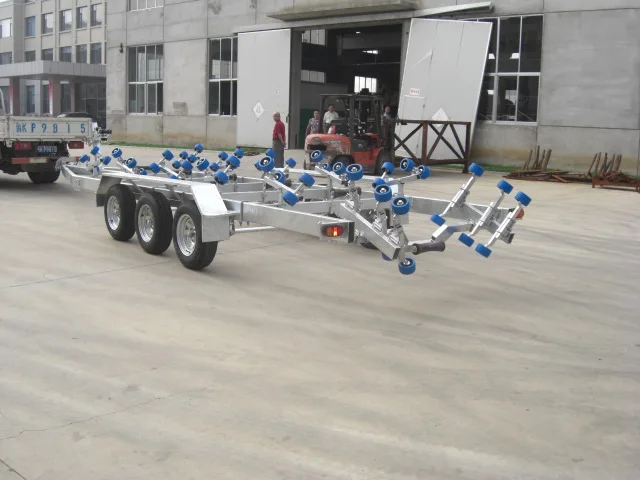

2014 heavy load corrosion resistant Boat Trailer

Product Overview

Description

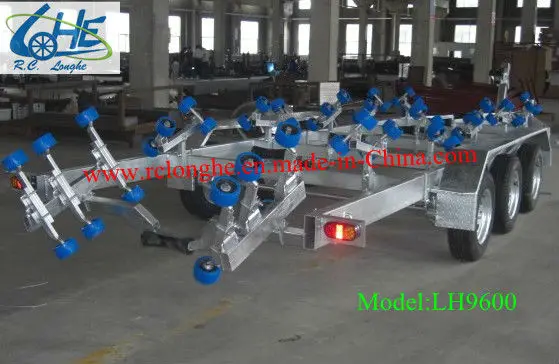

Heavy Load LH9600 details



Length:9.6m

Width:1.9m

Tire:185R14

Tail light: LED

Axle: Triaxial

Hub,rim,axle,leaf spring,coupling: hot dipped galavanized

Brake: mechanical brake or hydraulic brake(at user option)

Loading capacity:4000kg

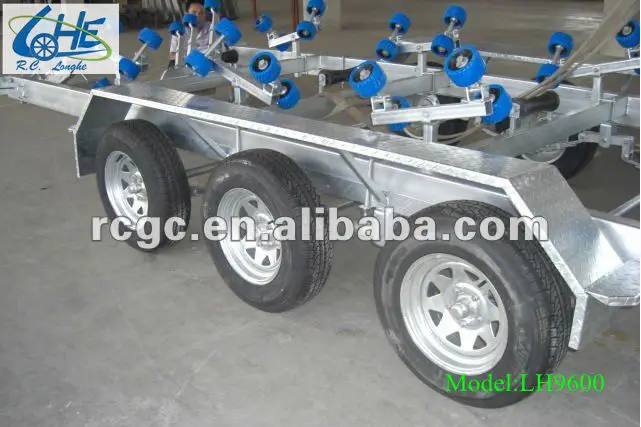

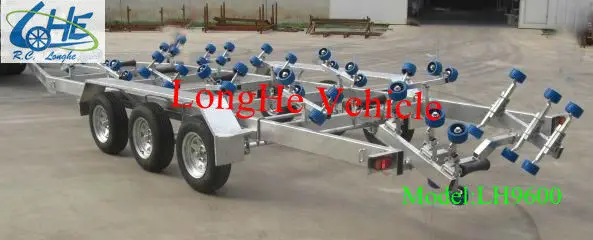

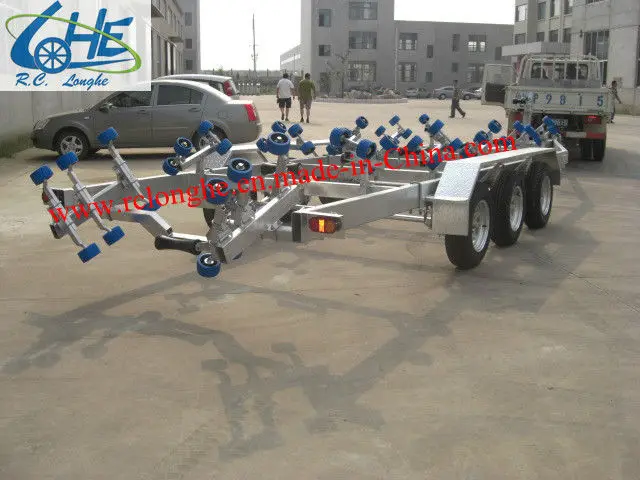

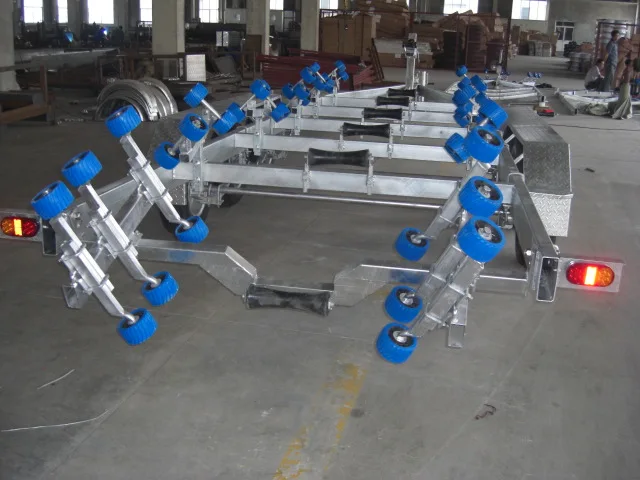

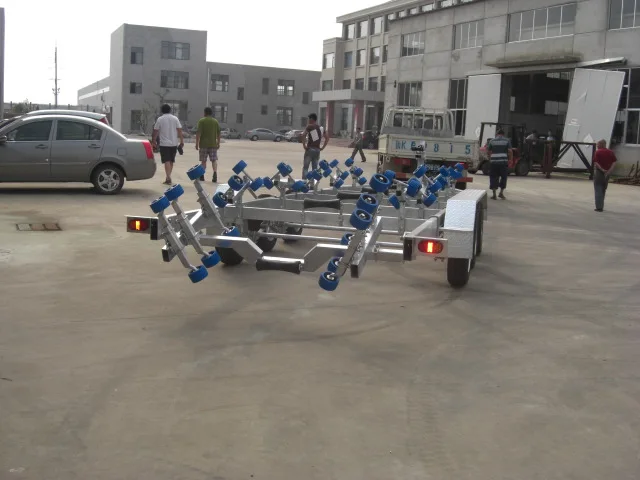

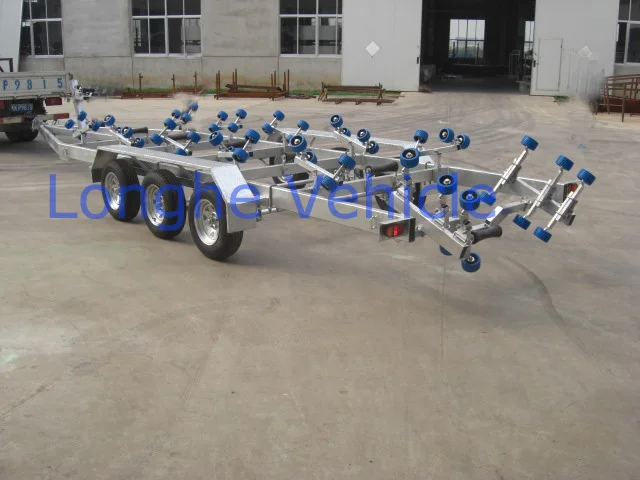

Triaxial boat trailer



Exquisite workmanship



Beautiful waterproof taillight





We are qualified company to manufacture various of trailers, we have own import and export right. We haven't any branch so far.

Any question and more details, pls feel free to contact us.





Material:















Material
1.1 GRADE
DuraGal angles,channels and flats are manufactured by a cold forming process which ensures that it complies with the requirements shown below
section	Actual thickness             t                 mm	Grade	Minimum   Yield     Stress         Mpa	Minimum Tensile Strength   MPa	Minimum Elongation as a proportion of Gauge Length of 5.65                 %
Flats	t≤6.0     t>6.0	C400LO     C350LO	400             350	450       400	20                           20
Angles and Channels	t≤6.0         t>6.0	C400LO     C400LO	450           400	500         450	16                             16
DuraGal profiles comply with the requirements of steel type 7B in Talbe 10.4.1 of AS4100.
LO indicates that DuraGal profiles have Charpy V-notch impact properties as specified in TS100[11]. Table 10.4.1 of AS4100 Steel Structures permits impact tested LO grades to have the following minimum servicetemperature:
	Actual thickness   mm	Lowest one day mean ambient Temperature         ºC
	t≤5	-30
	5<t≤10	-20
1.2   SURFACE FINISH
A minimum of 100g/m² coating of zinc is applied by in-line galvanising to a mechanically(shot blasted)and chemically cleaned bright metal(AS 1627.4 Class 3.0) surface. A clear polymer barrier coating protects the protects the galvanising prior to fabricartion.
1.3 SIZE RANGE
	Equal Angles	Unequal Angles	Channels	Flats
	30x30 to 150x150	75x50	75x40 to 300x90	50to300















Craft : blanking,stamping, grilding,welding,assembling,painting, baking etc.

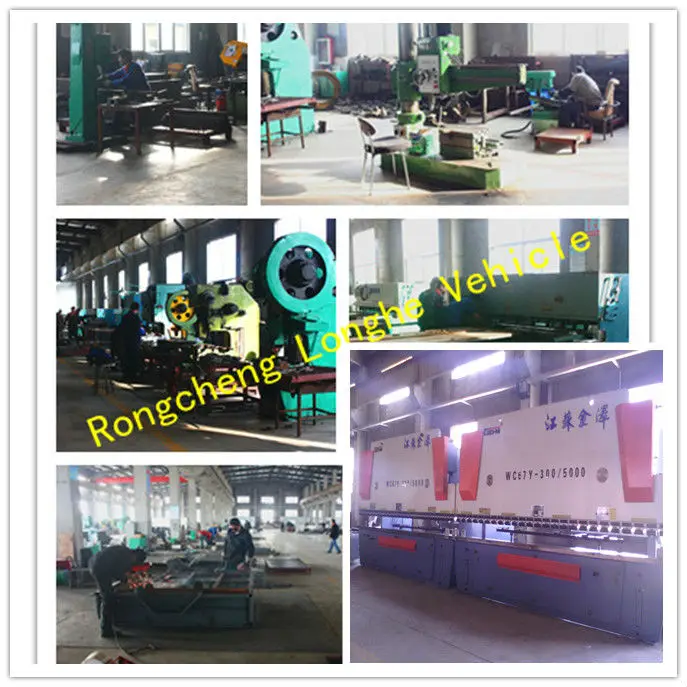

Blanking workshop

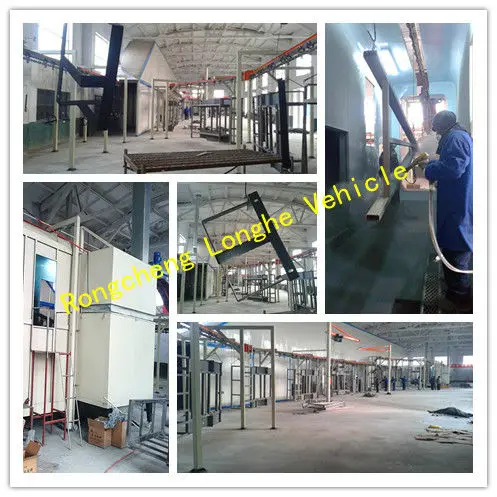

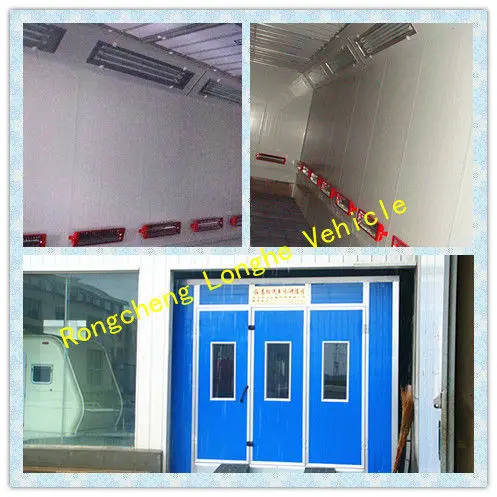

surface finishing--- painting finish or baking finish

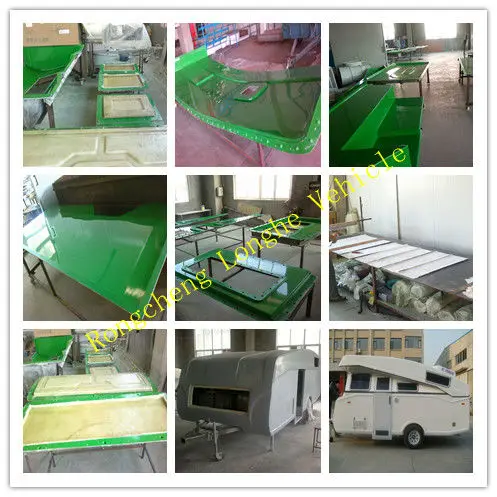

Fiberglass workshop

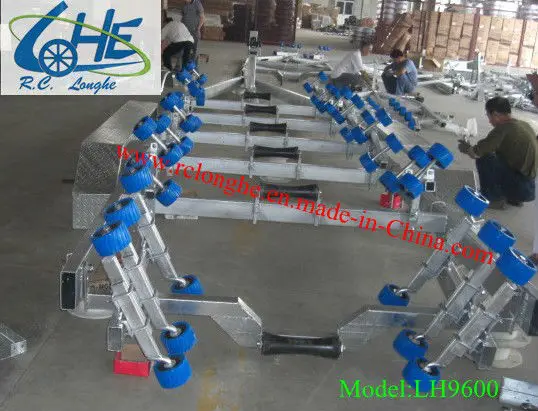

 Assembly shop

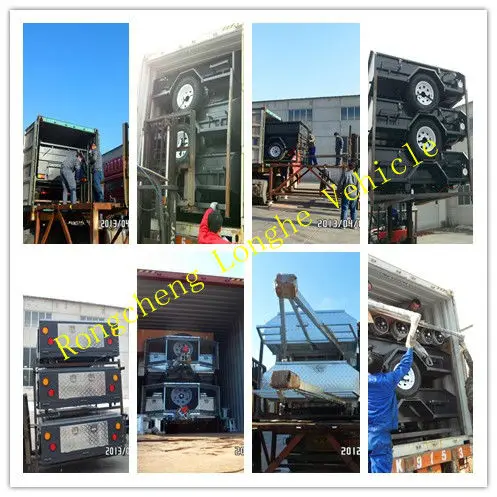

Delivery

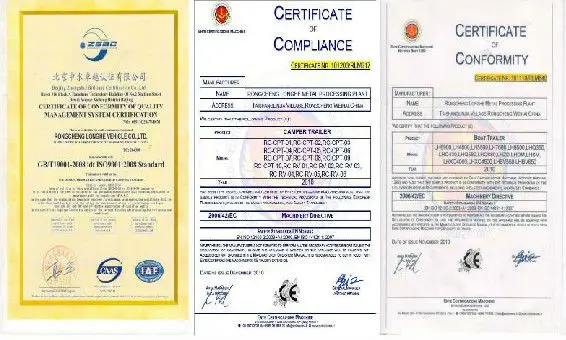

Our certification:

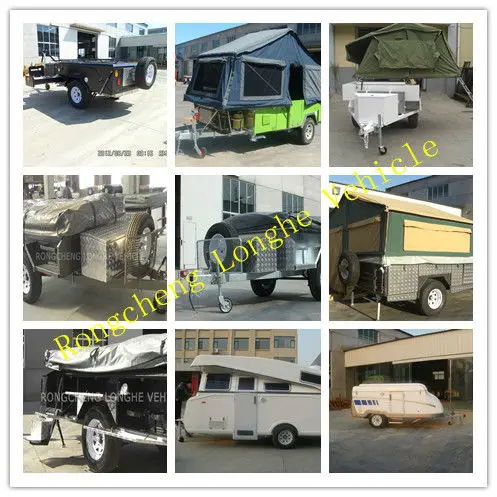

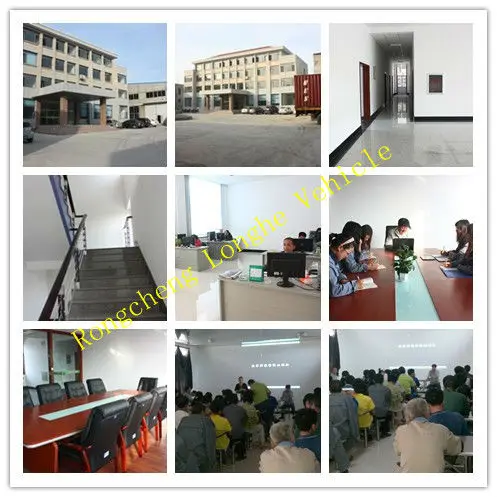

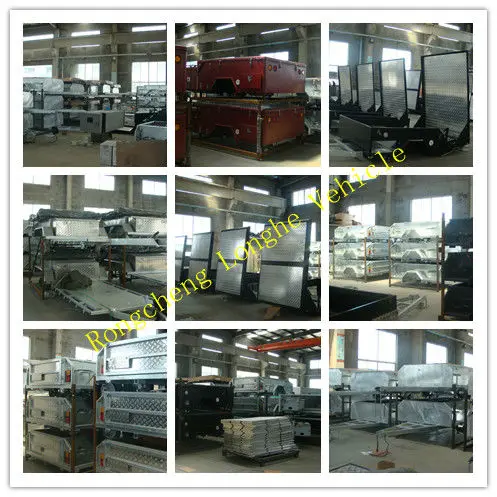

Our products & factory:
