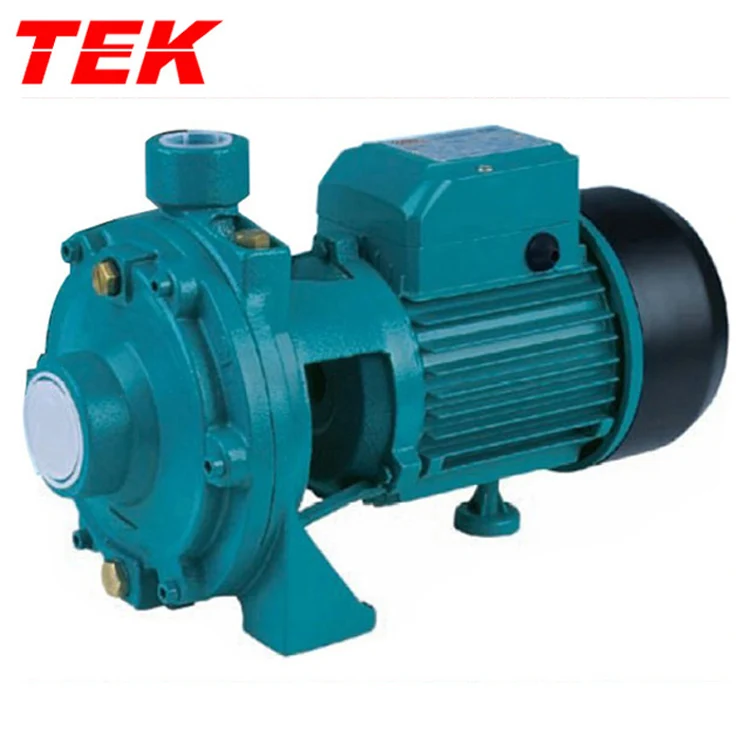

SCM2 32 2SCM 32 0.55kw Copper Wire Cast iron Double Impeller Centrifugal Pump High Pressure pump OEM

Product Overview

Description

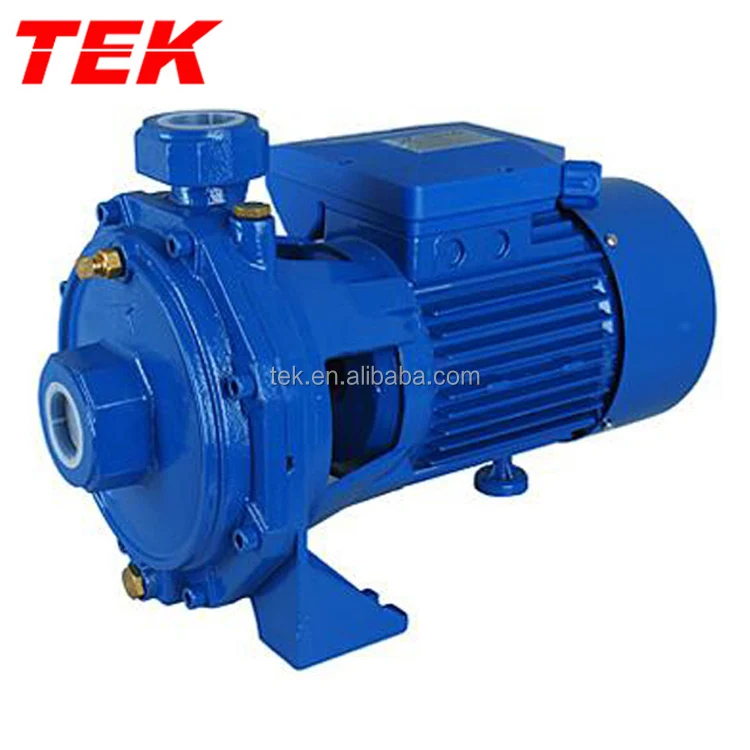

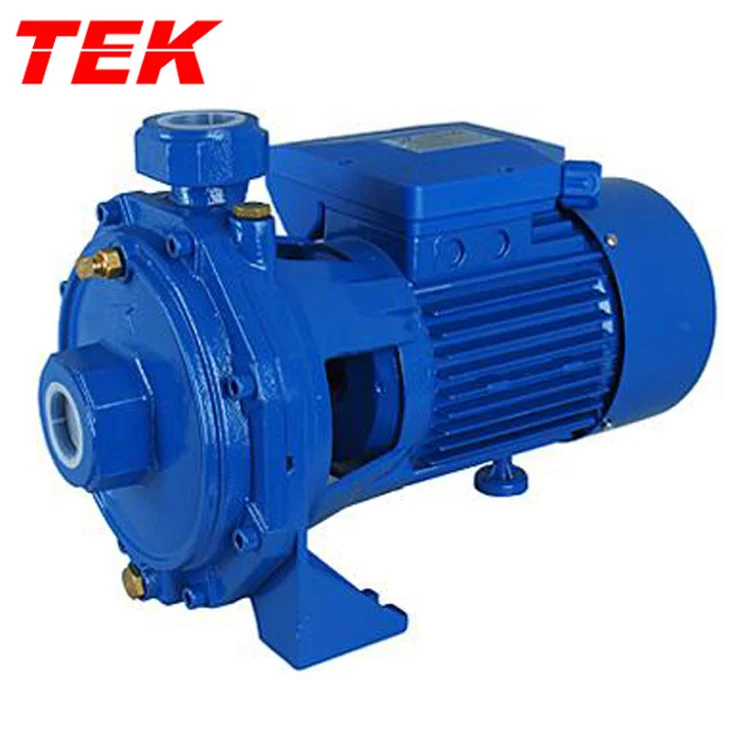

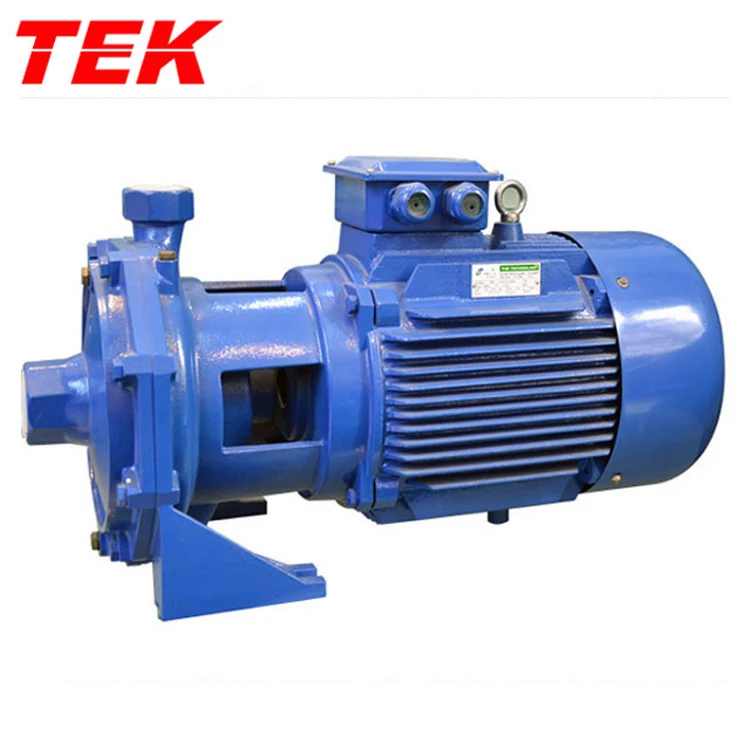

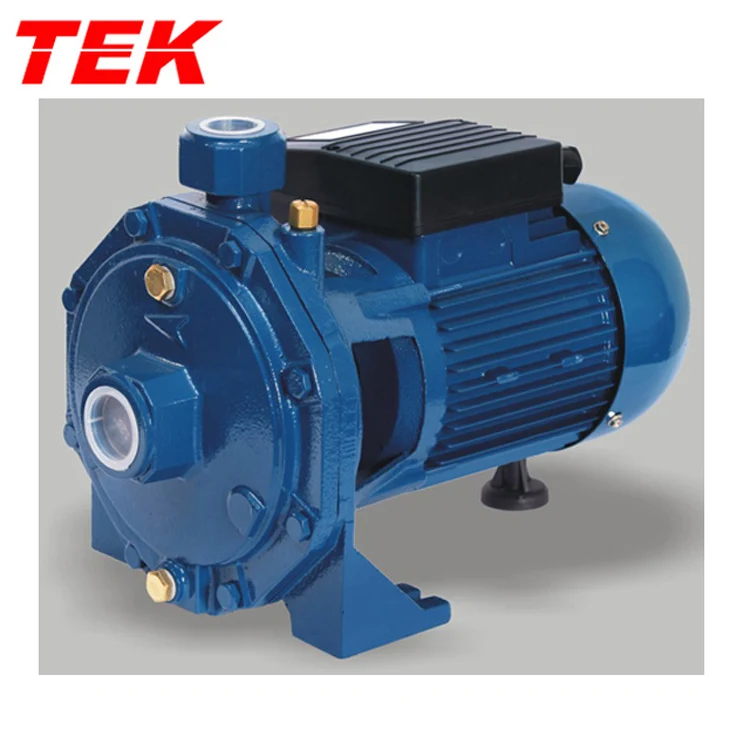

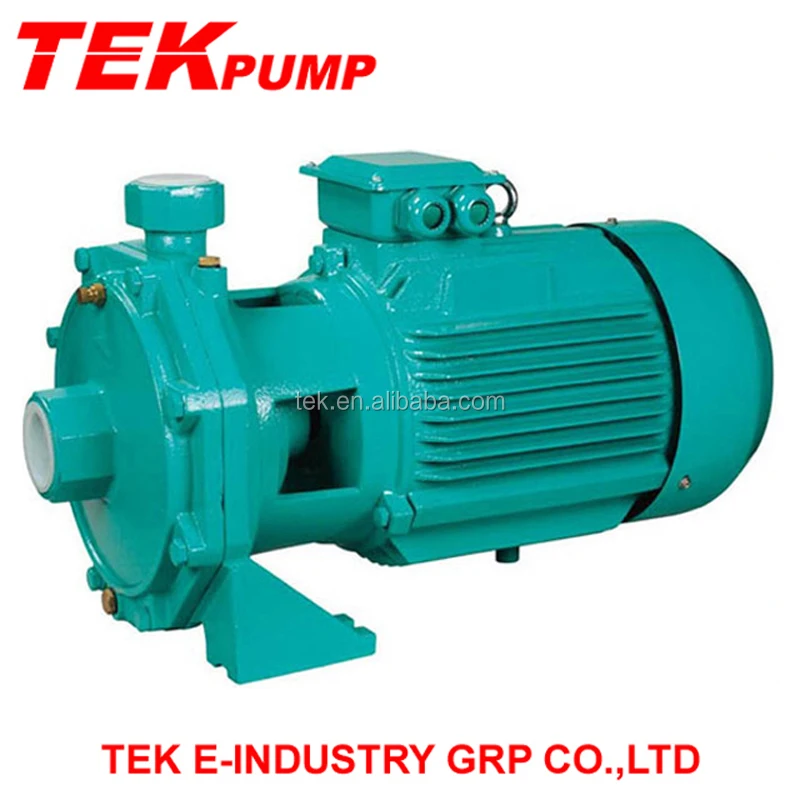

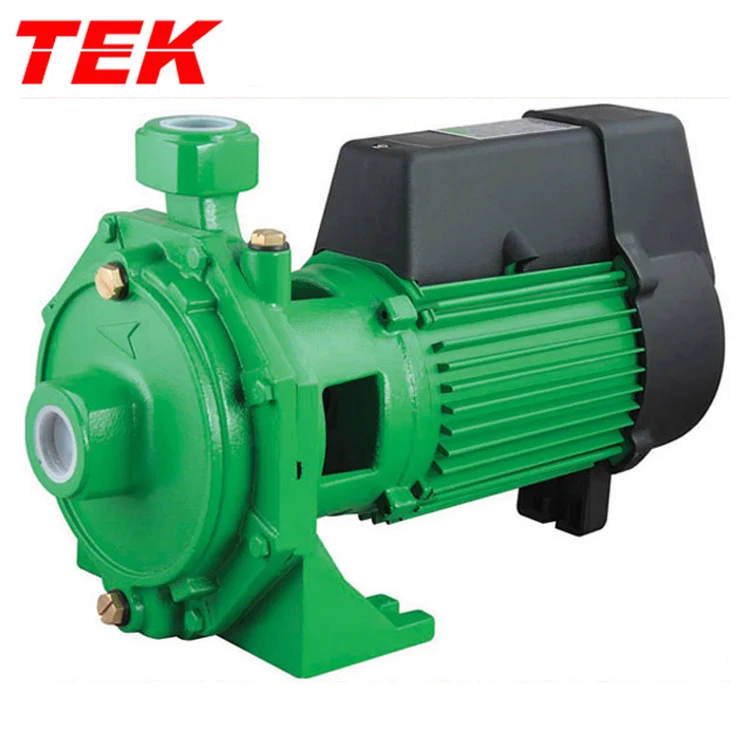

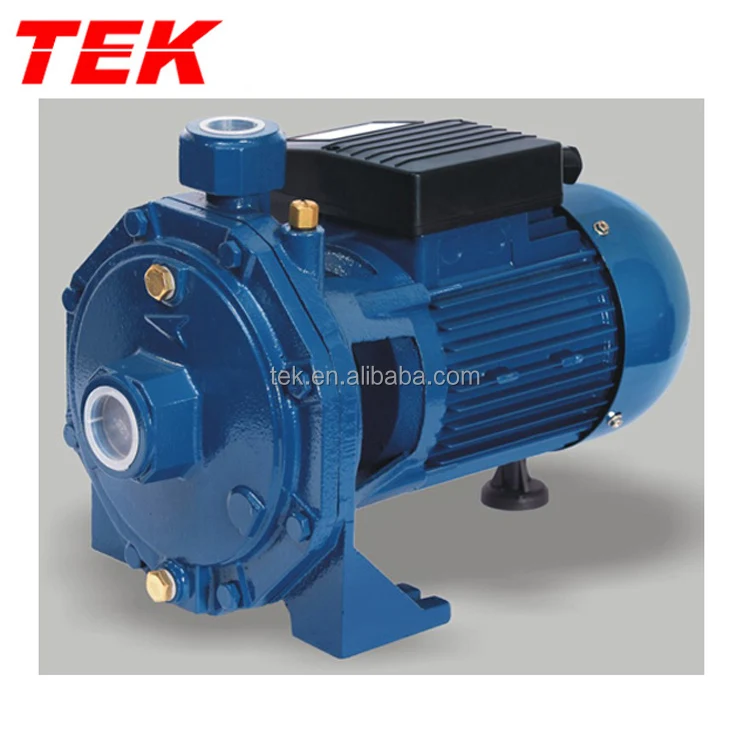

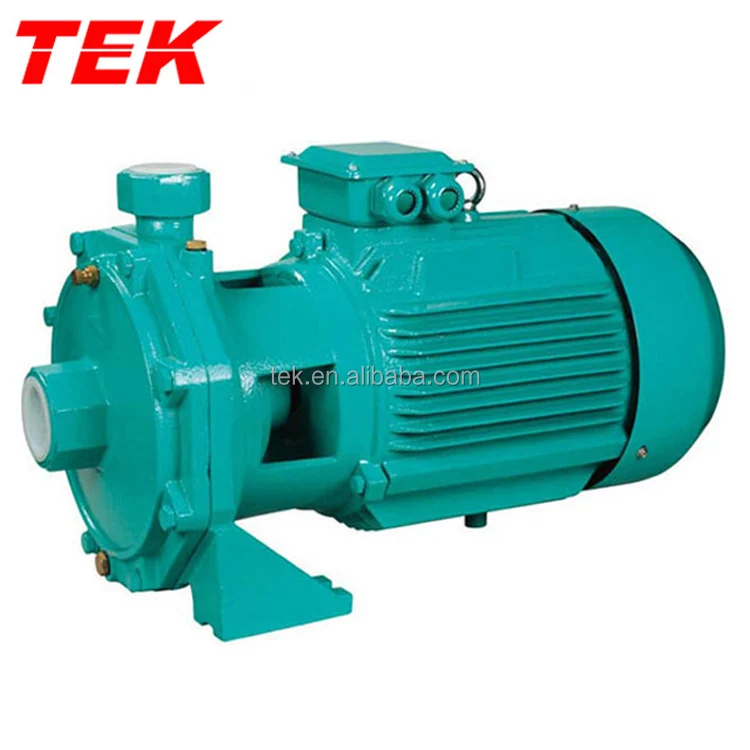

SCM2-32 Double Impeller Centrifugal Pump



SCM2 series are with two back to back impellers with higher pressure. They are used for high head values which are hard to reach with single impeller centrifugal pumps, suitable for civil and industrial uses to pump clean water and chemical non-aggressive liquid. Particularly be used for increasing the supplying pressure, feeding boilers and loading extremely. These pumps should be installed in a covered area, protect against the weather.
Pump body: Cast Iron
Impeller: Brass/ Aluminum/ Noryl
Motor: Closed, externally ventilated
Insulation class: B and F
Protection class: IP44 or IP54
Mechanical seal: Stainless steel/Carbon-ceramic
Shaft: 45# Steel / Stainless steel
Thermal protector (if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
single phase 230V,240V,127V, 110,115V/60Hz models are available on request.
Product Power:0.55KW



Model	Power		Q.Max	H.Max	S.Max	In/Outlet	L×W×H	N.W.	20ft	Speed
	kw	HP	L/min	m	m	mm	mm	kg	pcs	r.p.m
SCM2-32	0.55	0.75	90	30	9	25x25	380x210x240	16.2	1500	2850
SCM2-40	0.75	1	100	35	9	25x25	380x210x240	18.8	1500	2850
SCM2-52T	1.1	1.5	130	48	9	32x25	415x255x320	23.5	850	2850
SCM2-60T	1.5	2	140	52	9	32x25	415x255x320	25.8	850	2850
SCM2-68T	2.2	3	200	60	9	40x32	480x290x350	31	600	2850
SCM2-70T	3	4	240	70	9	40x32	480x290x350	39	600	2850
SCM2-80T	4	5.5	260	84	9	40x32	480x290x350	42.5	600	2850
SCM2-90T	5.5	7.5	280	90	9	50x32	570x290x360	62	500	2850
SCM2-100T	7.5	10	300	105	9	50x32	570x290x360	62	500	2850
