Product Overview

Description

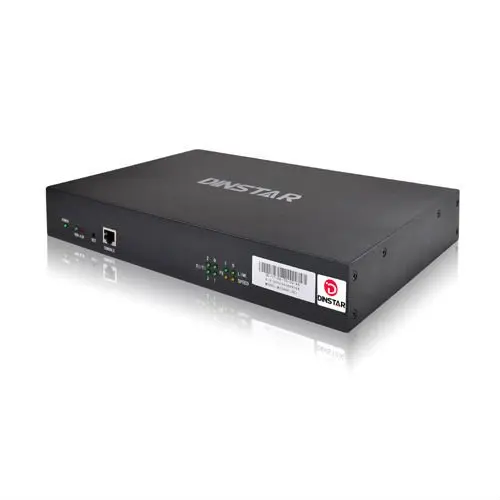

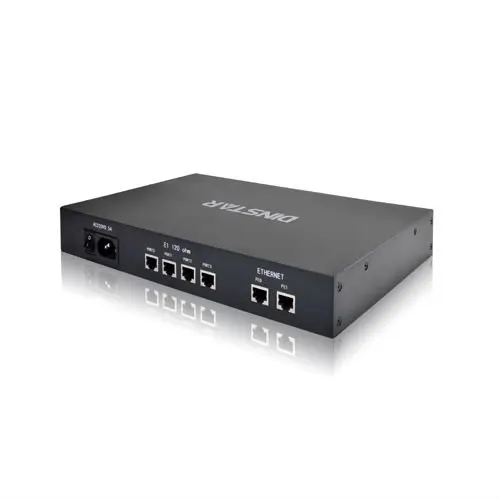

MTG200

MTG200 is cost-effective trunk gateway equipment specific design for open source market  to work with Asterisk/Elastix/small IPPBX. Its built-inecho canceller function and voice decoding conversion function. Users can flexibly select  G.711A/U, G.729, G.723,iLBC a variety voice decoding and easily complete IP and PSTN voice and signal converting.  In addition, MTG200 provides friendly GUI configuration interface, users can freely configure and manage the equipment.



Key Benefits

  • Cost-effective VoIP trunk  gateway
  • Support  echo cancellation, DJB, VNG, VAD and Qos
  • Voice codec option: G.711A/U,G.723.1 (option), G.729A/B(option),  iLBC(option)
  • Simple Configuration, friendly GUI, strong handling capacity,  stability system
  • Good compatibility, support Asterisk, Elastix, Freeswitch  and Small and medium IPPBX platform

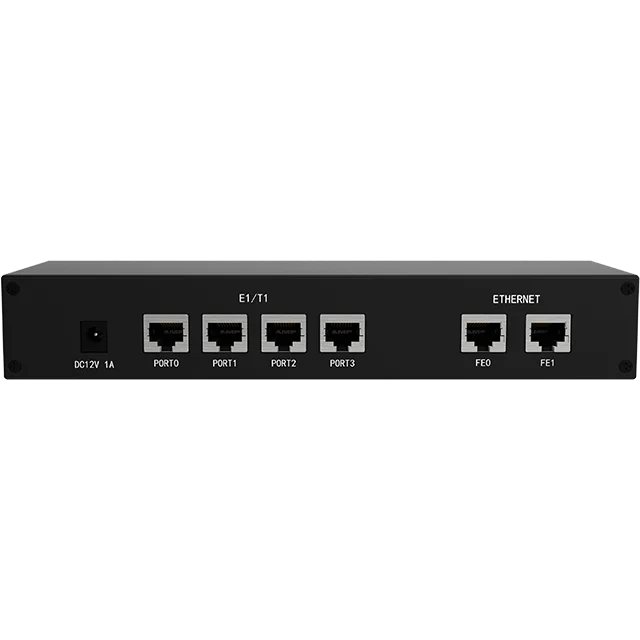

Physical Interface



  • ISDN Interface:1/2* E1/T1, G.703, 120ΩRJ-48c
  • Network Interface:WAN  and LAN, 2 * 10/100M Base-TX, RJ-45
  • RS232  Console:RJ-45, 115200bps
Voice and Fax
  • G.711A/U law (G.723.1, G.729A/B, iLBC –optional)
  • Silence Suppression & Detection
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)
  • Echo Cancellation (G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Call Progress Tone Generation
  • Programmable Gain Control
  • T.38/Pass-through
  • DTMF  Mode: Signal/RFC2833/Inband
Protocol
  • SIP-RFC3261,3262,3263,3264,3265,3515,2976,3311
  • SDP-RFC 2327
  • RTP/RTCP-RFC2198,1889
  • Network Protocol
  • IP,TCP, UDP,TFTP, FTP, RTP, RTCP,
  • ARP/RARP,ICMP Ping, NTP, SNTP,
  • Http, DNS



Physical Feature



  • Power: input:100-240V,50-60Hz  output:12VDC,1.0A
  • Temperature(operation): 0 °C  ~ 45 °C    (storage): -20 °C ~80 °C
  • Operation Humidity: 10%-90% no condensation
  • Dimension(w/D/H): 225*150*38mm
  • Weight: 0.75kg





Maintain & Upgrade



  • Web based configuration
  • Data backup/restore
  • Support English and Chinese
  • Firmware upgrade by TFTP/web
  • Web & Telnet  login password modify
  • Factory reset
  • Output CDR/Tracking newsby syslog
  • Call status information statistics
