Description

Activated carbon kiln

Introduction of Activated carbon kiln

1. The activated carbon kiln has simple structure, convenient and reliable control during the production process, a few wearing parts, and high operation ratio.

2. activated carbon kiln is refer to rotate calcinations kiln, belongs to construction material equipment.

Applications of Activated carbon kiln

1. Activated carbon kiln is an ideal machine for calcining high-grade cement in cement plants. It is also commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.

2. Activated carbon kiln, which is also called rotary calcine kiln, is a commonly used building material machine. Classifying by material properties, the rotary kiln falls into cement kilns, metallurgy chemical kilns, and lime kilns.

Main Technical Parameter of Activated carbon kiln

Model(mm)	Shell size			Capacity(t/h)	Rotating speed(r/min)	Power(kw)	Weight(t)
	Dia.(mm)	Length(mm)	Slope(%)
1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5
1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52
1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2
1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59
2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1
2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3
2.5×40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61
2.5×50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37
2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.4	55	196.29
2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5
2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58
3.0×45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94
3.0×48	3	48	3.5	25.6-29.3	0.6-3.448	100	237
3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310
3.2×50	3.2	50	4	40.5-42	0.6-3	125	278

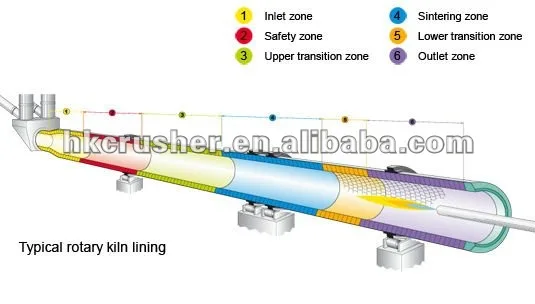

Structure of Activated carbon kiln

1. The Activated carbon kiln's shell is made of rolled steel plates; its structure is optimized by computer software, and features" longitudinal flexible and transverse rigid”, which improved the loading of supporting device and stability of refractory lining,

2. The supporting roller bearings features smaller width over diameter ratio L/D, leading to its higher reliability.

3. The special high-started torque motor for cement industry rotary kiln is applied for driving system.

4. The sealing of labyrinth plus spring pressing with asbestos heat isolation layers attached, is applied higher so that reliability and longer service life of sealing are achieved.

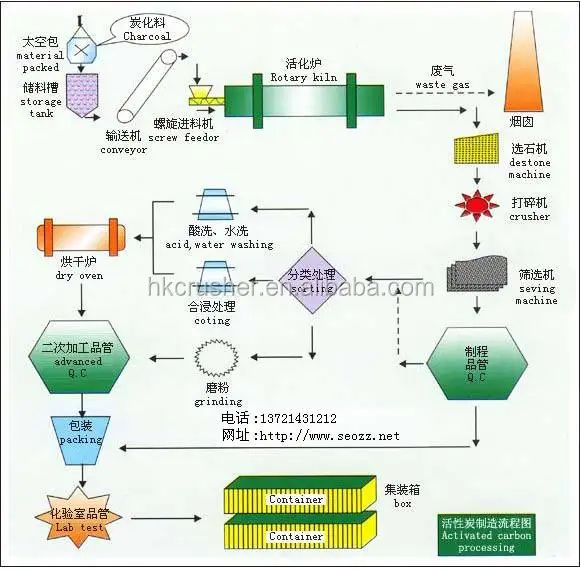

The Whole Production Line of Activated carbon kiln

Warranty of Activated carbon kiln

1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).

2. Our professional service includes: Free training, Guidance Installation and Debugging.

3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
