Shiplap XPS tile backer board

Product Overview

Description

Product Description

CE approved Shiplap XPS tile backer board is water resistant insulated tile backer board made of extruded polystyrene, faced on both sides with a fiberglass mesh embedded into a thin cement polymer mortar.

They are widely used in the under floor heating system as a structural tile backer boards. Shiplap XPS tile backer board also can be used in the floor, wall and ceiling by acting as a very efficient moisture and thermal barrier.



Characteristics:

• Waterproof and dimensionally stable
• Low weight, one board(1200*600*10mm) is around 1.8KG
• Easy to cut(by knife or Saw)
• Excellent for wet rooms
• Excellent sound insulation(12mm board, 20 db)
• Environment friendly(free of CFC and HCFC)
• Easy to be tiled



Color and Surface:







Available Sizes:

Thickness	Width	Length
4mm	600mm	1200/1250mm
6mm
8mm
10mm	600mm	2440/2500/2600mm
12mm
20mm	600/1200mm
30mm
40mm
50mm
60mm
70mm
80mm

Other sizes could be produced accordingly



Technical Data:

		XPS
Density of core board	Kg/m3	38
Thermal conductivity, 90 days, 10°C	W/mK	0.03~0.036
Compressive strength at 10% deflection or yield, (vertical)	kPa	≥250
Tensile strength	kPa	≥250
Water absorption	Vol-%	<=1.00%
Capillarity	nil	nil
Coefficient of linear thermal expansion	mm/mK	0.07
Temperature limits	°C	-50°C, +75°C

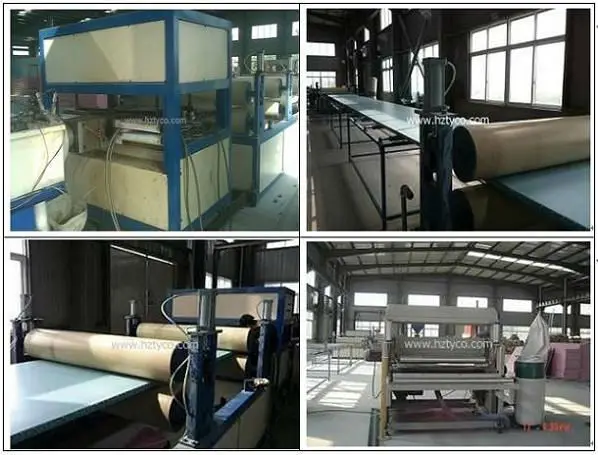

Production line:

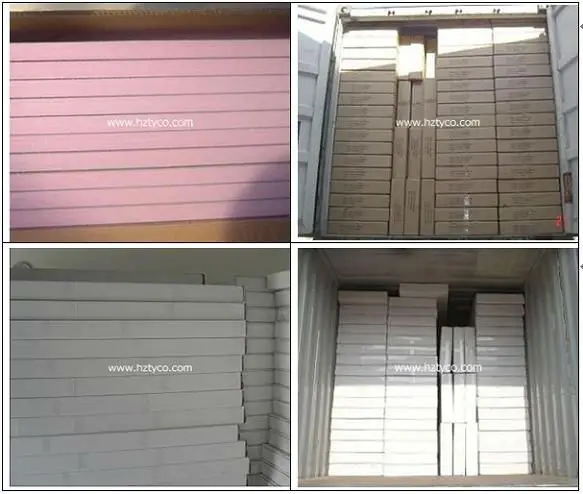

Packing and loading:





Application:



                XPS tile backer board for floors in wet room





                        Application in floor heating system

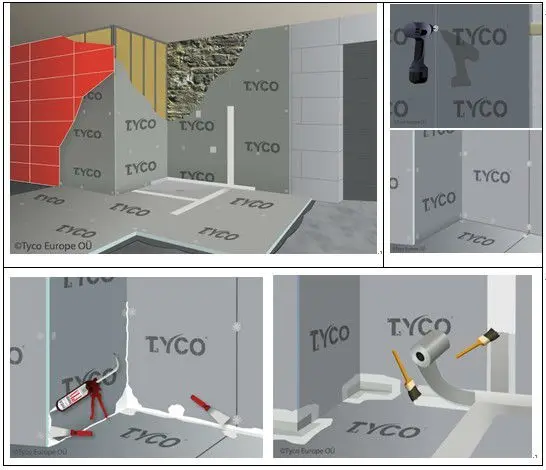

Installation of  XPS tile backer board:





For more installation details, please visit TYCO’s website.

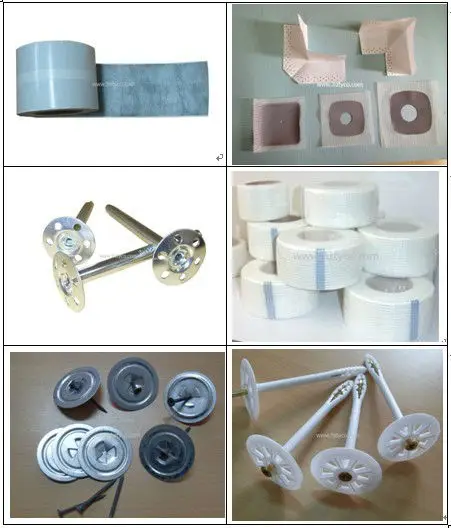

Accessories:

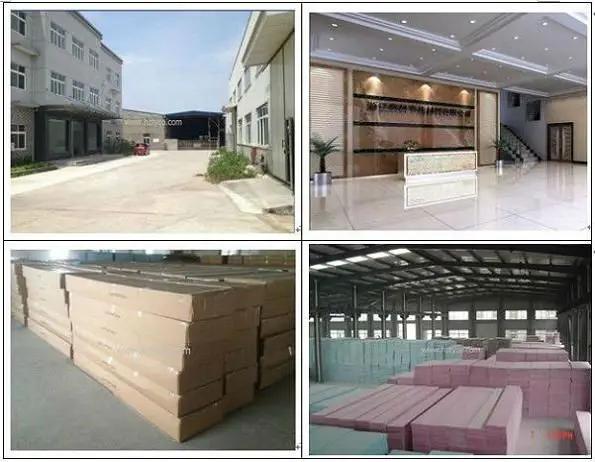

Factory and Warehouse:





TYCO in Exhibition

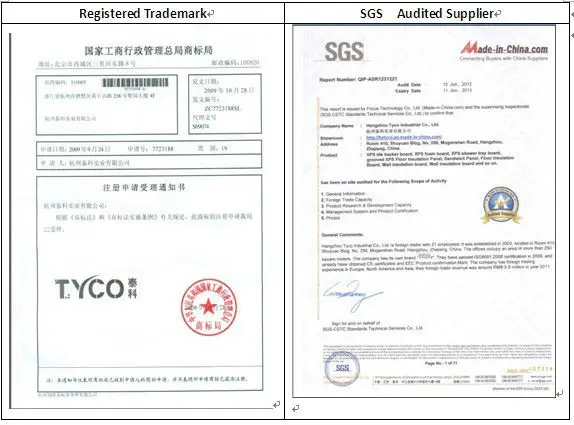

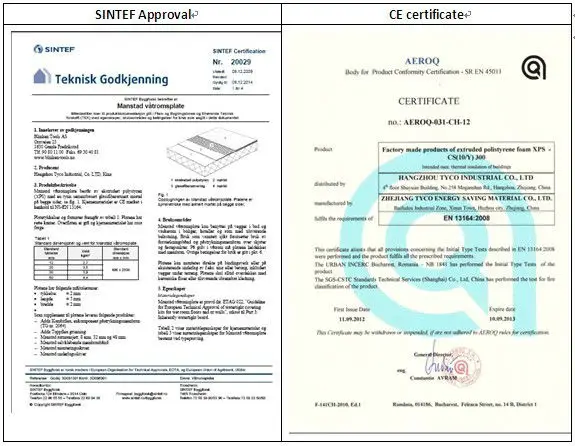

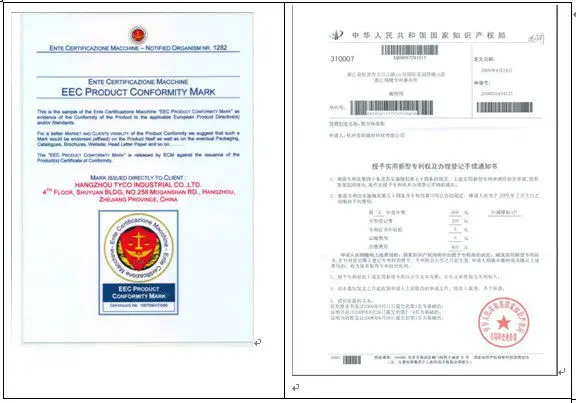

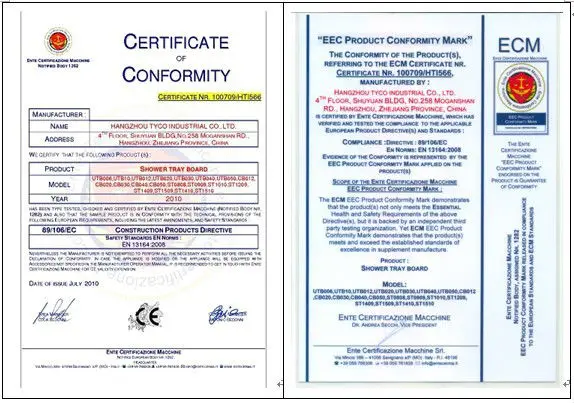

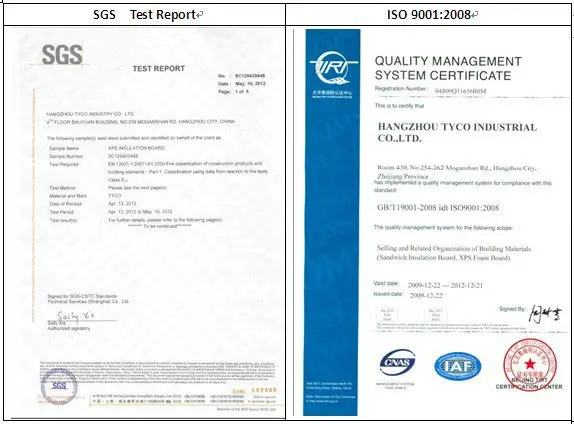

Certificates:
