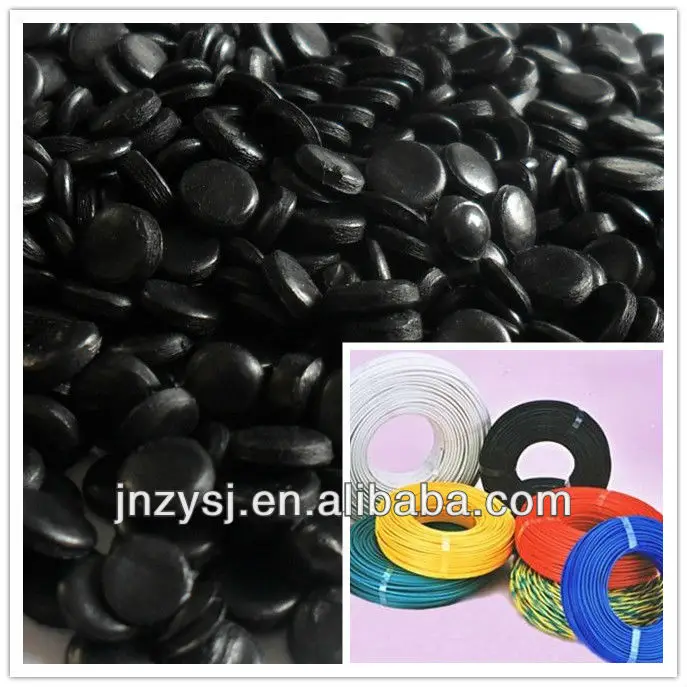

70 celsius degree cold resistance compound for wire and PE cable sheath material

Product Overview

Description

PE Cable Sheath Master Batch ZY-E103

Description

Cable Sheath ZY-E103 is produced by taking LDPE as carrier, added carbon black, anti oxidant agent, rheological agent in advanced technology. The advantages are perfect dispersion, uv-resistant, weather fastness, and perfect process ability. It could change LDPE rheological to get ride of rough sharkskin on cable surface, accordingly lift glossiness on products top surface and down melt sticky & mold head’s pressure, meanwhile rising production.

Product Properties

glossing on surface, good process ability, good mechanical.

2.meeting GB15065-1994 standard.

Technical Data

Item	Value

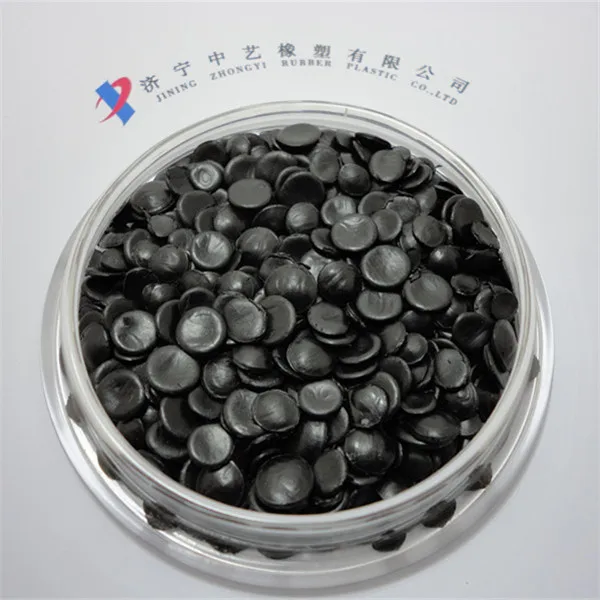

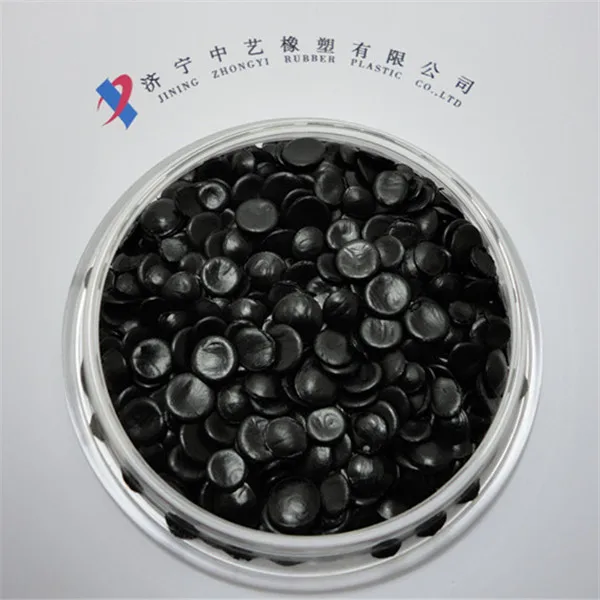

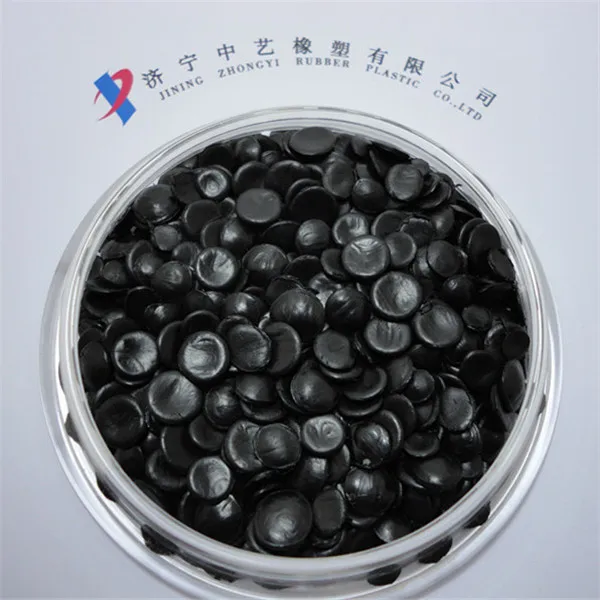

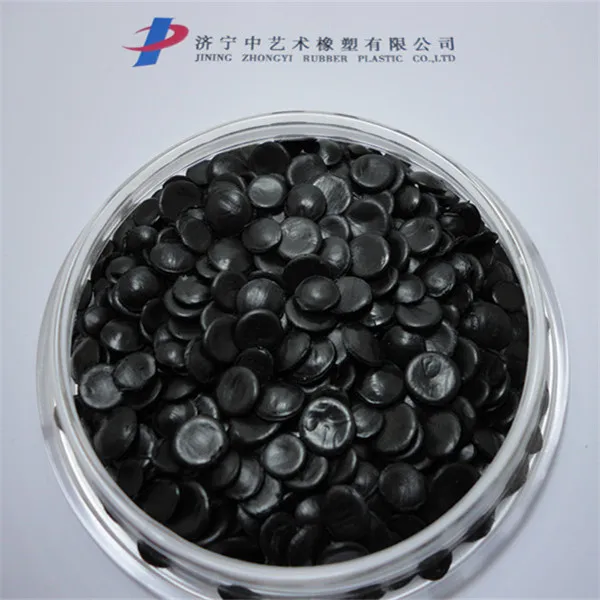

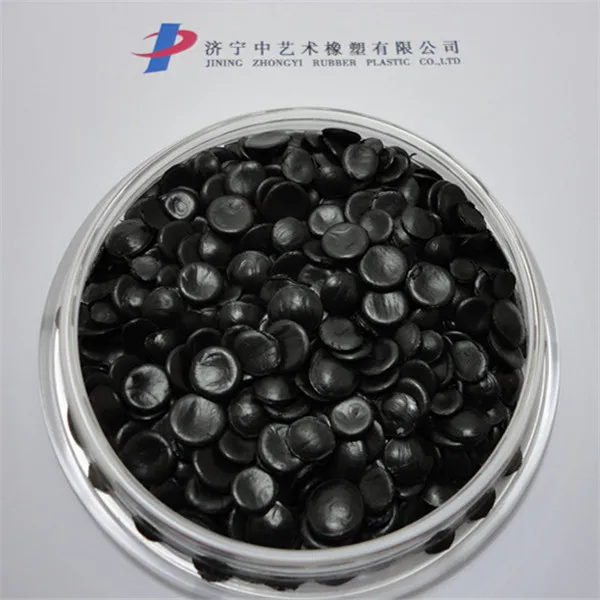

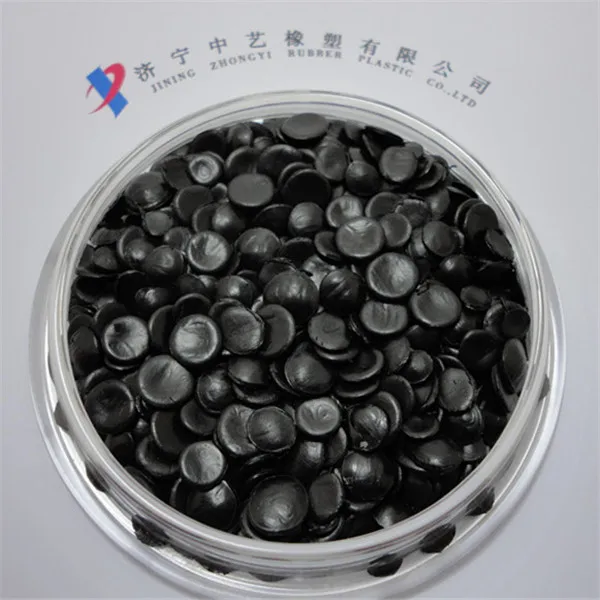

Appearance	3×3mm cylinder or round shape, black and glossing, smooth on surface, black color
Density	0.928g/cm3
MFI(2.16kg/190℃)	0.9g/10min
Carbon black content	2.43%
Volatiles	< 0.1%
Dielectric Strength	34MV/m
Volume Resistivity Under 20℃	1.2×10^15Ω.m
Dielectric Constant	2.33
Tensile Strength	23.9MPa
Elongation at Break	> 800%
Low temperature impact embitterment(-76℃)-broken number	0
ESCR(500h)-broken number	0
Heat resistance	≥ 200℃
Transference Resistance	≥ grade 5
Colour Intensity	100-105

Application & Dosage

Applied to sheath of cable and electric wire, suitable for LDPE, MDPE, HDPE (also accept designed anti oxidant agent black master batch and rheological agent black master batch)

Package and Storage

Package: PE coating compound woven PP bag with PE inner bag to resistance moisture. Standard packing is 25±0.1kg/bag.

Storage: at dark, cool and dry places with perfect original package.
