12 volt 100ah 12v agm vrla ups battery manufacturer with germany quality
- Category: >>>
- Supplier: Shenzhen Matrix Battery Co. Ltd.
Share on (717582997):
Product Overview
Description
Product Description
12 volt 100ah 12v agm vrla ups battery manufacturer with germany quality
Detail Specifications 12 volt battery :

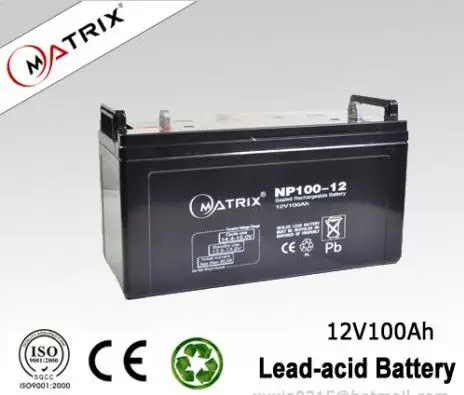

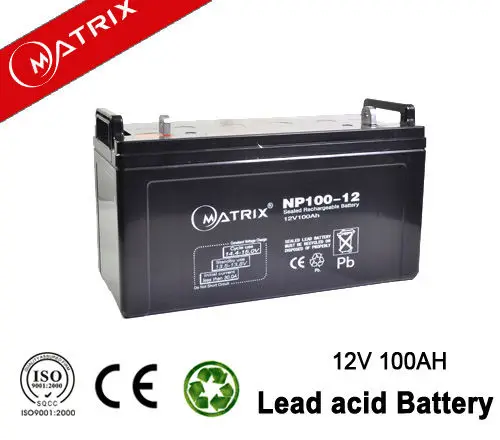

* Model: NP100-12 12V lead acid battery
* Nominal Voltage: 12V lead acid battery
* Rated Capacity: 100Ah(20Hr)
Main Features 12 volt battery UPS battery:
1.Low selfdischarge: lower than 3% of rated capacity per month under normal operating temperature
2.ABS case (can be made with flame retardant V0)
3.No memory effect after repetitious usage or discharges
4.Maintenance-free operation
5.Sealed construction and leak proof
6.Safety valve regulated system
7.Operating in any position
8.Deep discharge recovery
9.Wide operating temperature range
Specification 12 volt battery UPS Battery
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 100AH | |
| Dimensions | Length | 407±1mm |
| Width | 173±1mm | |
| Height | 236±1mm | |
| Total Height | 220±1mm | |
| Weight Approx | 31.5Kg(69.43lbs) | |
Characteristic 12 volt battery UPS battery
| MODEL | 12 volt battery 100ah | ||
| Capacity 25°C | 10 hour rate(10.00A, 10.80V) | 100.00AH | |
| 5 hour rate(16.00A, 10.50V) | 80.00AH | ||
| 1 hour rate(60.00A, 9.60V) | 60.00AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) | 4.5mΩ | |
| Capacity affected by temperature (20 hour rate) | 40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) | Cycle | Initial Charging Currentless than 30.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||

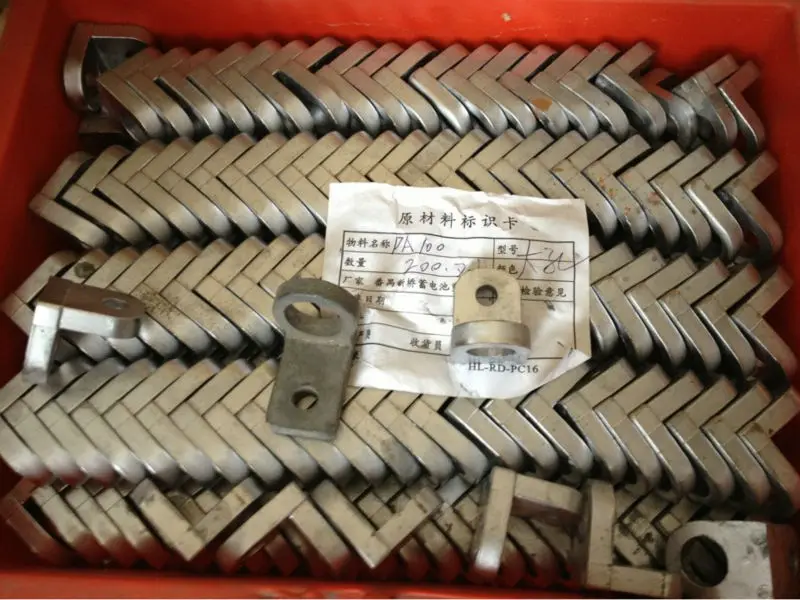

| Terminal | PA100 | ||
Applications of the 12 volt UPS battery:
- Data Centre (High Rate UPS)
- Telecommunication
- Banks & Financial Centre
- Hospital& Testing Laboratories
- Power Generation Plants
- Emergency Lighting
- Emergency Power Supply
- High Power Backup Supply
- LED Light
- VAN
- Wheel chairs
- Security system"Alarm system" "CCTV"
- "Video" Camera""Loudspeaker"
- Marine
- Wheel Chair
Our advantages of 12 volt UPS battery :
1.Competitive prices with reliable quality.
2.Adopting high quality PP plastic for battery case, stronger and heatproof.
3.Plates made of high purity lead 99.994-99.996% dry charged battery
4.High quality AGM separator, pure acid
Company Information
| Company Name: | ShenZhen Matrix Battery Co., Ltd. |
| Business Type: | Manufacturer |
| Main Products: | Battery |
| Operational Address: | A1101 International Trade Plaza, Futian District ,Shenzhen, China (Mainland) |
Shenzhen Matrix Battery Co., Ltd. (MATRIX BATTERY for short) is a high-tech manufacturer specialized in the research, production, sale and service of all kinds of Matrix (brand) lead acid batteries. Our company is committed to studying and applying new materials in green energy field and making it industrialized. We mainly have four series of products, which are lead acid battery series for backup power, lead acid battery series for motorcycle, powerful lead acid battery series and stored energy lead acid battery series. The productive capacity of MATRIX BATTERY can reach 1 million Kilovolt Ampere/Hour per year with more than 600 staff members and advanced battery production technology and ability.
have agency in United Kindom,Ukraine, Malaysia, Pakistan, Kenya, Egypt, Panama, Yemen etc. Three Braches in China, two branches abroad.
OEM is acceptable
Certifications
Exhibition
Contact Us
Name: Bonny
Mob./whatsapp/wechat: +8613066816338
Fax: +86(0755)83577126
Skype: Bonny.ning
************************************
Shenzhen Matrix Battery Co.Ltd
Website:www.matrixbattery.com
Alibaba: //matrixbatteries.en.alibaba.com
************************************
Address: A1103 World Trade Plaza
FuHong Rd Futian District ShenZhen, China
