Автоматическая плазменная горелка с ЧПУ

Product Overview

Description

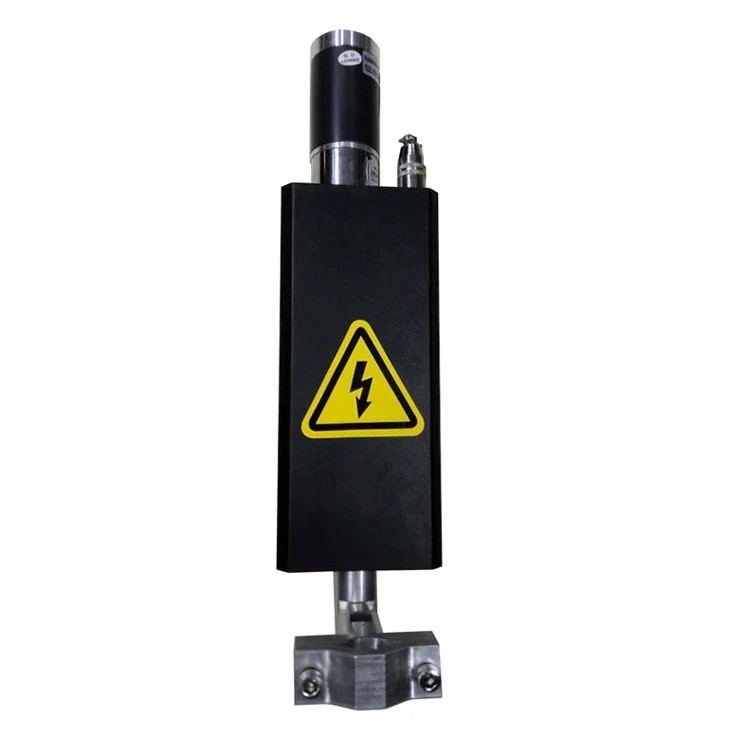

Automatic motor-height control



Model No.:SF-HC30A3



1.Design for portable CNC cutting machine
2.High sensitivity
3.Built-in guide screw
4.UP & down limit switch,to reduce the machine wastage and Lengthen its service life



Parameters

l         Power Supply:                            DC 24V±2 V  3 A

l         Applicable Motor:                17hs (42) Serial Stepper Motor

l         Manual Adjusting Scope:       0~100 mm

l         Automatic Height Adjusting Control Scope: 3~30 mm

l         Automatic Height Adjusting Speed: 3000 mm/min

l         Control Accuracy:                ±0.5 mm

l         Case Dimension:                  155×87×71 mm

l         Working Environment Temperature: -10~50 °C

l         Weight:                               3Kg

l         Detecting System:         Capacitance Detector, Arc Voltage Height Detector
