Product Overview
Description
Product Description
Drill bit
HAMMER DRILL BIT
SDS PLUS(standard Tip, standard flute, Cross TIP, double flutes S4 type , Three-Tip double flutes),
SDS-PLUS HAMMER DRILL BIT
NFE 66080 / DIN 8035
The following electric hammer drill bits are machined from chrome steel fitted with carbide insert brazed at a very high
temperature to withstand severe heating when drilling hard materials.
L-shaped flute profile improves dust discharge. Sand blasted surface. Other industrial surface finish available.
For drilling in granite, concrete, stone, masonry, tiles and marble.
4.0-30.0mm, Total length: 110-1000mm
Fits hammer drills with SDS-Plus chucking and 2-slot chucking system. It can be used with Electric Hammer of BOSCH Co., AEG. Co., BLACK & DECKER Co., HILTI Co., PHILLIPS Co., HITACHI Co., and MAKITA Co., The shank is round with dual-arc and dual-key way.
SDS Max (standard Tip, standard flute, Cross TIP, double flutes S4 type), 1/4" Hex,
Can be used with BOSCH GBH 5/40 DCE GBH 8/65 DCE
MASONRY DRILL BIT /GLASS&TILE DRILL BIT
Milled, Black and Silver(standard Shank, 1/4" Hex Shank)
This drill bit is machined from high carbon steel with carbide tipped cutting edges.
Black groove, edge polished.
For rotary and roto-percussion drilling in concrete, stone, masonry and similar materials
Dia.: 3-26mm (1/8" -1")
Length: 200, 300, 400 mm / 8", 12", 16" available
Standard Shank, 1/4" Hex Shank

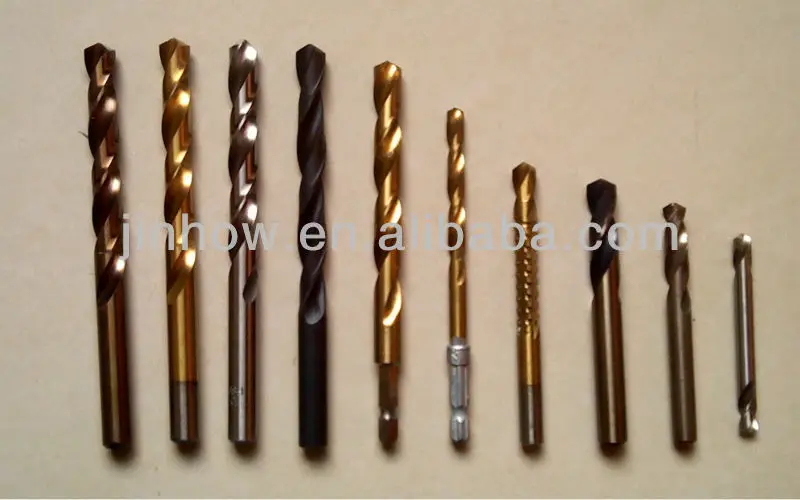

HSS TWIST DRILL BIT
HSS STRAIGHT SHANK TWIST DRILL BIT, BLACK OXIDE,ROLL
Hot rolled flute, milled flute, right-hand cut.
118° point angle (135º split angle available).
Black oxide finish.
Economical high speed steel for general drilling.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.5-30.0mm
HSS STRAIGHT SHANK TWIST DRILL BIT, BRIGHT FINISHED,FULLY GROUND
118° point angle (135º split angle available).
Fully ground body, bright finish.
Industrial quality.
Right-hand cut.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3.0-30mm
HSS STRAIGHT SHANK TWIST DRILL BIT, WITH TITANIUM NITRIDE COATED
118° point angle (135º split angle available).
Titanium nitride coating lasts up to six times longer than standard high speed steel.
Coating is very hard giving very long drill bit life, up to 8 times.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3-30mm

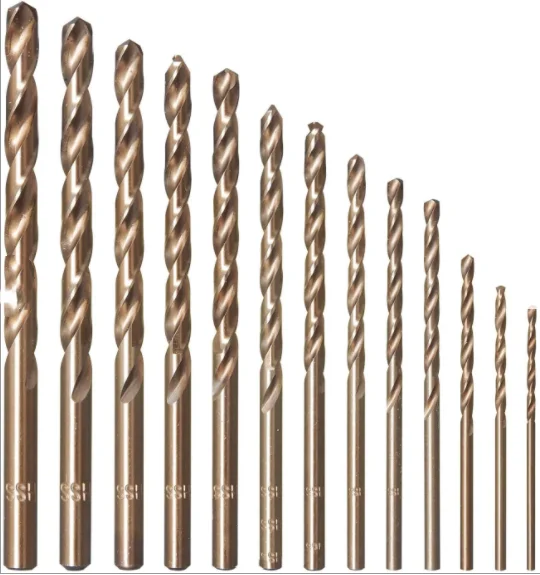

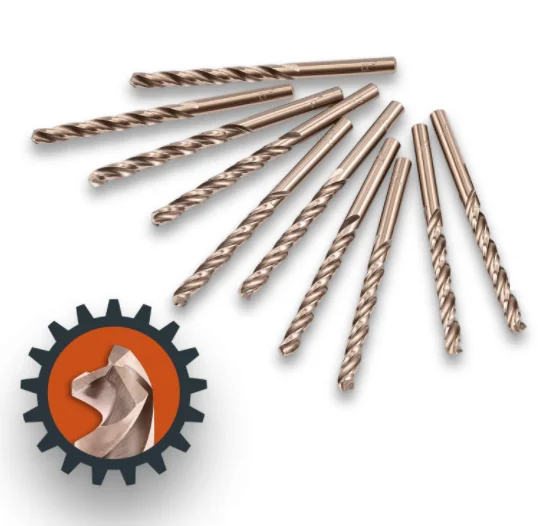

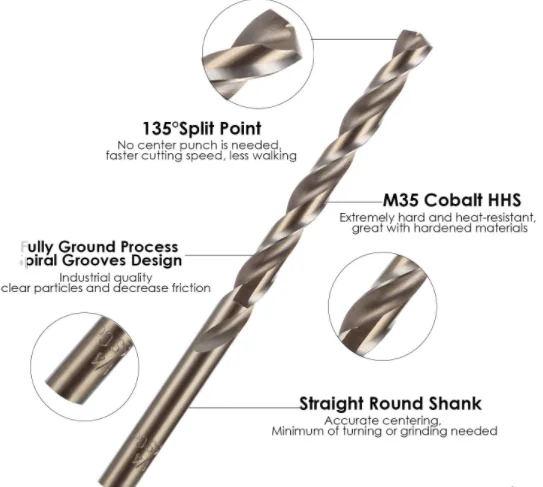

HSS AMBER COBALT STRAIGHT SHANK DRILL BIT, DIN 338
Industrial grade cobalt steel.
135º split point for quick start and no walk application.
Cobalt for much higher hot hardness and abrasion resistance.
Ideal for drilling in steel, stainless steel, heat resistant steel, cast steel, sintered metal, and super alloys.
Dia.0.3-30mm
HSS morse taper shank twist drill bits, BLACK OXIDE,ROLL FORGED,DIN345,
Roll-forged/milled flute
118º point angle, right-hand cut.
Black oxide finish.
For drilling in steel, alloyed steel, all common working steels.
High performance HSS special drill bit with morse taper shank for high precise drilling of larger bore diameter.
Dia.:6.0-50.0mm
CARBIDE TIPPED TWIST DRILL BIT
118° point angle.
Jobber length, straight shank,
Heavy-duty construction and heat treated body for optimum wear resistance and support of the carbide tip.
Special twist drill bits for drilling abrasive materials.
Used in the production drilling of cast iron, non-ferrous metals and many composite materials.
Not recommended for drilling steel
Dia.2.5 to 25mm; 5/64" to 1"
HSS JOBBER LENGTH DRILL BIT, LEFT-HAND CUT
118° point angle , left-hand cut, bright finish.
General purpose drill construction.
A left hand helix for screw machine applications where spindles rotate counterclockwise.
Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia. 1mm -10mm; 1/16"-1/2" DIN 338
JOBBER LENGTH DRILL BIT, 1/2&3/8" REDUCED SHANK
ANSI standard.
118° point angle.
Economic high speed steel for general drilling.
3/8" reduced shank, jobber length.
For use in 3/8" drill .
For general use in metal, wood and plastics
Size:17/64" -25/32" .
HSS SAW DRILL BIT
Multi function bit drills, saws, and reams brass, aluminum, wood and plastics.
Cross ground cutting edges for rapid, non clog cutting.
Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.
135° splint point,Dia.6 and 8mm Length:90mm,Other sizes available.
For milling any type of contour in thin-walled materials.
Suitable for metal, wood, plastics
HSS TWIST DRILL BITS - 1/4" HEX SHANK
High speed steel made.
DIN 338,118° point angle, right-hand cut
Bright or Tin-coated industrial finish
Universal 1/4"(6.35mm) hex shank locking system prevents spinning and slippage
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia.1mm -13mm
HSS CENTER DRILL BIT
Plain Type, 60º included angle, right-hand cut
Made from super speed steel, bright finish.
This tool is used for centering work ends, where the work-piece is to be revolved on machine centers.
60° countersink angle fits all standard centers.
Dia.1.0-6.3mm; 3/64"-5/16")
HSS STEP DRILL BIT,
HSS Conical Drill bit (Tube & Sheet Metal Drill bit)
Woodworking drill bit/Brad Point WOOD DRILL Bit(HCS,HSS,TCT,LONG,SET),
Made of high carbon steel, tungsten carbon or CV), brad point with two shoulder cutters.
Center point enters first; prevents "skating".
Cutting flutes are engineered for optimum chip ejection so drill won't bind and burn out.
For drilling accurate, splinter-free holes in soft wood, hard wood, plywood and hardboard.
Diameter: 3 -26mm (1/8" -1")
Length: 150/160/200/300/400/600mm (6",8",12",16" )
HSS Brad Point Drill Bit
High Speed Steel made with brad point and two shoulder cutting spurs, black groove, edge polished.
For drilling accurate, splinter-free holes in soft wood, hardwood, plywood and hardboard.
Professional type, long lifetime, fast drilling
Size: 3 -13mm (1/8" -1/2")
Length:61 -150mm
CARBIDE TIPPED BRAD POINT DRILL BIT
Carbide tipped cutting spurs with brad point withstand the high heat generated by daily production work in the hardest woods .
These industrial wood bits last far longer than even HSS wood bits.
Ideal for non-splintering and precise drilling on hard surface.
Application: for drilling accurate, splinter-free holes in soft and hard woods, drywall, plywood, tiles, abrasive materials,
laminates and plastics.
Size: 3-13mm ( 1/8"-1/2")
Length: 60 -150mm
HAMMER DRILL BIT
SDS PLUS(standard Tip, standard flute, Cross TIP, double flutes S4 type , Three-Tip double flutes),
SDS-PLUS HAMMER DRILL BIT
NFE 66080 / DIN 8035
The following electric hammer drill bits are machined from chrome steel fitted with carbide insert brazed at a very high
temperature to withstand severe heating when drilling hard materials.
L-shaped flute profile improves dust discharge. Sand blasted surface. Other industrial surface finish available.
For drilling in granite, concrete, stone, masonry, tiles and marble.
4.0-30.0mm, Total length: 110-1000mm
Fits hammer drills with SDS-Plus chucking and 2-slot chucking system. It can be used with Electric Hammer of BOSCH Co.,
AEG. Co., BLACK & DECKER Co., HILTI Co., PHILLIPS Co., HITACHI Co., and MAKITA Co., The shank is round with dual-arc and dual-key
way.
SDS Max (standard Tip, standard flute, Cross TIP, double flutes S4 type), 1/4" Hex,
Can be used with BOSCH GBH 5/40 DCE GBH 8/65 DCE
MASONRY DRILL BIT /GLASS&TILE DRILL BIT
Milled, Black and Silver(standard Shank, 1/4" Hex Shank)
This drill bit is machined from high carbon steel with carbide tipped cutting edges.
Black groove, edge polished.
For rotary and roto-percussion drilling in concrete, stone, masonry and similar materials
Dia.: 3-26mm (1/8" -1")
Length: 200, 300, 400 mm / 8", 12", 16" available
Standard Shank, 1/4" Hex Shank
HSS TWIST DRILL BIT
HSS STRAIGHT SHANK TWIST DRILL BIT, BLACK OXIDE,ROLL
Hot rolled flute, milled flute, right-hand cut.
118° point angle (135º split angle available).
Black oxide finish.
Economical high speed steel for general drilling.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.5-30.0mm
HSS STRAIGHT SHANK TWIST DRILL BIT, BRIGHT FINISHED,FULLY GROUND
118° point angle (135º split angle available).
Fully ground body, bright finish.
Industrial quality.
Right-hand cut.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3.0-30mm
HSS STRAIGHT SHANK TWIST DRILL BIT, WITH TITANIUM NITRIDE COATED
118° point angle (135º split angle available).
Titanium nitride coating lasts up to six times longer than standard high speed steel.
Coating is very hard giving very long drill bit life, up to 8 times.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3-30mm
HSS AMBER COBALT STRAIGHT SHANK DRILL BIT, DIN 338
Industrial grade cobalt steel.
135º split point for quick start and no walk application.
Cobalt for much higher hot hardness and abrasion resistance.
Ideal for drilling in steel, stainless steel, heat resistant steel, cast steel, sintered metal, and super alloys.
Dia.0.3-30mm
HSS morse taper shank twist drill bits, BLACK OXIDE,ROLL FORGED,DIN345,
Roll-forged/milled flute
118º point angle, right-hand cut.
Black oxide finish.
For drilling in steel, alloyed steel, all common working steels.
High performance HSS special drill bit with morse taper shank for high precise drilling of larger bore diameter.
Dia.:6.0-50.0mm
CARBIDE TIPPED TWIST DRILL BIT
118° point angle.
Jobber length, straight shank,
Heavy-duty construction and heat treated body for optimum wear resistance and support of the carbide tip.
Special twist drill bits for drilling abrasive materials.
Used in the production drilling of cast iron, non-ferrous metals and many composite materials.
Not recommended for drilling steel
Dia.2.5 to 25mm; 5/64" to 1"
HSS JOBBER LENGTH DRILL BIT, LEFT-HAND CUT
118° point angle , left-hand cut, bright finish.
General purpose drill construction.
A left hand helix for screw machine applications where spindles rotate counterclockwise.
Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia. 1mm -10mm; 1/16"-1/2" DIN 338
JOBBER LENGTH DRILL BIT, 1/2&3/8" REDUCED SHANK
ANSI standard.
118° point angle.
Economic high speed steel for general drilling.
3/8" reduced shank, jobber length.
For use in 3/8" drill .
For general use in metal, wood and plastics
Size:17/64" -25/32" .
HSS SAW DRILL BIT
Multi function bit drills, saws, and reams brass, aluminum, wood and plastics.
Cross ground cutting edges for rapid, non clog cutting.
Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.
135° splint point,Dia.6 and 8mm Length:90mm,Other sizes available.
For milling any type of contour in thin-walled materials.
Suitable for metal, wood, plastics
HSS TWIST DRILL BITS - 1/4" HEX SHANK
High speed steel made.
DIN 338,118° point angle, right-hand cut
Bright or Tin-coated industrial finish
Universal 1/4"(6.35mm) hex shank locking system prevents spinning and slippage
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia.1mm -13mm
HSS CENTER DRILL BIT
Plain Type, 60º included angle, right-hand cut
Made from super speed steel, bright finish.
This tool is used for centering work ends, where the work-piece is to be revolved on machine centers.
60° countersink angle fits all standard centers.
Dia.1.0-6.3mm; 3/64"-5/16")
HSS STEP DRILL BIT,
HSS Conical Drill bit (Tube & Sheet Metal Drill bit)
Woodworking drill bit/Brad Point WOOD DRILL Bit(HCS,HSS,TCT,LONG,SET),
Made of high carbon steel, tungsten carbon or CV), brad point with two shoulder cutters.
Center point enters first; prevents "skating".
Cutting flutes are engineered for optimum chip ejection so drill won't bind and burn out.
For drilling accurate, splinter-free holes in soft wood, hard wood, plywood and hardboard.
Diameter: 3 -26mm (1/8" -1")
Length: 150/160/200/300/400/600mm (6",8",12",16" )
HSS Brad Point Drill Bit
High Speed Steel made with brad point and two shoulder cutting spurs, black groove, edge polished.
For drilling accurate, splinter-free holes in soft wood, hardwood, plywood and hardboard.
Professional type, long lifetime, fast drilling
Size: 3 -13mm (1/8" -1/2")
Length:61 -150mm
CARBIDE TIPPED BRAD POINT DRILL BIT
Carbide tipped cutting spurs with brad point withstand the high heat generated by daily production work in the hardest woods .
These industrial wood bits last far longer than even HSS wood bits.
Ideal for non-splintering and precise drilling on hard surface.
Application: for drilling accurate, splinter-free holes in soft and hard woods, drywall, plywood, tiles, abrasive materials,
laminates and plastics.
Size: 3-13mm ( 1/8"-1/2")
Length: 60 -150mm
SDS PLUS(standard Tip, standard flute, Cross TIP, double flutes S4 type , Three-Tip double flutes),
SDS-PLUS HAMMER DRILL BIT
NFE 66080 / DIN 8035
The following electric hammer drill bits are machined from chrome steel fitted with carbide insert brazed at a very high
temperature to withstand severe heating when drilling hard materials.
L-shaped flute profile improves dust discharge. Sand blasted surface. Other industrial surface finish available.
For drilling in granite, concrete, stone, masonry, tiles and marble.
4.0-30.0mm, Total length: 110-1000mm
Fits hammer drills with SDS-Plus chucking and 2-slot chucking system. It can be used with Electric Hammer of BOSCH Co., AEG. Co., BLACK & DECKER Co., HILTI Co., PHILLIPS Co., HITACHI Co., and MAKITA Co., The shank is round with dual-arc and dual-key way.
SDS Max (standard Tip, standard flute, Cross TIP, double flutes S4 type), 1/4" Hex,
Can be used with BOSCH GBH 5/40 DCE GBH 8/65 DCE
MASONRY DRILL BIT /GLASS&TILE DRILL BIT
Milled, Black and Silver(standard Shank, 1/4" Hex Shank)
This drill bit is machined from high carbon steel with carbide tipped cutting edges.
Black groove, edge polished.
For rotary and roto-percussion drilling in concrete, stone, masonry and similar materials
Dia.: 3-26mm (1/8" -1")
Length: 200, 300, 400 mm / 8", 12", 16" available
Standard Shank, 1/4" Hex Shank
HSS TWIST DRILL BIT
HSS STRAIGHT SHANK TWIST DRILL BIT, BLACK OXIDE,ROLL
Hot rolled flute, milled flute, right-hand cut.
118° point angle (135º split angle available).
Black oxide finish.
Economical high speed steel for general drilling.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.5-30.0mm
HSS STRAIGHT SHANK TWIST DRILL BIT, BRIGHT FINISHED,FULLY GROUND
118° point angle (135º split angle available).
Fully ground body, bright finish.
Industrial quality.
Right-hand cut.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3.0-30mm
HSS STRAIGHT SHANK TWIST DRILL BIT, WITH TITANIUM NITRIDE COATED
118° point angle (135º split angle available).
Titanium nitride coating lasts up to six times longer than standard high speed steel.
Coating is very hard giving very long drill bit life, up to 8 times.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3-30mm
HSS AMBER COBALT STRAIGHT SHANK DRILL BIT, DIN 338
Industrial grade cobalt steel.
135º split point for quick start and no walk application.
Cobalt for much higher hot hardness and abrasion resistance.
Ideal for drilling in steel, stainless steel, heat resistant steel, cast steel, sintered metal, and super alloys.
Dia.0.3-30mm
HSS morse taper shank twist drill bits, BLACK OXIDE,ROLL FORGED,DIN345,
Roll-forged/milled flute
118º point angle, right-hand cut.
Black oxide finish.
For drilling in steel, alloyed steel, all common working steels.
High performance HSS special drill bit with morse taper shank for high precise drilling of larger bore diameter.
Dia.:6.0-50.0mm
CARBIDE TIPPED TWIST DRILL BIT
118° point angle.
Jobber length, straight shank,
Heavy-duty construction and heat treated body for optimum wear resistance and support of the carbide tip.
Special twist drill bits for drilling abrasive materials.
Used in the production drilling of cast iron, non-ferrous metals and many composite materials.
Not recommended for drilling steel
Dia.2.5 to 25mm; 5/64" to 1"
HSS JOBBER LENGTH DRILL BIT, LEFT-HAND CUT
118° point angle , left-hand cut, bright finish.
General purpose drill construction.
A left hand helix for screw machine applications where spindles rotate counterclockwise.
Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia. 1mm -10mm; 1/16"-1/2" DIN 338
JOBBER LENGTH DRILL BIT, 1/2&3/8" REDUCED SHANK
ANSI standard.
118° point angle.
Economic high speed steel for general drilling.
3/8" reduced shank, jobber length.
For use in 3/8" drill .
For general use in metal, wood and plastics
Size:17/64" -25/32" .
HSS SAW DRILL BIT
Multi function bit drills, saws, and reams brass, aluminum, wood and plastics.
Cross ground cutting edges for rapid, non clog cutting.
Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.
135° splint point,Dia.6 and 8mm Length:90mm,Other sizes available.
For milling any type of contour in thin-walled materials.
Suitable for metal, wood, plastics
HSS TWIST DRILL BITS - 1/4" HEX SHANK
High speed steel made.
DIN 338,118° point angle, right-hand cut
Bright or Tin-coated industrial finish
Universal 1/4"(6.35mm) hex shank locking system prevents spinning and slippage
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia.1mm -13mm
HSS CENTER DRILL BIT
Plain Type, 60º included angle, right-hand cut
Made from super speed steel, bright finish.
This tool is used for centering work ends, where the work-piece is to be revolved on machine centers.
60° countersink angle fits all standard centers.
Dia.1.0-6.3mm; 3/64"-5/16")
HSS STEP DRILL BIT,
HSS Conical Drill bit (Tube & Sheet Metal Drill bit)
Woodworking drill bit/Brad Point WOOD DRILL Bit(HCS,HSS,TCT,LONG,SET),
Made of high carbon steel, tungsten carbon or CV), brad point with two shoulder cutters.
Center point enters first; prevents "skating".
Cutting flutes are engineered for optimum chip ejection so drill won't bind and burn out.
For drilling accurate, splinter-free holes in soft wood, hard wood, plywood and hardboard.
Diameter: 3 -26mm (1/8" -1")
Length: 150/160/200/300/400/600mm (6",8",12",16" )
HSS Brad Point Drill Bit
High Speed Steel made with brad point and two shoulder cutting spurs, black groove, edge polished.
For drilling accurate, splinter-free holes in soft wood, hardwood, plywood and hardboard.
Professional type, long lifetime, fast drilling
Size: 3 -13mm (1/8" -1/2")
Length:61 -150mm
CARBIDE TIPPED BRAD POINT DRILL BIT
Carbide tipped cutting spurs with brad point withstand the high heat generated by daily production work in the hardest woods .
These industrial wood bits last far longer than even HSS wood bits.
Ideal for non-splintering and precise drilling on hard surface.
Application: for drilling accurate, splinter-free holes in soft and hard woods, drywall, plywood, tiles, abrasive materials,
laminates and plastics.
Size: 3-13mm ( 1/8"-1/2")
Length: 60 -150mm
HAMMER DRILL BIT
SDS PLUS(standard Tip, standard flute, Cross TIP, double flutes S4 type , Three-Tip double flutes),
SDS-PLUS HAMMER DRILL BIT
NFE 66080 / DIN 8035
The following electric hammer drill bits are machined from chrome steel fitted with carbide insert brazed at a very high
temperature to withstand severe heating when drilling hard materials.
L-shaped flute profile improves dust discharge. Sand blasted surface. Other industrial surface finish available.
For drilling in granite, concrete, stone, masonry, tiles and marble.
4.0-30.0mm, Total length: 110-1000mm
Fits hammer drills with SDS-Plus chucking and 2-slot chucking system. It can be used with Electric Hammer of BOSCH Co.,
AEG. Co., BLACK & DECKER Co., HILTI Co., PHILLIPS Co., HITACHI Co., and MAKITA Co., The shank is round with dual-arc and dual-key
way.
SDS Max (standard Tip, standard flute, Cross TIP, double flutes S4 type), 1/4" Hex,
Can be used with BOSCH GBH 5/40 DCE GBH 8/65 DCE
MASONRY DRILL BIT /GLASS&TILE DRILL BIT
Milled, Black and Silver(standard Shank, 1/4" Hex Shank)
This drill bit is machined from high carbon steel with carbide tipped cutting edges.
Black groove, edge polished.
For rotary and roto-percussion drilling in concrete, stone, masonry and similar materials
Dia.: 3-26mm (1/8" -1")
Length: 200, 300, 400 mm / 8", 12", 16" available
Standard Shank, 1/4" Hex Shank
HSS TWIST DRILL BIT
HSS STRAIGHT SHANK TWIST DRILL BIT, BLACK OXIDE,ROLL
Hot rolled flute, milled flute, right-hand cut.
118° point angle (135º split angle available).
Black oxide finish.
Economical high speed steel for general drilling.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.5-30.0mm
HSS STRAIGHT SHANK TWIST DRILL BIT, BRIGHT FINISHED,FULLY GROUND
118° point angle (135º split angle available).
Fully ground body, bright finish.
Industrial quality.
Right-hand cut.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3.0-30mm
HSS STRAIGHT SHANK TWIST DRILL BIT, WITH TITANIUM NITRIDE COATED
118° point angle (135º split angle available).
Titanium nitride coating lasts up to six times longer than standard high speed steel.
Coating is very hard giving very long drill bit life, up to 8 times.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics.
Dia.0.3-30mm
HSS AMBER COBALT STRAIGHT SHANK DRILL BIT, DIN 338
Industrial grade cobalt steel.
135º split point for quick start and no walk application.
Cobalt for much higher hot hardness and abrasion resistance.
Ideal for drilling in steel, stainless steel, heat resistant steel, cast steel, sintered metal, and super alloys.
Dia.0.3-30mm
HSS morse taper shank twist drill bits, BLACK OXIDE,ROLL FORGED,DIN345,
Roll-forged/milled flute
118º point angle, right-hand cut.
Black oxide finish.
For drilling in steel, alloyed steel, all common working steels.
High performance HSS special drill bit with morse taper shank for high precise drilling of larger bore diameter.
Dia.:6.0-50.0mm
CARBIDE TIPPED TWIST DRILL BIT
118° point angle.
Jobber length, straight shank,
Heavy-duty construction and heat treated body for optimum wear resistance and support of the carbide tip.
Special twist drill bits for drilling abrasive materials.
Used in the production drilling of cast iron, non-ferrous metals and many composite materials.
Not recommended for drilling steel
Dia.2.5 to 25mm; 5/64" to 1"
HSS JOBBER LENGTH DRILL BIT, LEFT-HAND CUT
118° point angle , left-hand cut, bright finish.
General purpose drill construction.
A left hand helix for screw machine applications where spindles rotate counterclockwise.
Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia. 1mm -10mm; 1/16"-1/2" DIN 338
JOBBER LENGTH DRILL BIT, 1/2&3/8" REDUCED SHANK
ANSI standard.
118° point angle.
Economic high speed steel for general drilling.
3/8" reduced shank, jobber length.
For use in 3/8" drill .
For general use in metal, wood and plastics
Size:17/64" -25/32" .
HSS SAW DRILL BIT
Multi function bit drills, saws, and reams brass, aluminum, wood and plastics.
Cross ground cutting edges for rapid, non clog cutting.
Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.
135° splint point,Dia.6 and 8mm Length:90mm,Other sizes available.
For milling any type of contour in thin-walled materials.
Suitable for metal, wood, plastics
HSS TWIST DRILL BITS - 1/4" HEX SHANK
High speed steel made.
DIN 338,118° point angle, right-hand cut
Bright or Tin-coated industrial finish
Universal 1/4"(6.35mm) hex shank locking system prevents spinning and slippage
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics
Dia.1mm -13mm
HSS CENTER DRILL BIT
Plain Type, 60º included angle, right-hand cut
Made from super speed steel, bright finish.
This tool is used for centering work ends, where the work-piece is to be revolved on machine centers.
60° countersink angle fits all standard centers.
Dia.1.0-6.3mm; 3/64"-5/16")
HSS STEP DRILL BIT,
HSS Conical Drill bit (Tube & Sheet Metal Drill bit)
Woodworking drill bit/Brad Point WOOD DRILL Bit(HCS,HSS,TCT,LONG,SET),
Made of high carbon steel, tungsten carbon or CV), brad point with two shoulder cutters.
Center point enters first; prevents "skating".
Cutting flutes are engineered for optimum chip ejection so drill won't bind and burn out.
For drilling accurate, splinter-free holes in soft wood, hard wood, plywood and hardboard.
Diameter: 3 -26mm (1/8" -1")
Length: 150/160/200/300/400/600mm (6",8",12",16" )
HSS Brad Point Drill Bit
High Speed Steel made with brad point and two shoulder cutting spurs, black groove, edge polished.
For drilling accurate, splinter-free holes in soft wood, hardwood, plywood and hardboard.
Professional type, long lifetime, fast drilling
Size: 3 -13mm (1/8" -1/2")
Length:61 -150mm
CARBIDE TIPPED BRAD POINT DRILL BIT
Carbide tipped cutting spurs with brad point withstand the high heat generated by daily production work in the hardest woods .
These industrial wood bits last far longer than even HSS wood bits.
Ideal for non-splintering and precise drilling on hard surface.
Application: for drilling accurate, splinter-free holes in soft and hard woods, drywall, plywood, tiles, abrasive materials,
laminates and plastics.

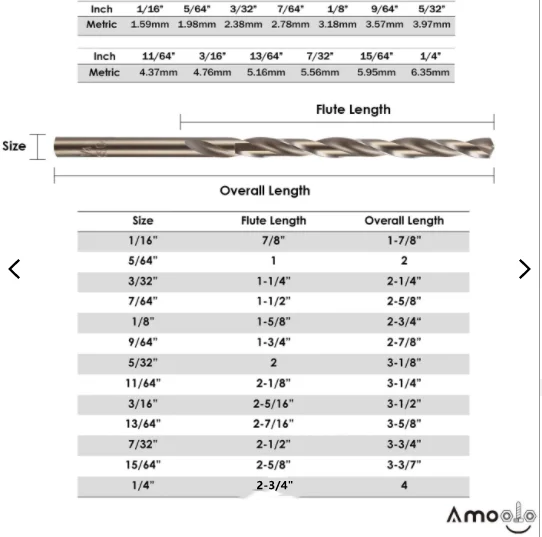

Size: 3-13mm ( 1/8"-1/2")
Length: 60 -150mm
Related products
Packing & Delivery
packing:
100pcs per inner colour box,50 boxes per carton,then on pallet. It can be according to customer's requirement.
Shipping:
Loading from Shanghai or Ningbo port, or according to customer's designated places.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
* Rich resources of series products and bettersolutions
* Competitive price directly from factory with high quality
* OEM Service
* Professional working team and quick response
* Small order acceptable
* Competitive price directly from factory with high quality
* OEM Service
* Professional working team and quick response
* Small order acceptable
Company Profile
Jiaxing Jinhow Import and Export Co.,Ltd. was establish in 2007 as a comprehensive manufacturing and export company.Our location is in Jiaxing city Zhejiang province,which is very close to Shanghai, Hangzhou and Ningbo. Our factory have more than 15years experience to produce powder actuated fastening system，such as many kinds of Drive Pin,Powder Load,Powder Actuated Tool,Screws ，Anchors .We offer the advantages of superior quality, competitive price , first-class technology,safe package,and prompt delivery. Our products sell very well in more than 30 countries with top quality in china and competitive price in the market .We established a good market reputation with perfect after-sales service. We sincerely welcome friends to visit our factory and cooperate with us on the basis of long-term mutual benefit.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2007,sell to Western Europe(11.11%),Eastern Asia(11.11%),Mid
East(11.11%),Oceania(11.11%),Africa(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 11-50 people in our office.
East(11.11%),Oceania(11.11%),Africa(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
3.what can you buy from us?
Power Actuated Fastener Tool,Drive Pin,Power Load,Screws,Anchor
4. why should you buy from us not from other suppliers?
Our company is specialized in fasteners business, such as drywall screws, anchors, powder driven fastening systems, bolts, nuts,
threaded rod. We provide very competitive prices.Our principle is "quality first,business must be conducted by honesty"
threaded rod. We provide very competitive prices.Our principle is "quality first,business must be conducted by honesty"
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,D/P D/A;
Language Spoken:English,Chinese
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,D/P D/A;
Language Spoken:English,Chinese
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
