2013 OEM china plastic mold bottle cap mould used plastic cap mold

Product Overview

Description



Cap mould Specification :

1.We can design the mould according to your sample or 2D/3D drawing.

2.Mould steel: P20, #2316 steel, S136 and so on, or according to customer's request.

3.Delivery time: 30-60days.

4.Certifiable life: ≥1,000,000 shots

5.4cavity, 6cavity, 8cavity, 12cavity, 16cavity, 20cavity, 24cavity, 32cavity, 48cavity etc.

6.Germanic " Hotset" Brand heat fittings and quality thermocouple.

7.Insert materials: cavity and core with imported 2316 stainless steel or S136, P20, and so on, or according to customer's request.

Tips Detail explain:
1)2316 steel from German
1, Hardness: HRC45-48
2, HBS<=235
3.Surface:black or polish
4.Technique:hot rolled or Forged
2316 plastic mould steel characters:
1 medical carbon high chrome martensite shape stainless steel
2 high purity good performance of high mirror polish,anti-acid, anti-rust after heat treatment
3 good corrosion resistance
4 resistance for erosive attack,good stability

2) S136 steel from Sweden win hundred, Japanese Datong
1. Hardness: HRC45-48
2. Annealing: 215HB
S136 plastic mould steel characters:
1. Belong to medial carbon high chrome Martensite shape stainless steel
2. High purity , good performance of high mirror polishing, anti-acid, anti-rust after heat- treatment
3. Good corrosion resistance
4. Resistance for erosive attack
5. Low deformation rate
6. Good stability

Hot runner

Chinese or internatinal famous brand hot runner systems.Hot runner or cold runner with good cooling system.hot runner system is designed and made by ourselves, it can achieve ideal and prompt heating effect for plastic production, cavity with lower injection pressure to reduce wear and tear of mould parts

Heating system

with double heating system, it has separate temperature control mode ,the heat bar are used to heat hot-runner mainfold , small heaters supply the heating temperature for cavity nozzle continuously.

Cooling system

each parts including core ,cavity has independently cooling system.

Heating treatment
mechanical treatment cavity and core to prolong service life ,nitrogen treatment with neck screw. with fitly operation ,guarantee Long using life over 2.0 million times of injection cycle.

Advanced Testing and Processing Equipment
Many machine tools are imported from America and Japan, such as Machine center, CNC lathers, EDM and so on. All of these increases processing precision, good interchangeability

Note tips:

1. when you stop producing or remove the mould, please paint antirust paint on cavity, thread mouth, core to prevent mould sweat and corrosion.

2. If the mould is unuse,you can put it to dry place and paint anticorrosive oil on outer to Prevent moisture.for next time use.

Special satisfied service

1.we will send the weekly mould process report and tooling schedule each 5-10 work days.
2. we will send the first testing sample for buyer's inspection and work out improvement requirements.
3. we will send the mould testing video before shipment

2013 OEM china plastic mold bottle cap mould used plastic cap mold

Business Step map

1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2.Quotation Making	Mould Quotation will be finished in 1 day according to information we get.
3.Negotiation	The quality, price, material, delivery time, payment item, etc.
4.Mould Design	3-5 days for mould and product 3D/2D drawing design.
5.Mould	According to customer'request to build the mould. Before make the mould, we send mould design to be approved by customer first. Mould will be usually finished in 30-60days.
6.Mould Testing	When moulds are finished, we will test the mould to check it satisfied consumer's needs. And we will send samples for consumer reference.
7. Sample confirmation	If customer is not satisfied with the first samples when it is come out. We modify the mould and untill meet customer's satisfaction.
8.Delivery	Delivery goods by sea or by air, according to customer's requirement.
9.company history	More than 20 years



Pet preform Cap for Bottle



Material: with 100% new material(PE&PP)

Inside liner material :TPR

Type: twist off cap ,with tamper evident ring or by you need

Carton dimension: 620*375*465MM or customized

Mini order :100,000 pieces

Fob price: send email to us to get newest price.

Supply ability: 5,000,000  Piece/Pieces / Month

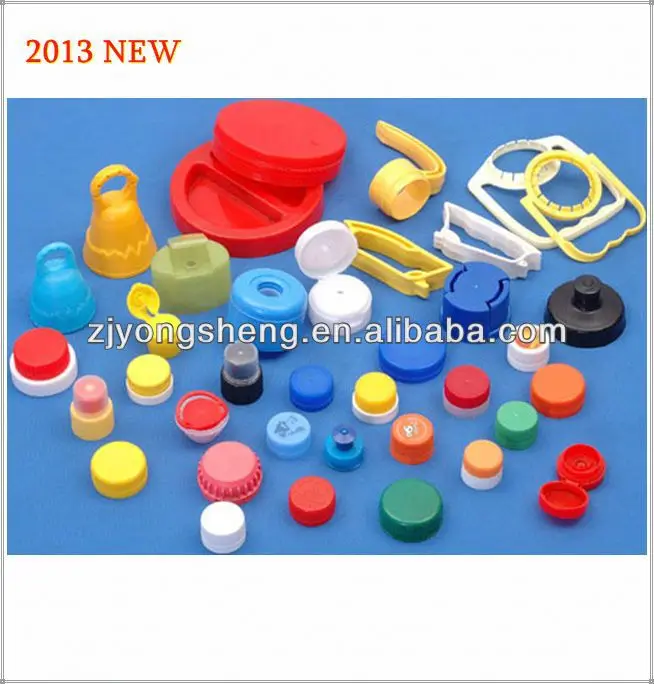

Cap usage :Push/pull cap,Flip-off cap,Flip-top cap,Edible oil cap,Castor cap,Shampoo cap,Mineral water cap,Beverage cap,Detergent cap and so on.



Feature detail : pilfer proof

1) Diameter: 28mm PCO neck

2) Weight: 3.0g.

3) With anti-theft ring/ tamper evident ring.

4) Color: any color by customer

5) Inside liner material: TPR.

6) Package: 5000caps in one carton.
7) screw cap

8) ISO9000 certification and QS certification





we are specializing in plastic injection mould,stretch blow mould,extrude blow mould and plastic cap processing machine for more than 20 years.



   we can produce a complete set of equipment integrating injection-folding-slitting-lining-printing,backed with technology,high-efficiency and strong after-sales service,making it your ideal choice for the production of bottle lids.



    we are also specializing in producing all kinds of the plastic cap and own more than 20 sets of the injection machince,depending on the more than ten years experience and the efford of the mould and equqipment,we are leader in the line of the caps.



Product and company picture view:
