Permanent Lifting Magnet

Product Overview

Description

Features :

1. Powered by strong NdFeB magnets.

2. Holding or releasing work piece can be done easily by Handle switch, the lifter greatly improve fficiency.

3. 3.5 times load factor of safety, it can lift objects even there is big air gap with work piece.

4. MAX working temp 80°C

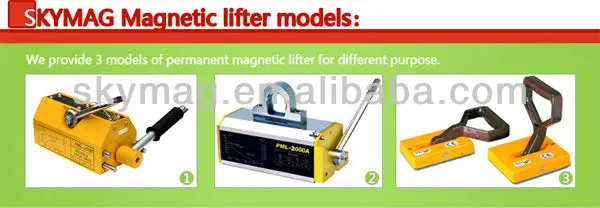

Models:



Type 1:

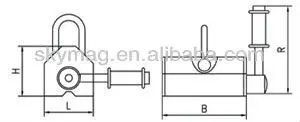

Part No.	Rated lifting force (Kgs)	Rated lifting force for round shape (Kgs)	Max pulloff force (Kgs)	Dimensions (mm)				Weight
				L	B	H	R
PML-100	100	30	350	60	100	70	126	3
PML-300	300	100	1050	94	168	96	155	10
PML-600	600	200	2100	120	222	116	196	24
PML-1000	1000	300	3500	132	273	120	285	34
PML-1500	1500	500	5250	152	360	173	426	50
PML-2000	2000	750	7000	152	460	173	426	70
PML-3000	3000	1000	10500	286	458	261	521	86
PML-6000	6000	2000	21000	430	600	355	730	420





Type 2:



Part No.	Dimensions (mm)								NW(kgs)
	L	L1	B	H1	H2	B1	F	G
PML-100A	120	90	55	60	50	120	35	25	3
PML-300A	203	165	87	89	68	223	45	38	10
PML-600A	266	226	112	109	89	287	58	45	21
PML-1000A	330	290	148	125	95	364	60	52	40
PML-1500A	385	330	178	145	118	447	70	65	65
PML-2000A	470	420	178	145	118	487	70	65	83
PML-3000A	490	435	210	175	128	487	80	70	125



Part Noand Lifting capacity for different shaped work pieces

work piece shape	steel plate			round steel products
Part No.	Rated lifting force (kgs)	Mini Thickness (mm)	Max Length (mm)	Rated lifting force (kgs)	Max diameter (mm)	Max Length (mm)	Min Thickness (mm)
PML-100A	100	10	1000	50	100	1000	10
PML-300A	300	20	1500	150	300	1500	12
PML-600A	600	30	2000	300	400	2000	20
PML-1000A	1000	40	3000	500	450	3000	28
PML-1500A	1500	50	3000	750	500	3000	34
PML-2000A	2000	60	3000	1000	600	3000	40
PML-3000A	3000	60	4000	1500	700	40000	50



Note: The rated lifting capacity is based on room temperature.

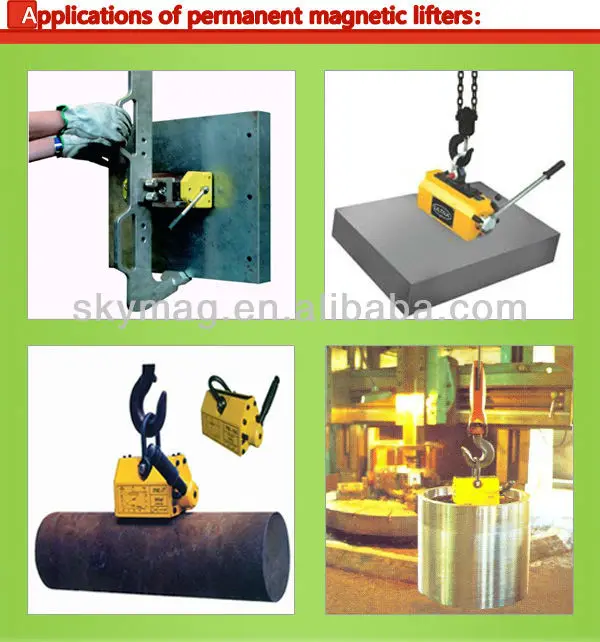

Applications :

The lifter can lift different shaped steel working piece directly, like steel plate, steel pipe or rod in factory, dork, warehouse, etc.
