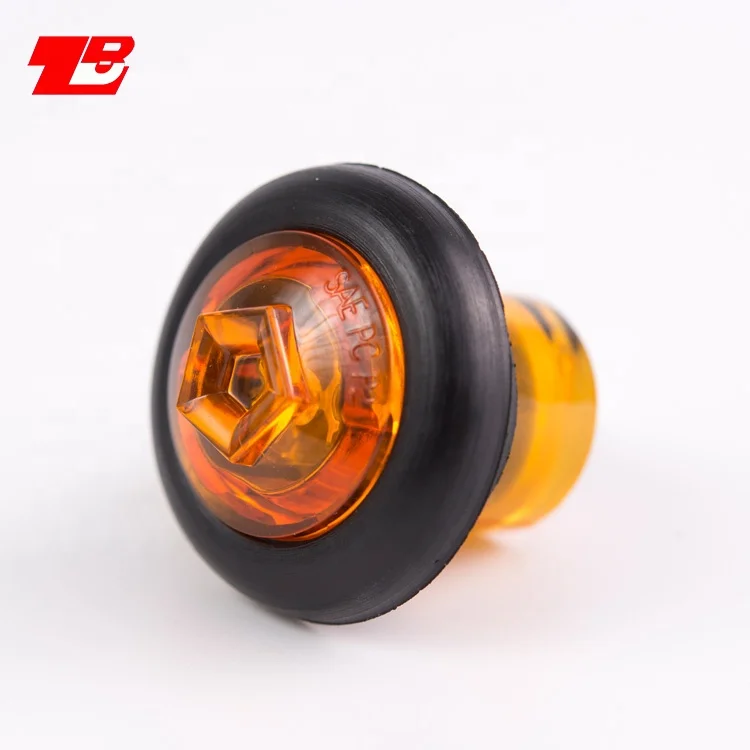

China SAE P2PC Round 12V 0.75" LED Truck Side Marker Light (LED marker light)

Product Overview

Description

Detailed Product Description of 3/4" Marker and Clearance Lamp

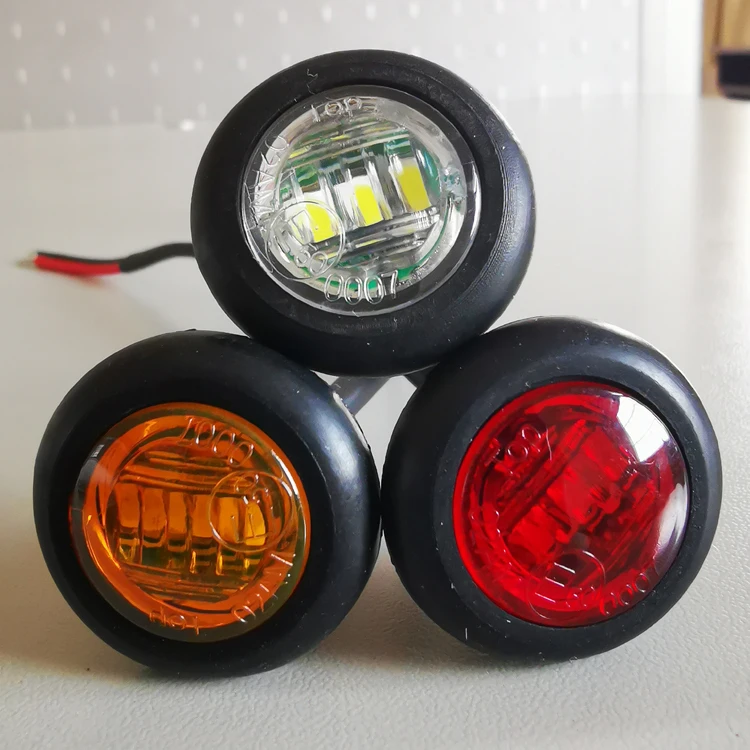

1 LED of Piranha type, 3 LEDs or SMD type also available



Features engineered lens optics

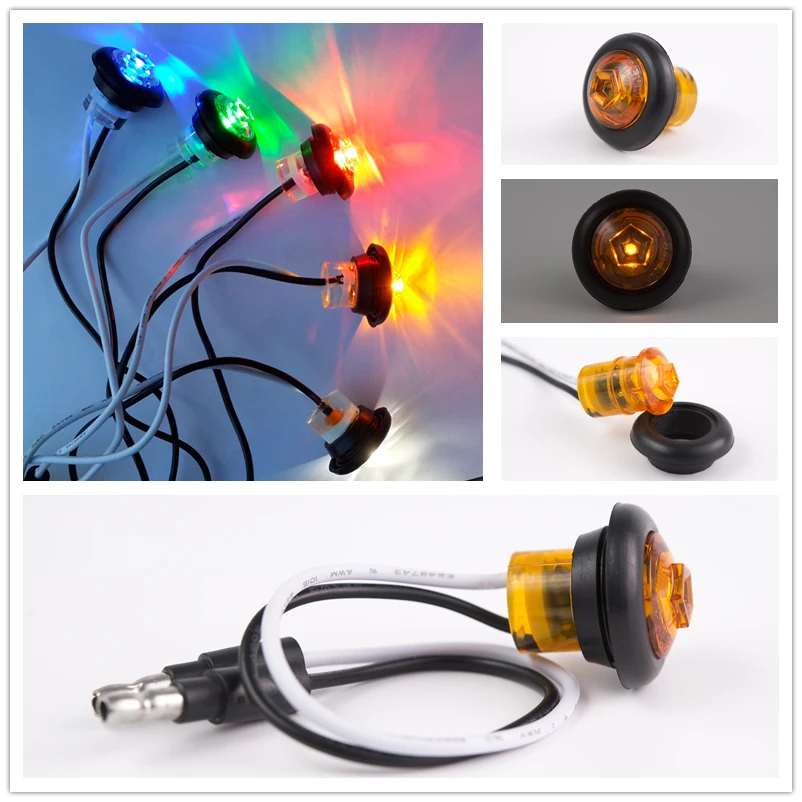

0.75” Mini Round LED Marker & Clearance Light (LED marker light)

• 1 LED of SMD type
• Features engineered lens optics, functions as clearance light, side marker or identification light, ideal for any application on trailer and universal
• Compact size, easy for installation by drilling a 3/4” hole and pushing in

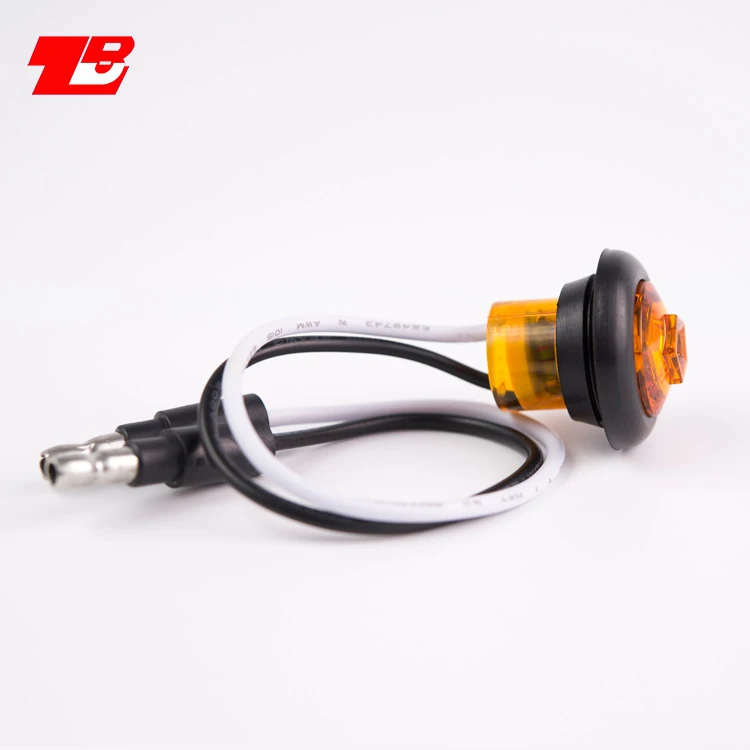

• Two-wire design includes separate lead and ground wires with bullet terminals
• PC lens, ABS housing and LED circuitry completely sealed by epoxy to ensure a permanent and water proof seal.
• Meets PC and P2 rating of DOT FMVSS 108/SAE requirements
• Rated for 12V, tested to 14V
• Also available in multi-voltage 10~30V operating range, or 24V (special order only – minimum may apply)

Part No.	Description	Input Voltage	Lighting Color	Nos. of LEDs	Current Draw(mA) at 14V
R0701GWR1-T	Red Light Kit (with bullet terminal)	12 V	Red	1	55 mA
R0701GWY1-T	Amber Light Kit (with bullet terminal)	12 V	Amber	1	55 mA
R0701GWC1-T	Clear Light Kit (with bullet terminal)	12 V	Clear	1	20 mA
R0701GWR3	Red Kit, Multi-voltage	10~30V	Red	1	20 mA
R0701GWY3	Amber Kit, Multi-voltage	10~30V	Amber	1	20 mA
R0701GWC3	Clear Kit, Multi-voltage	10~30V	Clear	1	20 mA
