good match with wind breaker DS 120 long distance powerful Fog Cannon dock yard dust fighter open pit dust control system

Product Overview

Description

Company Information

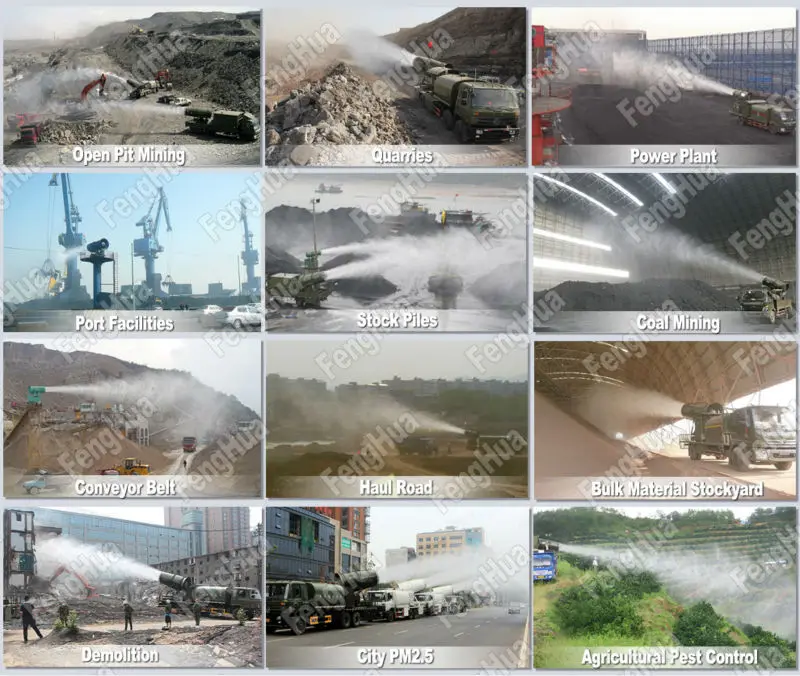

Fenghua is the only fog cannon manufacturer who goes public in China, and we're proud to introduce ourselves as the leading manufacturer in this area for over 20 years. Located in Guangdong, China, Fenghua specializes in the development and implementation of dust management solutions in a wide range of areas, such as cross-docking of bulk goods, demolishing, mining, (waste) recycling etc. etc.

We have a big market share in China, and increase the overseas market share year by year. You don't need to worry about the after sale service, we have service centers in many overseas cities; alternatively we will send engineers to service the machinery..



The standard Fenghua® models with patent have below properties:

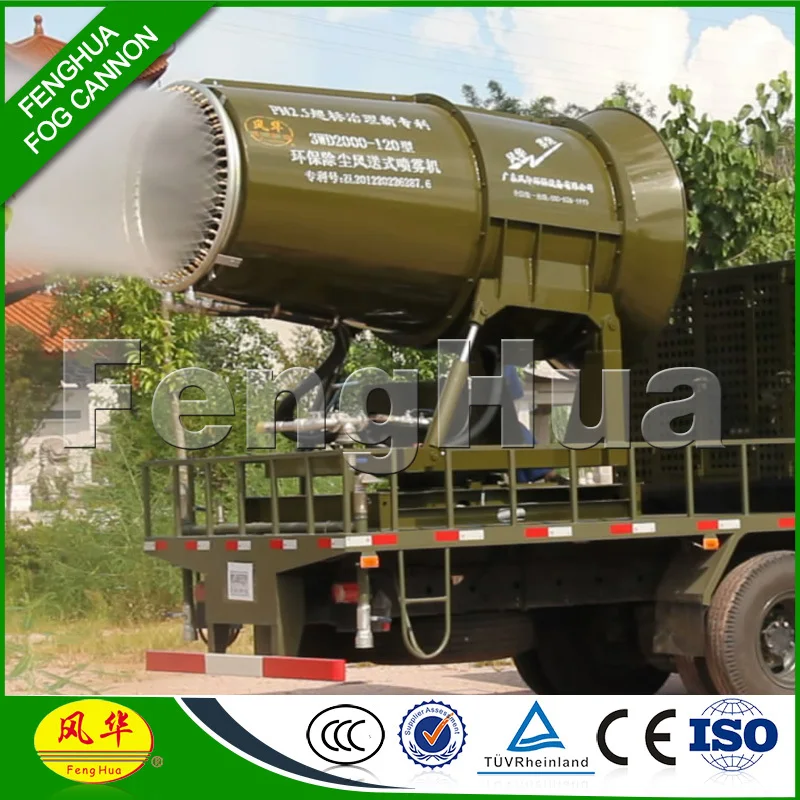

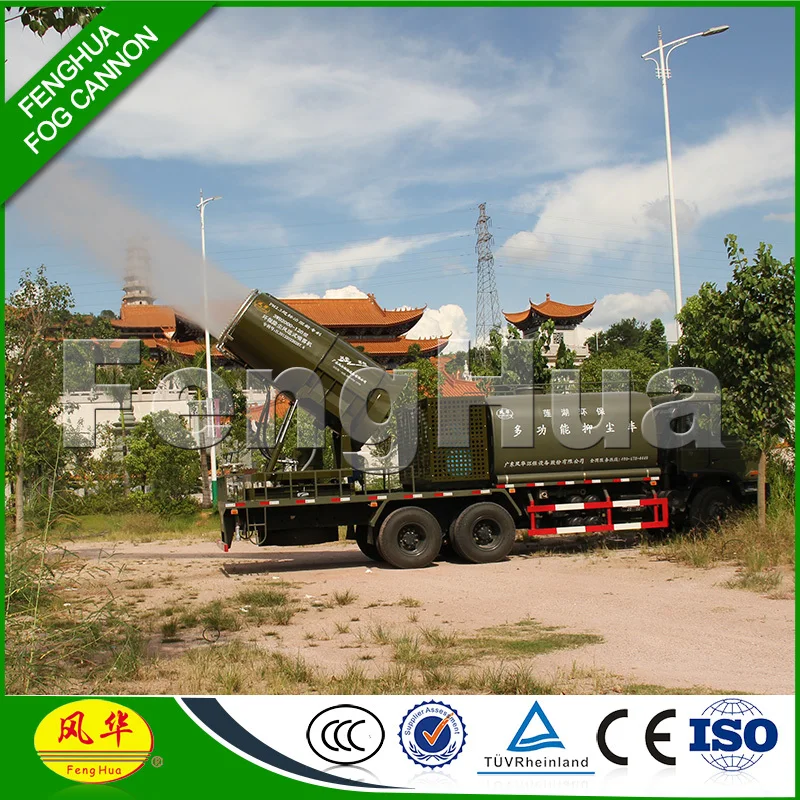

1. trolley/tractor/truck/tower mounted, wall mount types are available;

2. different throws from 10 - 200M; customization is always an option;

3. adjustable elevation; left-right automatic rotation;

4. electric or generator powered models are available;

More detailed info are available upon request.



In addition to our standard Fenghua® models with patent, we can tailor any of our solutions to your specific needs. Customization is another one of our specialties. Because every dust and odour problem is unique, we work closely with our customers and dealers to identify the source of the dust and odour problem and find the right solution. Furthermore, the odour problems can be solved by adding chemicals into the water; the Fenghua® can provide you the correct cannons with best quality and competitive price.



Please contact us so we can talk about what we can do for you! If you would like to receive a quotation for a specific project or model, please let us know and we’ll make sure you receive it as soon as possible.

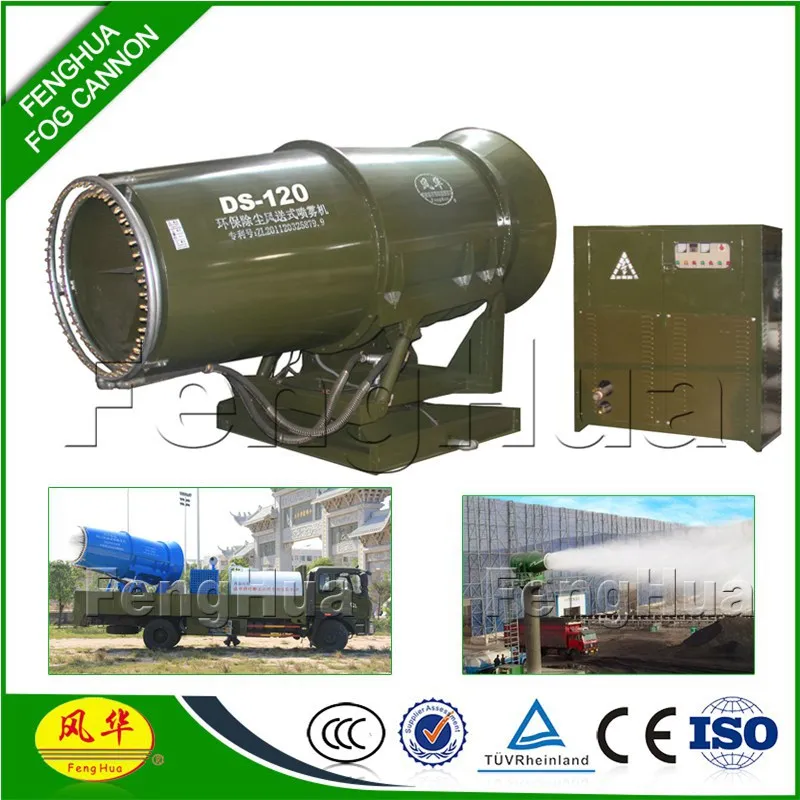

good match with wind breaker DS-120 long distance powerful Fog Cannon dock yard dust fighter open pit dust control system



Product Specification

Model	DS-50	DS-60	DS-80	DS-100	DS-120	DS-150	DS-200
Max Throw(M)  no wind	50	60	80	100	120	150	200
Coverage Area (M2) no wind	5000-7000	8000-10000	15000-17000	23000-27000	34000-40000	54000-62000	95000-111000
Volume Flow (Adjustable)	60-118 (L/min)		100-160 (L/min)	150-200 (L/min)		160-240 (L/min)	160-300 (L/min)
Fog Droplet Size     (Adjustable )	30-150µm	20-200µm				30-300µm
Water Pressure (Mpa)	2.0-3.5Mpa		2.5-3.5Mpa
Power Supply	3-Phase,380V/50HZ(according to different country conditions)
Control Method	Remote Control
Horizontal Rotation Angle	320°
Pitching Angle	-10°~45°			-10°~40°
Applicable Environment Temperature	-30℃~+45℃
Color	Green, Orange, Grey, Blue or customized
All the fog cannons can be customized. Optional Equipment: Diesel/Gasoline Generator set, Trailer, Water Tank with different material(PVC or Steel) and volume(3-20ton),and the quantity of nozzles, etc.  Contact us for more details.





Advantage:

1. Strong capability, high & far throw range, wide coverage area.

2. Custommade nozzles achieve precise volume spraying, high efficiency and spray speed.

3. Flexible power: three-phase 380V and diesel/gasoline generator power supply optional
4. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5. Remote control. Easily adjust the spray angle horizontally/vertically.
6. Compared to tank car, water consumption save 70% ~80%.



Packaging

1. Outer package: standard export plywood case
2. Inner package: air bubble film and screwed to the pallet.

3. LCL or FCL subject to the merchandise size.

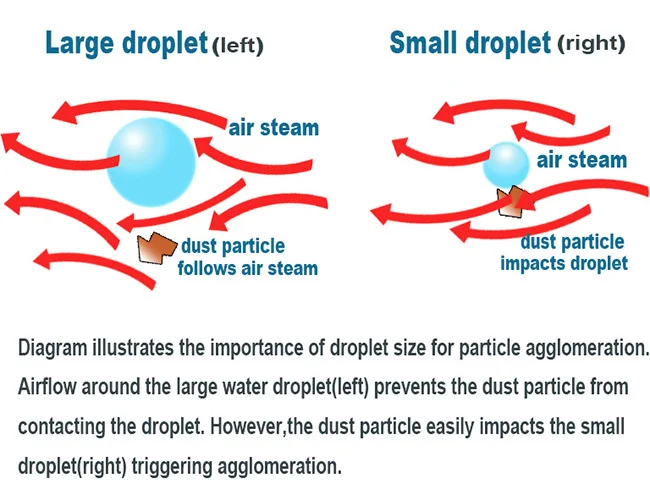

Working Theory



FAQ

Q:Are you a factory or trading company?

A: We are a factory since 1996.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Meizhou City. With Meixian airport, you can fly from a lot of cities. The other nearby cities are Guangzhou, Shenzhen and Jieyang. Bus to HongKong is also an option.



3.Q:What is the material of your products?
A: The material is Steel A3, sainless steel etc. Customers can use their ominated materials also.

4.Q: What is the warranty time of your products?

A: The warranty time is 12months from the date of the commissioning, or 18months from the factory delivery, the first shall prevail.  All quick-wear spare parts will be provided for free within the warranty period. After the warranty, we also can ensure that you can buy any necessary spare parts with favorable price within 5 years.

5.Q:How does your factory do regarding quality control?

A: We always attach high importance to quality control from the very beginning to the very end. Our factory has gained the ISO 9001:2008 authentication. Quality is Priority.
