85 265V 110V 120V 230V 24V 12 Volt outdoor led flood lighting 10W 20W 30W 50W 80W 100W 150W 200W 300W 400 watt led flood light

Product Overview

Description

outdoor lighting high lumen led flood light 10W 20W 30W 50W 80W 100W 150W 200W 300W 400 watt



Specification of outdoor led flood lighting 10W:



Part No:	LS-FS115-W10-WN3
LED Type:	COB High Power LEDs
Input Voltage:	AC85-265V,50/60 HZ,12V/24V DC
LED Brand:	USA Bridgelux
Power consumption:	10W
Power Factor:	>90%
LED driver:	Constant current
Circuit protection:	Over-current & Short-circuit & Over-voltage  & High voltage surges Protection
Luminous Flux:	900-1000lm
LED  luminous efficiency	100lm/w
CRI :	>80
Color Temperature:	2700-3500k(warm white)
	4500-5500k (pure white)
	>6500k (cool white)
Viewing angle:	60°,120° degree
Operating temp:	-30 - 70 °C
Lifetime:	50,000 hrs
Material:	PC Lens +Al Body
Waterproof Grade:	IP65
Weight:	0.65kg
Warranty:	3 years
Certificate:	CE,ROHS,SAA



Different Wattage are available:

10W,20W,30W,40W,50W,60W,70W,80W,90W,,100W,120W,150W,250W,300W,400W

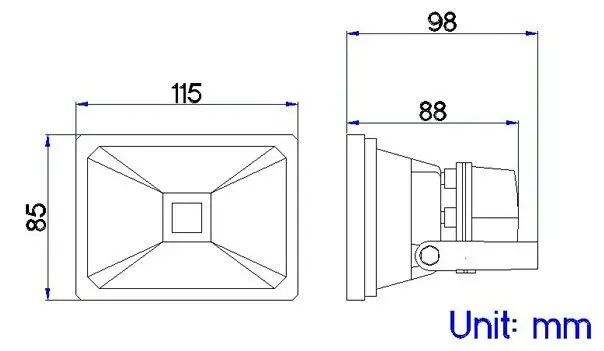

10w led floodlight dimension:

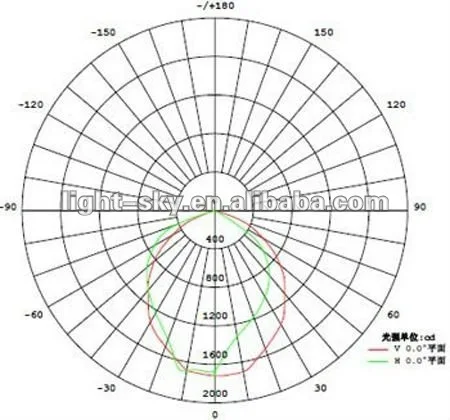

Light Distribution Curve

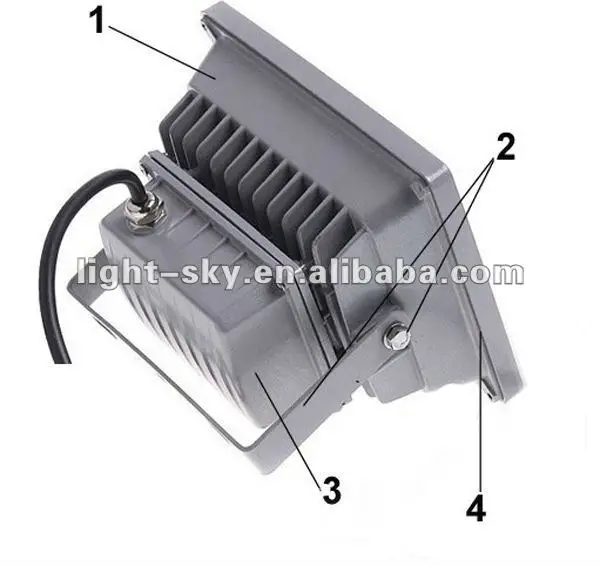

Unique of our LED Flood Light









1.Die cast Aluminum materials,Big heat dissipation

2.Stainless steel screw and holder,will not get rust

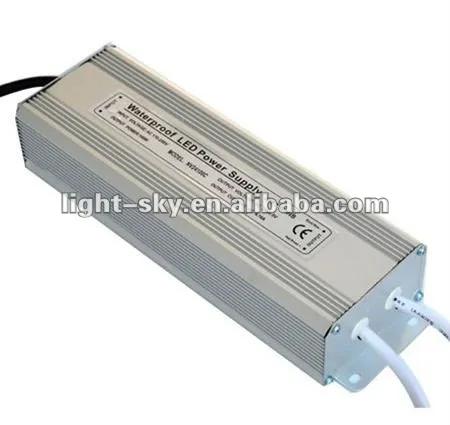

3.Waterproof led driver,IP65

 4.Can make Different beam angle

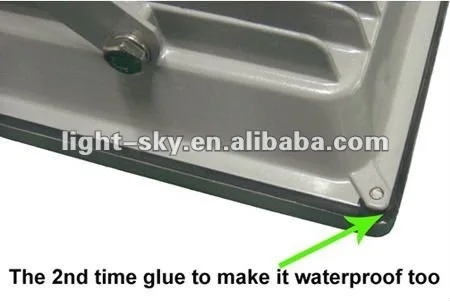

 5.The 2^nd time glue make the waterproof very well

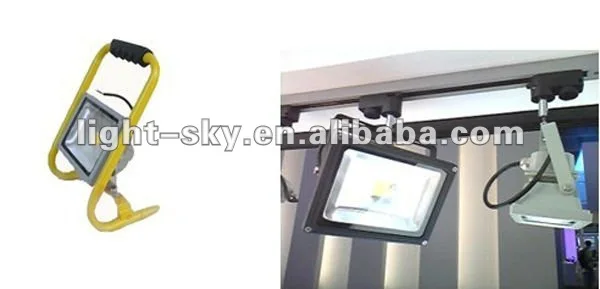

Can fix accessories like frame holders or track

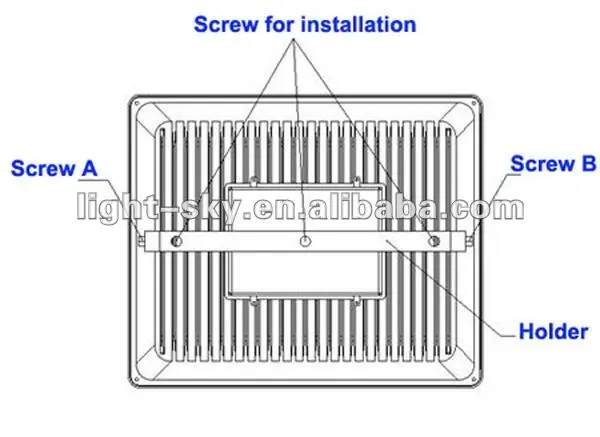

Installation:

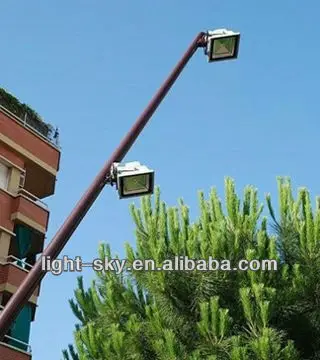

1.Using Screw fix the hole on the holders to fit and install the led flood light on the pole or mounting surface.

2.Adjust and install angle of the led flood light through loosing the A and B screw to change and adjust the angle of holder.

3.Make sure connecting wire waterproof and seal to prevent leakage.



Package:

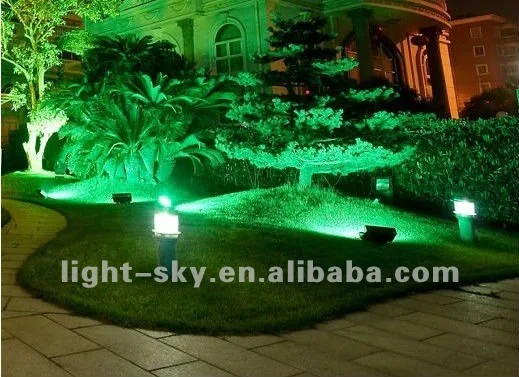

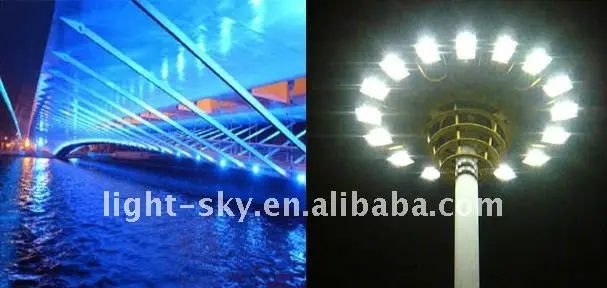

 2. garden designs and some other outdoor places where need spot lighting and lights decoration

 3. an excellent partner of the solar panel system

 4.Commercial complexes









Sales conditions of led flood:

Trade Item:	EXW,FOB Shenzhen,CIF
Minimum order:	5pcs
Delivery date:	4 work days for samples.6-8 days for 2000pcs order
Payment terms:	T/T, Western Union
Shipment:	By Express Courier( DHL,UPS,FedEx),By Air,By Sea
Warranty:	3 years



Our service:

 1.Quick delivery time within 4-7 working days

 2. Your inquiry for our products will be replied within 24 hours

 3. Professional advice be offered with practical application.

 4.Products quality warranty for 3 years.
