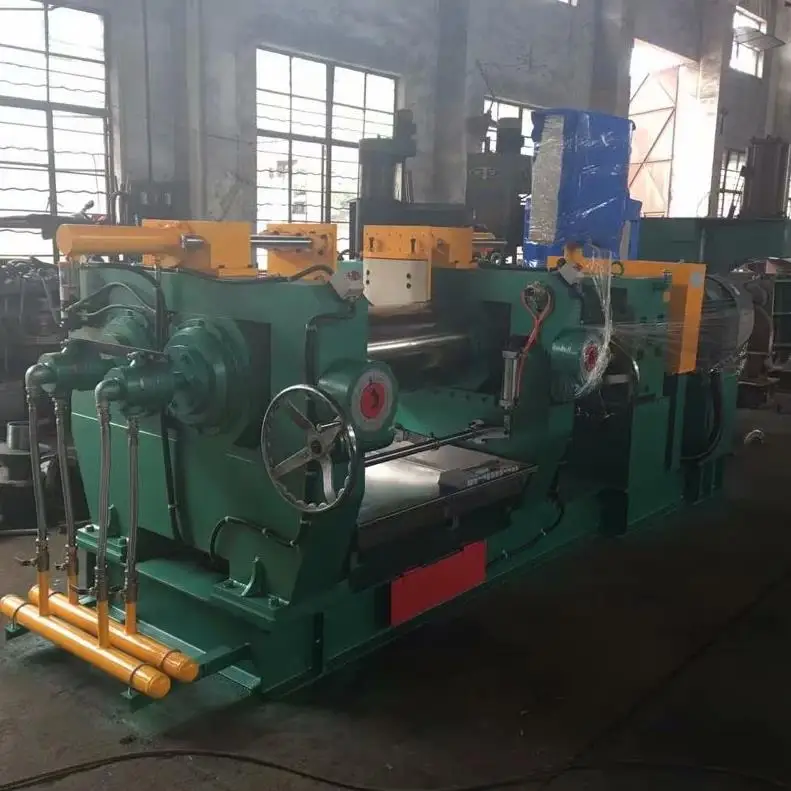

xk400 High Performance Best Selling Open Rubber Two Roll Mixing Mill Machine
- Category: >>>
- Supplier: Qingdao Chaoguangyue Industry Co. Ltd.
Share on (719521890):
Product Overview
Description
Promotion!
xk400 High Performance Best Selling Open Rubber Two Roll Mixing Mill Machine
1.High efficiency with low cost
2.Stable operation
3.Energy-saving,low noise
4.CE,ISO, SGS
The rubber mixing mill use hardfinishing reducer and rolling bearing,so it can save 20% energy.
Who we are?
Qingdao Chaoguangyue Industry Co.,Ltd is one of the important backbone enterprises in rubber machinery and textile machinery industry in China and is one member of Shandong machinery union company.The company owns powerful technical strength,advanced technic,the best design and strict quality guarantee system,which owns a high reputation in China rubber machinery industry.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 30 countries and areas,such as America,Japan,Korea,India,England,Germany,Russia,Pakistan etc.
The main products are plate vulcanizing press,rubbe tile making machine,open mixing mill,rubber kneader,rubber extruder,used tire recycling machine,used tire retreading machine,rubber machinery and textile machinery.All of the products are designed visually by three-dimension CAD design,quickly built module,limited element analysis,analogue action and interfering inspection.The combination of three dimension CAD system and internet guarantees the synchronization with international advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time,the company keeps good contact with several universities and researh institutes.

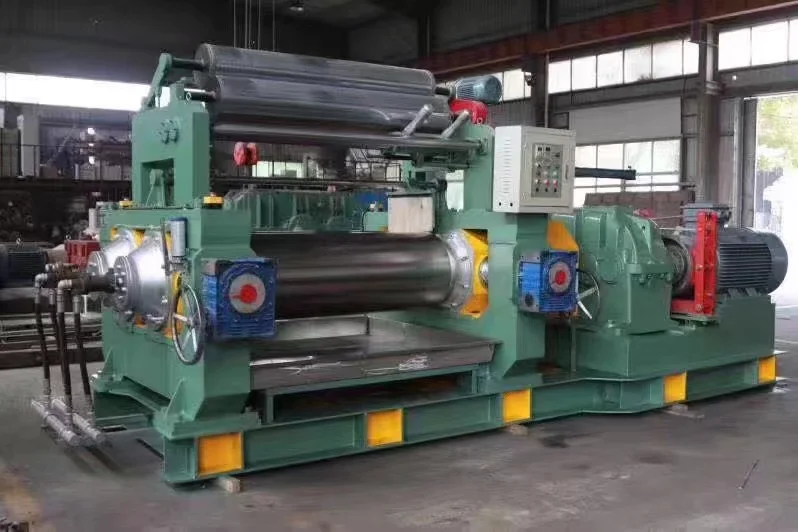

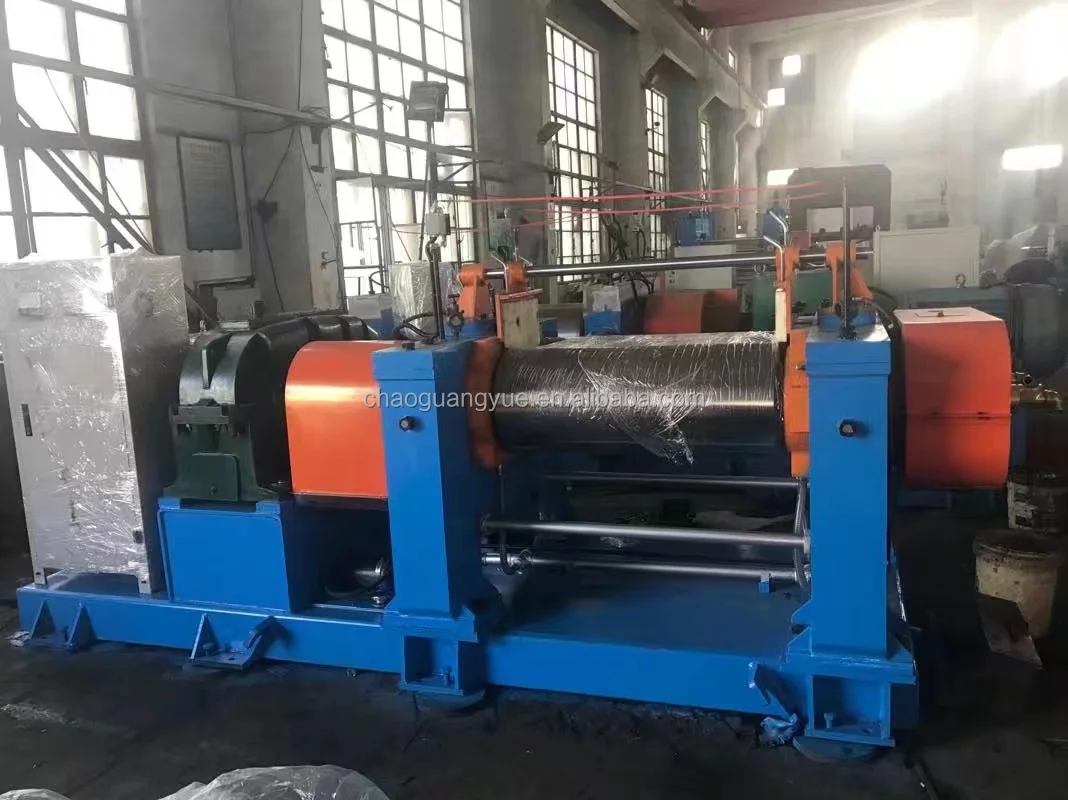

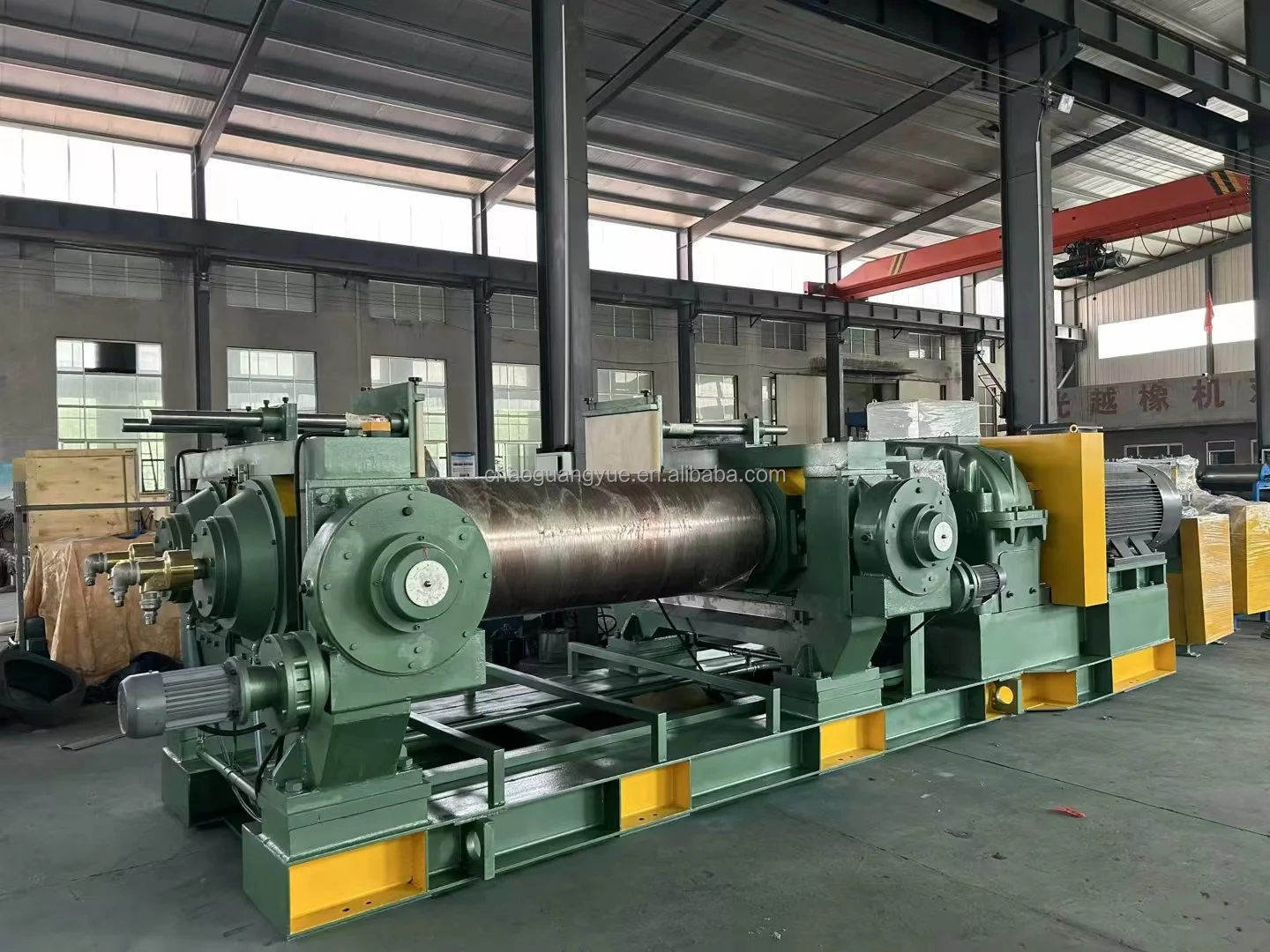

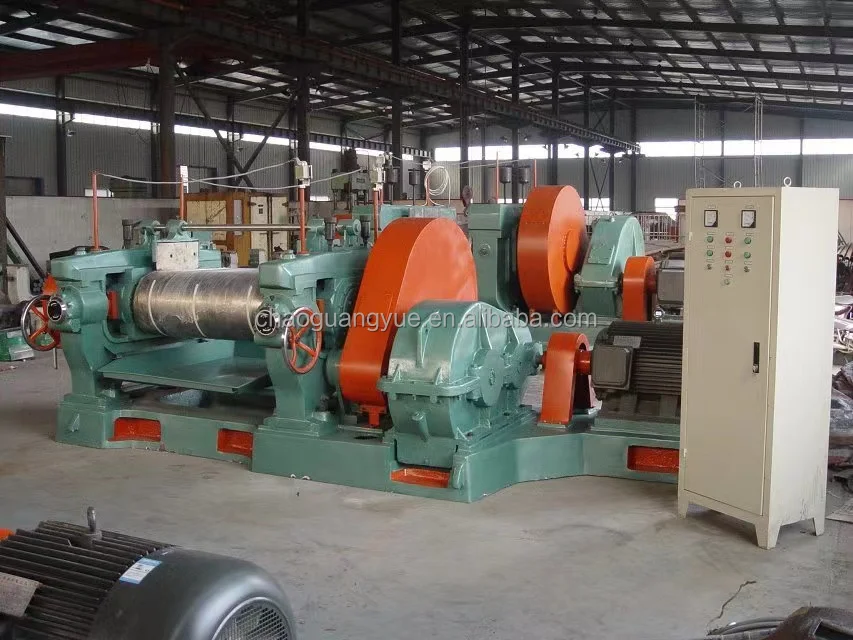

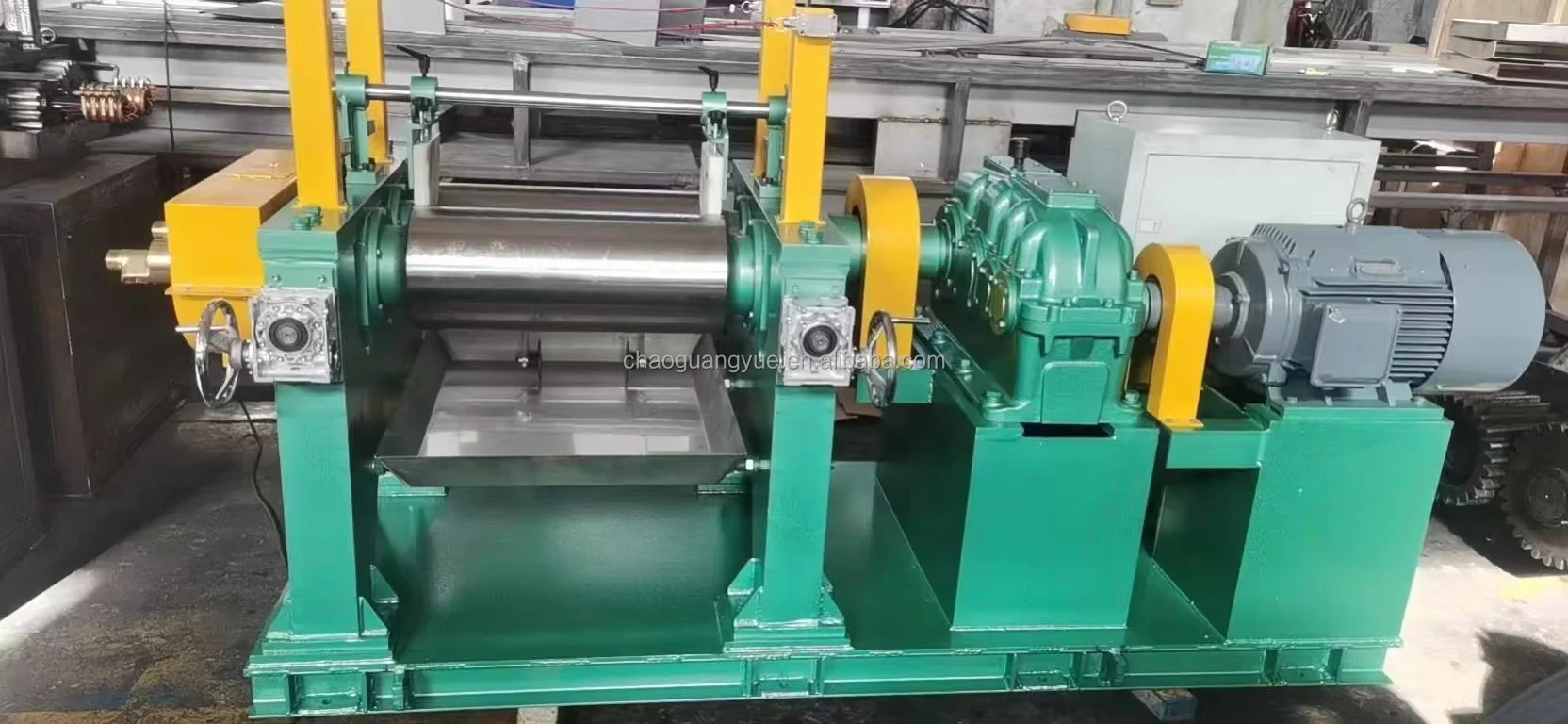

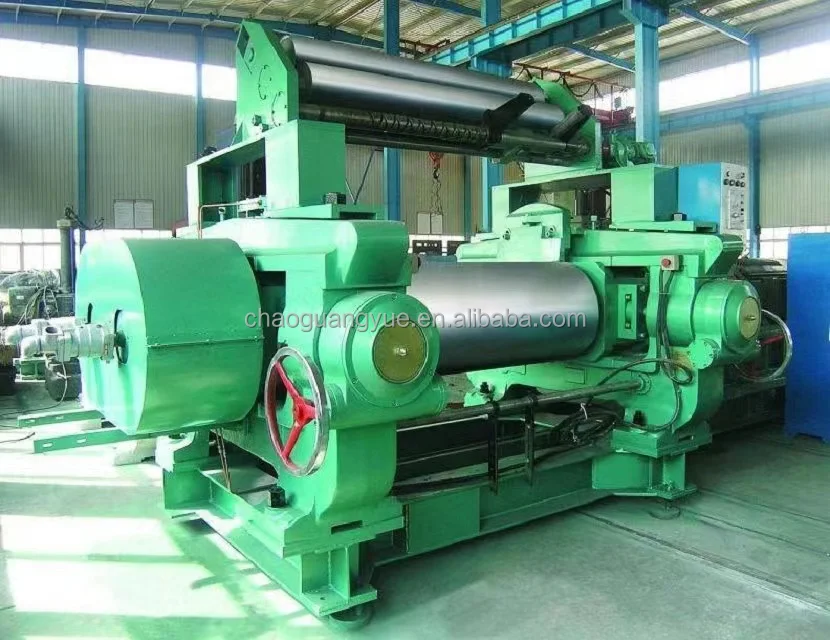

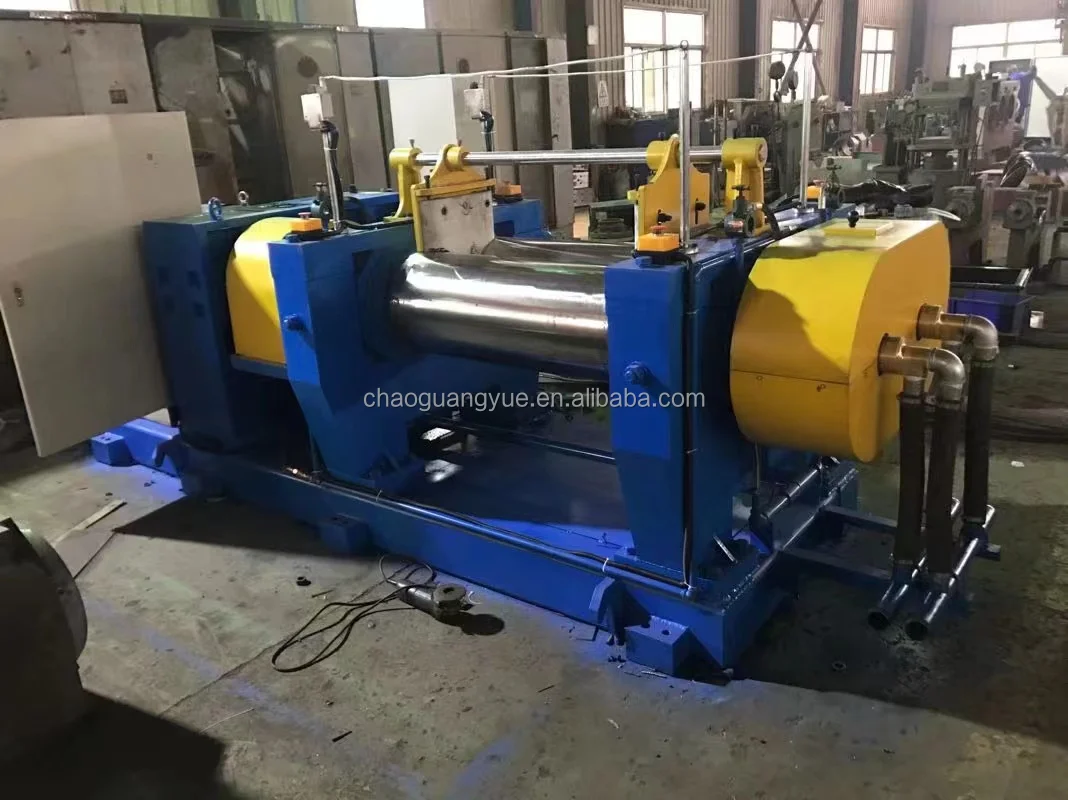

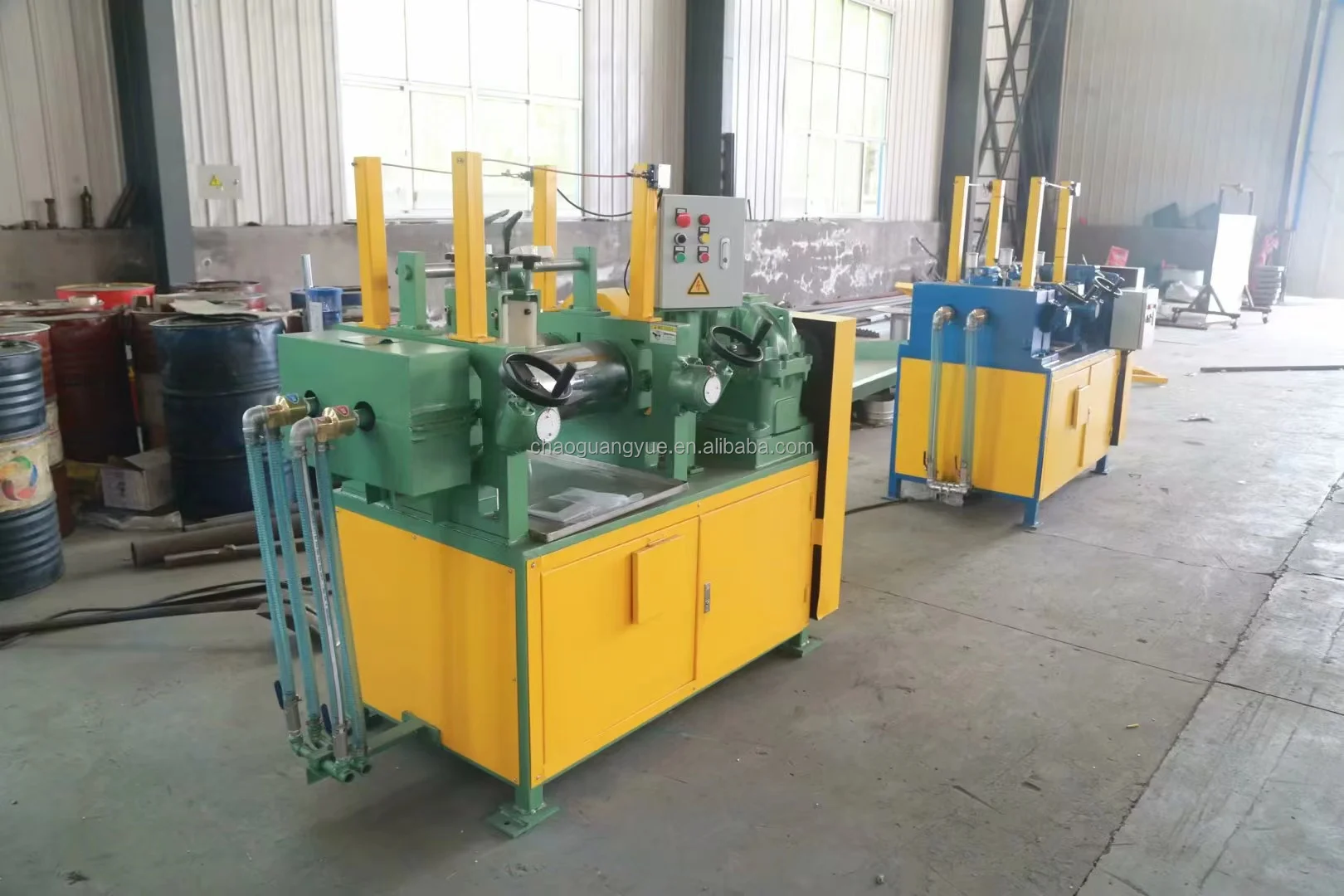

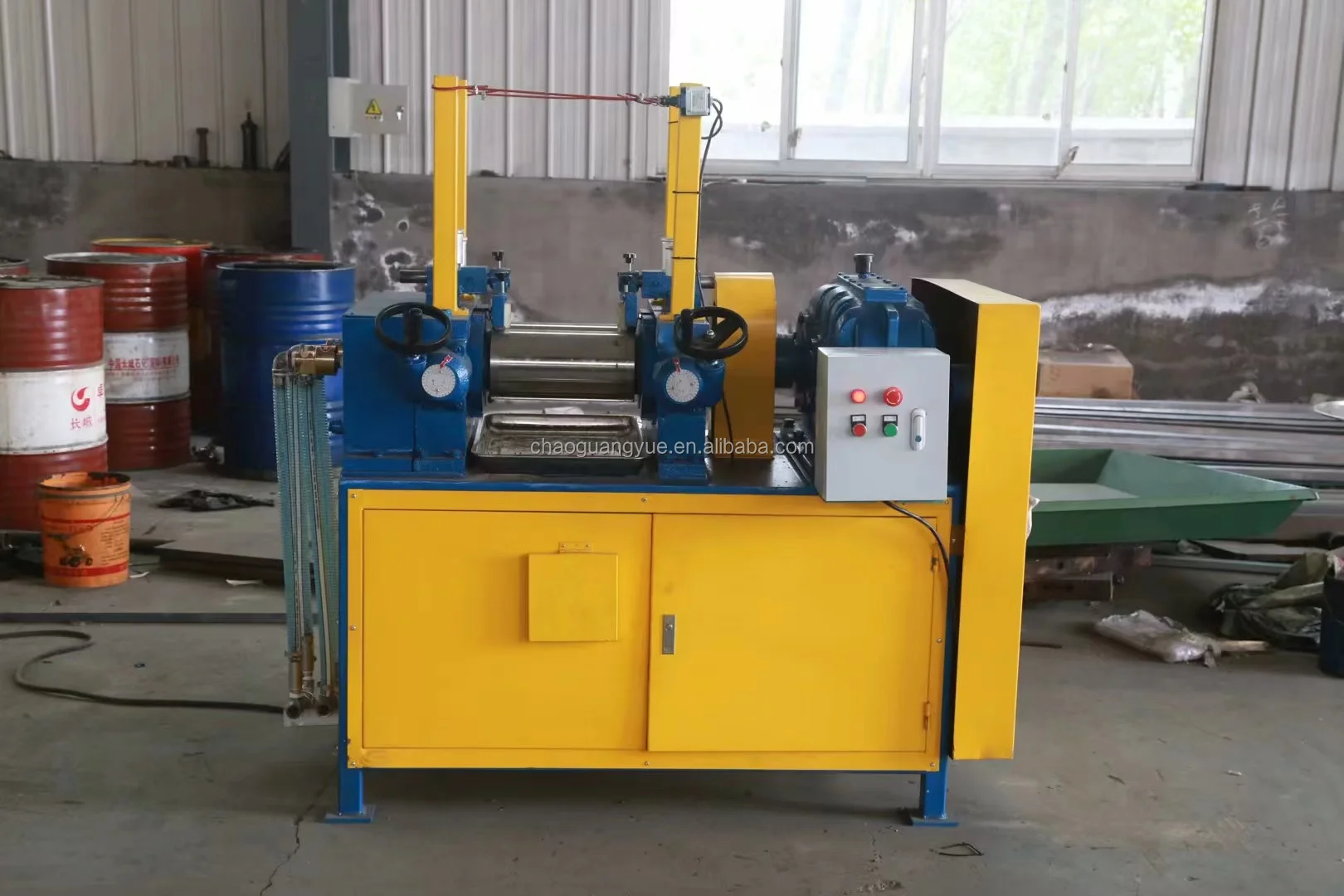

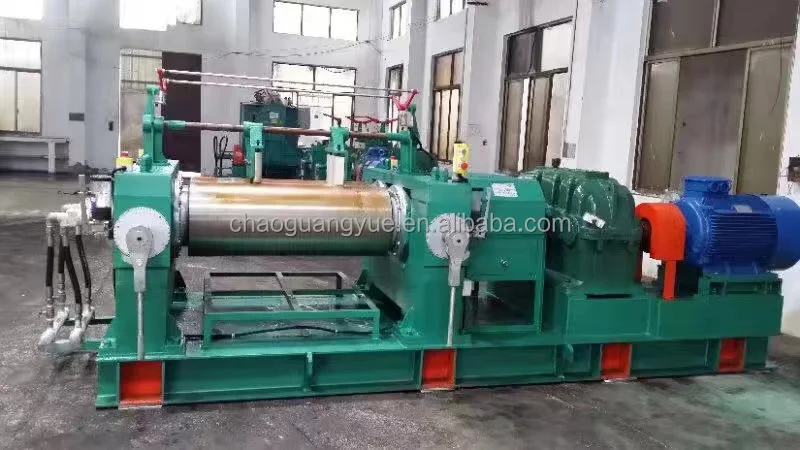

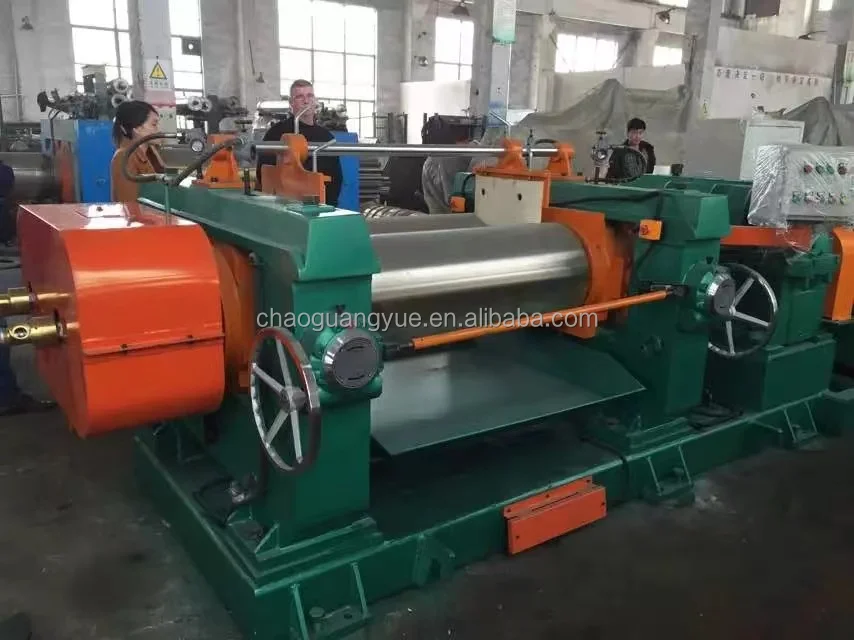

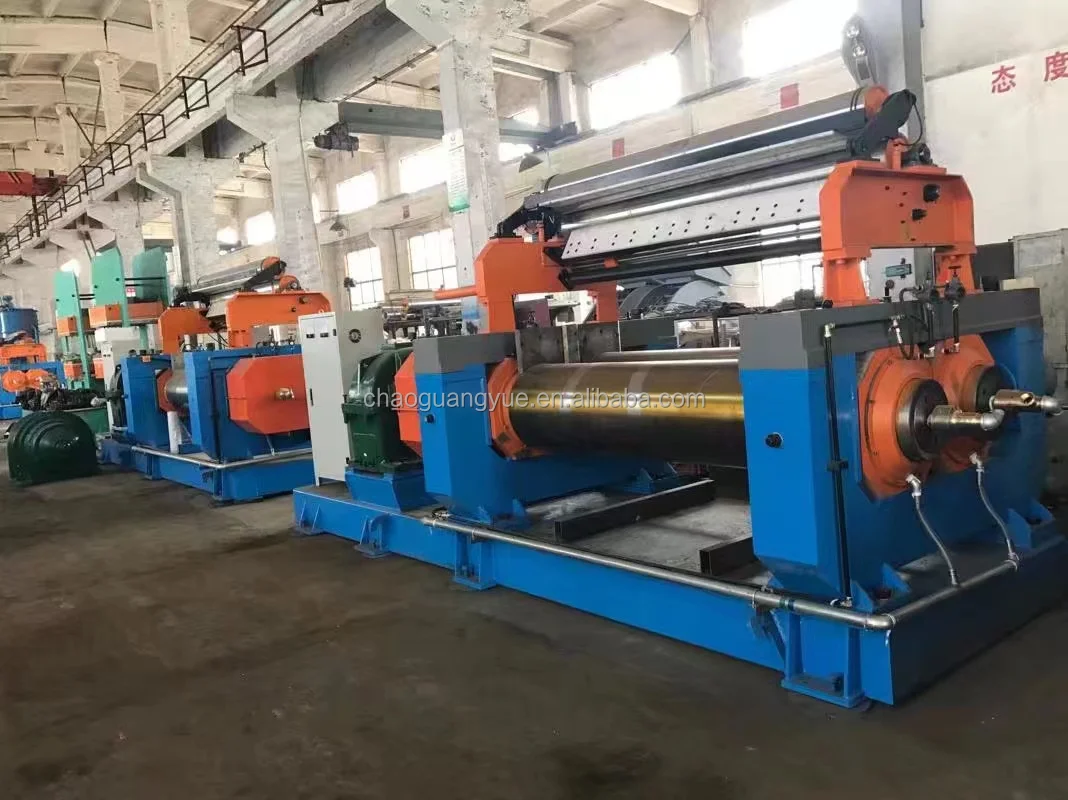

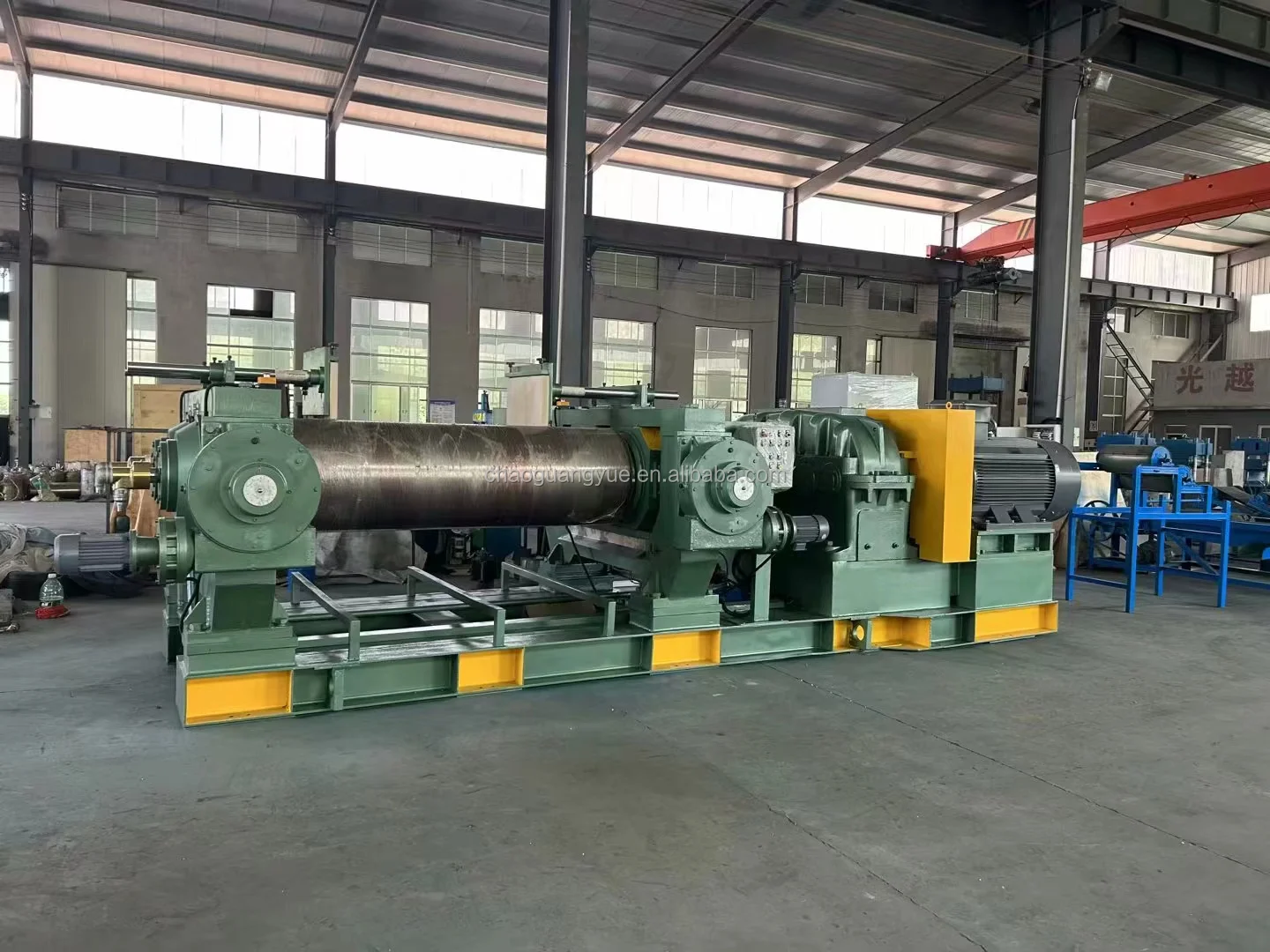

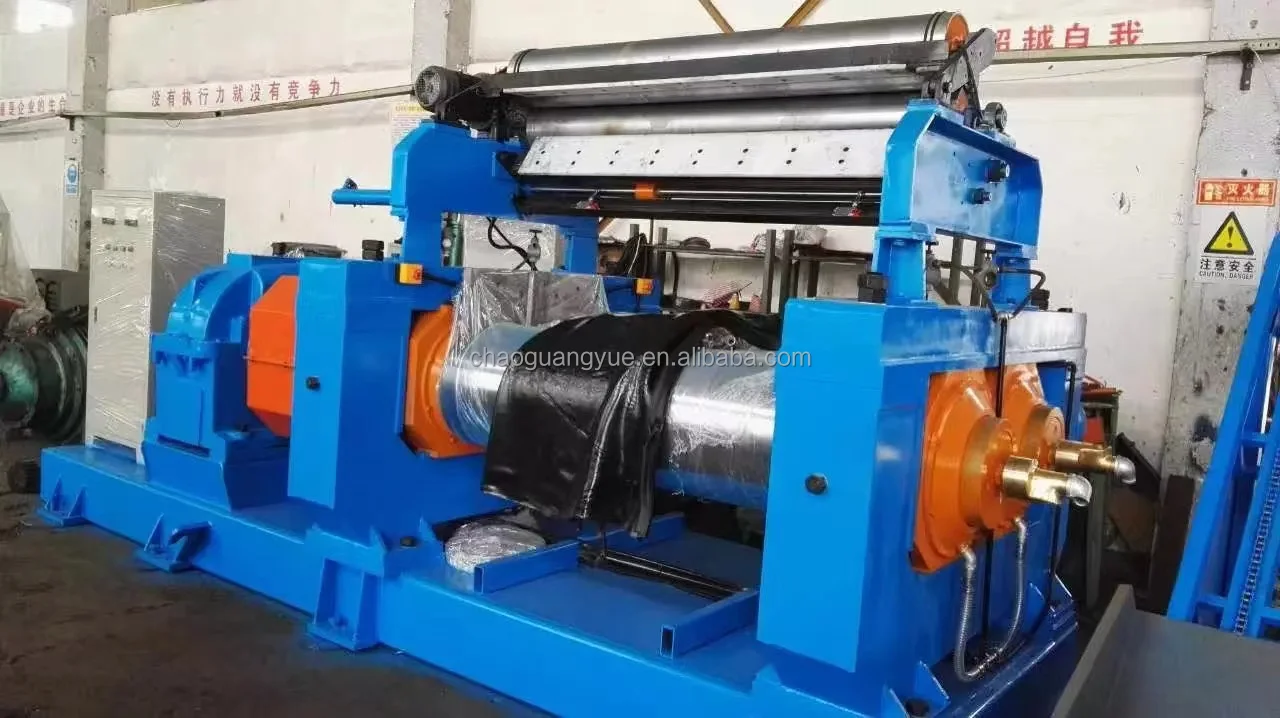

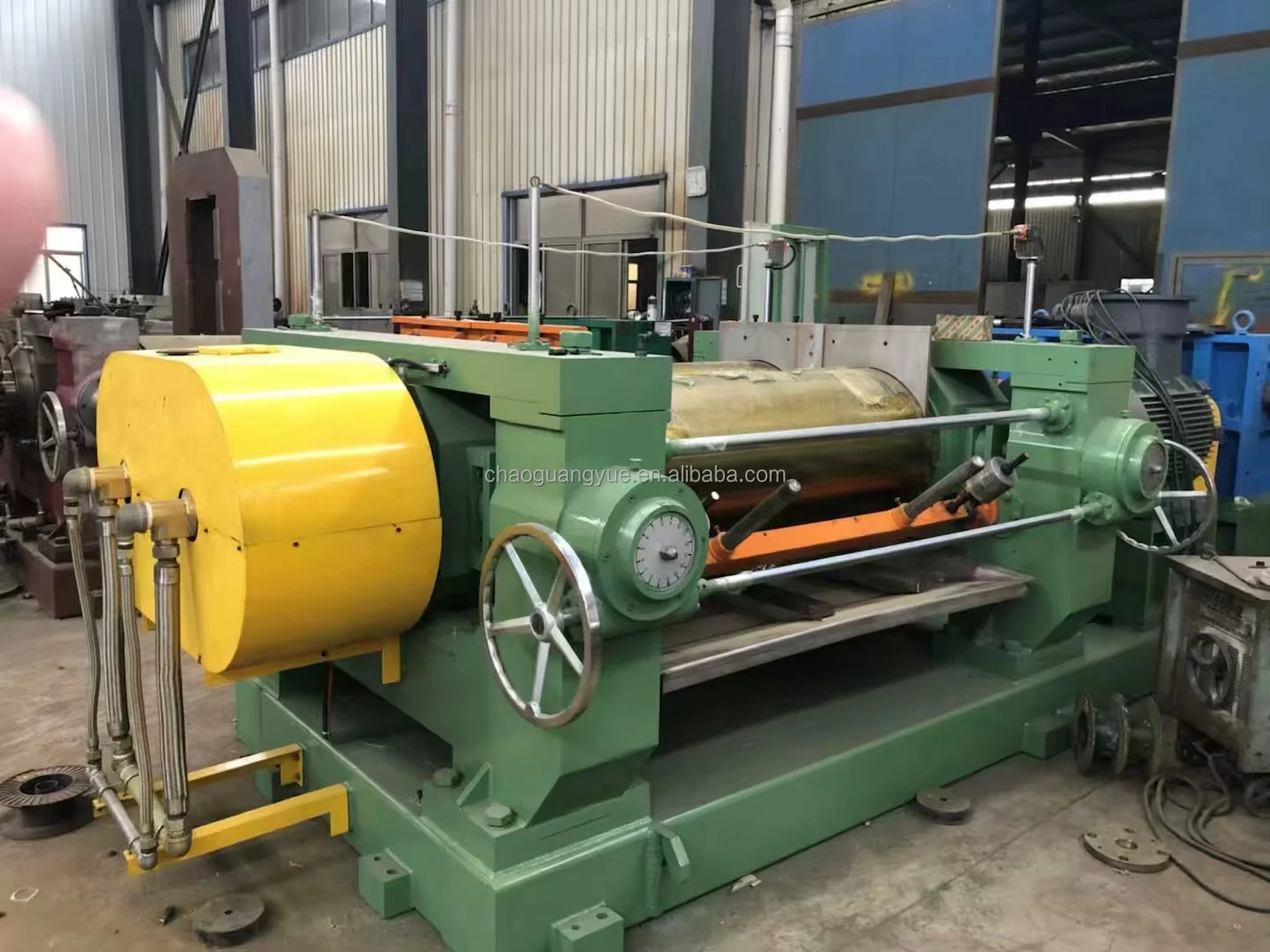

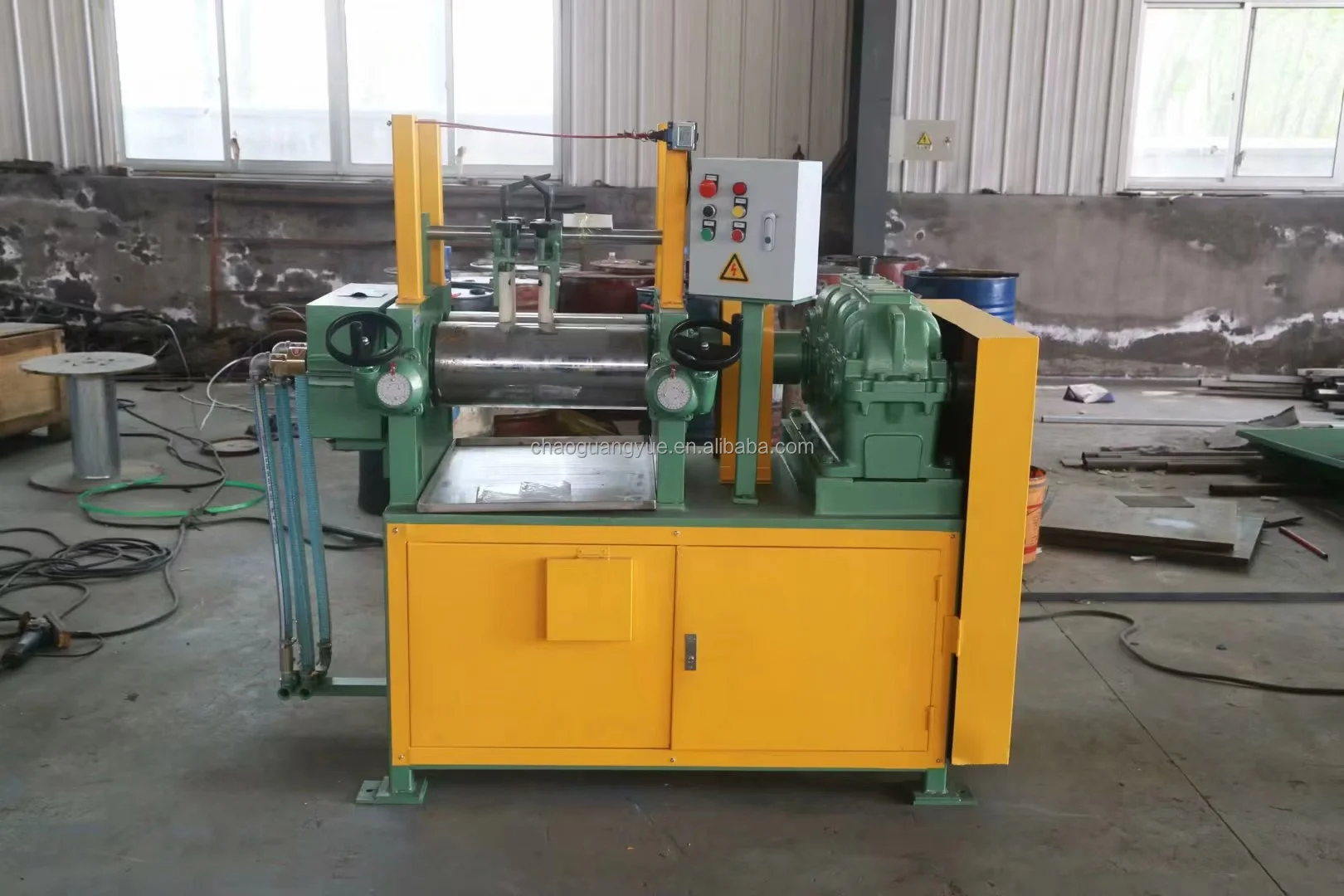

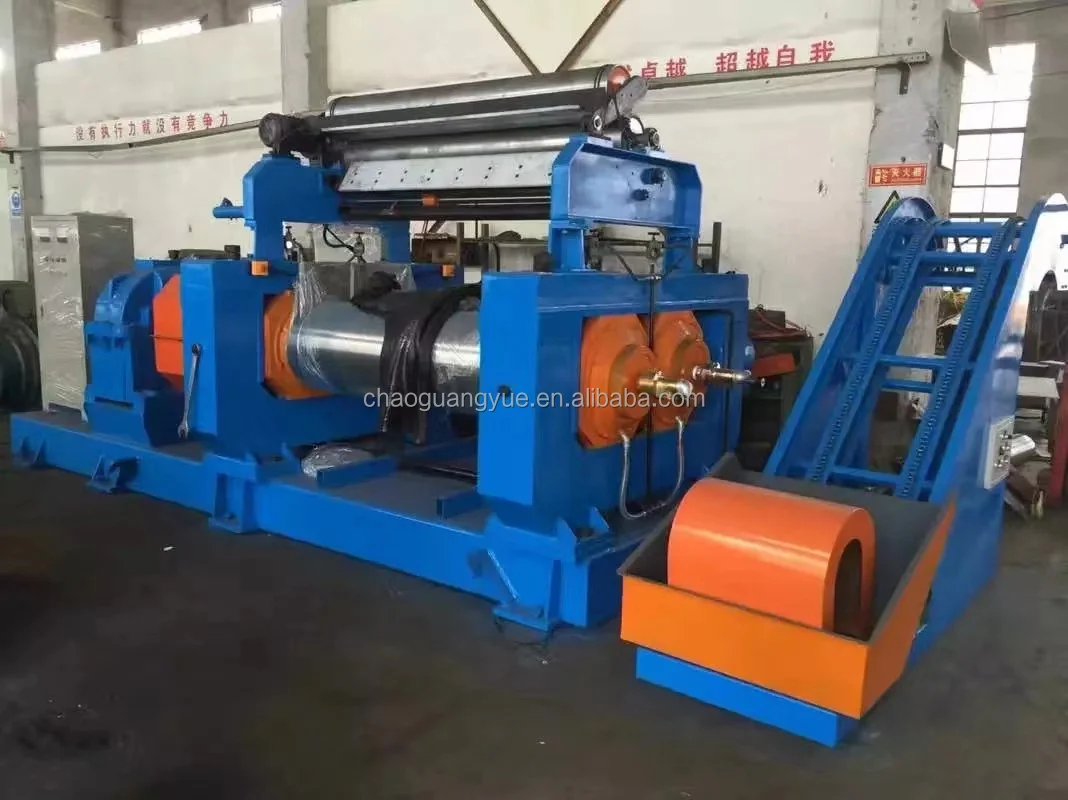

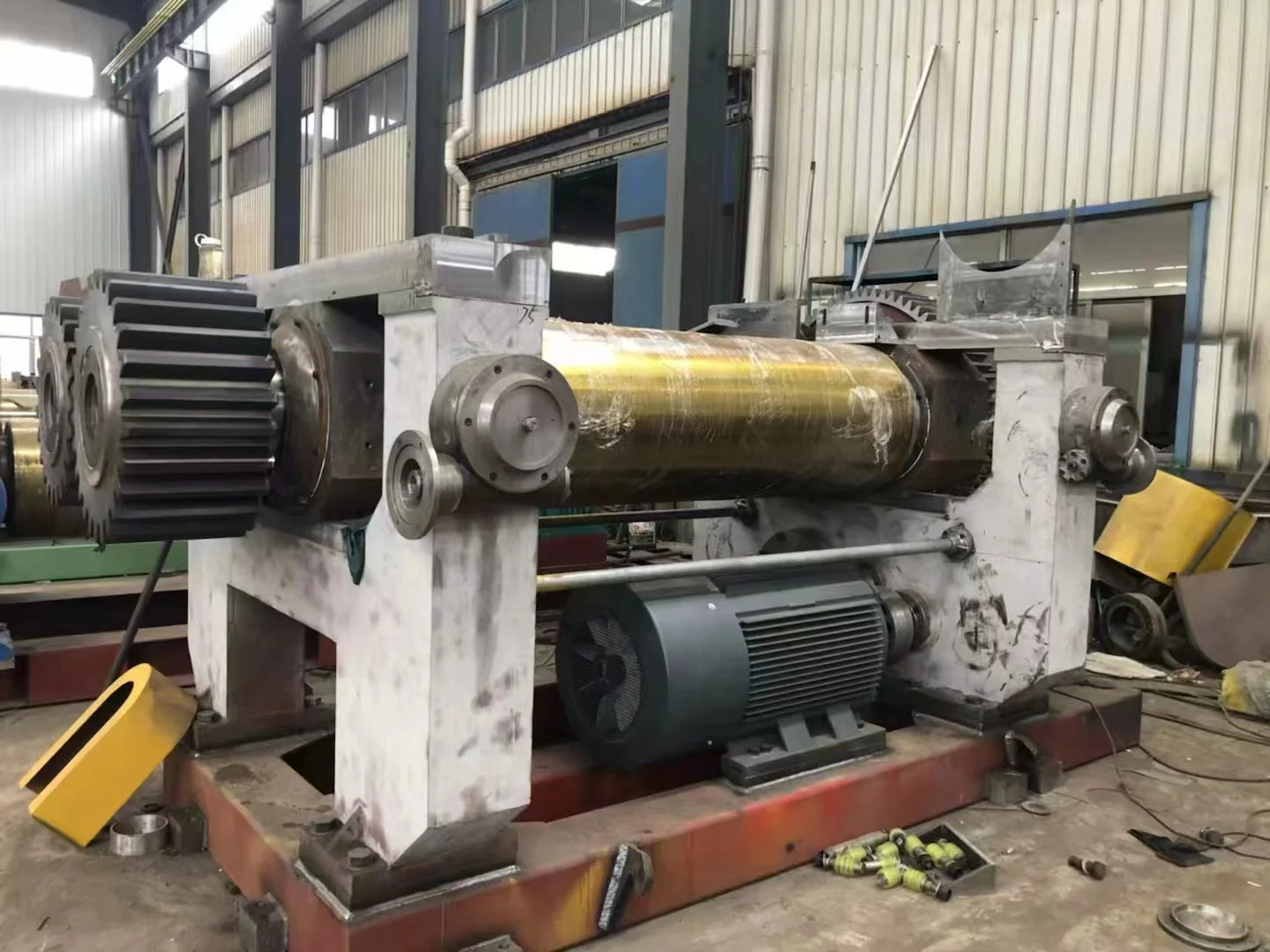

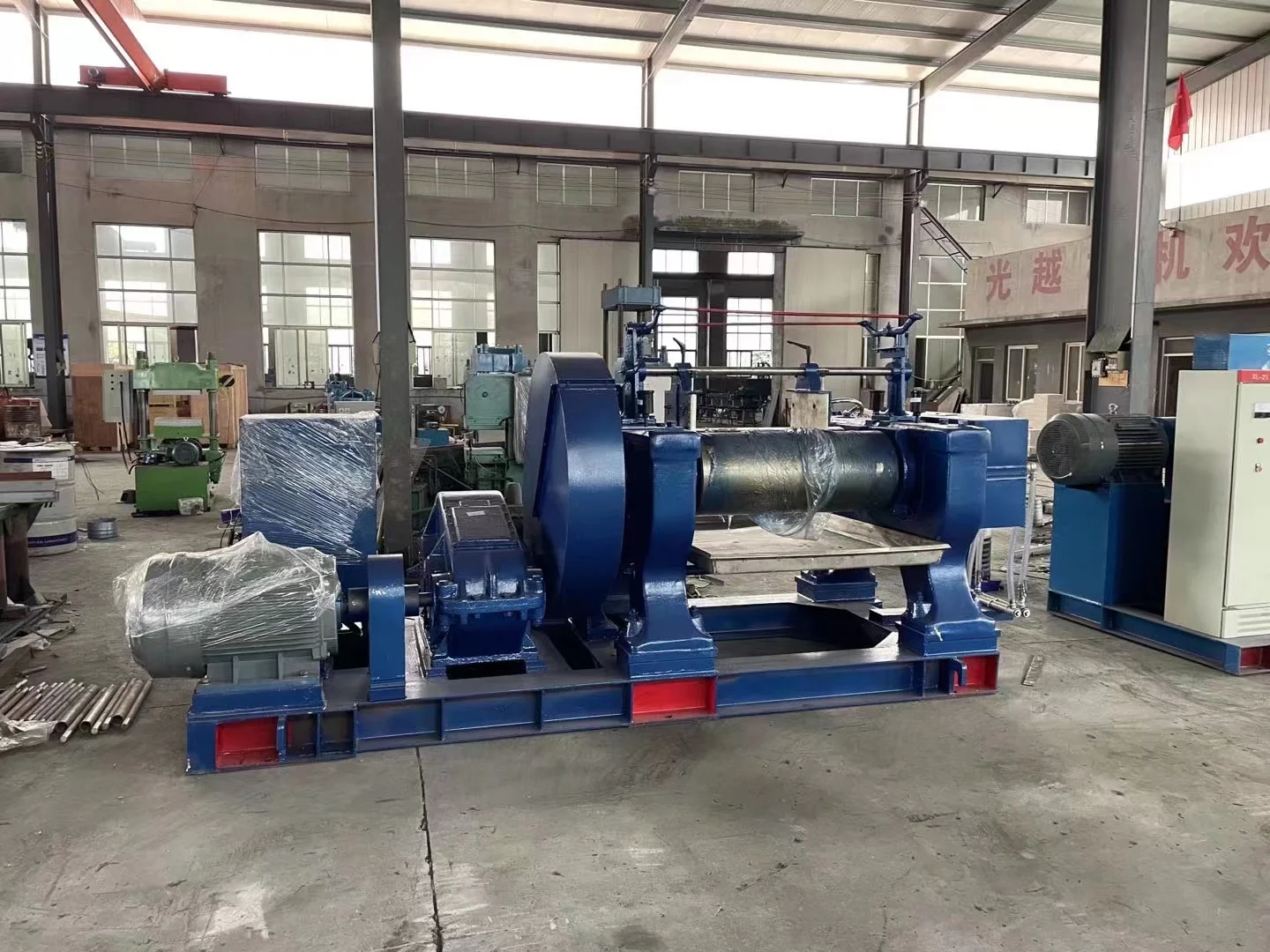

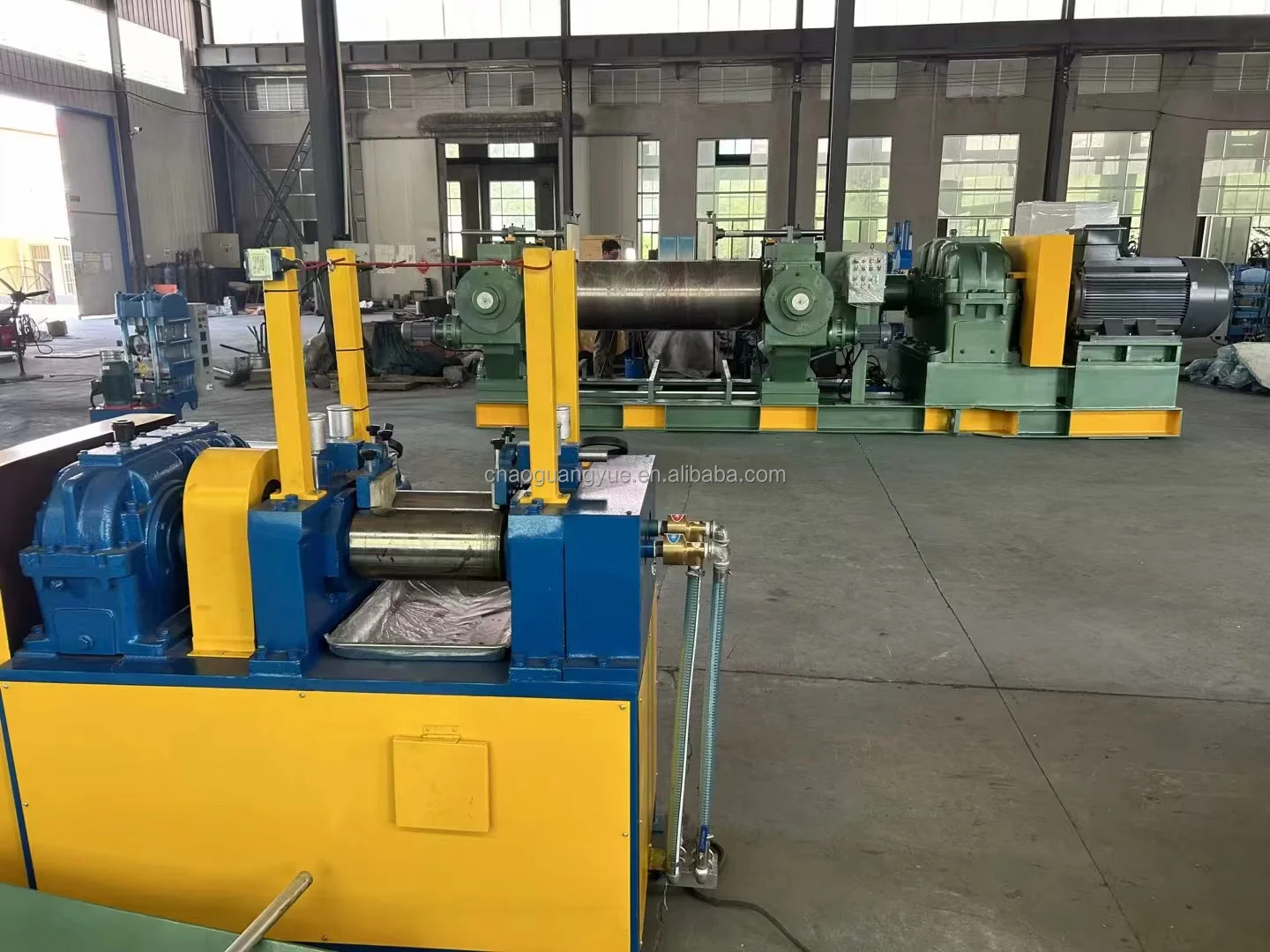

Product Pictures
Features & Parameter
1. The machine is applicable for plasticizing,warming and mixing rubber.
2. The rolls are made of chilled cast iron with vanadium and titanium alloys.The roll face is hard and anti-wear.The internal cavity is processed to make temperature well proportioned on the roll surface.
3. The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
4. The machine is also equipped with an emergency device.When an emergent accident happens,just draw the pull rod,and the machine will stop immediately.It’s safe and reliable.
5. The transmission system adopts a hard facing gear reducer,which has a compacted structure with higher transmission efficiency,lower noise and longer service life.
6. The base frame is a complete framework,which is convenient for installation.
| Model | XK-160 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-610 |
| Working diameter of F.&B.rolls(mm) | 160 | 250 | 300 | 360 | 400 | 450 | 560 | 610 |
| Working length of F.&B. rolls(mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1500 | 2000 |
| Linear speed of F.roll(m/min) | 8.95 | 14.9 | 15.1 | 17.4 | 19.3 | 23 | 28.8 | 27 |
| Linear speed ratio of F.&B. rolls | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.19 | 1:1.23 |
| Maximum Nip(mm) | 4.5 | 10 | 10 | 10 | 10 | 10 | 15 | 15 |
| Nip regulating mode | Manual or electric | |||||||
| Batch capacity(kg/batch) | 1-2 | 10-15 | 15-20 | 20-25 | 25-35 | 30-50 | 50-60 | 120-140 |
| Main motor power(kw) | 5.5 | 15 | 22 | 30 | 45 | 55 | 90/110 | 160 |
| Speed reducer | NGW planetary hardened-gear speed reducer | |||||||
| Overall dimension(mm) | 1120*920 *1350 | 3400*1270 *1620 | 3450*1500 *1550 | 4140*1770 *1700 | 4490*1770 *1750 | 5570*1900 *1750 | 6290*2330 *1780 | 6947*2505 *2494 |
| Weight(kg) | 1200 | 4200 | 5200 | 7600 | 9000 | 11500 | 20400 | 26500 |
Customer Visit
Delivery
Why Choose Us?
-Qingdao Chaoguangyue Industry Co.,Ltd established in 1971,we are specializing in producing rubber machines,and we had a great feedback from our customers.
-Our company can produce products of various non-standard specifications according to customer's requirement.
-Superior quality:we have obtained ISO9001,CE,SGS certification,we can guarantee the quality of the machines.
-Fast delivery time:within 20 working days.
-Competitive price compared with others with the same quality.
-Comfortable after-sales service:Quality problems of our machines will be attached high attention,we will response within 24 hours and we will solve the problem ASAP.
-Great supports for marketing.
Business FAQ
1.Q:Are you a trading company or a factory?
A:We are 100% real manufacturer,we have more than 30000 square meters of factory buildings and workshops for producing machines,welcome to visit our factory.
2.Q:Do you have machine warranty?
A:Yes,we have 2 years warranty,however,the using life of our machines is usually more than 10 years.
3.Q:I have special requirement about machines,such as length,diameter,or others,can you meet it?
A:Yes,we can manufacture various non-standard specifications of machines,if you have special requirement,please contact us.
4.Q:I want to purchase your company's machine,can you send me a quotation?
A:Sure,please tell me the model of the machine that you need,I will provide you a suitable price.If you don't know which model suits you,contact me,I will recommend a suitable machine to you.
5.Q:What's your payment term?
A:30% of total value in advance by TT,a further 70% will be paid before loading.
6.Q:What's your MOQ?
A:The MOQ is 1 set,but if you order more than 1 machine,you will get different discounts according to the quantity.
