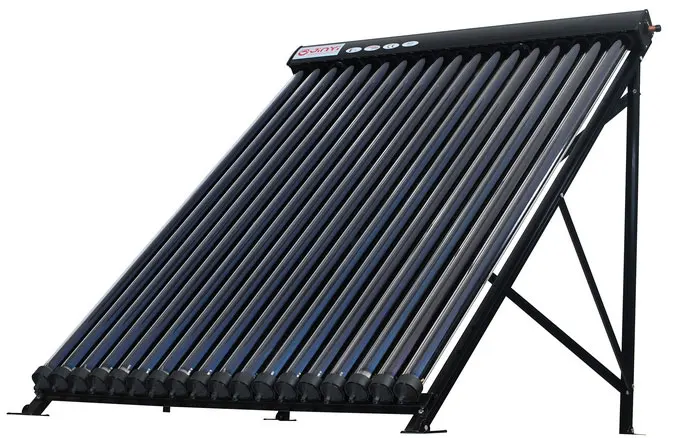

Solar Keymark Approved Vacuum Tube Heat Pipe Solar Collector

Product Overview

Description

Solar Keymark Approved  Copper Heat Pipe Solar Collector







The characteristic for evacuated tube collector
1) Reliable, efficient, twin-glass vacuum tubes.
2) Red copper(TU1) heat pipes, The water is heated by the heat pipe rapidly.
3) There is no water in the vacuum tube,so the tube will not break in the winter.
4) It can be combined with the architecture perfectly, standard frame suitable for pitched roof or flat roof .
5) It can be combined with existing pipeline.
6) Significant advantages over flat plate.
7) Can be used all year round in the cold climate.
8) Improves the environment and save your fuel cost.



Principle of Evacuated Tube Collector



Metal Heat Pipe Evacuated Tube Collector consists of a vacuum tube, a heat pipe, a metal heat absorption wing and the connecting manifold. The metal heat absorption wing with selective absorption coating converts solar energy into heat energy and transfers it medium liquid inside. The vacuum between the two glass tubes works as insulation. The liquid in the heat pipe changes into vapor which rises to the condenser. When passing through the heat exchanger, the heat is absorbed and the temperature is lowed, and the vapor becomes liquid, returns to the base of the heat pipe. This transference of heat is a continuous circulation as long as the collector is heated by the sun.











Sizing and Output





Tubes	l (mm)	w (mm)	Wet weight (kg)	Aperture area (m2)	Annual output* (kWh)
20	1960	1625	114	1.610	2376



Technical  deta



Zero heat loss efficiency, n0	73.4%
Primary heat loss coefficient, a1	1.529 W/m2K
Primary heat loss coefficient, a2	0.0166 W/m2K2
Incident angle modifier, KT50O	1.37
Instantaneous efficiency**, n0.05a	62.4%
Specific output*	850 kWh/ m2/ year
Stagnation temperature	200.3oC
Maximum operating pressure	10bar
Collector frame and manifold	Aluminium
Selective absorber coating	Cermet
Absorber contact sheet	Aluminium
Evacuated tube	Borosilicate glass 1800 x 5800 (OD) x 47mm (ID)
Testing & Certification	EN12975

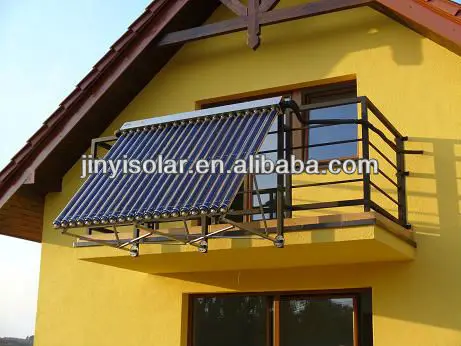

 Installation



JHC series parameters


Model	Heat pipe vacuum tube			Condenser Ø (mm)	Absorber area	L/W/H(mm)	Loading Qty (set)
	Dia. / Len.(mm)		Qty(pcs)				20'	40'	40'HQ
JHC-5818-10	58	1800	10	Ø 14	0.805	1960×1025×130	139	288	324
JHC-5818-15	58	1800	15	Ø 14	1.208	1960×1250×130	135	274	310
JHC-5818-18	58	1800	18	Ø 14	1.449	1960×1475×130	110	225	251
JHC-5818-20	58	1800	20	Ø 14	1.61	1960×1625×130	92	193	214
JHC-5818-24	58	1800	24	Ø 14	1.929	1960×1925×130	80	164	186
JHC-5818-30	58	1800	30	Ø 14	2.415	1960×2375×130	67	148	175
