Horizontal Milling and Boring Machine
- Category: >>>
- Supplier: Smartech Machinery & Equipment Co. Ltd. (shenzhen)
Share on (720217069):
Product Overview
Description

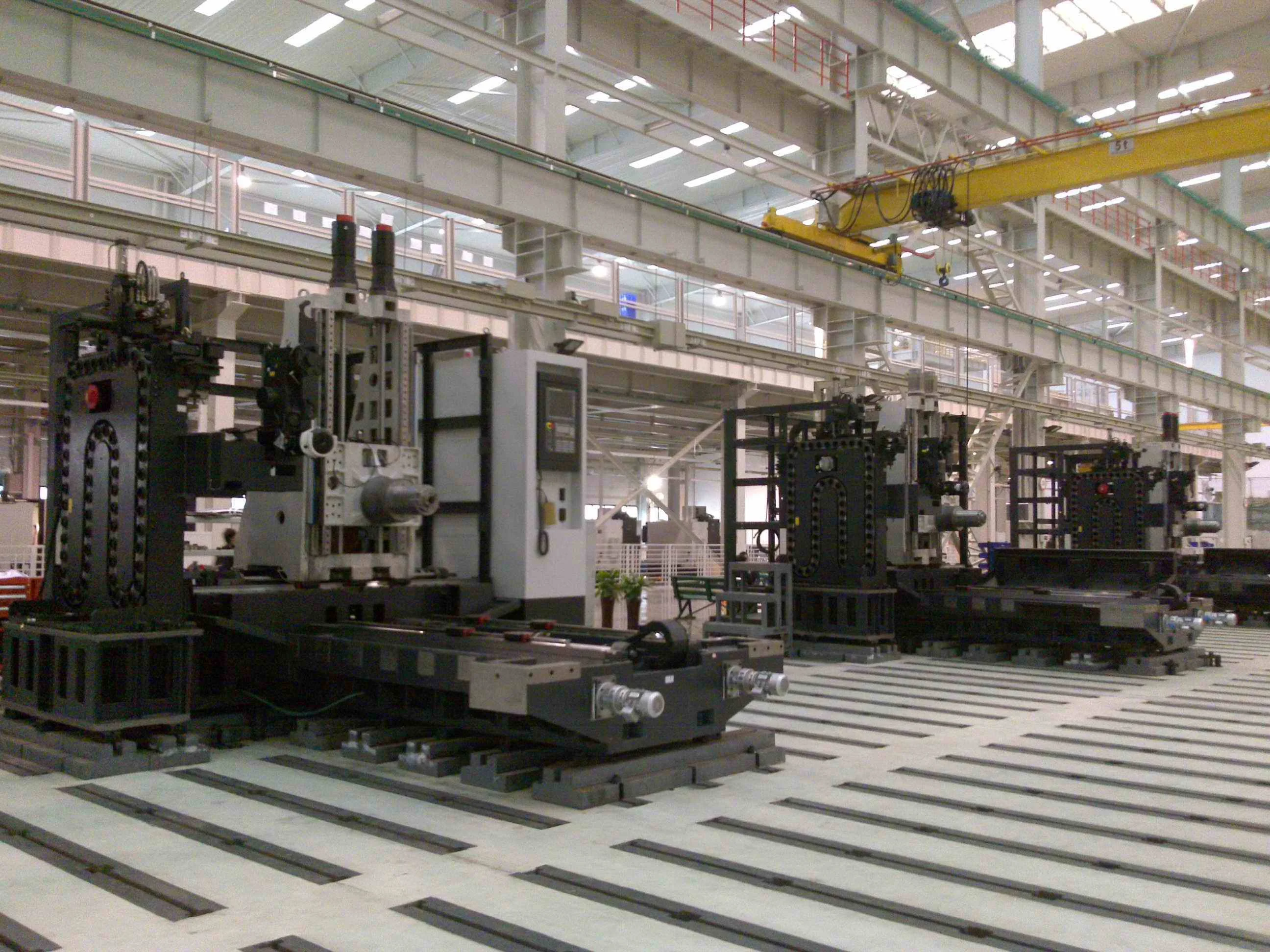

1. Introduction of machine
Adopting new technology, mechanism and hydraulic system, TX613C-3 CNC Horizontal machining centre have wide processing range, high accuracy, rigidity and high efficiency. Equipped with FANUC-31i (Siemens 840D) CNC system, TH6111 can realize 4-axis simultaneous control, and can be used for boring, milling, drilling, tapping, thread-cutting operations. This machine is ideally suited for the mechanical industries of automobile, iron, heaving industry, ship-building and nuclear energy and suited for other environmental friendly department as well. TX613C-3 is also good of rigidity, high precision, reliability, easy operation.
2. Main Specifications
No. | Name | Specifications |
1 | Spindle diameter | Φ130mm |
2 | Spindle taper | ISO50 |
3 | Table size (L X W) | 1400 X 1600mm or 1600×1800mm or 1800×2000mm |
4 | Cross travel of table (X) | 1800mm |
5 | Longitudinal travel of table (Z) | 2000mm |
6 | Vertical travel of spindle head (Y) | 1600mm or 2000mm |
7 | Spindle travel (W) | 900mm |
8 | Travel of facing head slide (U) | 200mm |
9 | Max. boring diameter of spindle | 350mm |
10 | Max. machining diameter of facing head | 700mm |
11 | Max. drilling diameter of spindle | 80mm |
12 | Spindle speeds | 6-1000r/min |
13 | Max. torque of spindle | 1590Nm |
14 | Facing head speeds | 4-165r/min |
15 | Tool shank type | JT50 |
16 | Pullstud type | LD-50D |
17 | Positioning accuracy X, Y, Z W, UB | 0.020
0.025
10″ |
18 | Repeatability : X, Y, Z
W, U
B |
0.015
0.02
5″ |
19 | Feedrates: X, Y, Z W U B | 1-6000mm/min 1-2000mm/min 1-500mm/min 0.003-2r/min |
20 | Rapid traverse: X, Y, Z W B U | 10000mm/min 3000mm/min 2r/min 1000mm/min |
21 | Power of spindle motor | 18.5/22 (30min) |
22 | Main power of electricity | 76KVA |
28 | Table loading | 8000kg |
OTHER MODELS AS BELOW:
Specification | Models | |

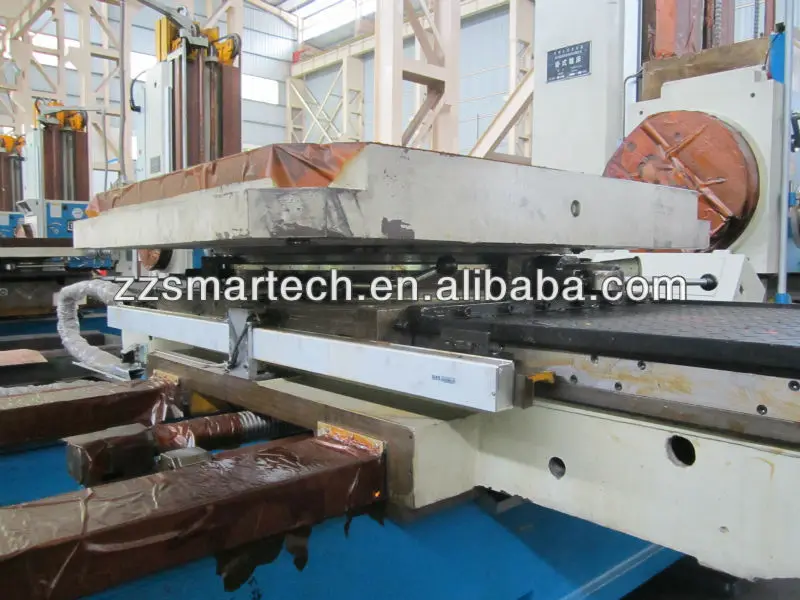

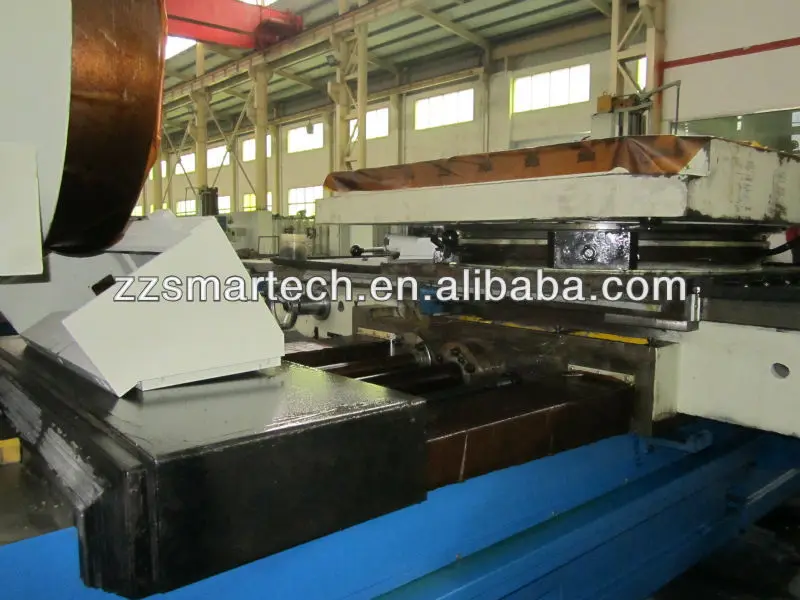

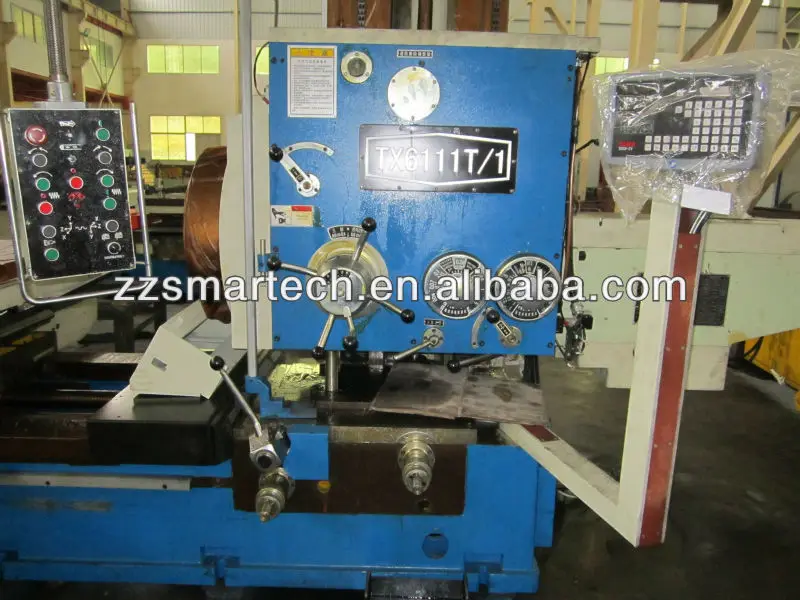

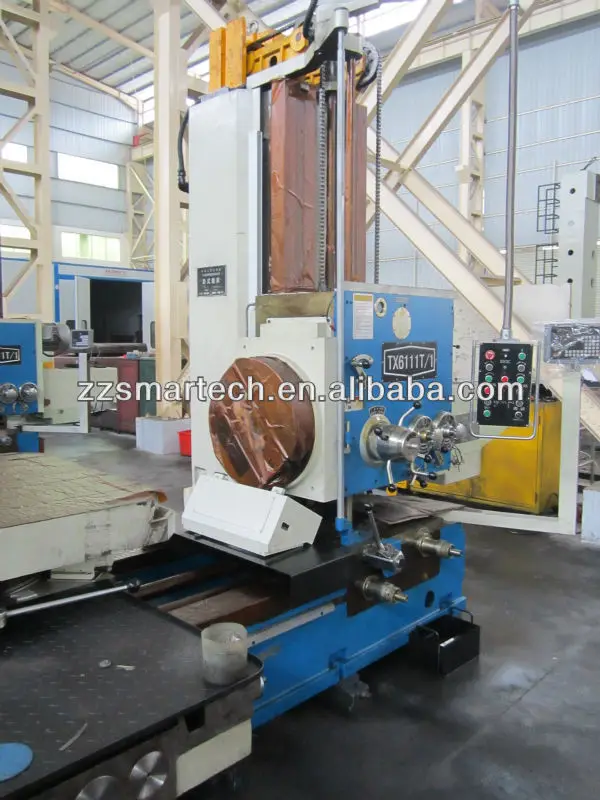

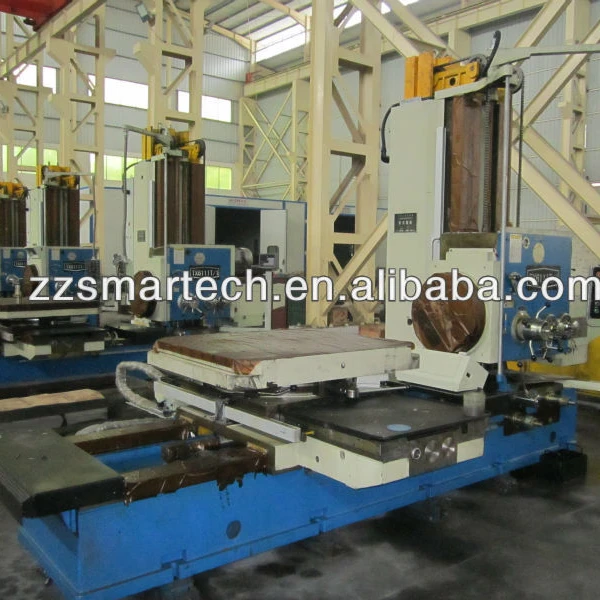

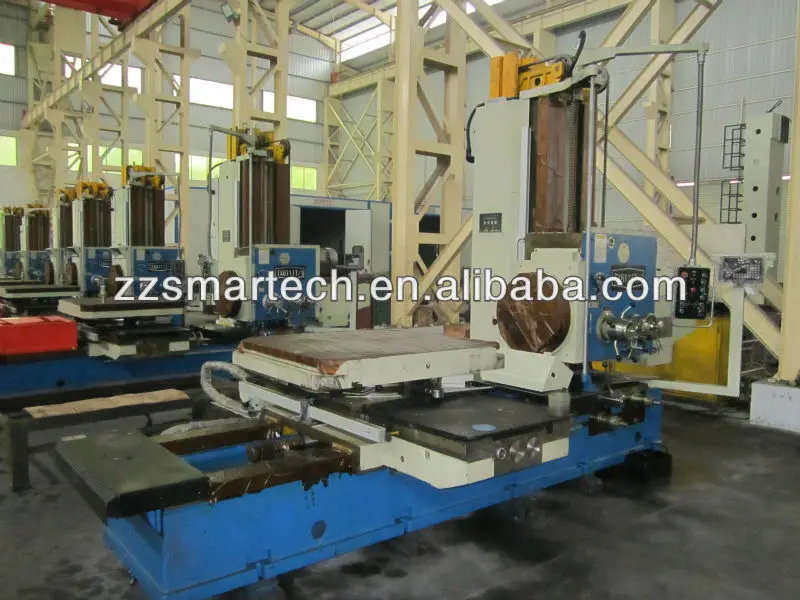

TX6111T | TX6111T/1 | |
Spindle diameter m/m | 110 | 110 |
Spindle taper m/m | ISO50#(7:24) | |
Spindle speed r/min | 9-1000(18 Steps) | 9-1000(18 Steps) |
Power of main drive motor KW | 11 | 11 |
Max drilling capacity of spindle mm | 50 | 50 |
Max boring capacity of spindle mm | 300 | 300 |
Speed of facing chuck r/min | 6-221(14 Steps) | 6-221(14 Steps) |
Traverse of facing chuck slide mm | 170 | 170 |
Max boring capacity of facing chuck mm | 600 | 600 |
Table size(L×W) mm | 1200×1100 | 1200×1100 |
Table load Kg | 2500 | 2500 |
Traverse travel of table(X)mm | 900 | 1200 |
Vertical travel of spindle head(Y)mm | 1100 | 1100 |
Longitudinal travel of table(Z)mm | 1500 | 1500 |
Axial travel of spindle mm | 600 | 600 |
Range of spindle, headstock and table feeds per spindle revolution mm/r | 0 Steps1-1000 | 12 Steps 0.04-6 |
D RO | X,Y | X,Y |
Overall dimensions of machine (L×W×H)mm | 4900×1950×2950 | 4900×2250×2950 |
Weight of machine(approx) kg | 14500 | 16000 |
Sub-suppots for saddle | without | with |
