Common Mode Choke Coil inductor For PCB Board
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (720311996):
Product Overview
Description
Feature &Application
Features:
1. Magnetically shield construction, anti-electromagnetic interference, ultra low buzz noise, high density installation.
2. Low magnetic loss, low DC resistance, highest curent in this package size.
3. Three terminals, stabal soldering, anti-oxidation, easy to solder.
4. Fast paint stripping craft, PIN finished smoothly, no distortion, easy to solder.
Applications:
5. Widly used in industrial control PCs,,PDA, notebook, desktop, server, cell phone, automotive, DC/DC converter, LED lighting, communication equipment, medical equipment, navigation.

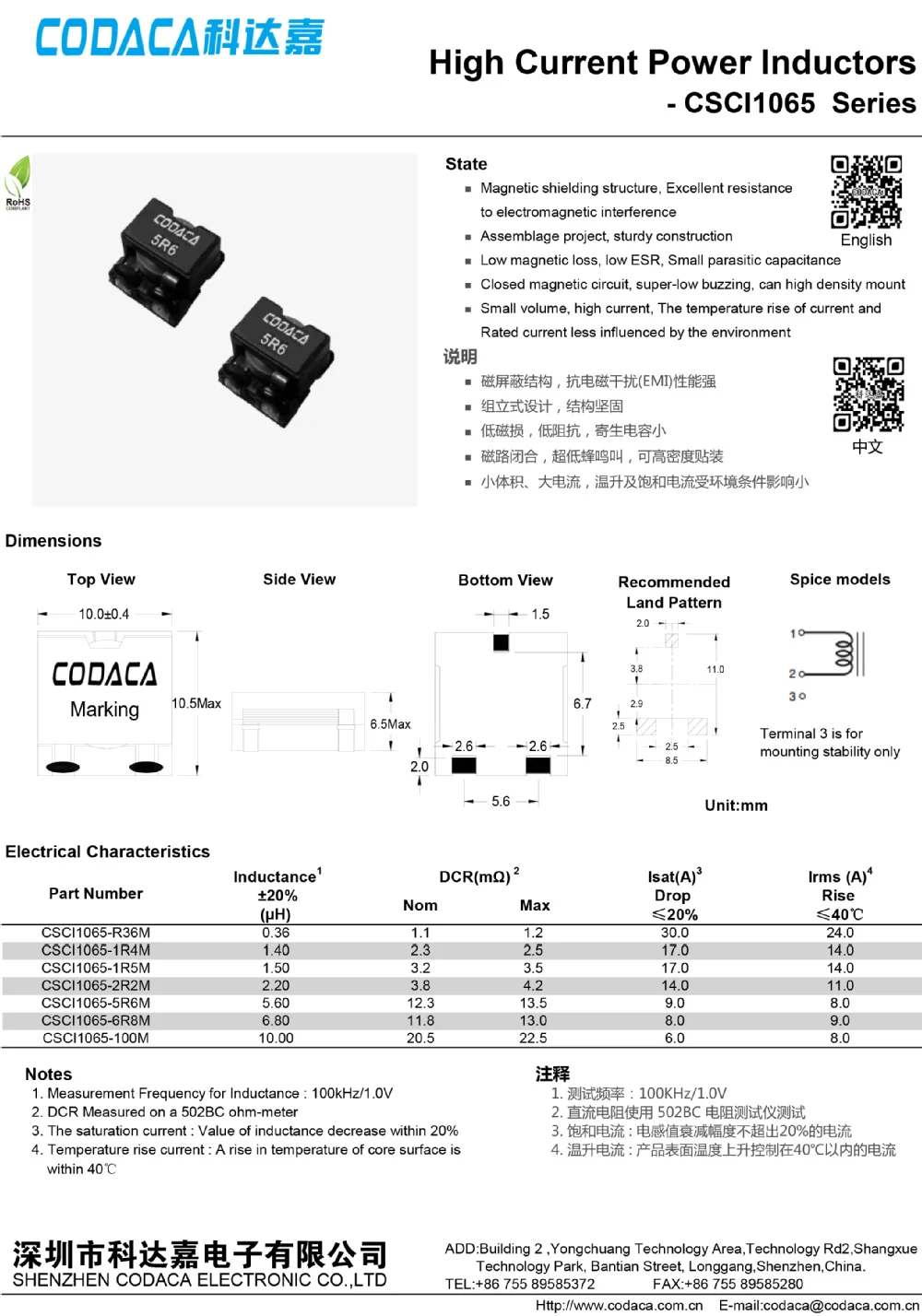

Product Labeling
(1)Company Name: CODACA.
(2)Product Type: SMD series.
(3) Product Appearance: Coil 270 degrees,E/E Iron power core.
(4) Series category: I - EE type magnetic cores, Iron power core, foot-mounted.
M - EE type magnetic cores, Mn-Zn core, foot-mounted.
D - EI/EE type magnetic cores, Iron power core, no foot-mounted.
E - EI/EE type magnetic cores, Mn-Zn core, no foot-mounted.
F - PQ type magnetic cores, Mn-Zn cores, no foot-mounted.
G - EI type magnetic cores, Iron power core, no foot-mounted.
(5)Dimensions: 1065 – 10.00mm width * 6.50mm height.
(6)Inductance Value: 100 - 10μH.
(7)Tolerance: M - ±20%.

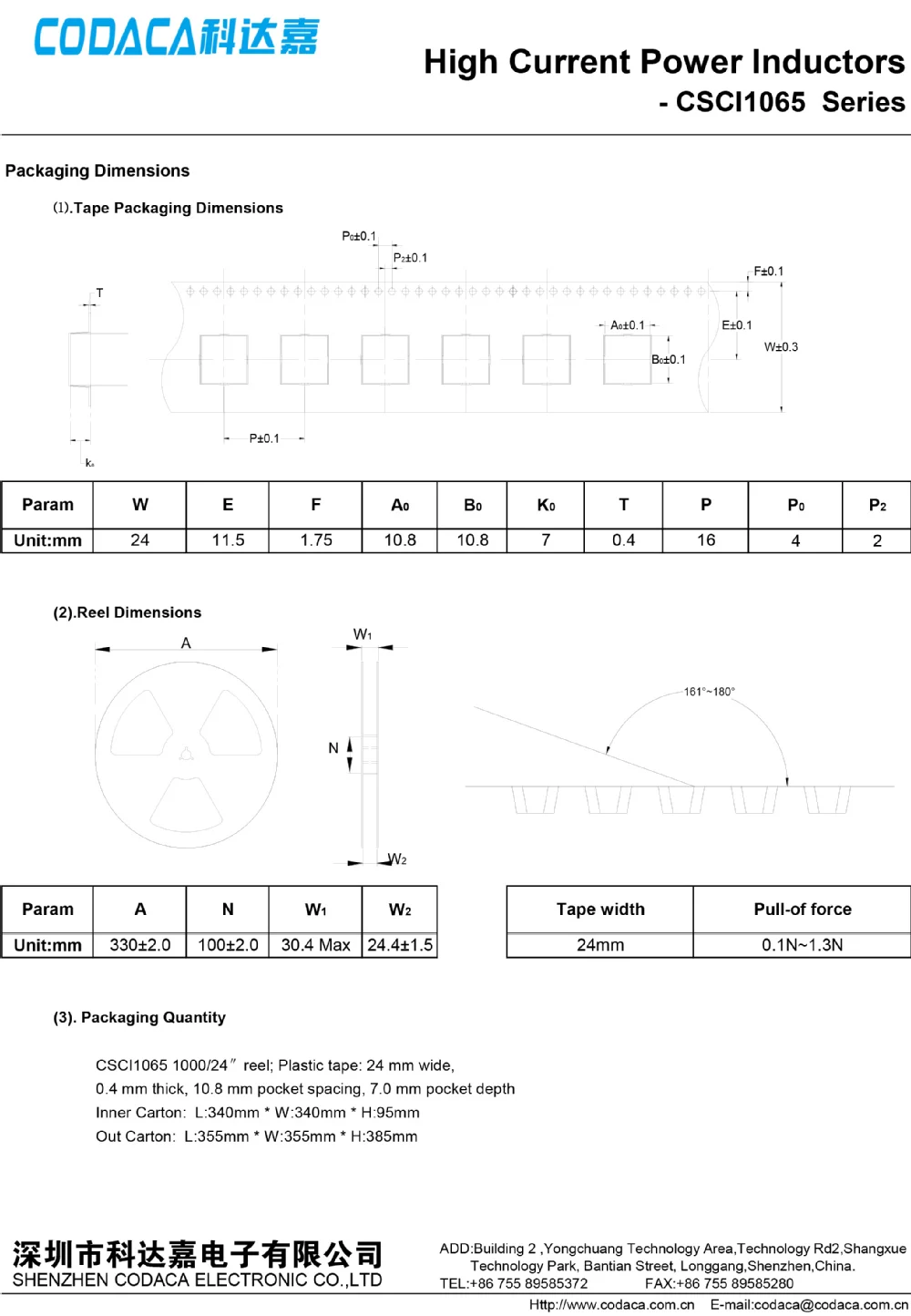

(8)Packing style: R - Carrier tape reel.
P – Plastic Tray.

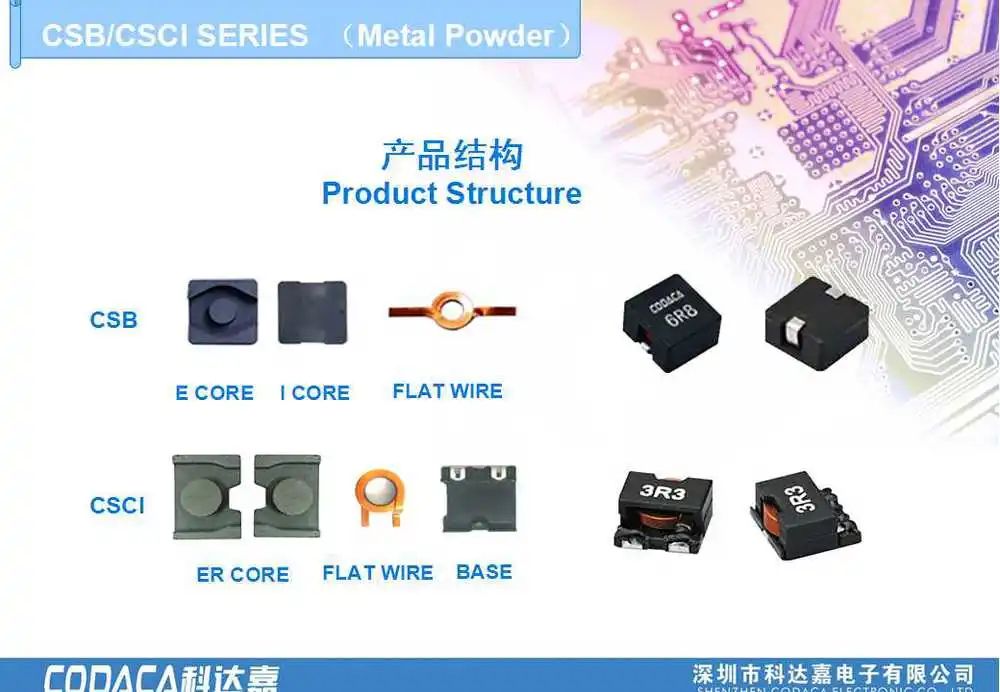

Product Structure
Certifications
Company Information
Our Services
1. We promise all products are factory price & top quality.
2. Customize is acceptable.
3. Samples free of charge.
4. 3days Samples delivery; production order only need 1~2 weeks.
5. Orders below MOQ.
6. Choose top quality materials to make trustable product for every customer.
7. 100% quality checking before delivery.
8. OEM and ODM available.
9. Reference designs of leading IC manufacturers.
