FHC052 CB52 B25 WP5 Wate to Water Brazed Plate Heat Exchanger

Heat load up to 10~70 KW

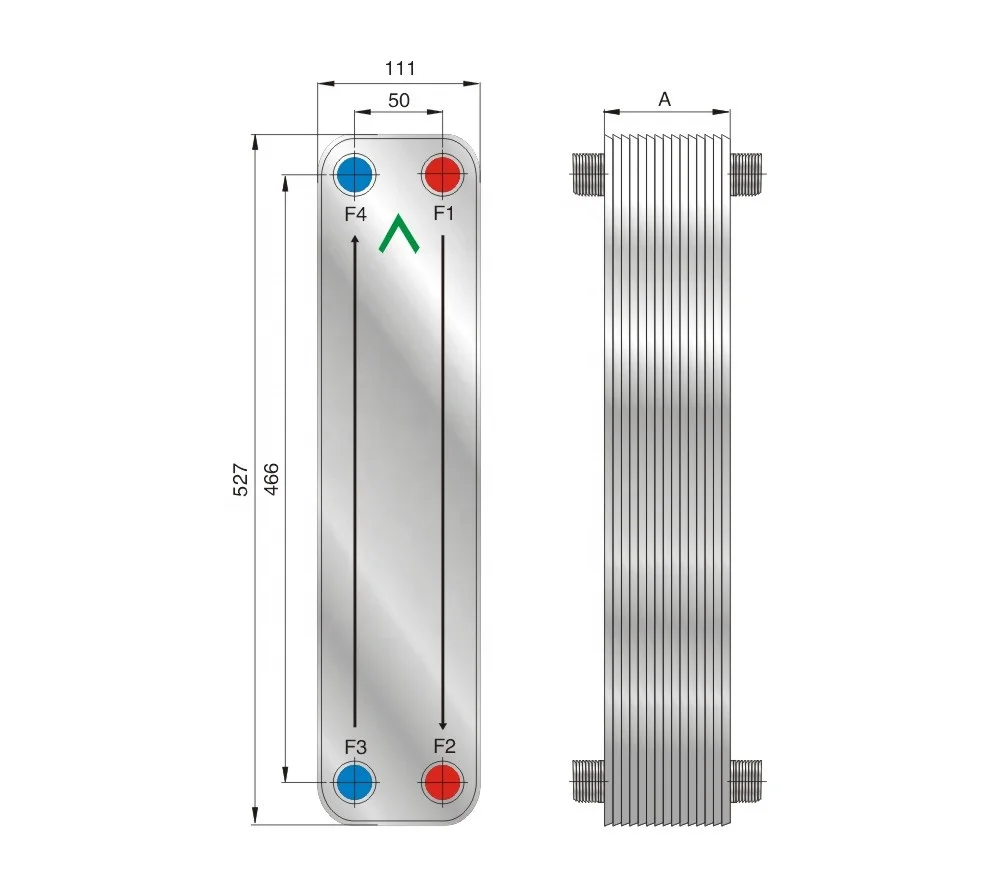

Size 527*111 mm

Thickness of plate0.4mm

Heat exchanger area of each plate 0.052

Volume 0.094L/Channel

Quantity of max plates: 150

Design pressure  3.0/4.5MPa

Testing pressure 4.5/6.7MPa

Design temperature: -196 ~ +200

Model of flow course plate: H & L & M

The max size of threaded connector: 1"1/4

The max size of welded connector: 1"3/8

Copper brazed & Nickel brazed
