UBJ3 Q diesel petrol engine mortar cement grouting pump peristalic pump

Product Overview

Description

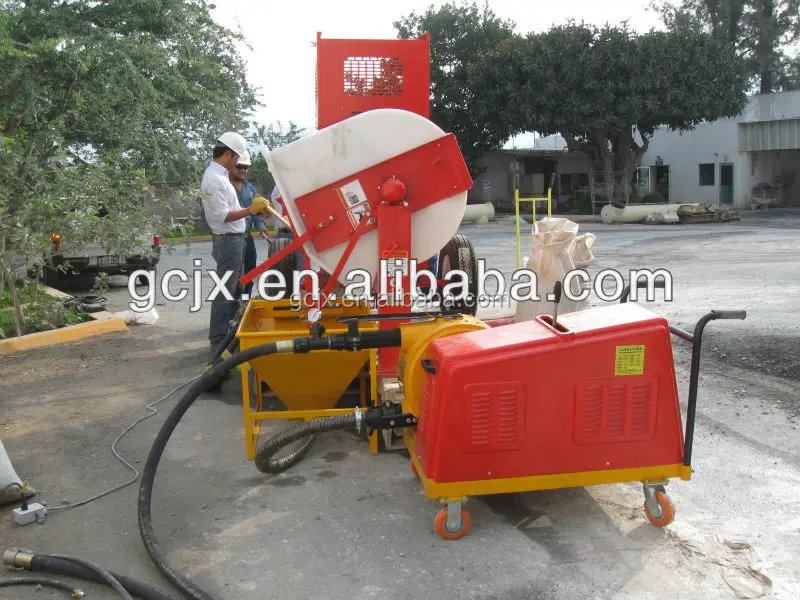

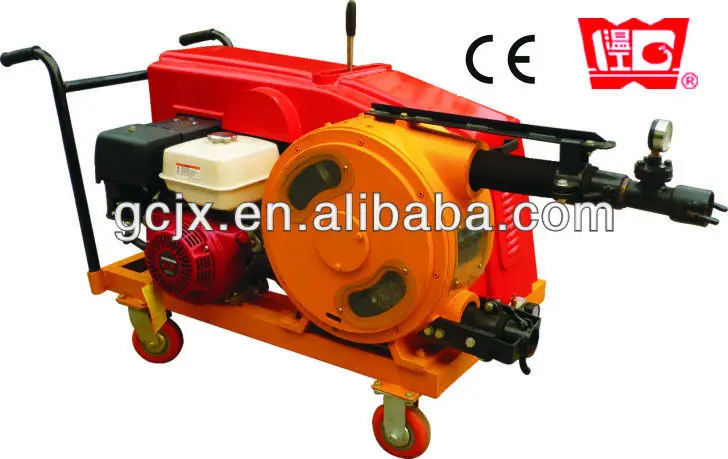

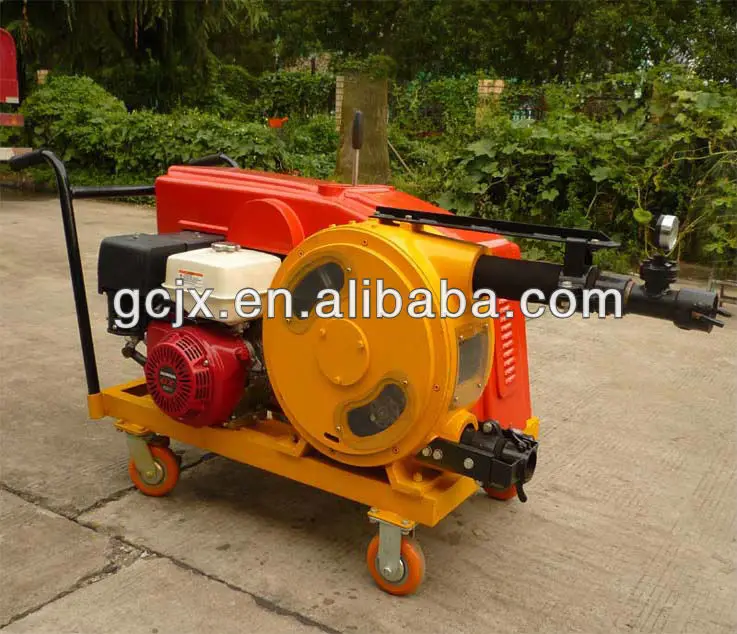

                                             UBJ3-Q   Mortar grouting pump





UBJ3 series are mainly used for pressure delivery, plastering all kinds of dry ready-mixed mortar, plastering mortar, lime mortar, insulating fireproof mortar, floor surface mortar, adhesive mortar, masonry mortar, reinforced mortar, filling mortar, pouring mortar, thermal insulation mortar, fiber mortar, self-leveling mortar, repairing reinforcement mortar.

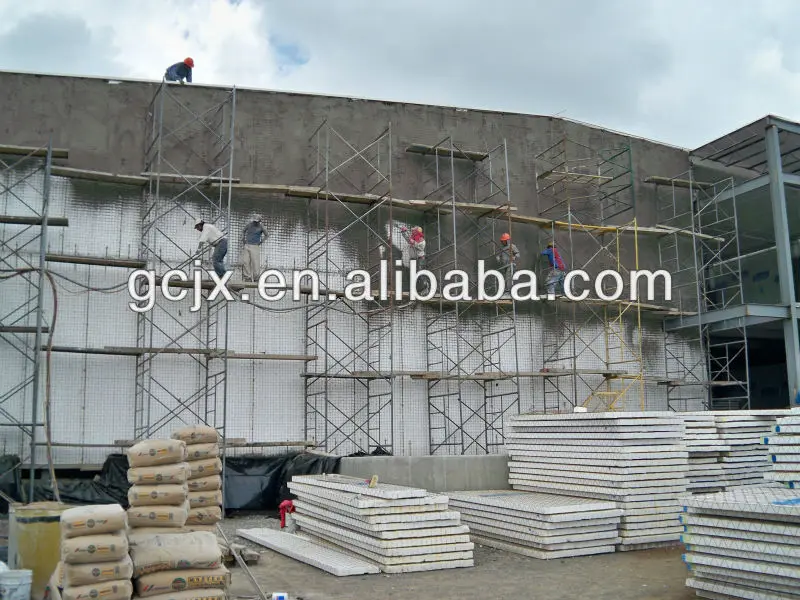

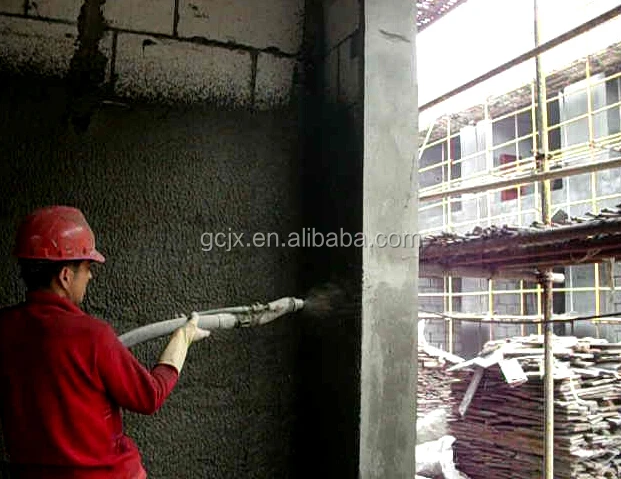

They’re widely applicable in plastering for surface wall in city buildings, tunnels, bridges, roads traffic projects, water conservancy project and hole cracks grouting. It's also used to produce various kinds of insulation, waterproof, soundproof new plate etc.



UBJ3-R squeeze mortar pump is driven by diesel engines or gasoline engines; its power source is optional.











Technical parameters of UBJ3 series Squeeze mortar pump

Model	—	UBJ3	UBJ3-R	UBJ3-Q
Supply power	—	400V 50Hz	Diesel engine	Gasoline engine
Motor power	kw	2.2/3.3/4	5.15	6.6
Output	m3/h	≤3	≤3	≤3
Delivery pressure	Mpa	2	2	2
Horizontal delivery distance	m	120	120	120
Vertical delivery distance	m	50	50	50
Vibrating grid power	kw	0.35	0.35	0.35
Hopper volume	L	200	200	200
Net weight	kg	420	500	420
Dimension (L×W×H)	mm	1570×814×932	1900×830×800	1500×800×800

Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.

The products are improved without notice!

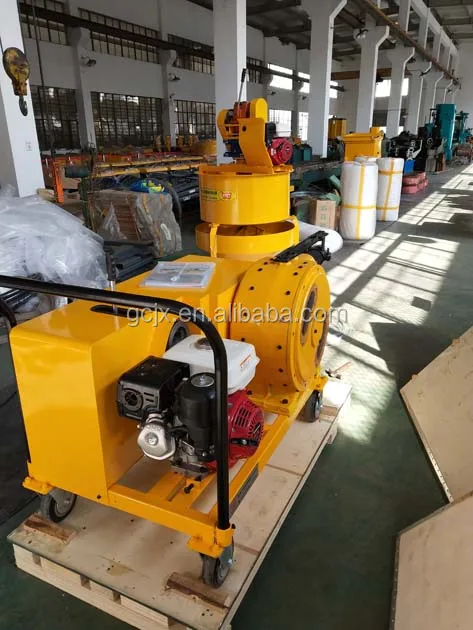

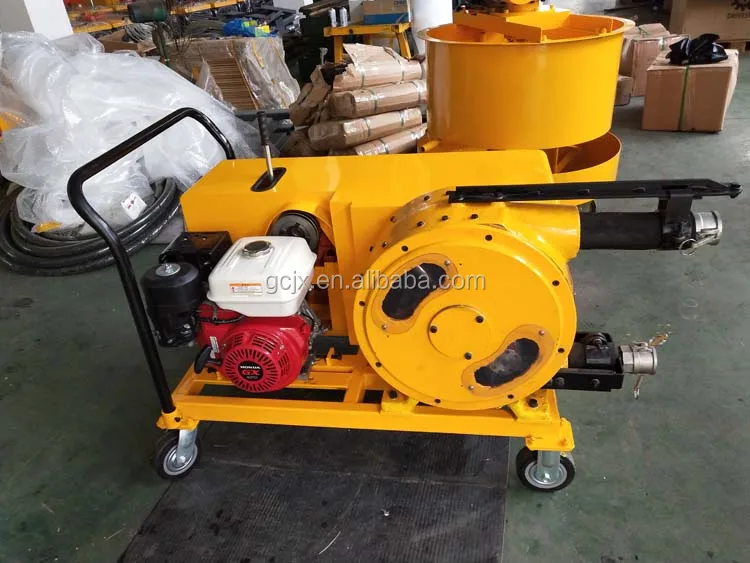

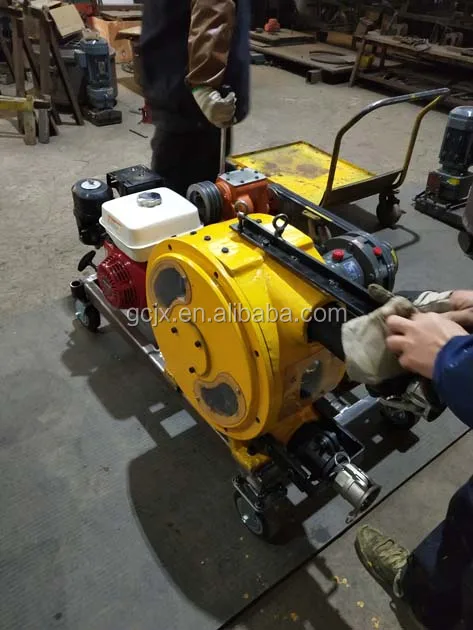

1. UBJ3-Q is customized for Mexico customers which can be used in free power. Honda GX270 always offer stable working power for UBJ3-Q.







2. UBJ3-Q has been installed air compressor already, so it's very easily for plastering which can pump max horizontal distance: 60m and max vertical distance :30m.

















2. We're in exchanging with the manager from PFT, Putzmeister and Baumann.





3. Our engineer did service for Indian Reliance
