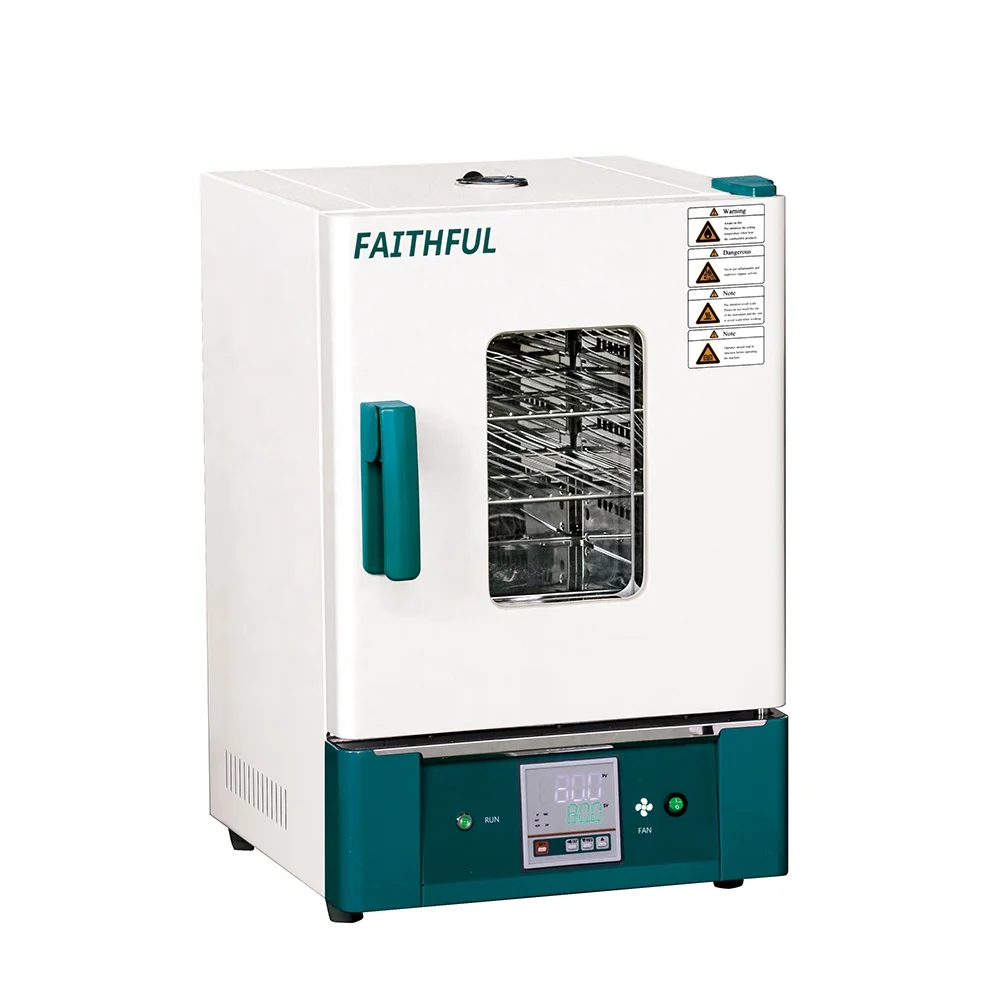

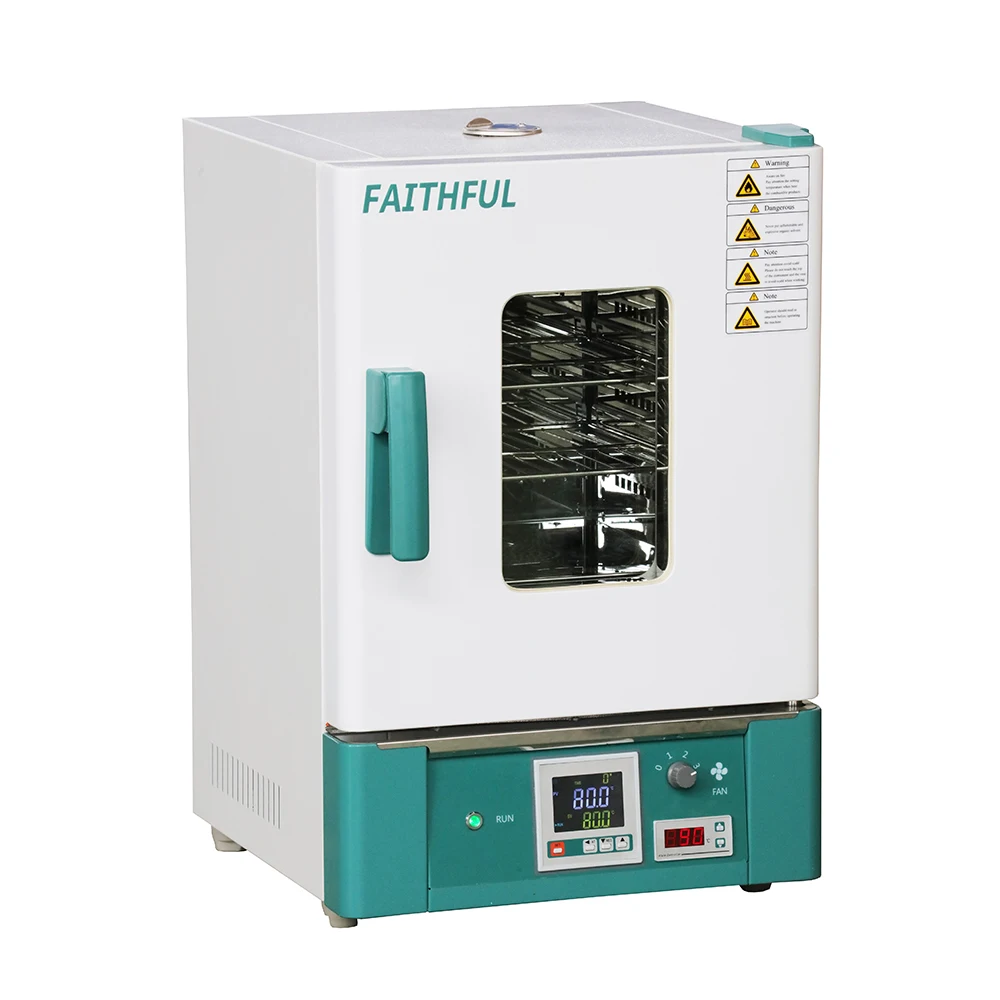

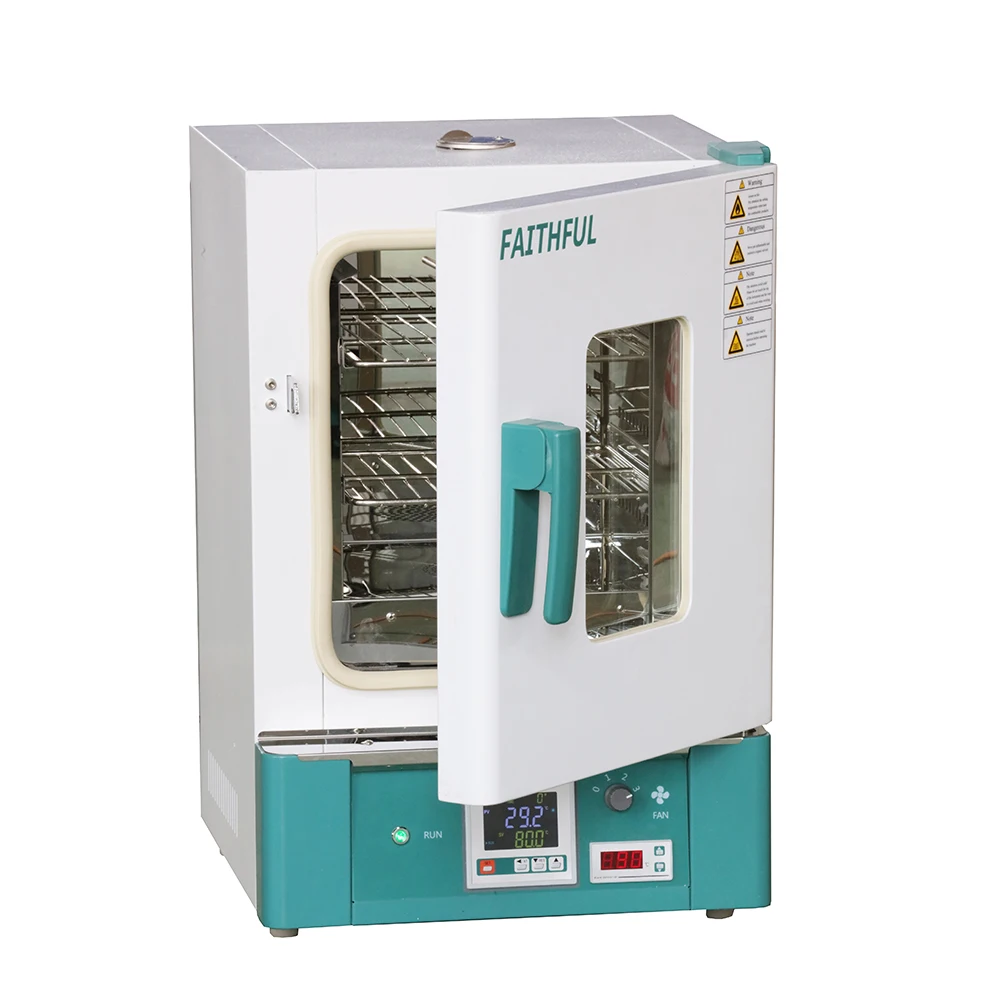

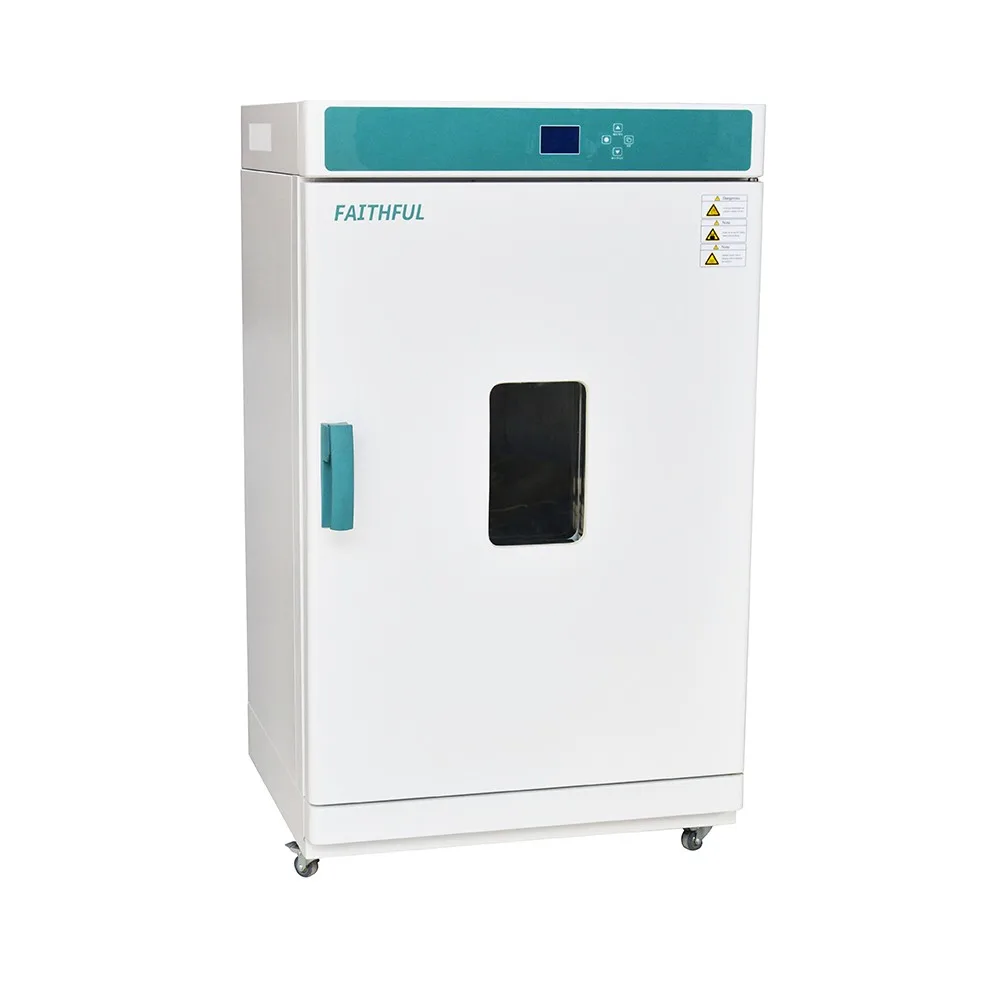

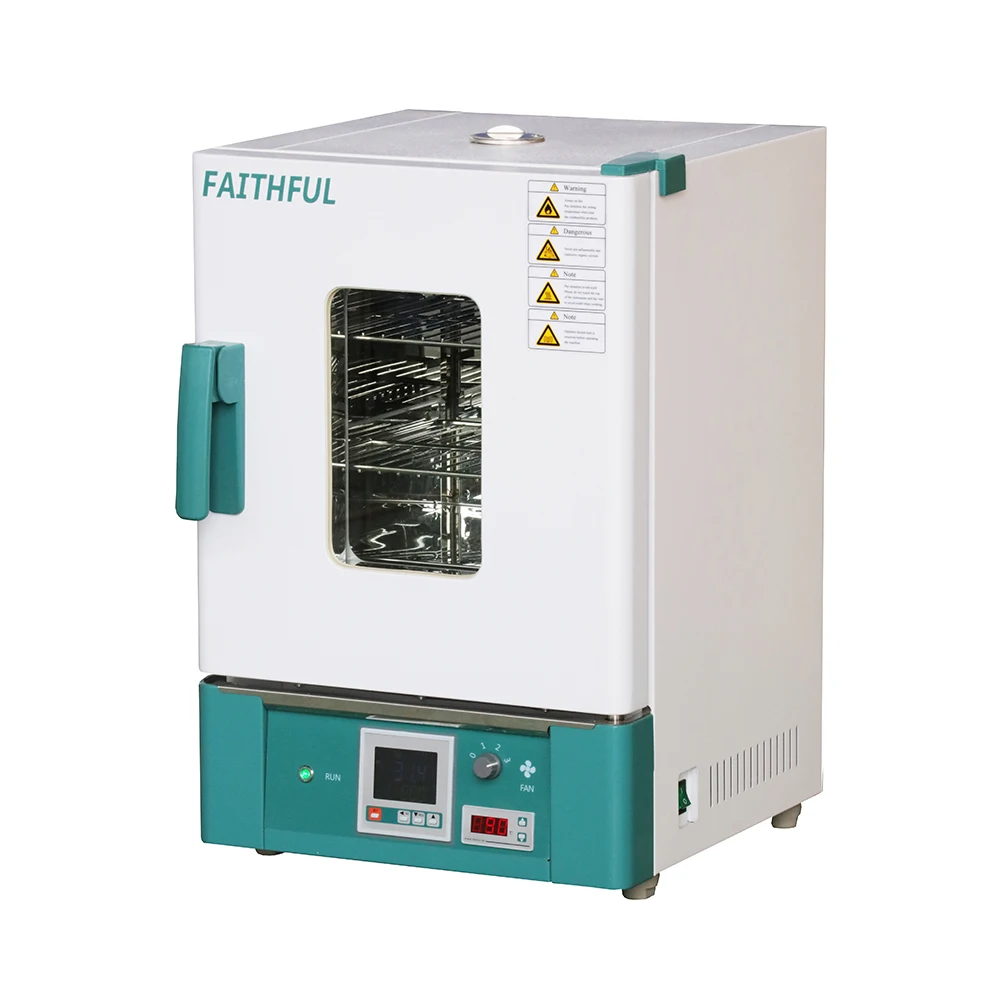

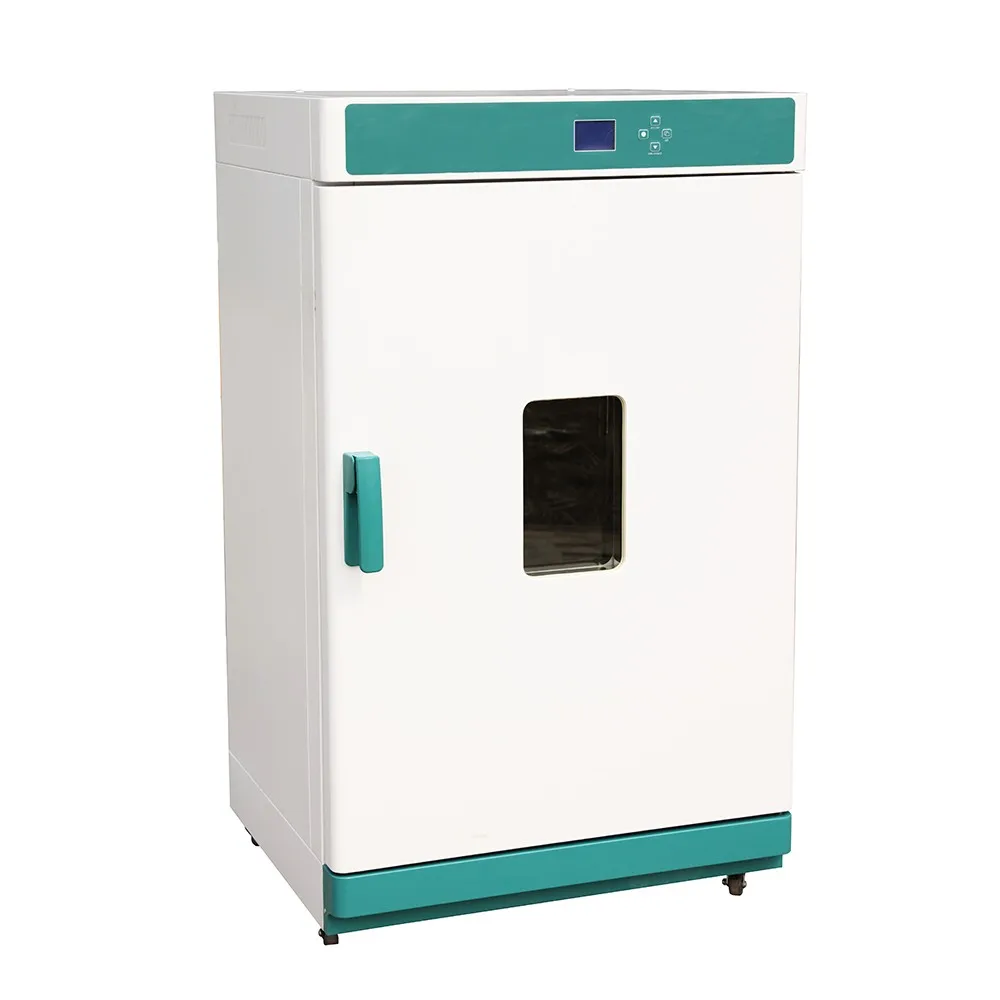

Large Electric constant temperature Forced Air Convection Drying Oven

Share on (721165593):


Price:RUB 27,763.55

Quantity:


Product Overview

Description

Forced Air  Drying Oven



Uses:



WGLL Drying Oven is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.



Characteristics:



1. Vertical design,cold rolling steel electrostatic spraying exterior.

2. Stainless steel inner chamber; foursquare semicircle transition; flexible positioning and removable shelf, airduct lateral plate and bottom heater covering are easy assembly and disassembly for convenient cleaning.

3. Well coordinated bottom air blower and heater and vertical hot air circulation ensure temperature evenly.

4.Adjustable fan speed; blowing rate is adjustable to ensure temperature evenness and prevent powder samples blowing away.

5. LCD with function of timing and over-temperature protection.

6. Independent temperature safety device; auto break off when over temperature limit, auto power switch to keep constant temperature when main controller fails to work, which provide double protection to ensure experiment run safely and no accident would happen.

7. Optional RS-485 interface for network connection.

8. Door with wide double-glass observation window,adjustable air-tight buckle lock and silicon rubber seal,which provide good sealability and efficiently prevent heat loss.




Main parameters:



 Model

WGLL-30BE

WGLL-45BE

WGLL-65BE

WGLL-85BE

WGLL-125BE

WGLL-230BE

WGLL-625BE

voltage

              220V/50Hz

380V/50Hz

Tem. Range (°C)

RT+5~300°C

Tem. Motion (°C)

±1.0°C

Tem. Resolution Ratio

0.1°C

Ambient tem. (°C)

5-40°C

Heating power (kw)

0.8

1.2

1.6

2.0

2.3

3

5

Inner Champer Size (mm)

310×310×310

350×350×350

400×360×450

450×420×450

500×450×550

600×500×750

700×700×1280

Exterior Size (mm)

460×510×695

500×550×735

550×550×840

590×610×830

636×680×915

730×670×1220

895×925×1830

Packing Size (mm)

610×540×830

660×590×870

670×640×970

690×695×985

760×750×1070

900×800×1350

1000×1080×2000

Load per rack (Kg)

15/kg 2pcs

25/kg 2pcs

25/kg 3pcs

N.W.(Kg)

33

37

44

50

60

94

120

G.W.(Kg)

37

43

49

56

66

120

160

Timing range

1-9999min
