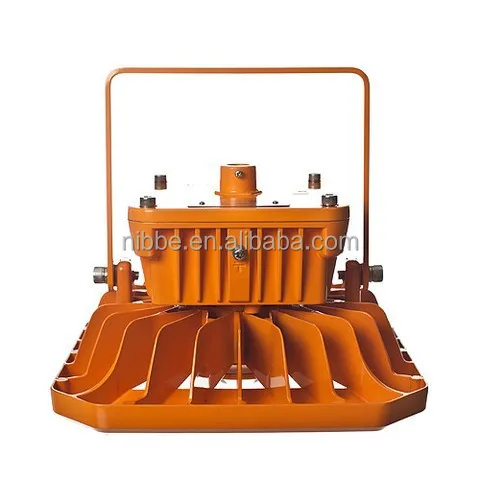

Standard ATEX 100W 120W LED IEC EX explosive proof light lamp explosion proof LED light explosion proof lamp floodlight

Product Overview

Description

ED EXPLOSION PROOF LIGHT/LED explosive proof light



Since .2009, NIBBE has been focused on supplying lighting for hazardous locations globally and proudly serving to clients for more than 70 countries in 6 continents , the clients include BP, Shell,Chevron, Conoco Philips, SINOPEC, CNPC, CNOOC, China Coal Group etc.

NIBBE meet many local standards.

1 It is the first Chinese factory passed the UL&CSA standard approval for explosion roof light ( in Sept, 2012).

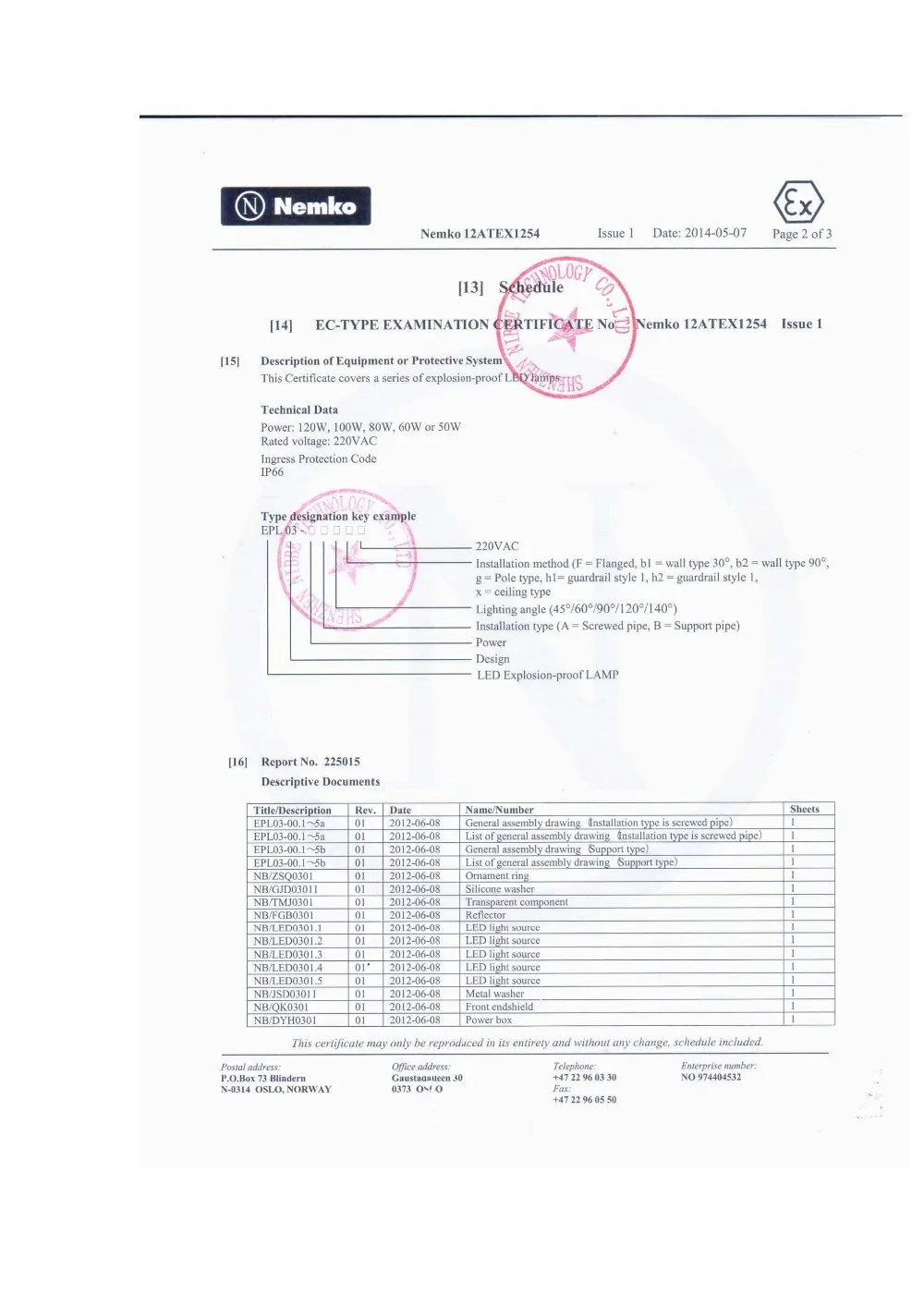

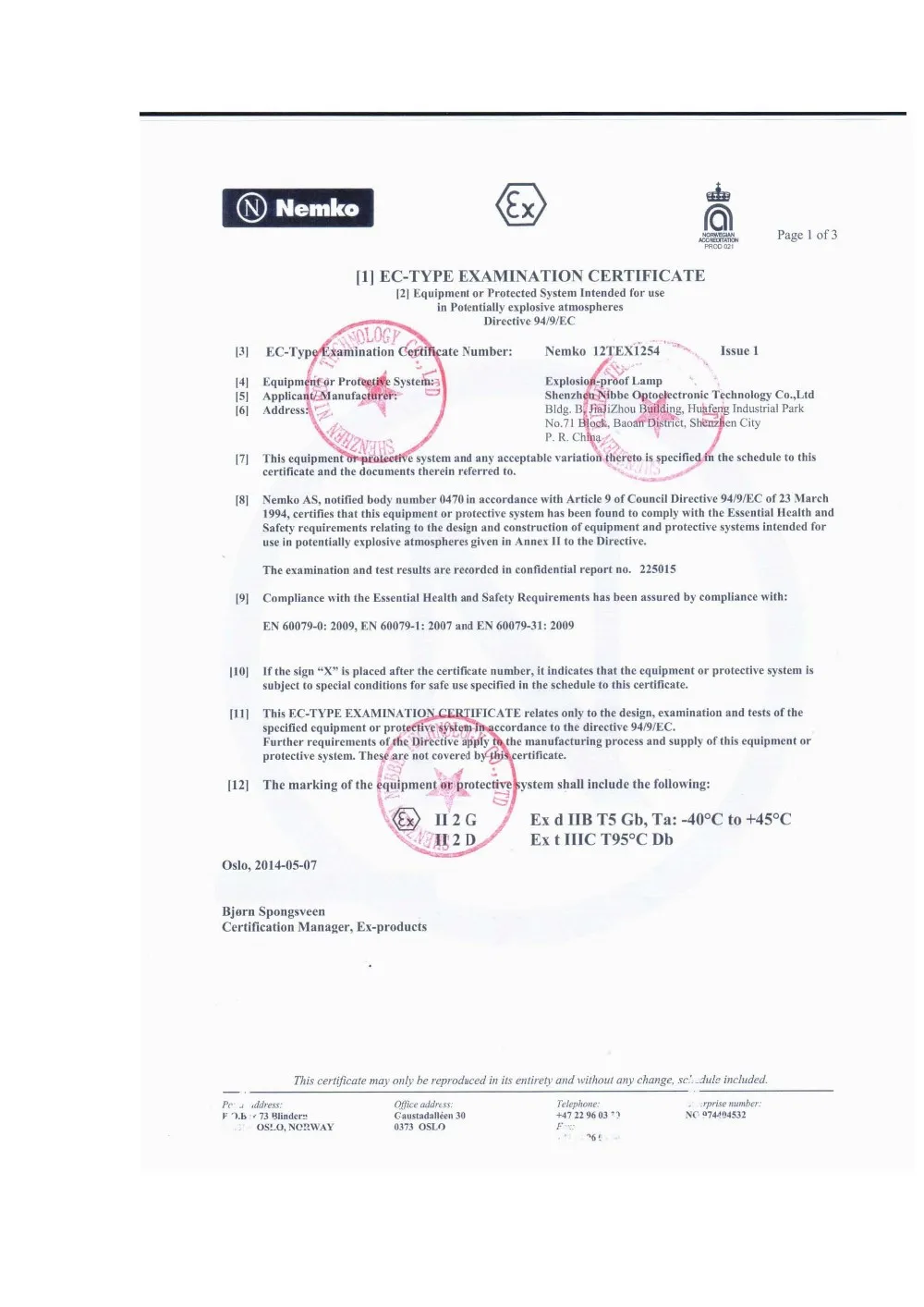

2 It is the first Chinese factory passed ATEX for LED explosion proof light ( in Jan 2013).

3 NIBBE has the Coal Mining Safety Certificates from CQST in China ( in Nov. 2012).

4 NIBBE product got GOST from Russia (in Feb. 2013) .

5NIBBE is the first Chinese factory applying for the Japanese approval TIIS ( passed all test in 2015,pending).

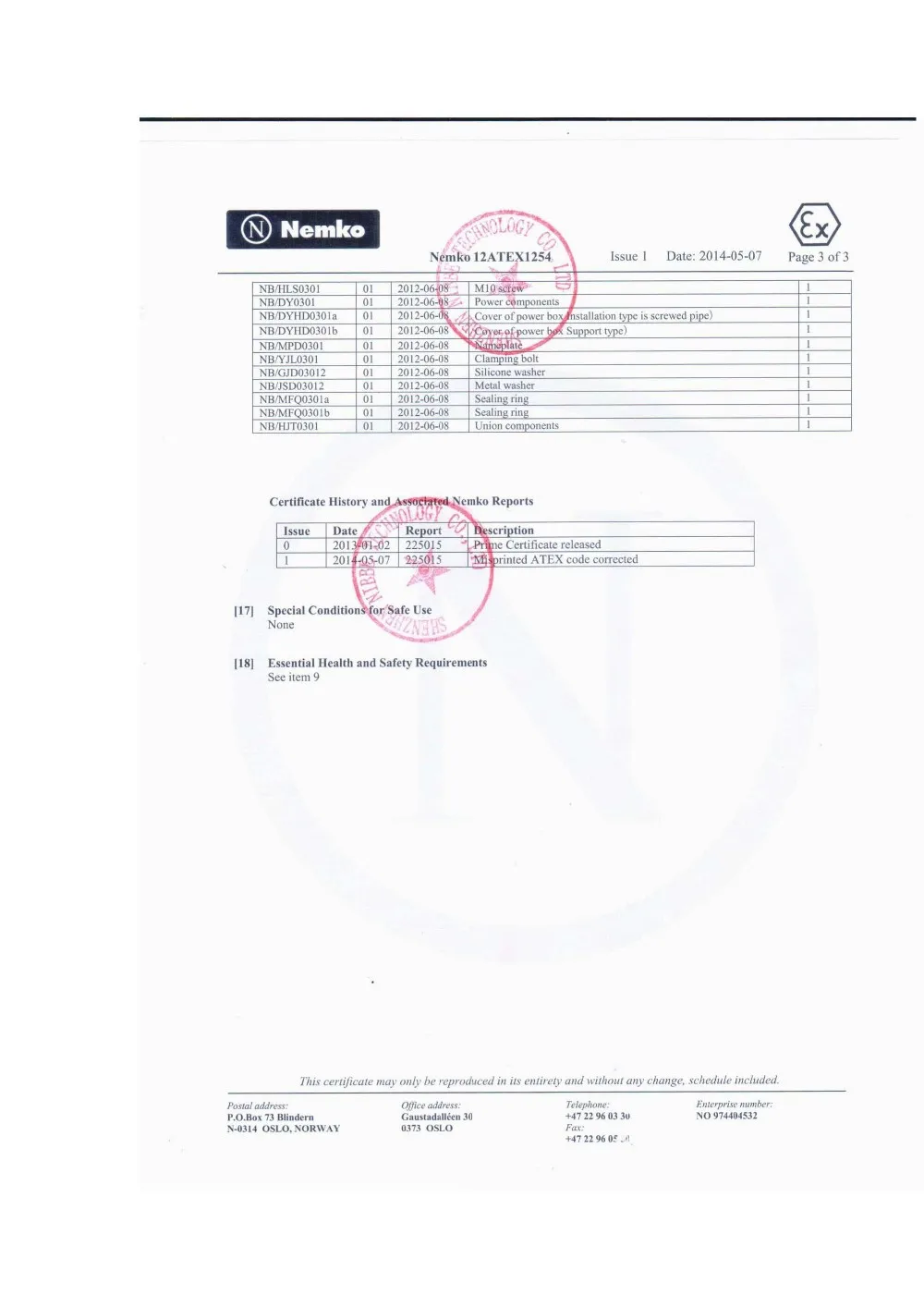

NIBBE factory has been certified with ATEX Quality Management system, ISO 9001: 2008 system, ISO 14001:2004 system and OHSAS18001 system.

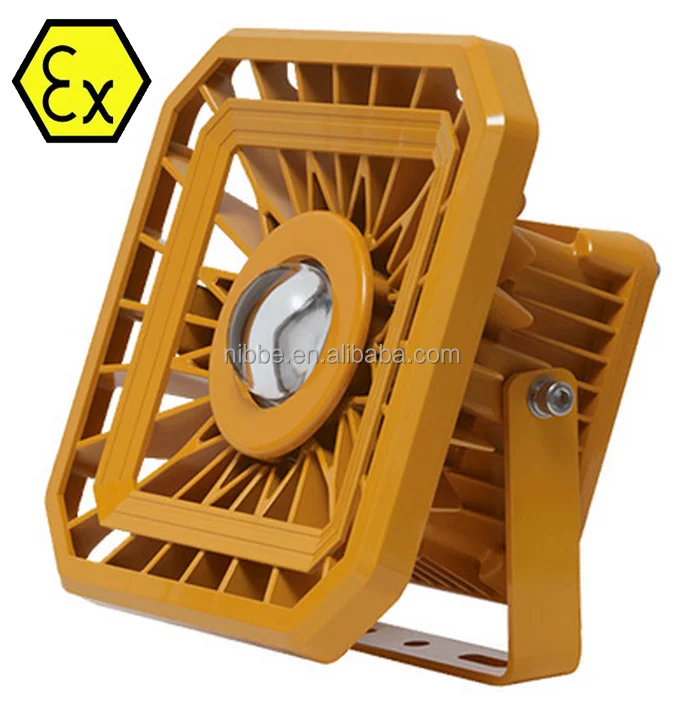

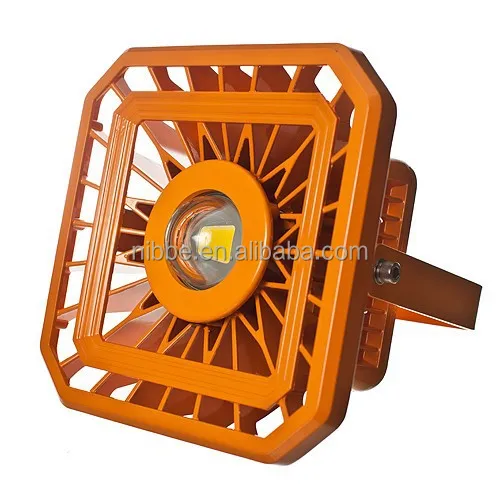

LED EXPLOSION PROOF LIGHT/LED explosive proof light



Technical Parameters:

Parameter	Value
Power Consumption	50W/60W/80W/100W/120W
Input Voltage	220V AC(applied for 95-265V)
Frequency	50Hz(applied for 47-63 Hz)
Beam Angle	45°/60°/90°/120°/140°
Explosion-proof Grade	Ex dIIB T5
Corrosion-proof Grade	WF2
IP Grade	IP66
Power Factor	>0.95
Total Harmonic Current	<15%
Lamp Efficiency(%)	≥90%
Color Temperature(K)	Warm white 2700-4000K; Pure white 5000-6500K
Junction Temperature(TJ))	<65°C
Color Rendering Index(CRI)	Ra>70
Light Effect	>80lm/W
Ambient Environment	Temperature:-30°C—55°C; Humidity:10-90%RH(25°C)
Storage Temperature	-40°C-60°C
Lifespan	>50000Hs
Material	Aluminium Alloy
Dimension(mm)	300×300×227
Net Weight	6.5Kg
Certificate	CE,CSA/UL ATEX



Applicaion :

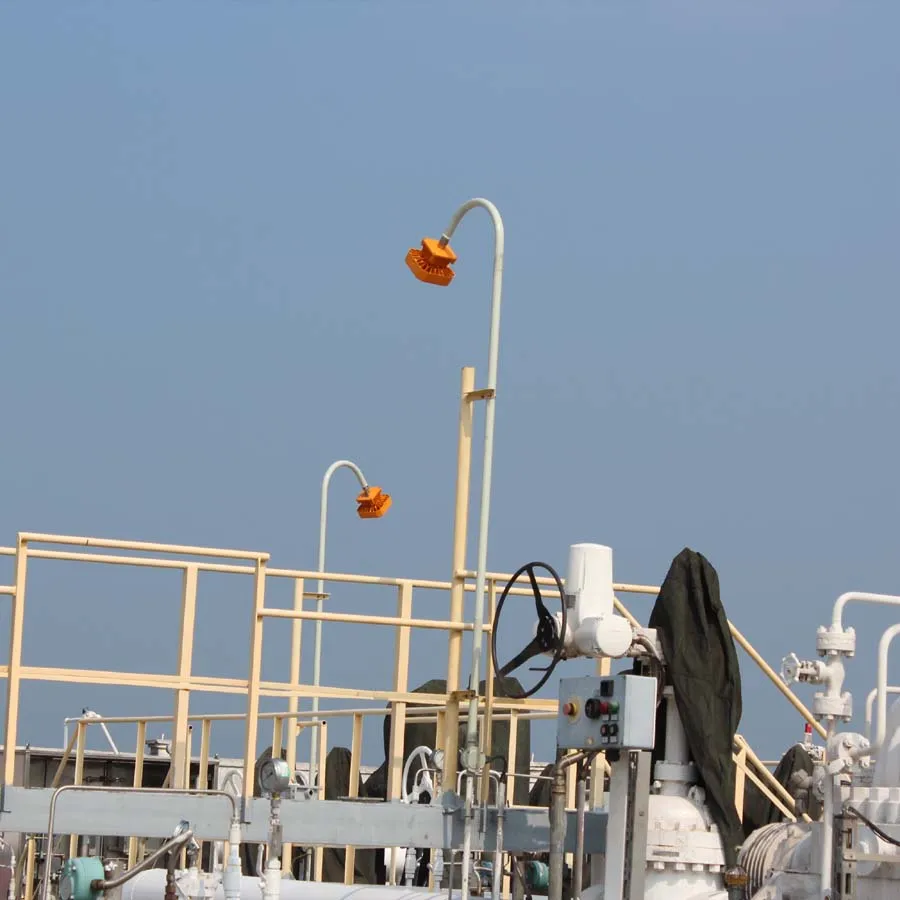

NIBBE led explosion proof light can applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone II Hazardous Locations and IIA, IIB, IIC explosive gas atmosphere.
