CE ISO Coal Storage Dust Control System

Product Overview

Description

CE ISO Coal Storage Dust Control System



Main features





1. Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed.



2. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust.



3. Flexible power: three-phase 380V and diesel generator power supply optional



4. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.



5. Flexible, safe & reliable to use. Remove control & manual control operation. Easily adjust the spray angle of horizontal rotation.



6. Compare to tank car, water consumption save 70% ~80%, wide coverage area.





Application



The area of environmental protection industry, mining, coal yard, docks, steelworks and other dust relatively large construction site.



Technical Parameters



Model	FS200
Matched power	250kw
Flow rate	80-320L/min
Horizontal range	175-200m
Vertial range	75-85m
Fan power	110kw
Working pressure	1.0-2.0MPa
rotation angle	350 degree



Items	Dimension (m)	Matched power (kw)	Rated flow (L/min)	Horizontal range (m)	Vertial range (m)	Fan power (kw)	Working pressure (MPa)	Pitch angle (degree)	Rotation angle (degree)
FS60	1.25*1.00*2.00	20	20-80	50-60	30-38	7.5	1.0-2.0	-10-40	350
FS80	1.55*1.20*2.20	24	20-120	60-70	36-45	11	1.0-2.0	-10-40	350
FS100	1.60*1.40*2.50	50-60	40-160	80-100	45-55	30	1.0-2.0	-10-40	350
FS150	2.00*1.75*3.00	110	60-240	130-150	65-75	55	1.0-2.0	-10-40	350
FS200	2.00*1.72*3.10	250	80-320	175-200	75-85	110	1.0-2.0	-10-40	350



Certification





Photos of industry sprayer

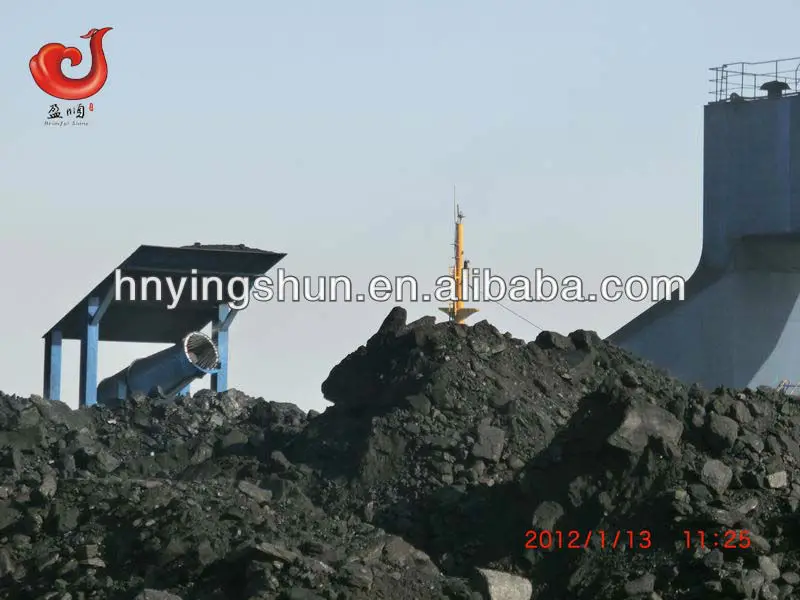

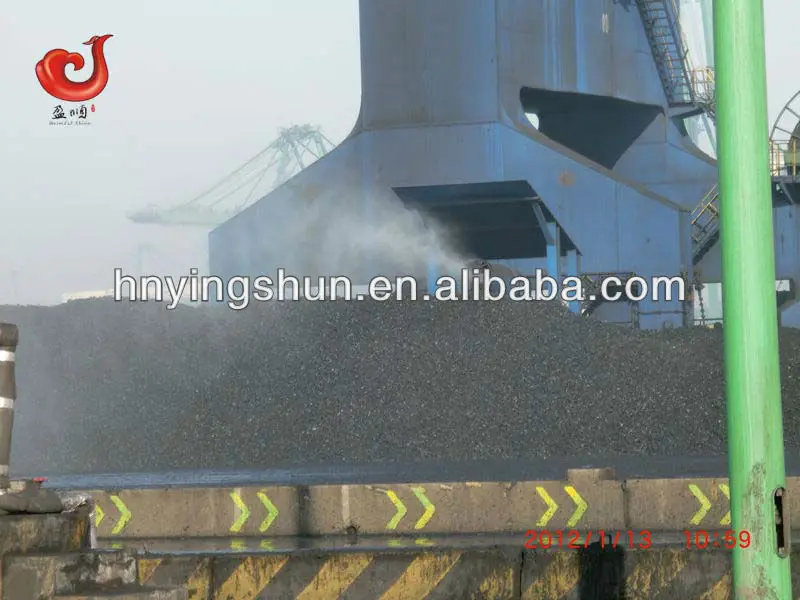

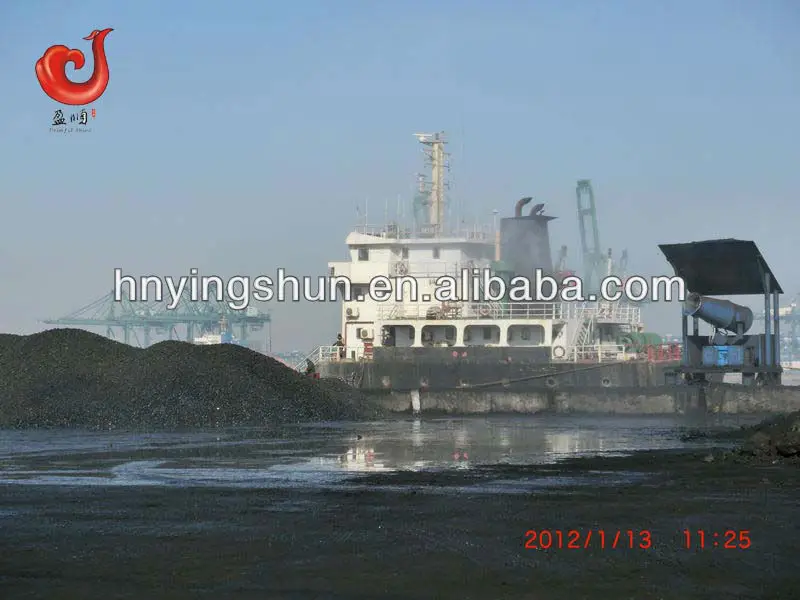

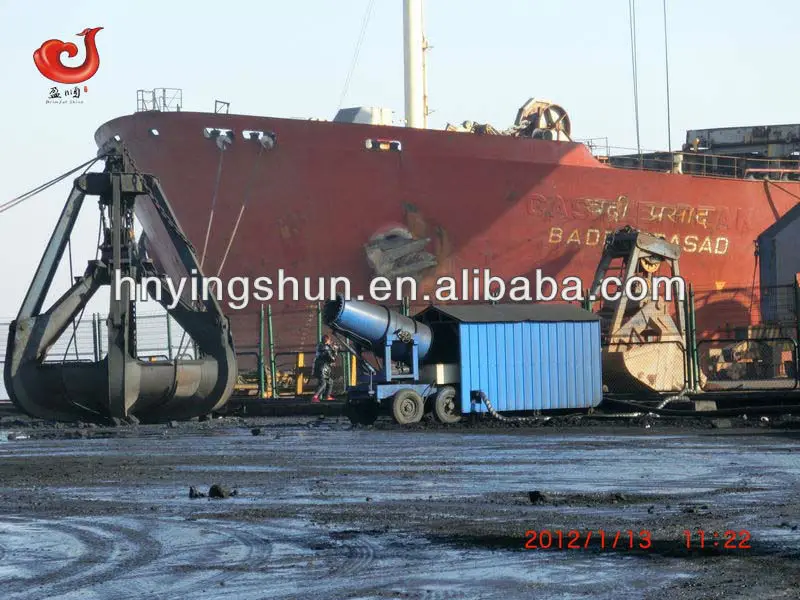

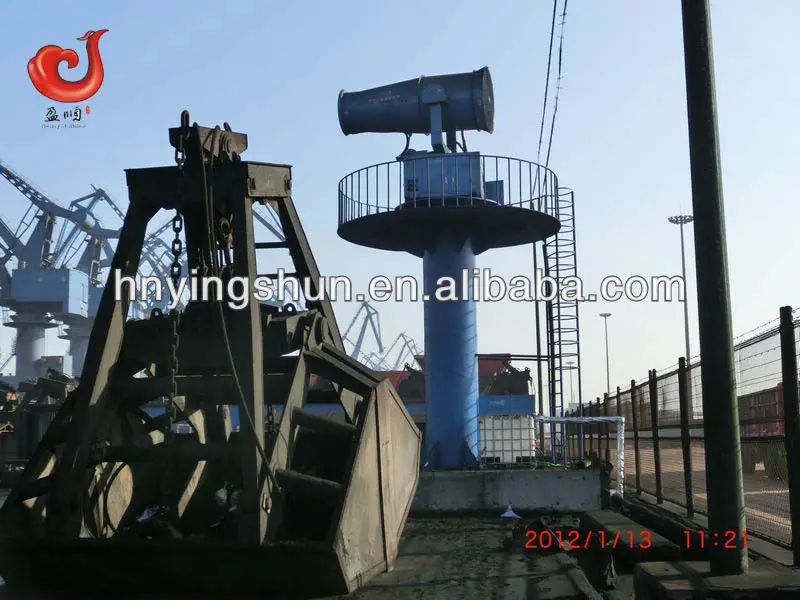

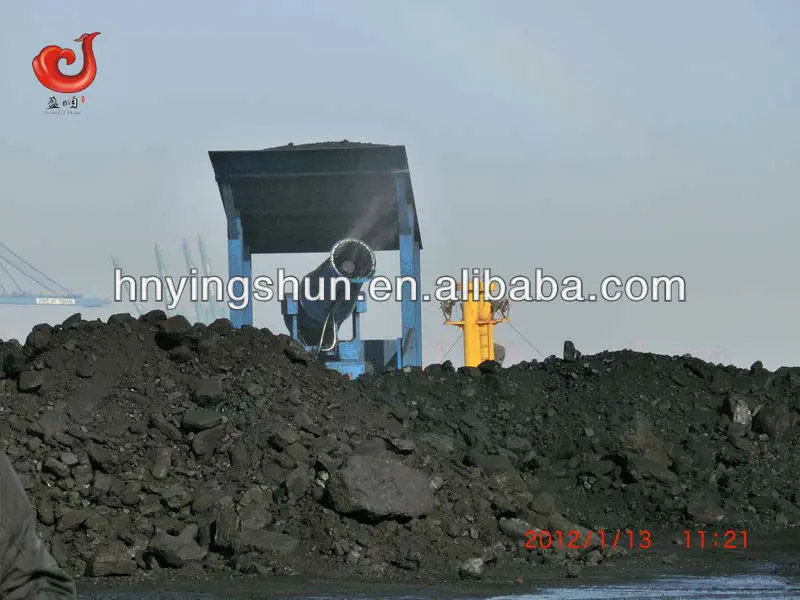

Working view



We supply many kinds of sprayer
