3.9mm 3.4mm 2.8mm 2.7mm Lawn Mower Cable
US $0.10-$10.00
DJYPV DJYP2V DJYP3V DJYVP DJYVP2 DJYVP3 Cable
- Category: Control Cables >>>
- Supplier: Zhengzhou Hesheng Cable Co. Ltd. [Henan China]Zhengzhou
Share on (721855170):
Product Overview
Description
Product Description

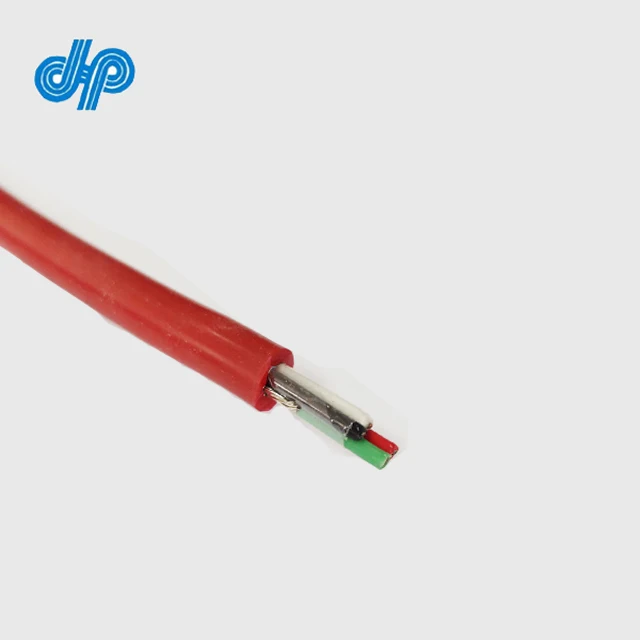

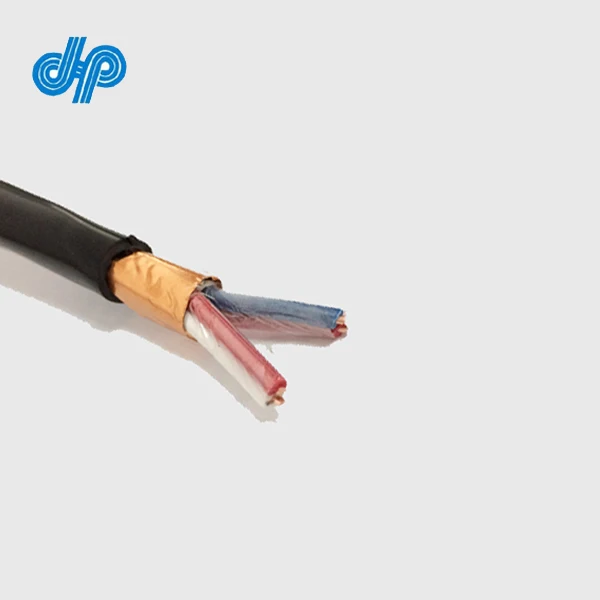

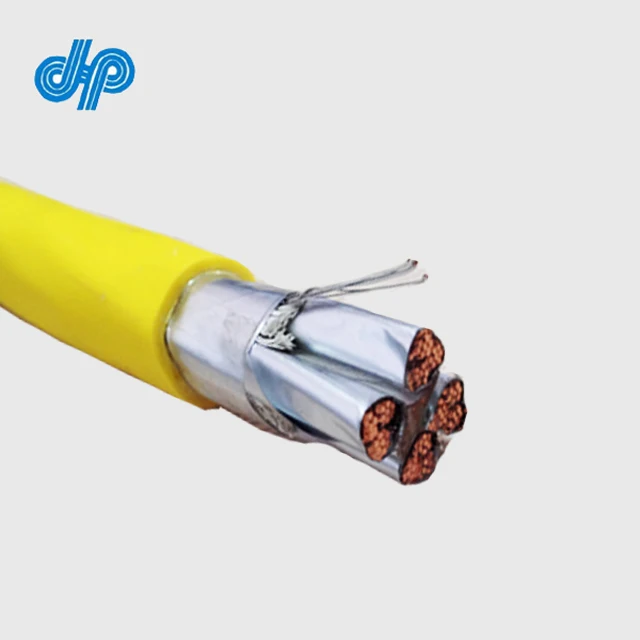

DJYPV DJYP2V DJYP3V DJYVP DJYVP2 DJYVP3 Cable
1. Standard
The products is manufactured according to the standard Q/320282DCE021-2001,and the same time is also manufactured according to the standard of English and Japanese standard.
2. Application
The cable are manufacture to meet stringent interference requirements and voltage up to 300/500V, It is suitable for use in computers, measuring equipment, control system and transmission of analogue signal.
3. Operating characteristics
Rated power-frequency voltage Uo/U:300/500V
Max. admissible operating temperature of the conductor:70°C
4 .Cables model, name and application
|
Model |
Name |
Application |
|
DJYVP |
PET insulated PVC sheathed inter shielded computer cable |
To be fixed installed in indoor, cable channel or pipe. |
|
DJYVPR |
PET insulated PVC sheathed inter shielded flexible computer cable |
To be fixed installed |
|
DJYP2V |
Copper core pet insulated pair with copper shielded layer |
To be fixed installed |
|
DJYVP2 |
Copper core polythene insulation paired with copper tape shielded sheath computer cable |
Fixedly installed |
|
DJYP2Y |
Copper core polythene insulation paired with copper tape shielded polythene sheath computer cable |
Fixed installed outdoors |
|
DJYP3Y22 |
Copper core polythene insulation paired with aluminium foil/plastic film compound shield polythene sheath steel tape armoured computer cable |
Upright bury installed
|
5. Specfication size and technology data
Reference outer diameter of 2-strand cable
|
Pair no. X core X dia |
Reference outer dia(mm2) |
|
|
DJYVP |
DJYVPR |
|
|
1 x 2 x 0.5 |
7.7 |
7.9 |
|
3 x 2 x 0.5 |
15.5 |
16.0 |
|
5 x 2 x 0.5 |
17.6 |
19.8 |
|
8 x 2 x 0.5 |
20.5 |
23.2 |
|
10 x 2 x 0.5 |
22.8 |
26.1 |
|
12 x 2 x 0.5 |
23.9 |
27.2 |
...
