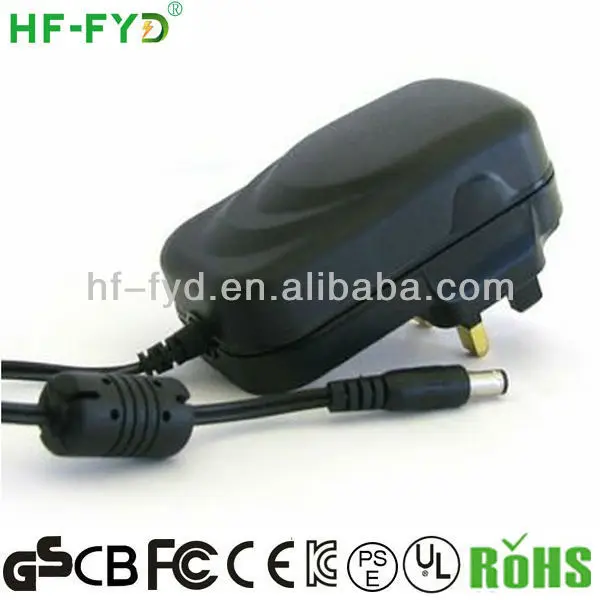

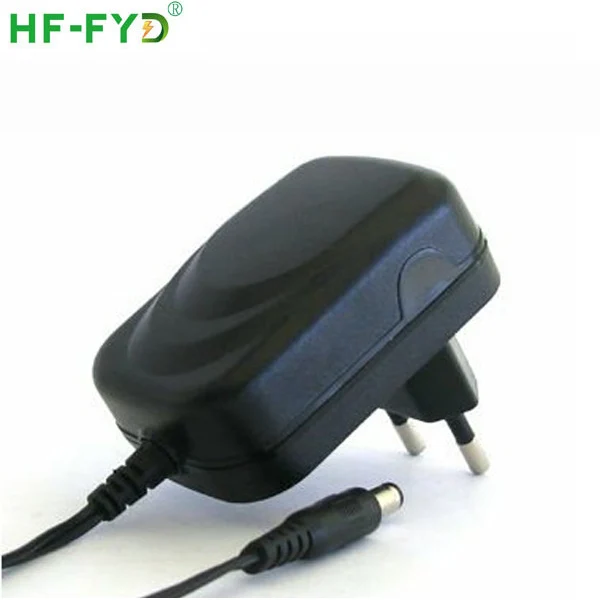

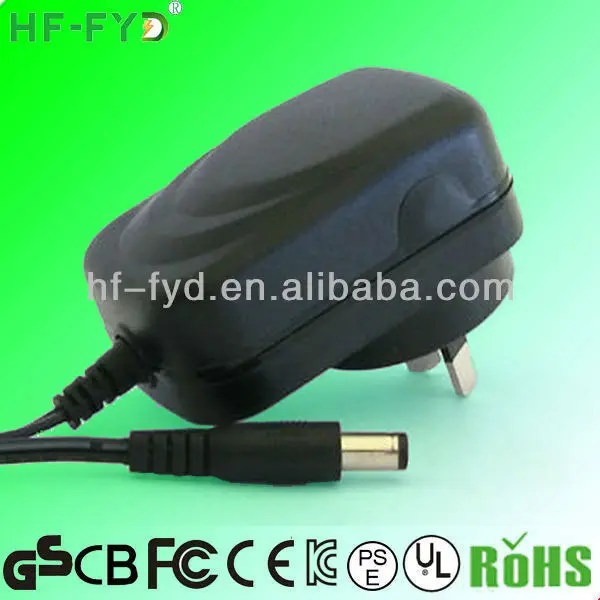

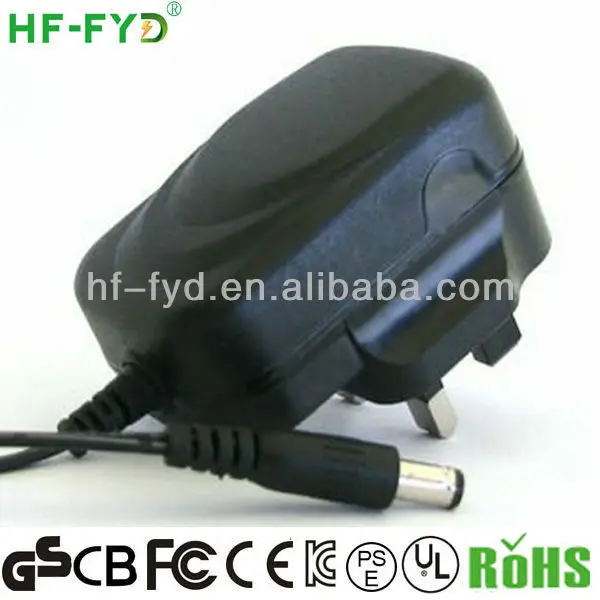

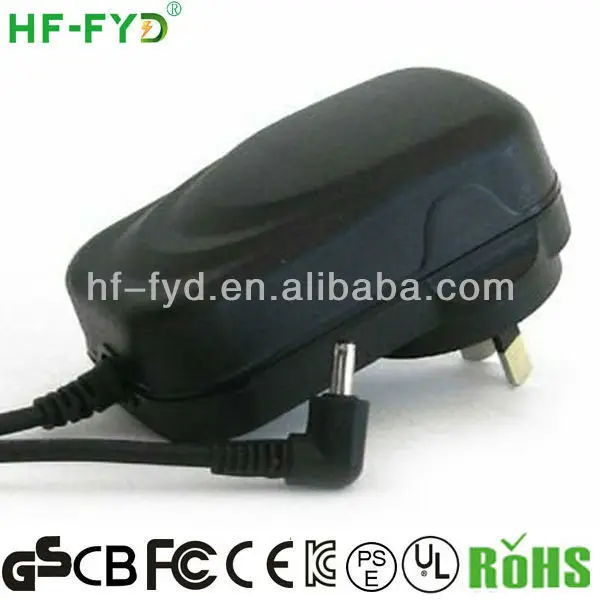

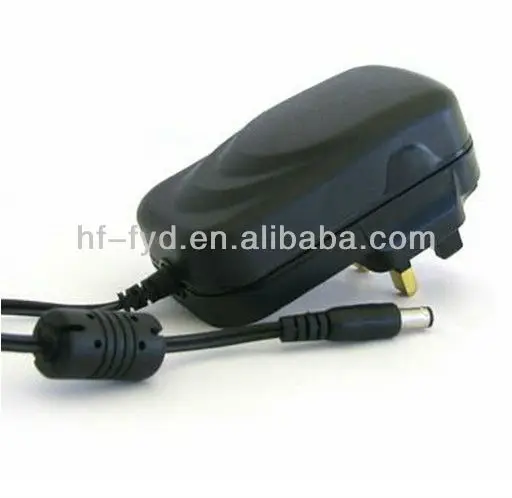

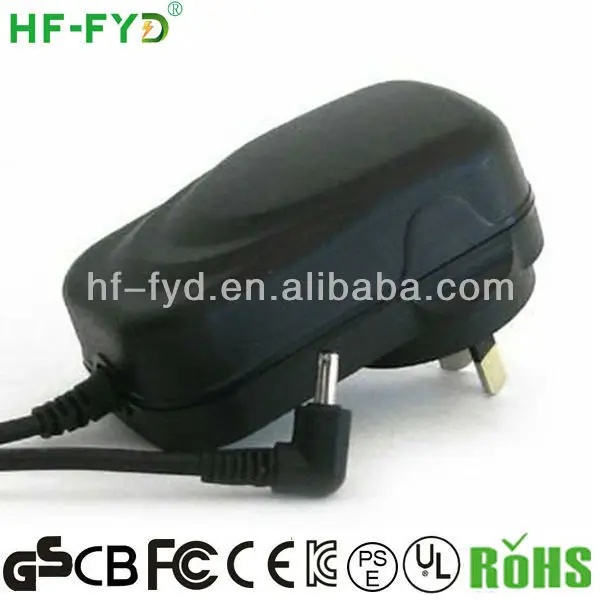

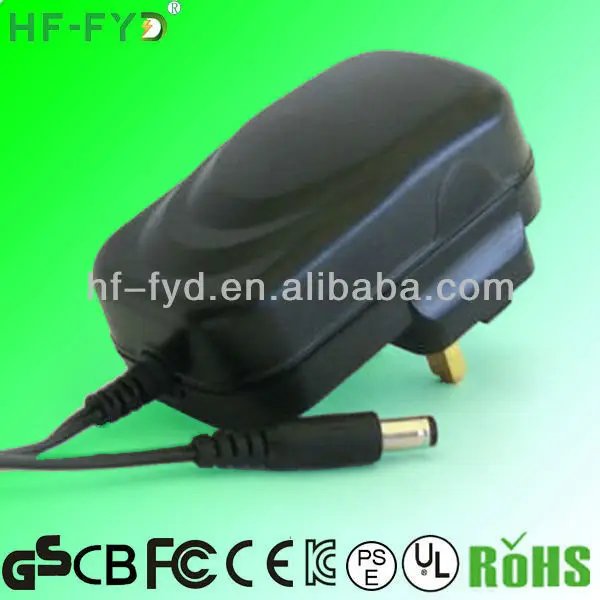

FY0901500 110 240V 9v 1.5a ac/dc adapters

Product Overview

Description

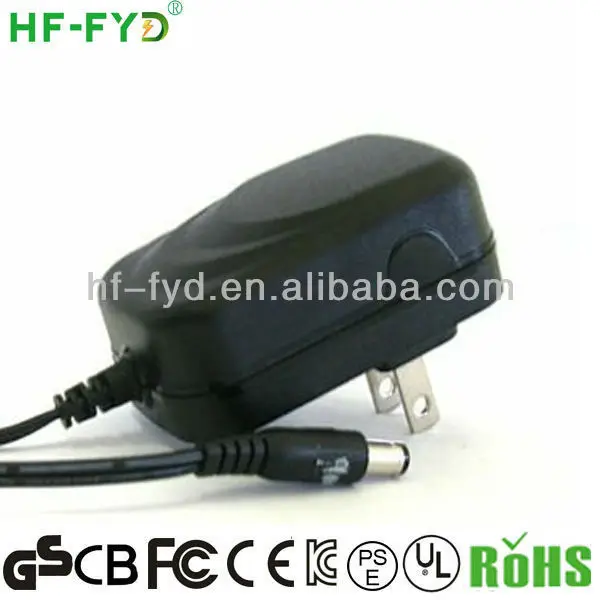

FY0901500 110-240V 9v 1.5a ac/dc adapters

---CE ROHS FCC GS CB SAA , etc

Dear Sir or Madam ,

This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484

Looking forward to your any inquires !



Application



tablet pc android 3 0 ,grinder, digital photo frame, Portable HDD Enclosure, HDD Player,  portable DVD, Small and medium sized LED players, Other security products,etc.

Description



input voltage	AC 100V-240V
Output current	1.5A
Output voltage	DC 9V
Maximum power	13.5W
Frequency	50-60HZ
Efficient	81%
power consumption	<0.3W
Weight	100g
Operating temperature	-10-40C
Storage temperature	-20-85C
Storage humidity(RH)	5-95%
Ripple and noise	1% X VO

Advantages

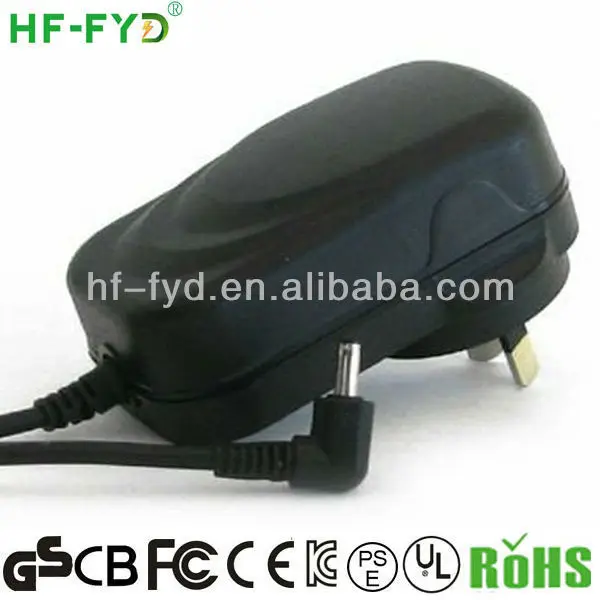

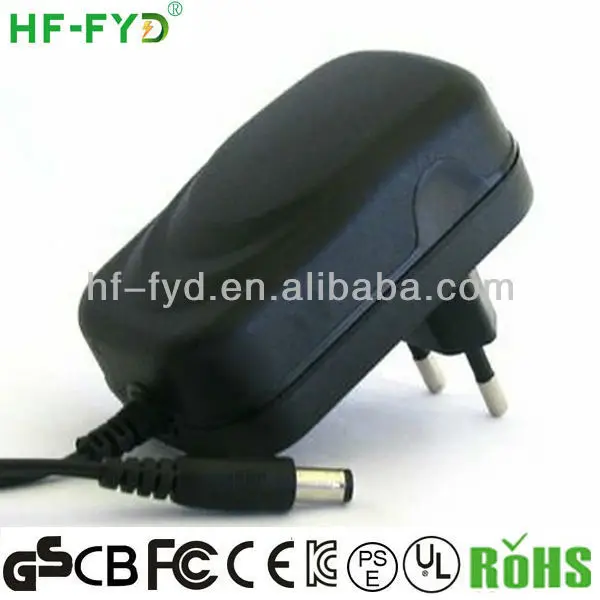

1. AC DC plug optional, as you want.

2. With short circuit, over-voltage, over-current and overload protection.

3. Compact size, easily portable

4. 100% full-load burning tests

5. High efficiency, low Power consumption

6. soft-start current can reduce the AC input impact efficiency

7. Safety Approvals: CE, FCC and others

8. Good quality, 2 years warranty.

Usaged guide



1.insert the AC adapter prongs fully into the wall outlet.

2.Regmove he AC adapter from the wall outlet when it is fully charged or not in use

After service



This product can be repair within one year for any defects or irregularities caused by the factory.

Welcome OEM or ODM order

You can contact me anytime online, with your detailed requirement.  I will give you our best price as soon as possible.



AC Input



AC Input Voltage.............100~240V AC 47~63 Hz



Inrush Current..............<30A(AC 240V  at 25°C)



input Current Limiting..............<2.5A(under min AC input and full load)



Efficiency..............>80%



DC Output



DC Voltage Regulation



Parameter	Line Regulation	load Regulation	Cross Regulation
V1:9V	±5.0%	±5.0%	N/A



DC Output Current



Parameter	Min Current	Rate Current	unit
V1:9V	0.1	1.0	A



Output Ripple & Noise.............  50 mVp-p@ 25 degrees C



Output Dynamic Load Response



Dynamic Load	DC Voltage Regulation
50%~100%~50%	±10%



Overshoot at turn-on/ turn-off.............<10%



Protection Function



SCP...........<0.1 ohms



OCPlimits.........6A



Timing



Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)



Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)



Environment Requirement



Working temp...........0°C~ 40°C



Storage temp Range..........-10°C~ +85°C



Working humidity..........25%~90% relative humidity (Non- condensing)



Storage humidity Range..........10%~90% relative humidity (Non- condensing)



MTBF............ 50K hours (25°C , Full load and rated voltage input)



Product Safety Requirement



Standards............Meet IEC60950-1standard requirement



Leakage Current.............not exceed 0.25mA at 220Vac/50Hz



Insulation Resistance...........≥50MΩ ,500VDC



Dielectric Strength Testing



100%Hi-pot  test



Item	Specification		Remark
Primary to Secondary	1.5KVac	<5mA	No arcing No broken
Primary to P.G	N/A	N/A
