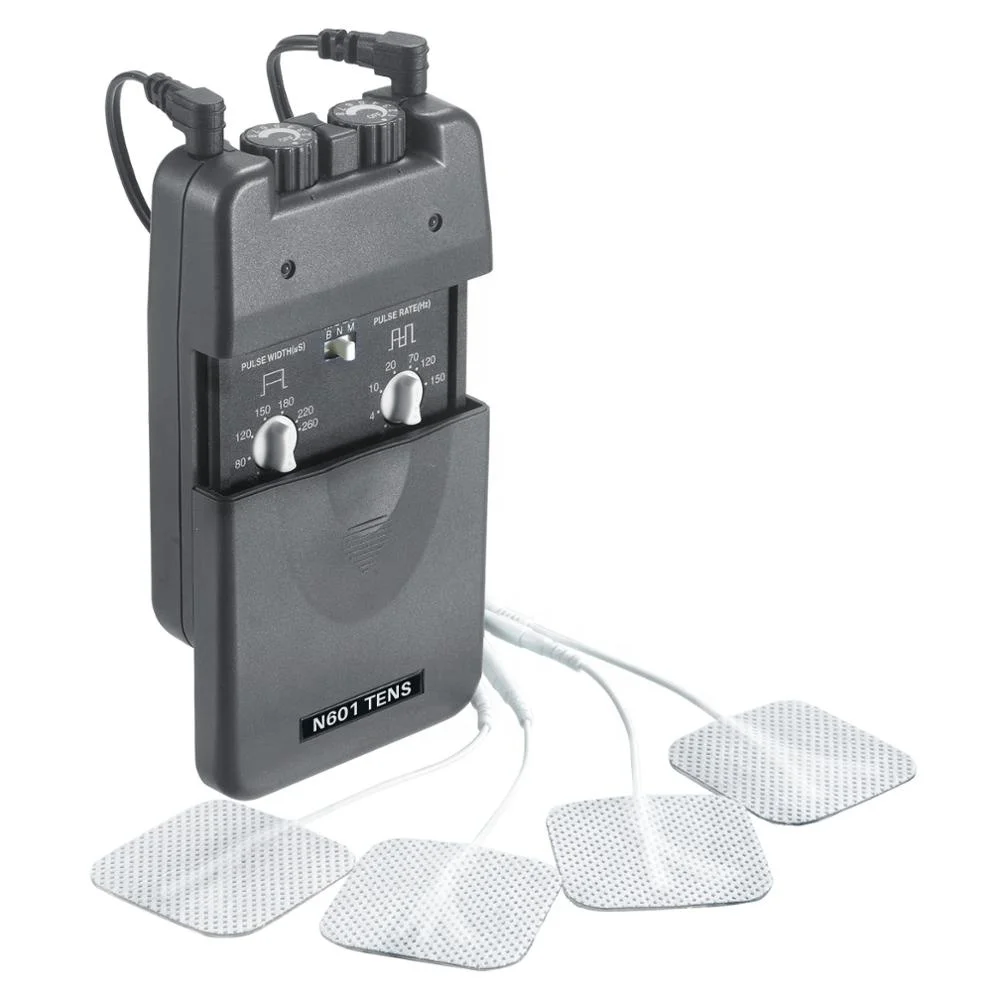

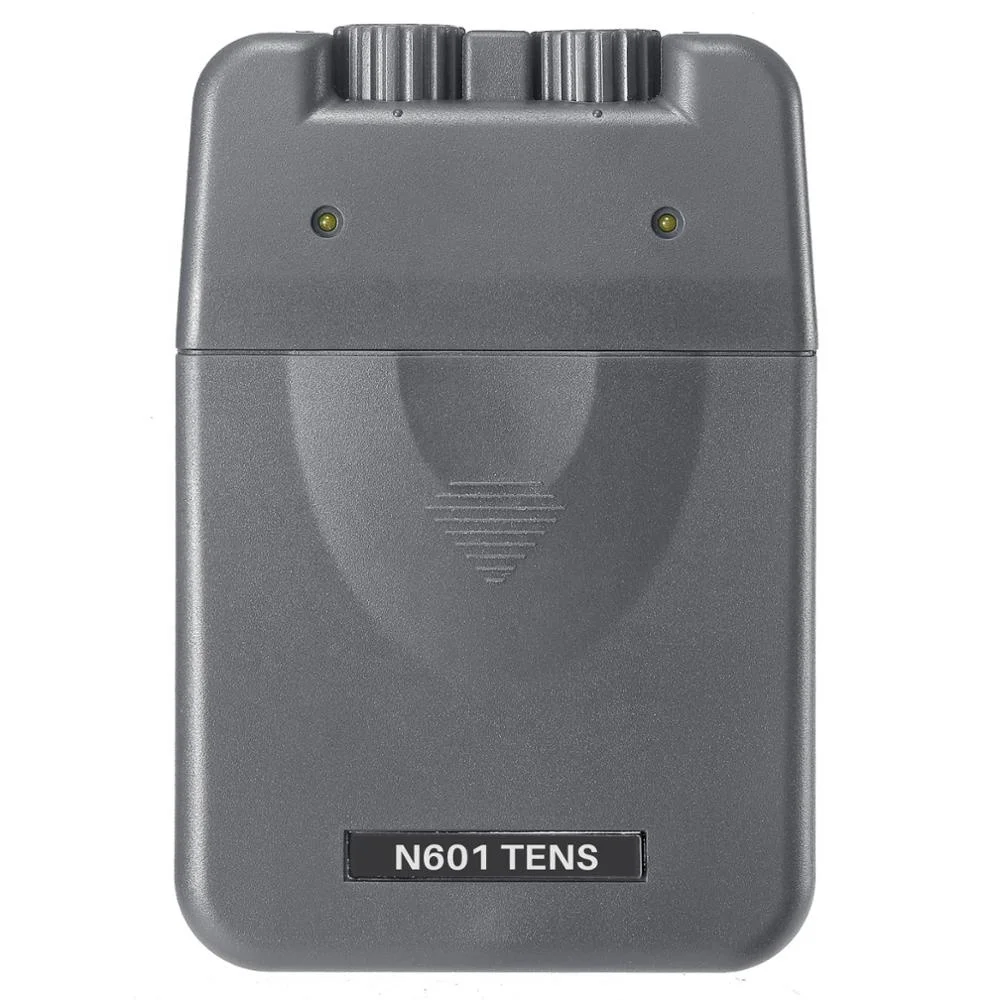

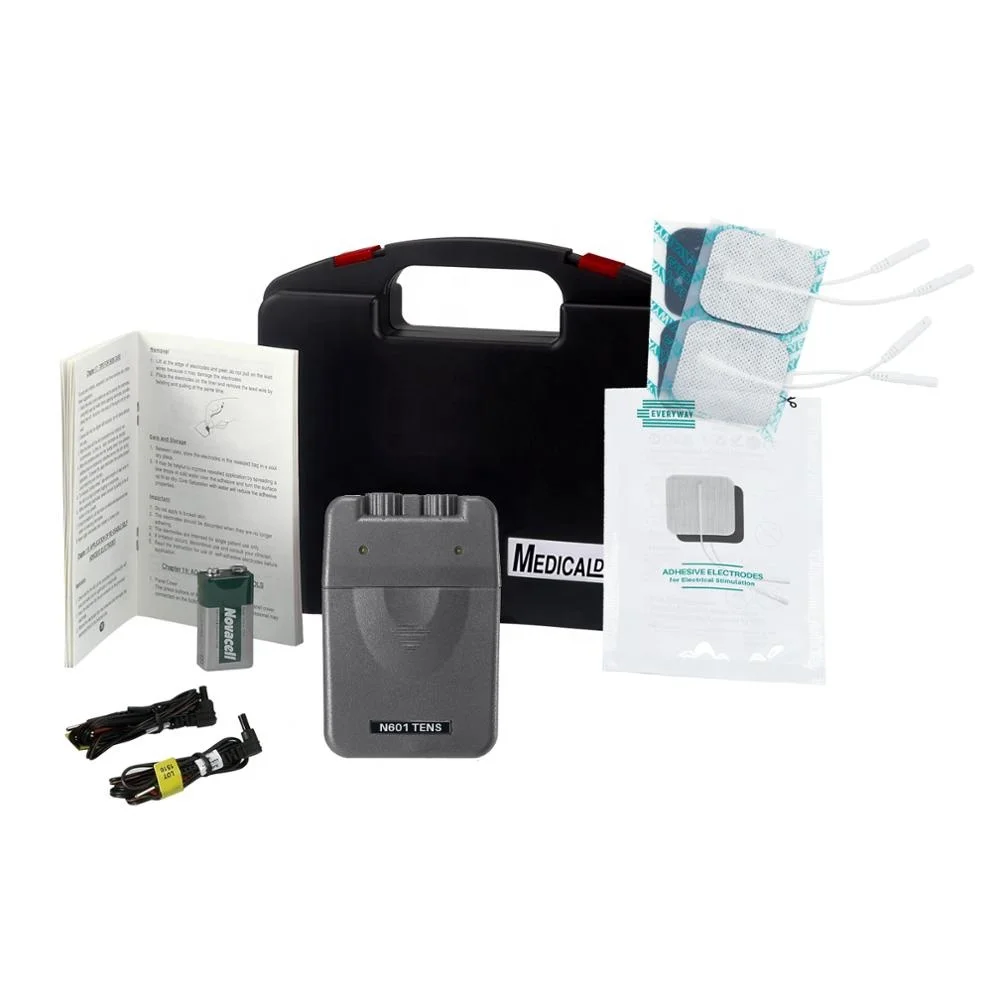

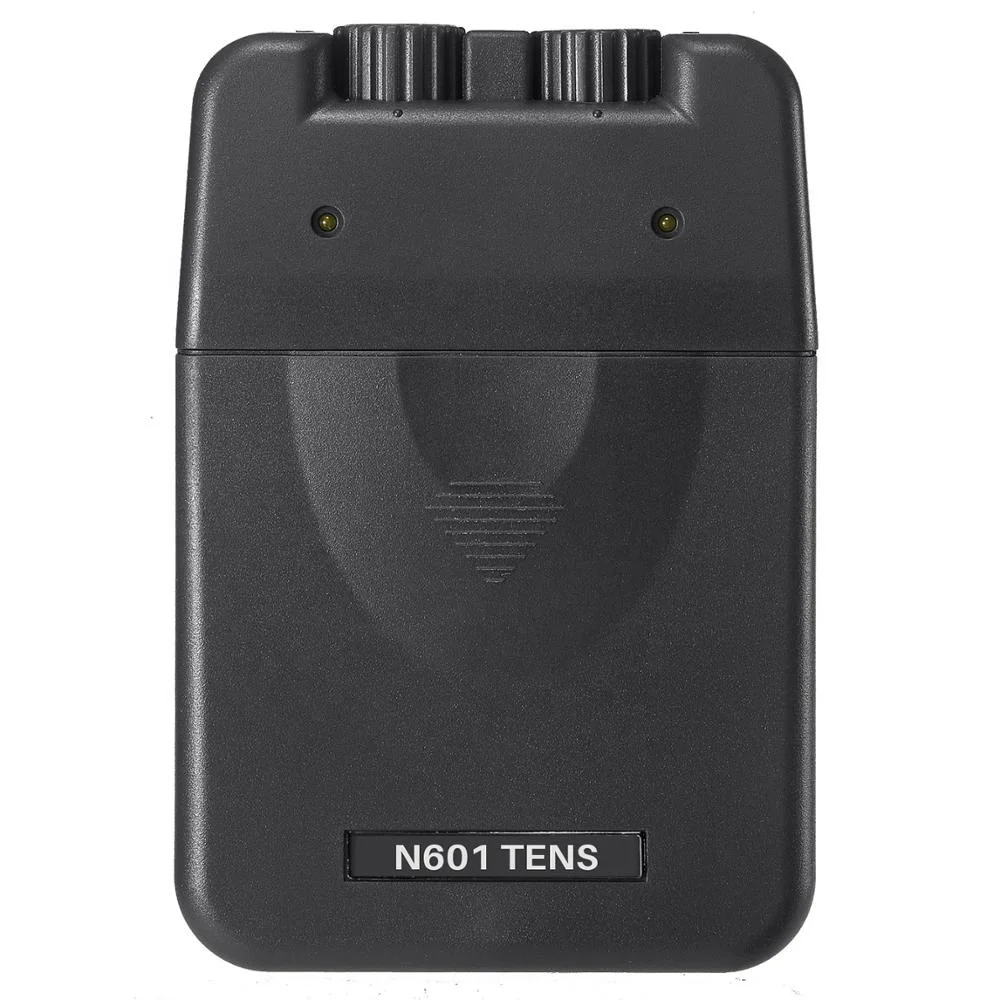

N601 physiotherapy equipment tens with pads

Share on (722957757):


Price:$19.50 - $22.50

Quantity:


Product Overview

Description



Product Overviews





What is TENS ?


            TENS: "Transcutaneous Electrical Nerve Stimulation"- a safe, non-invasive, drug free method of pain relief used by Physical Therapists and professional Doctors for over decades. By delivering stable pulses to the skin to stimulate nerve fibers, Tens unit could effectively block the pain signal to people’s brain. At the same times, increases natural endorphins, which is a natural pain reliever. In many cases, the reduction or elimination of pain lasts longer than the period of stimulation.


N601 – The Conventional Type of TENS with 3 Modes for Pain Management!!


            N601 Analog TENS is a traditional TENS machine which uses analogue signal. The setting is easier than the digital ones, and the price is very cost effective for new users to experience their first pain relief treatment. Looking for a Non-Invasive, Non-Drug method for controlling pain, Just Choose N601 as your Pain-Fighting Partner!!





 N601 (2).jpgN601 (1).jpg

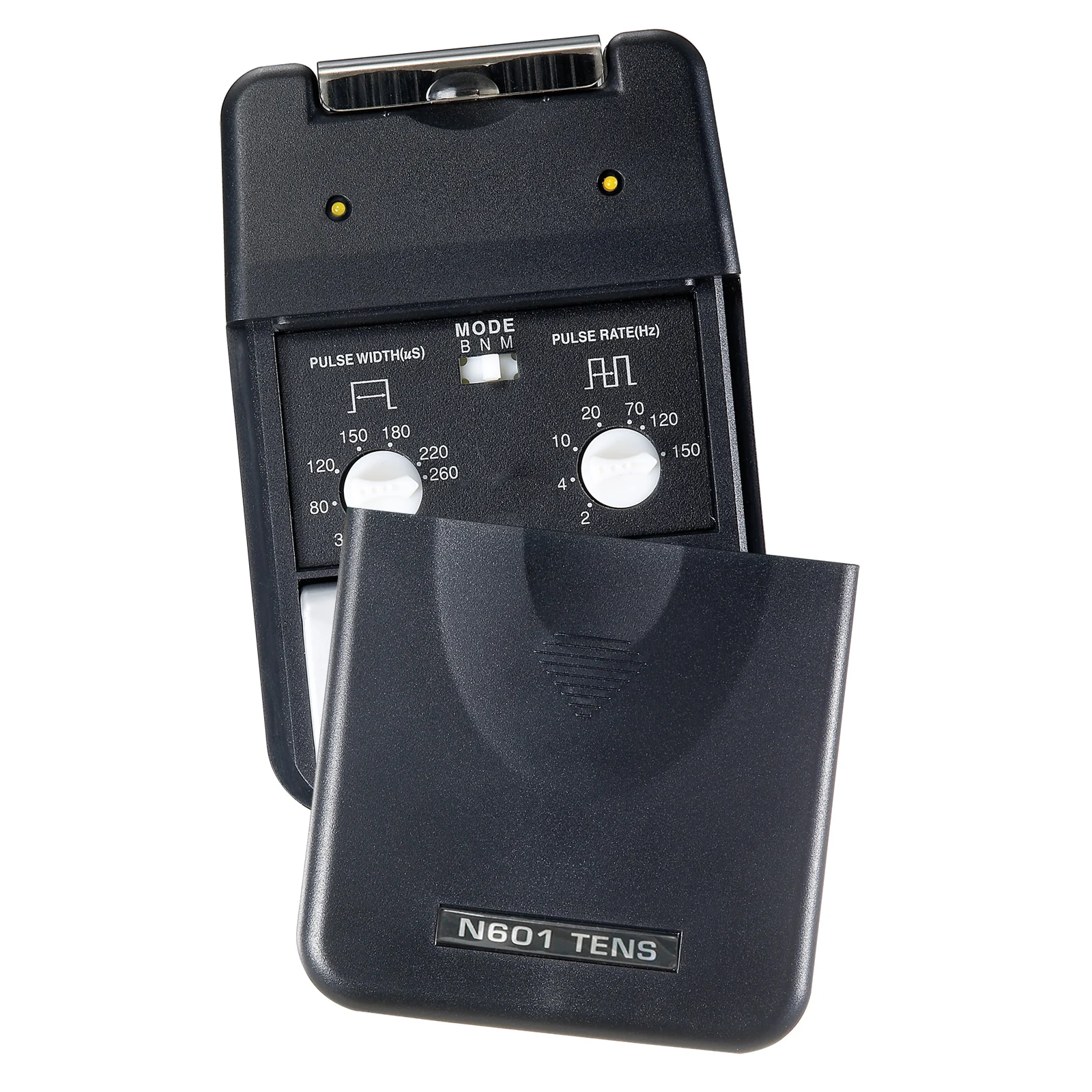

            N601 is a pulse generator that sends tiny electrical impulses through the electrodes to the painful area of body and reach the nerves causing pain. The device is provided with two controllable output channels, each independent of each other. The electrode pads can be connected to each output channel. The electronics of N601 create electrical impulses whose intensity, pulse rate and pulse width could be altered by simply twisting the knobs. Dial controls are very easy to use and the slide cover prevents accidental changes in the setting. With portable size, it can be used in the office or travel on the go.





*510K approved for OTC use and safety regulations (IEC60601-1, IEC60601-1-2 EMC) certified.


*No prescription needed. Safe, All-Natural, Drug Free and Long-Lasting Pain Relief.








Key Features


5 TENS Modes: Burst, Normal, Modulation, Strength Duration 1, Strength Duration 2





Normal Mode (N Mode) Provide most steady and consistent massage session.


Offers the practitioners complete control over all the various treatment parameters of the instrument.





Burst Mode (B Mode) Intimate tapping techniques of massage


Is analogous to the Low Rate TENS technique except the low frequency individual pulses are replaced by individual “bursts” of 7-10 individual pulses. It is thus a combination of Conventional TENS and Low Rate TENS. In Burst Mode, the treatment frequency is fixed by the instrument and is not adjustable with the Frequency Rate control.





Modulated Mode (M Mode) Gently cater to your muscle with gradual and frequent waves.


Attempts to prevent nerve accommodation by continuously cycling the treatment intensity. When using Modulated Mode increase the intensity only when the unit is at the maximum intensity of the modulation cycle. If the intensity is increased during a low intensity period of the cycle, the patient may turn up the control very slowly, so that they may feel the intensity any higher





Specifications

















































Model Name



N601



Channel



2 Channels



Stimulation Type



TENS



Pulse Amplitude



0-80mA peak to peak into 500 ohm load



Size



9.5cm (L) × 6.5cm (W) × 2.35cm (H)



Weight



Approximately 110 grams (battery included)



Modes



Burst / Normal / Modulated



Pulse Rate (Hz)



2~150 Hz (adjustable)



Pulse Width (μs)



30~260μs (adjustable)



Charging Type



9V Battery






Company Information





paste-pic-dp_uuid_q1sqy





                Everyway Medical Instruments, based in Taiwan, was established in 1991. Our company has been in the medical field for nearly 30 years and we are approved by ISO 13485,  and DNVOur main products are TENS, EMS, Electrode Pads, Probes, Conductive Garments, Treatment Tables and Traction Systems. All of our products are exported to the USA, Europe, Australia, the Middle East, UK and other 70 countries.


            The strict quality control system was implemented in each link from materials entering, production to finished product leaving plant, which could guarantee the quality effectively.


            The objective of EVERYWAY MEDICAL is to make people live a healthier life and embrace the world without pain. We’ll make every effort to manufacture meticulously, blaze new trails constantly, and provide the best products and service to our every partner.





Other Products from Everyway Medical:







            Everyway Medical has been dedicated to the product development and innovation. In order to reduce the lead time of the production and maintain the quality, we implemented automatic control for the electrodes production and assembling, for our TENS and EMS units, we adopted one stop production line to reduce the production lead time.


191016amazon-02







Certifications


191016amazon-04





Trade Show


Trade show.jpg





Buyer Feedback


191016amazon-01








FAQ


Q: Are you a manufacturer or a trading company?


A: We’re a manufacturer based in Taiwan.





Q: What’s your average lead time of production?


A: For standard order, the lead time would be around 2 weeks because our factory’s policy is "make-to-order"(MTO).





Q: Do you have MOQ policy ?


A: Yes, we have different MOQ for different categories as following.


TENS/EMS - 20/32 sets based on different models


Probe : 100 sets


Conductive Garment :100 sets


Electrode Pad : 400 packs


Treatment Table : 1 set


Traction Unit : 1 set


Lead Wires : 200 packs





Q: How do you assure the product quality?


A: Our company has been in the medical field for nearly 30 years and we are ISO 13485, CE approved. Moreover, we have three steps of quality checkpoints before we ship the goods.





Q: Do you attend any medical trade show?


A: Yes, we would attend MEDICA in Dusseldorf, Germany every year and our booth number is 5D/38. Feel free to meet us there.
