160A Longitudinal Submerged Arc Welded Steel Pipes Welder

Product Overview

Description

160A Longitudinal Submerged Arc Welded Steel Pipes Welder

Model:TIG160A/TIG200S/TIG200A


Mainstay invented tig welding machine for many years, and we've never stopped developing ways to make the TIG welding better and easier.

Features:

1.small volume,light weight,it is the ideal portable double use welding machine
2.high frequency welding arc starting and reliable arc starting performance
3.uniform and nice welding surface
4.excellent small current arc starting performance,sufficient stable welding current
5.wide working voltage range,strong resistance to power fluctuation ability.

Applications:

This new TIG-160A argon welding machine are widely used in  stainless steel,copper,brass,decoration,hardware and so on thin plate welding.

Technical Data:

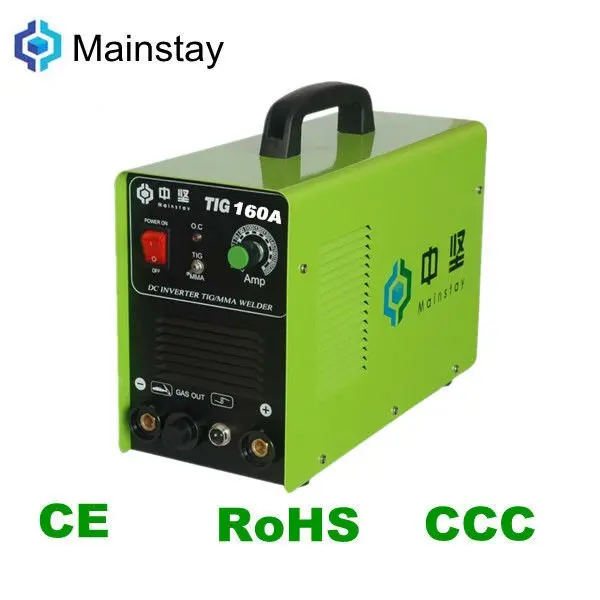

Model	TIG-160A
Rated input voltage	AC220V±10%,1ph 50/60Hz
Rated Input Power	5.3KW
Rated output	160A/18V
Range of welding current regulation	10-160A
No-load voltage	56V
Duty cycle	60%
Efficiency	85%
Power factor	0.93
Outer covering protection rank	IP21
Insulation grade	B
Outlook size	371x153x232MM
Weight	8KG
Striking the arc way	HF
Rod diameter	0.3-5.0MM



Standard parts
welding torch,earth clamp,welding cable



Options
Argon meter

Our Service:

1.with 1 year warranty for this tig welding machine.
2.The average of our welding machine lasts between seven and eight years.If there were problems in seven days,we replace the new one for you.

Accessories



High quality components

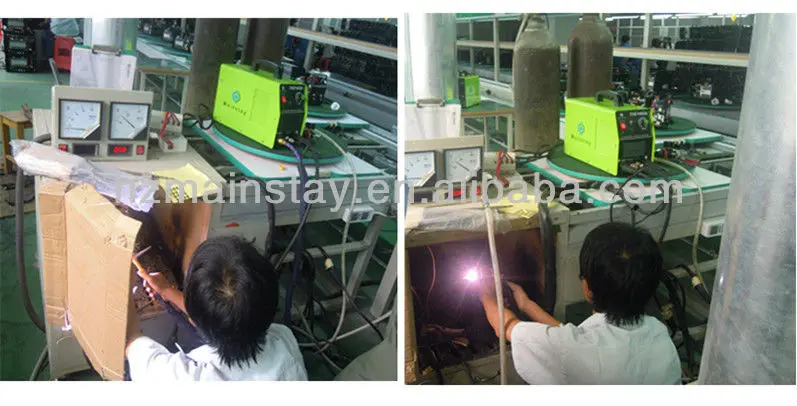

Test before shippment
