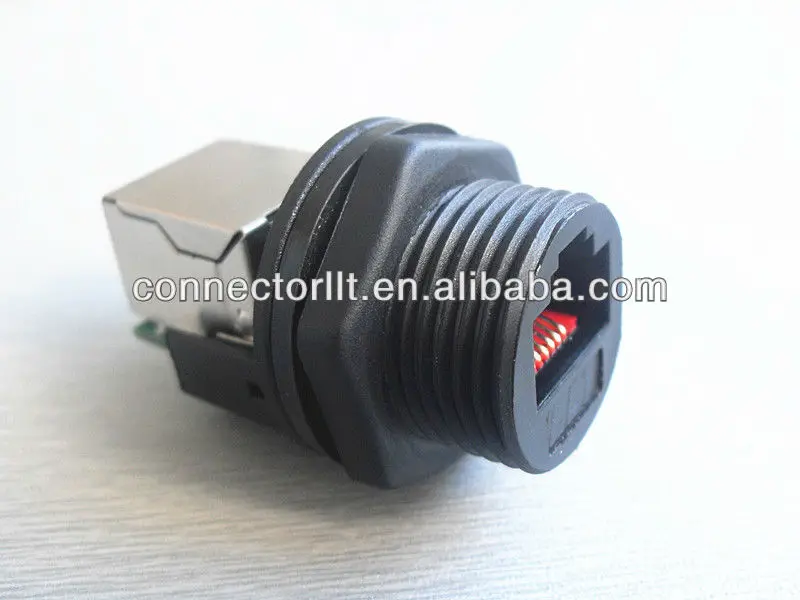

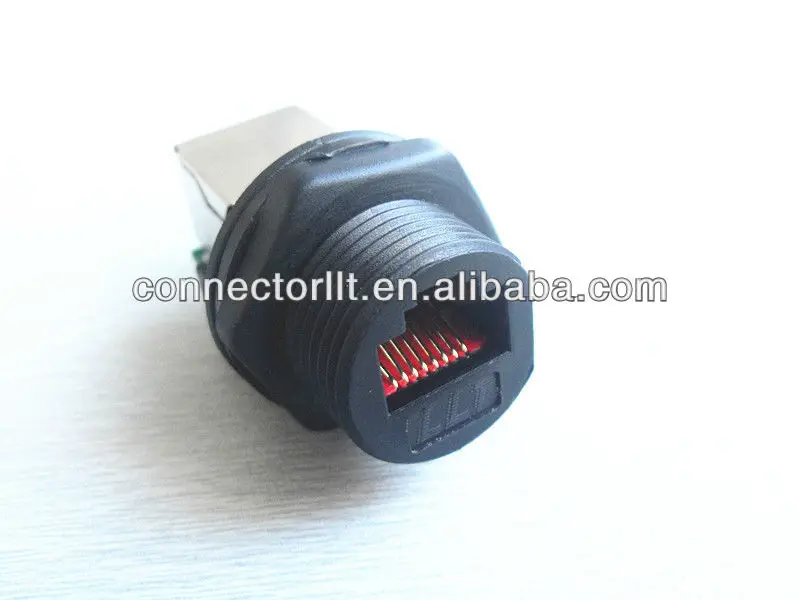

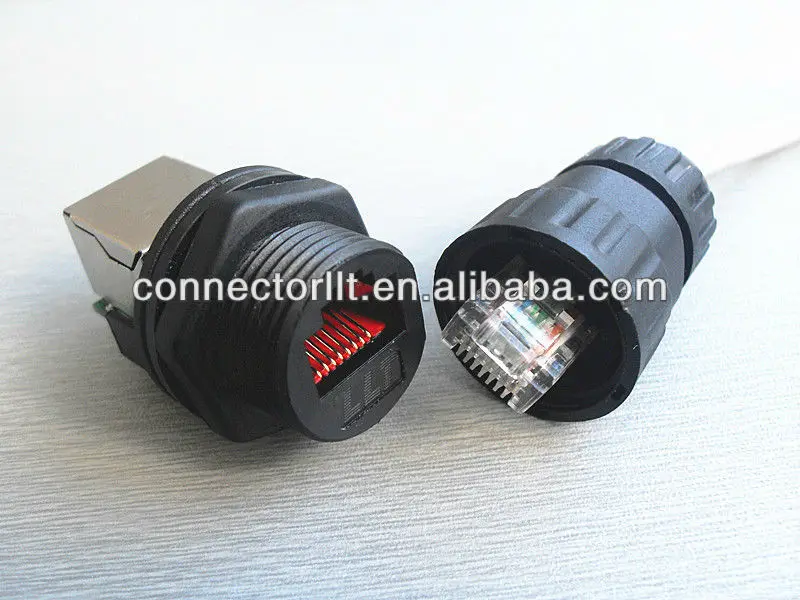

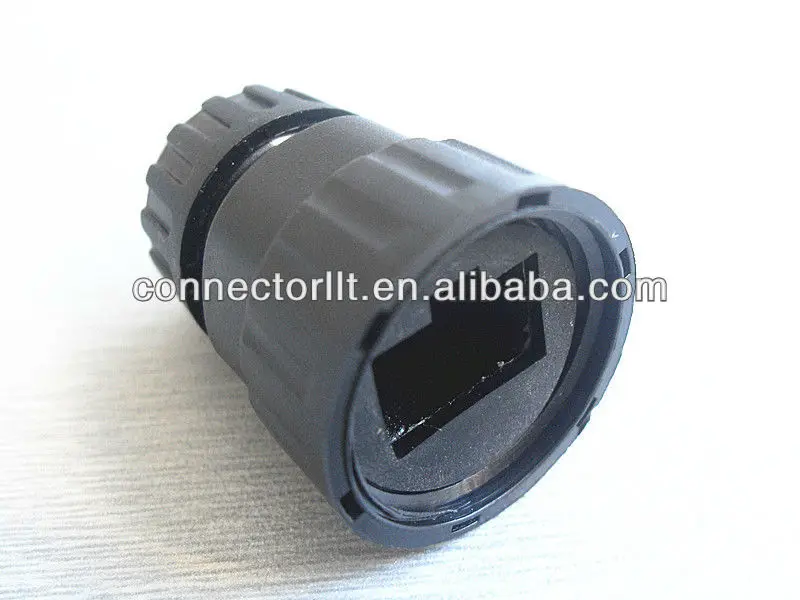

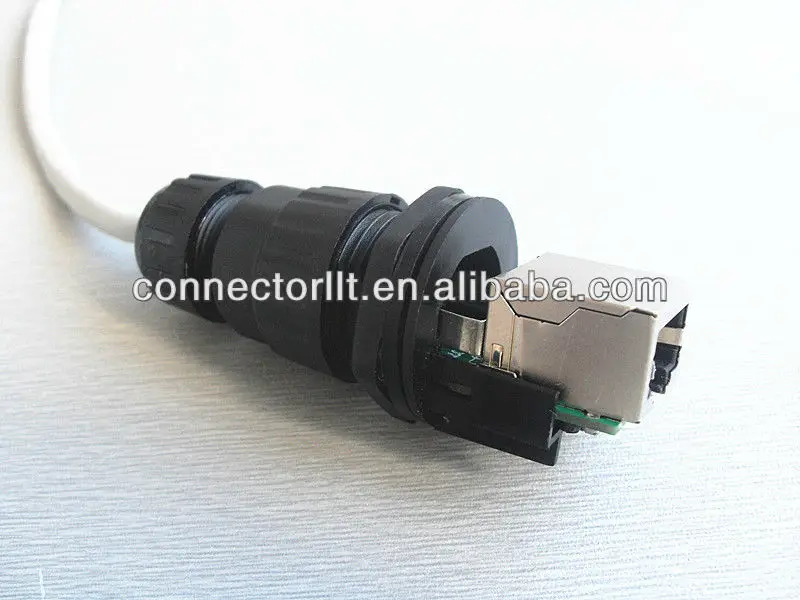

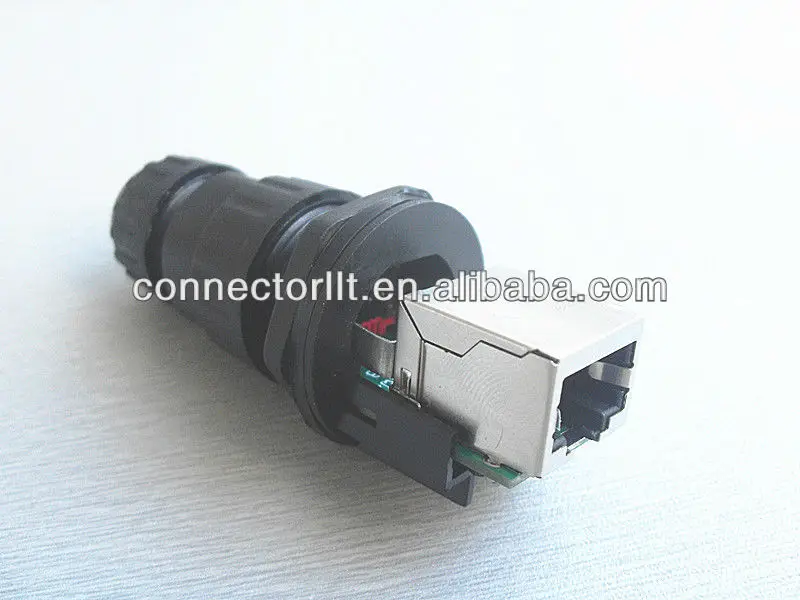

ip67 8 pin assembling panel female connectors rj45

Product Overview

Description



RJ45 Panel Style Female Waterproof Connector Parameters
1	Model No.	LLT-M19-RJ45
2	Material	Connector Body	Nylon(PA66)+GF UL94V-0 1/16''
3		Contact numbers	8pins
4		Sealing	Silica Gel
5	Property	Connector Type	Panel Fronted Mounted
6		Connector Gender	Female
7		Contact Resistance	<10mΩ
8		Insulation Resistance	1000MΩ at DC 500V
9		Breakdown Voltage	1.5KV/1minute
10		Temperature Rating	-25°C~+105°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP67
13		Cable Max. Diameter	10mm

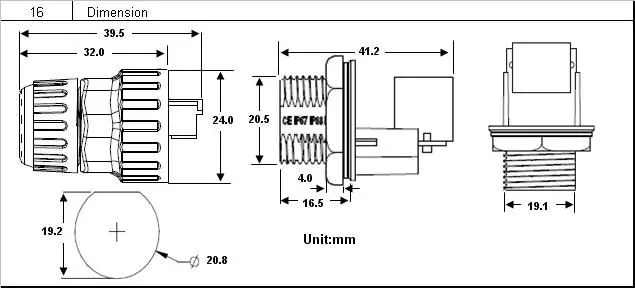

14		Panel Cut-out	19.2mm-20.8mm
15	Certificate	CCC; CE; ROSH
